Craftsman
Walk-Behind Mower

Model # 131910250 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 131910250 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Wing Nut 67504
#2

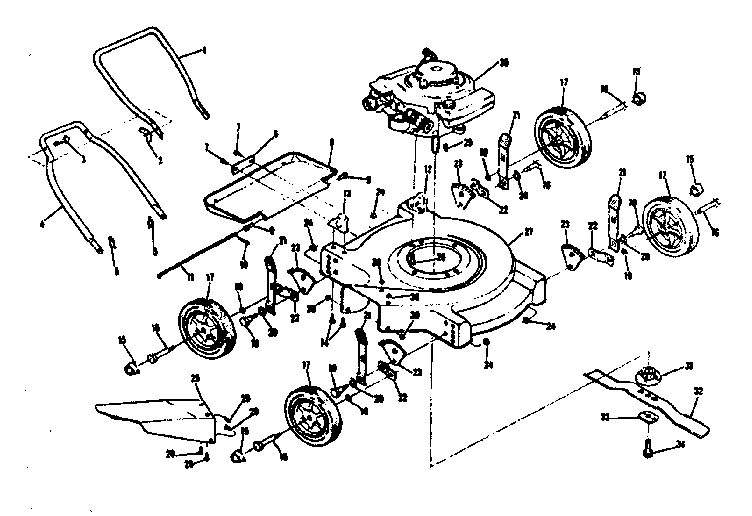

Replacement parts diagram

Wing nut

Part #67504

Replaced by #532183724

?
Manufacturer substitution
This part replaces 67504. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bolt 58714
#3

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Bracket Assembly 62886
#13

Replacement parts diagram

Bracket assembly

Part #62886

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62886. Substitute parts can look different from the original.
$37.31
In Stock
Cotter Pin 455563
#5

Replacement parts diagram

Cotter pin

Part #455563

Replaced by #532051793

?
Manufacturer substitution
This part replaces 455563. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Screw 55187
#14

Replacement parts diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Bracket Support 62887
#12

Replacement parts diagram

Bracket support

Part #62887

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62887. Substitute parts can look different from the original.
$37.31
In Stock
Washer 62335
#20

Replacement parts diagram

Washer

Part #62335

Replaced by #532062335

?
Manufacturer substitution
This part replaces 62335. Substitute parts can look different from the original.
$13.69
In Stock
Replacement Bag 9-80404

#NI

All parts diagram

Replacement bag

Part #9-80404

The manufacturer no longer makes this part, and there's no substitute part

Upper Handle 64932
#1

Replacement parts diagram

Upper handle

Part #64932

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 64761
#22

Replacement parts diagram

Mounting bracket

Part #64761

The manufacturer no longer makes this part, and there's no substitute part
