GE
Compact Refrigerator

Model # GMR06AAPBBB Official GE refrigerator - p series

Here are the diagrams and repair parts for Official GE GMR06AAPBBB refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Refrigerator Power Cord (replaces Wr23x10049, Wr23x10077, Wr23x10242, Wr23x10311, Wr23x10316, Wr23x10369, Wr23x10370, Wr23x10371, Wr23x10540, Wr23x420) WR23X10300
#36

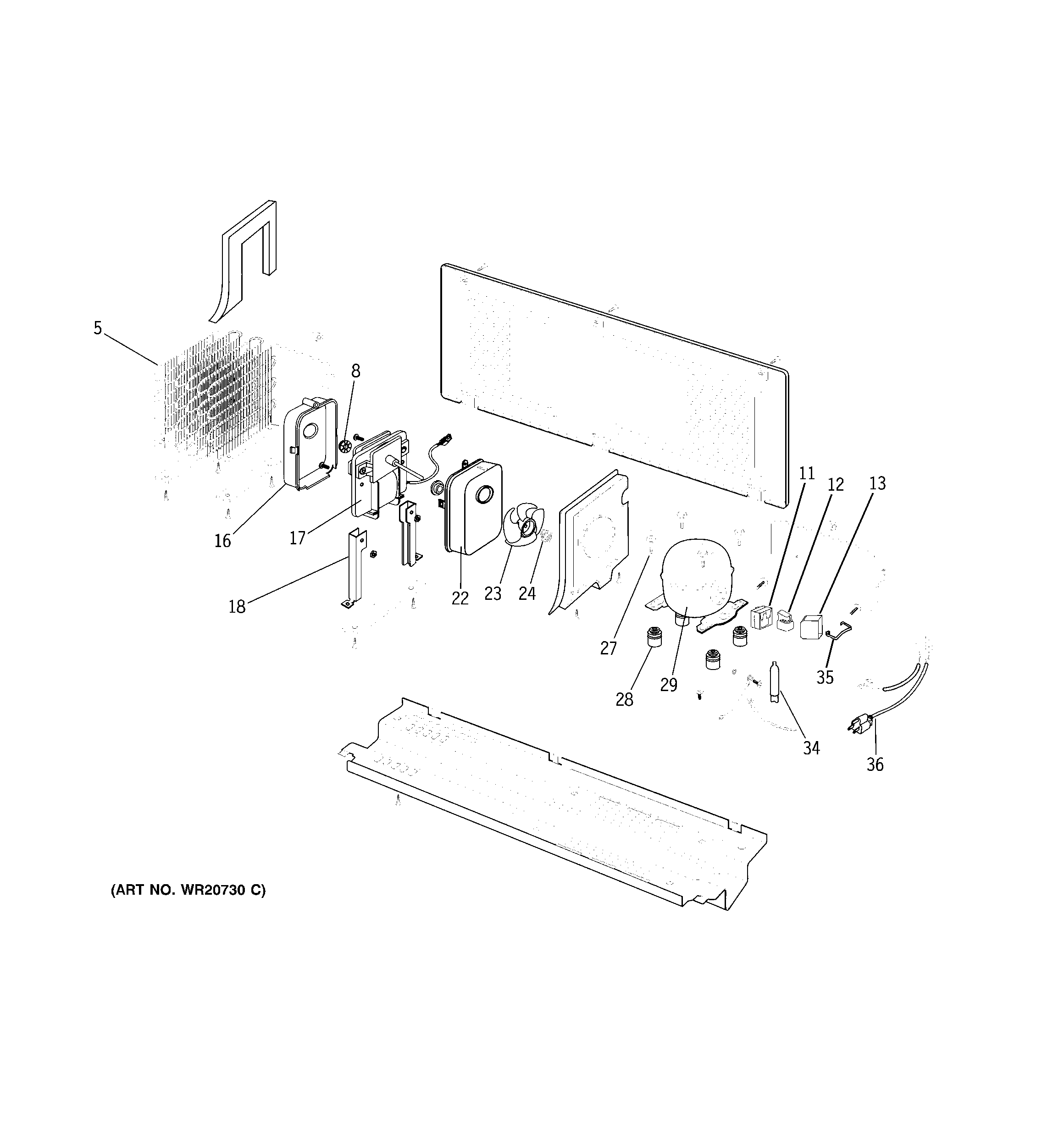

Unit parts diagram

Refrigerator power cord (replaces wr23x10049, wr23x10077, wr23x10242, wr23x10311, wr23x10316, wr23x10369, wr23x10370, wr23x10371, wr23x10540, wr23x420)

Part #WR23X10300

$22.68 |
21% OFF Phone Price : $28.68
In Stock
Dryer Filter WR86X0096
#34

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Evaporator Guard WR02X11643
#53

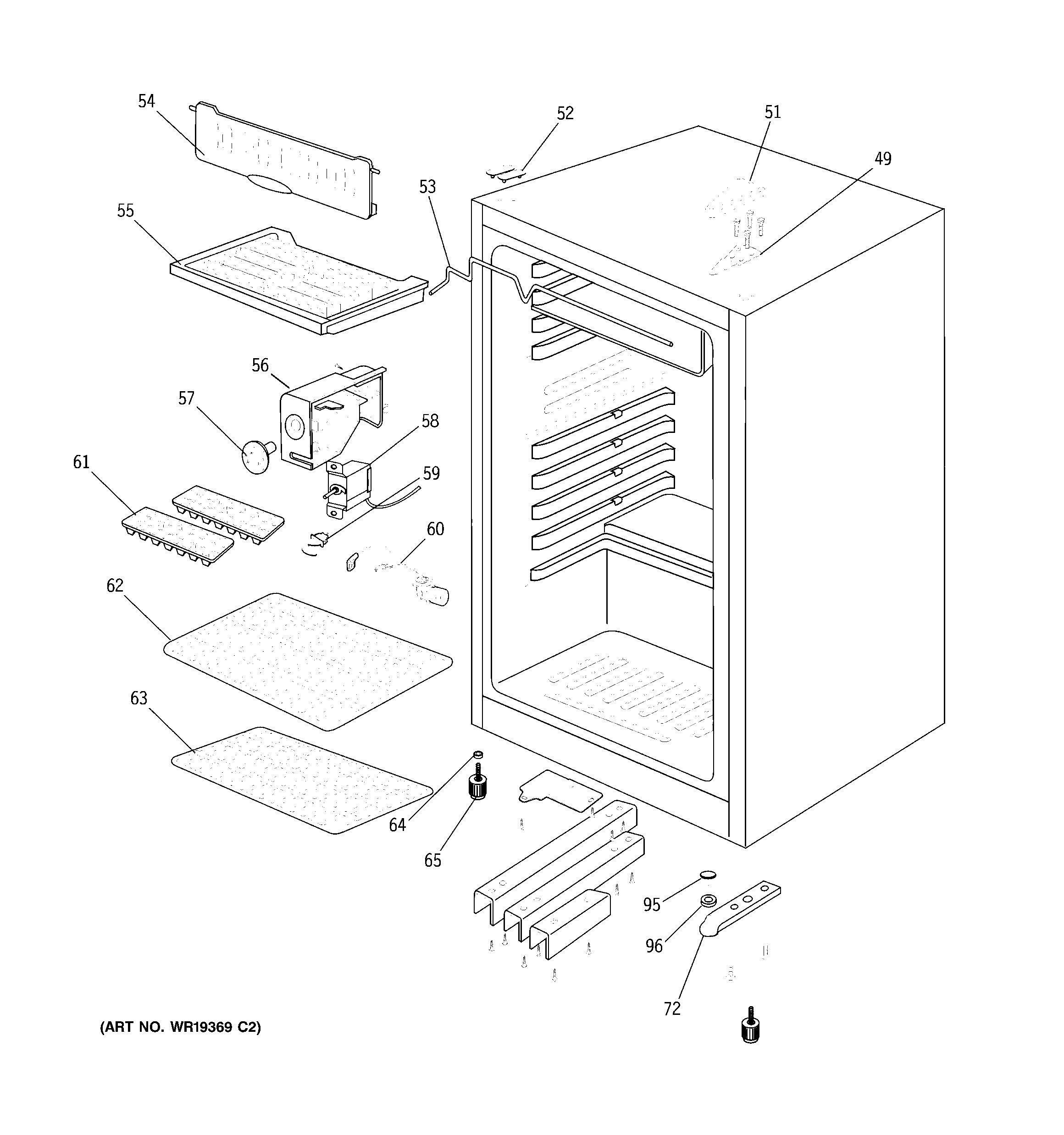

Cabinet diagram

Evaporator guard

Part #WR02X11643

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Fan Propeller WR60X10145
#23

Unit parts diagram

Refrigerator fan propeller

Part #WR60X10145

The manufacturer no longer makes this part, and there's no substitute part

Shelf-wire,l WR71X10531
#63

Cabinet diagram

Shelf-wire,l

Part #WR71X10531

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Grommet Fan WR02X11634
#8

Unit parts diagram

Refrigerator grommet fan

Part #WR02X11634

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Can Rack Guard WR02X11648
#85

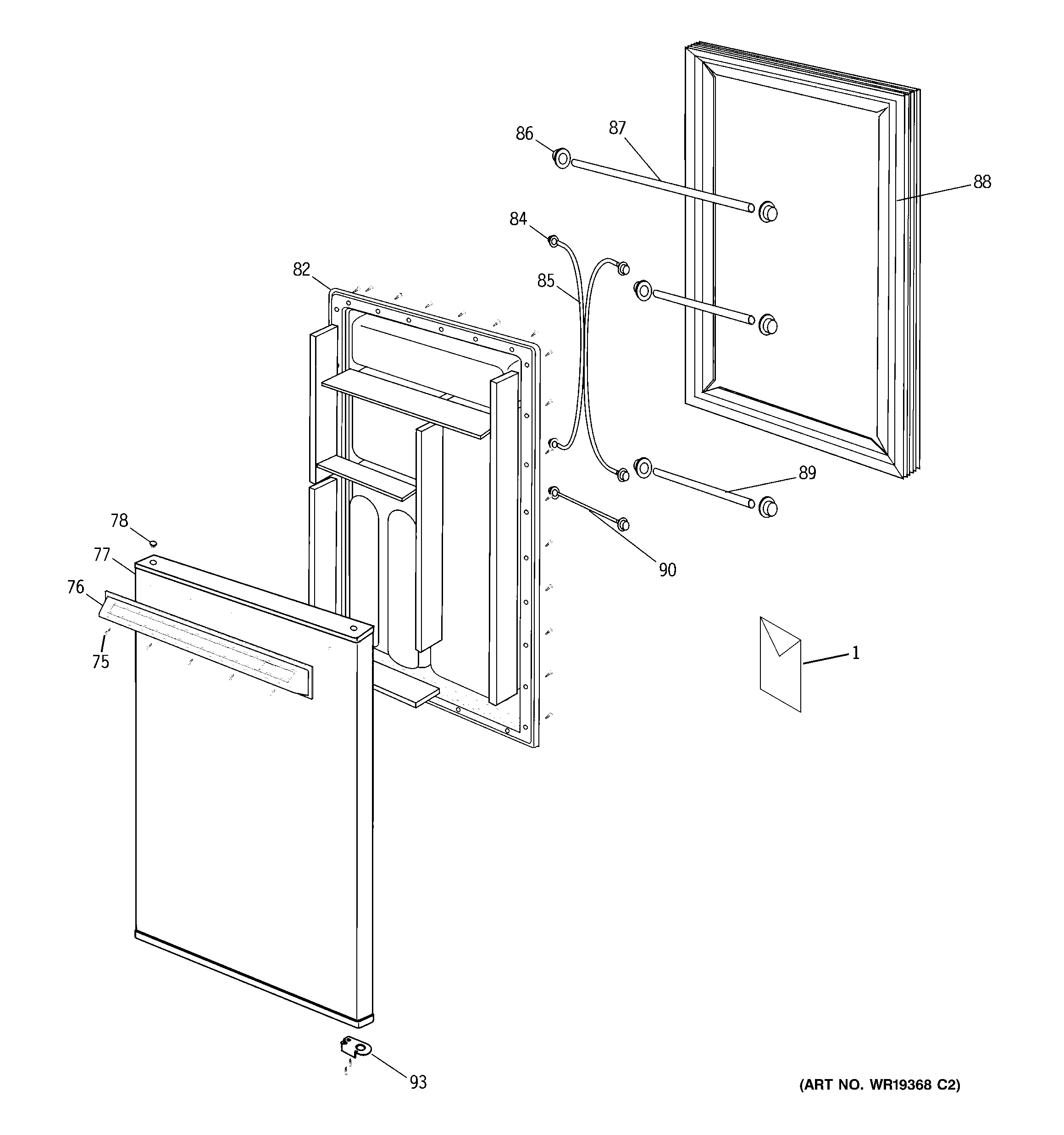

Door diagram

Refrigerator can rack guard

Part #WR02X11648

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Use And Care Manual 49-60249
#1

Door diagram

Refrigerator use and care manual

Part #49-60249

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Switch WR23X10340
#59

Cabinet diagram

Refrigerator door switch

Part #WR23X10340

The manufacturer no longer makes this part, and there's no substitute part

Grommet Cap WR02X11654
#52

Cabinet diagram

Grommet cap

Part #WR02X11654

The manufacturer no longer makes this part, and there's no substitute part
