Top-Mount Refrigerator

Model # GTS22ZBMARBB Official GE refrigerator

Here are the diagrams and repair parts for Official GE GTS22ZBMARBB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

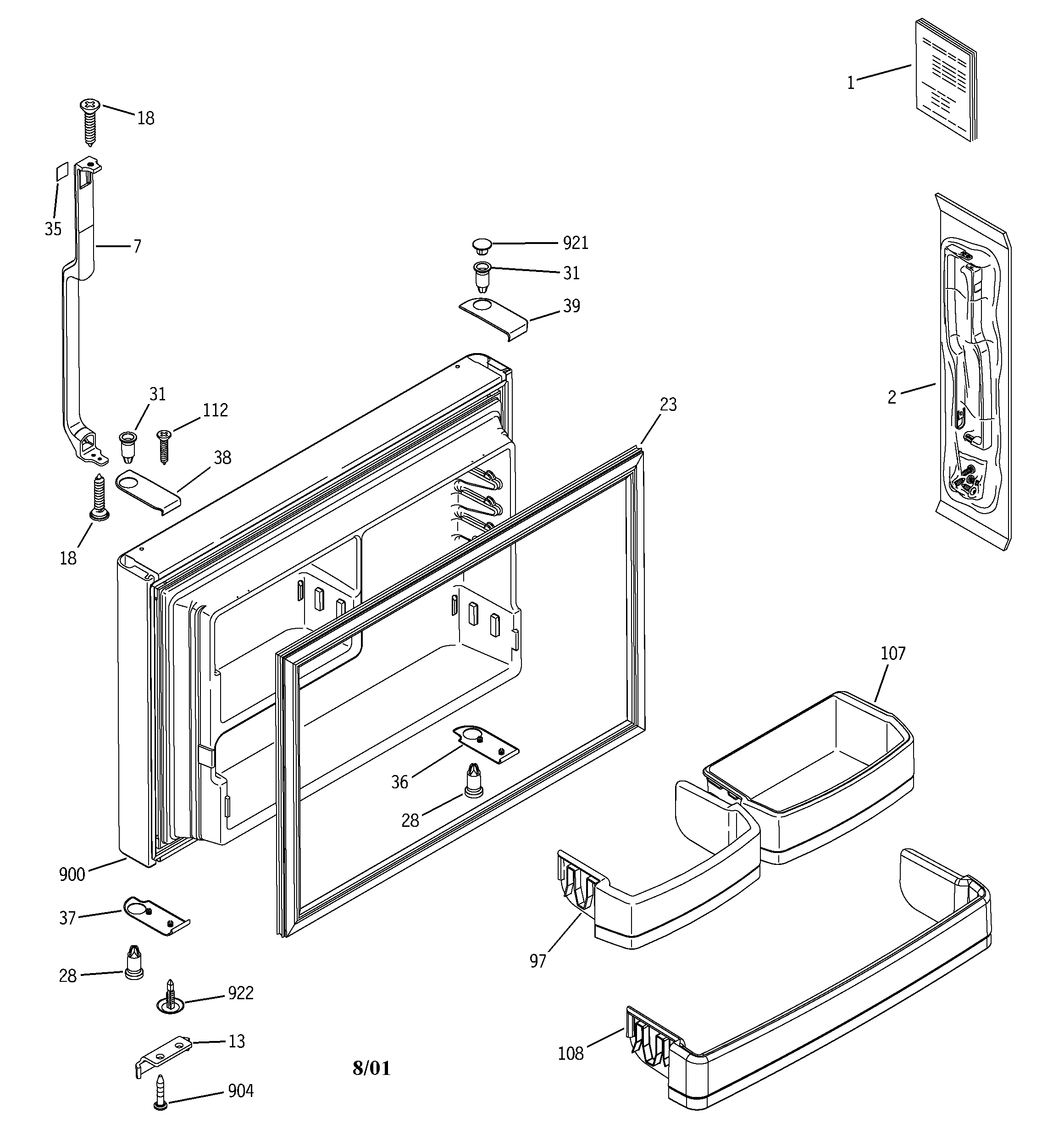

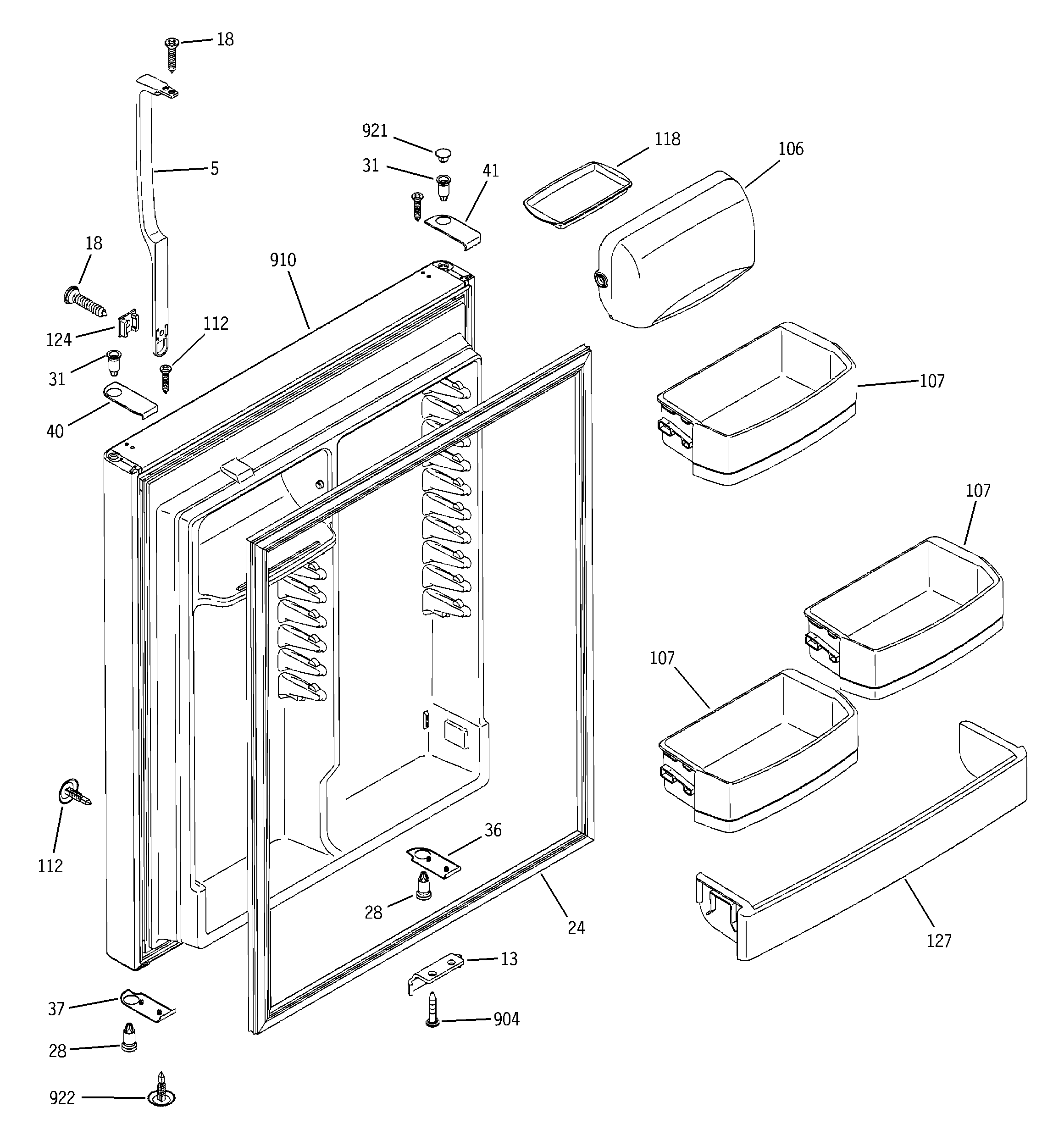

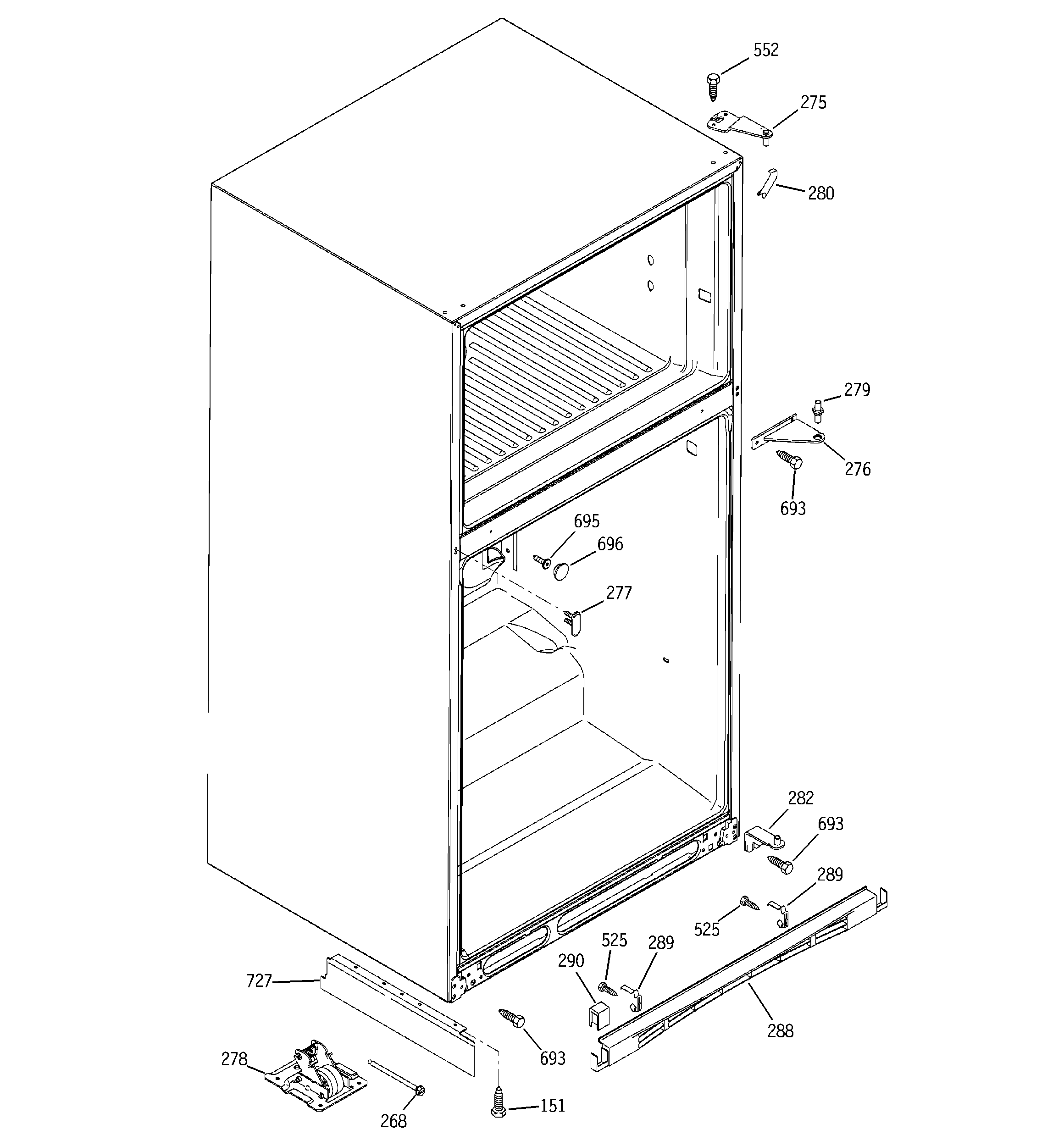

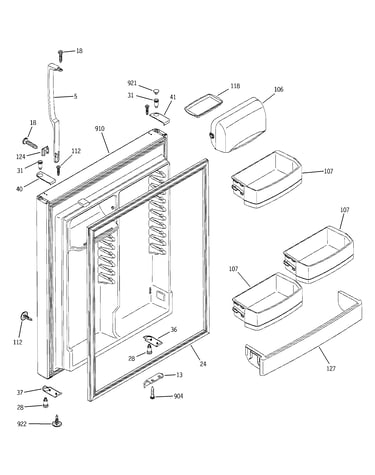

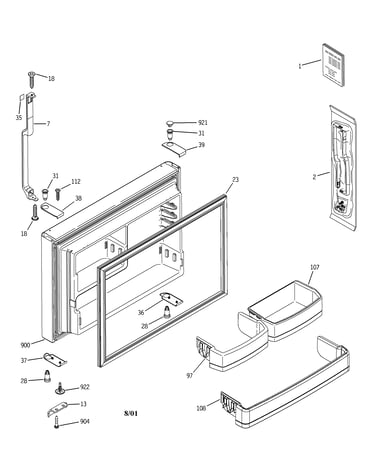

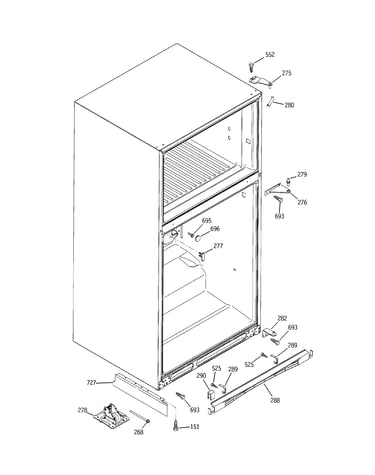

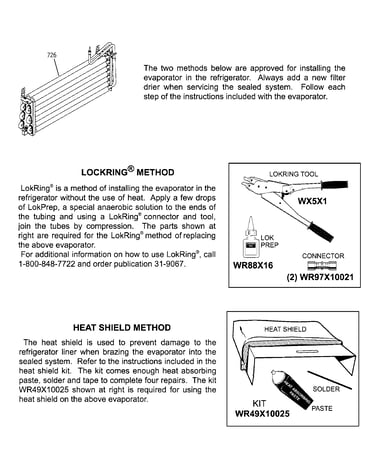

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Refrigerator Temperature Sensor WR55X10089
#605

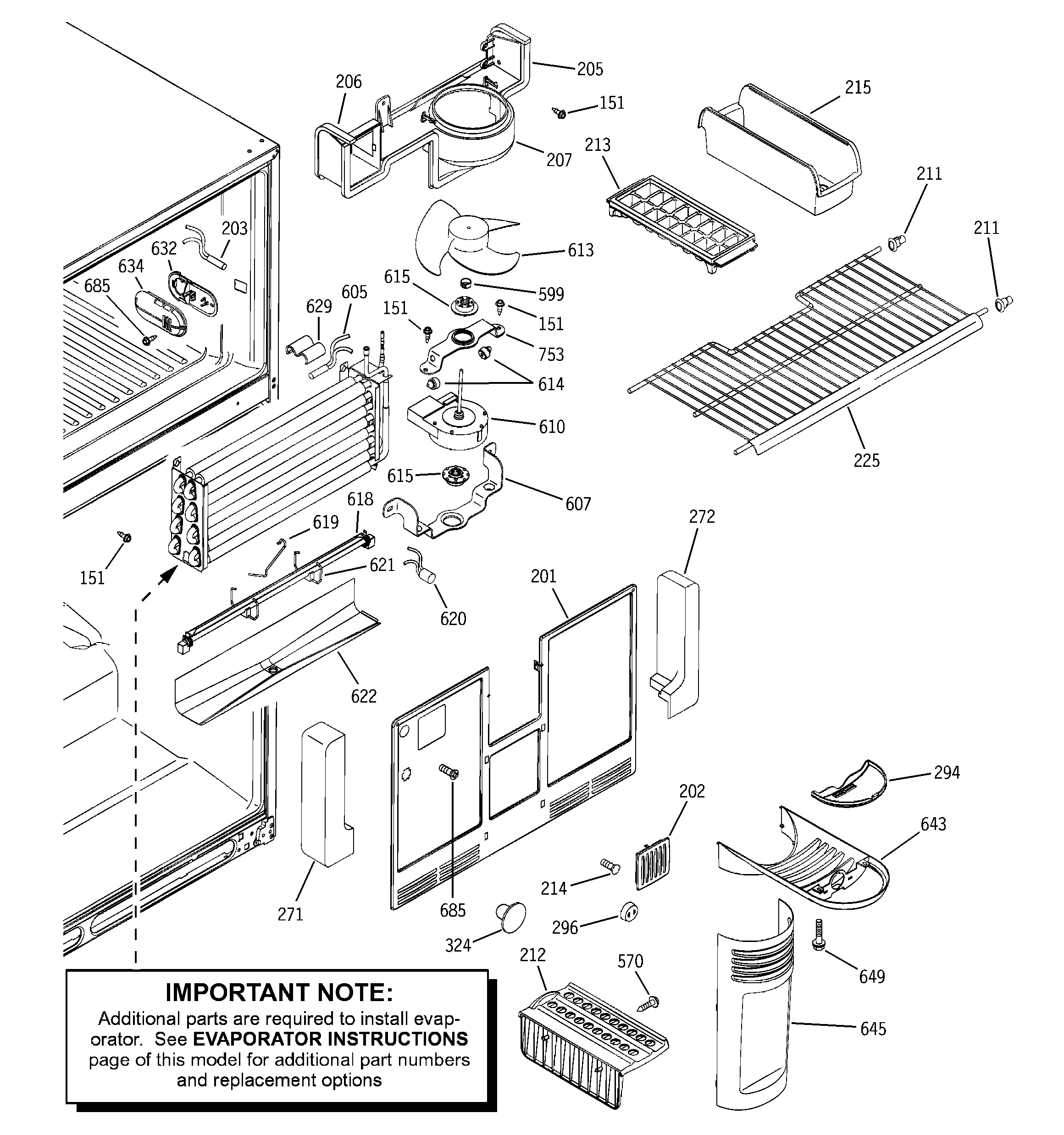

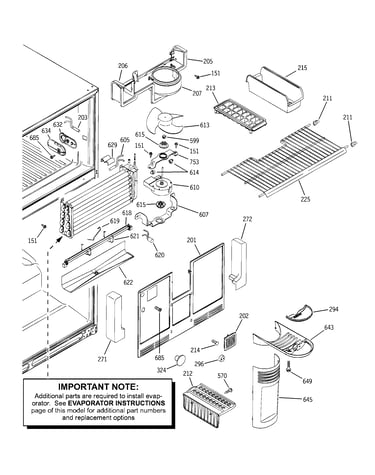

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10089

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10089. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10087
#635

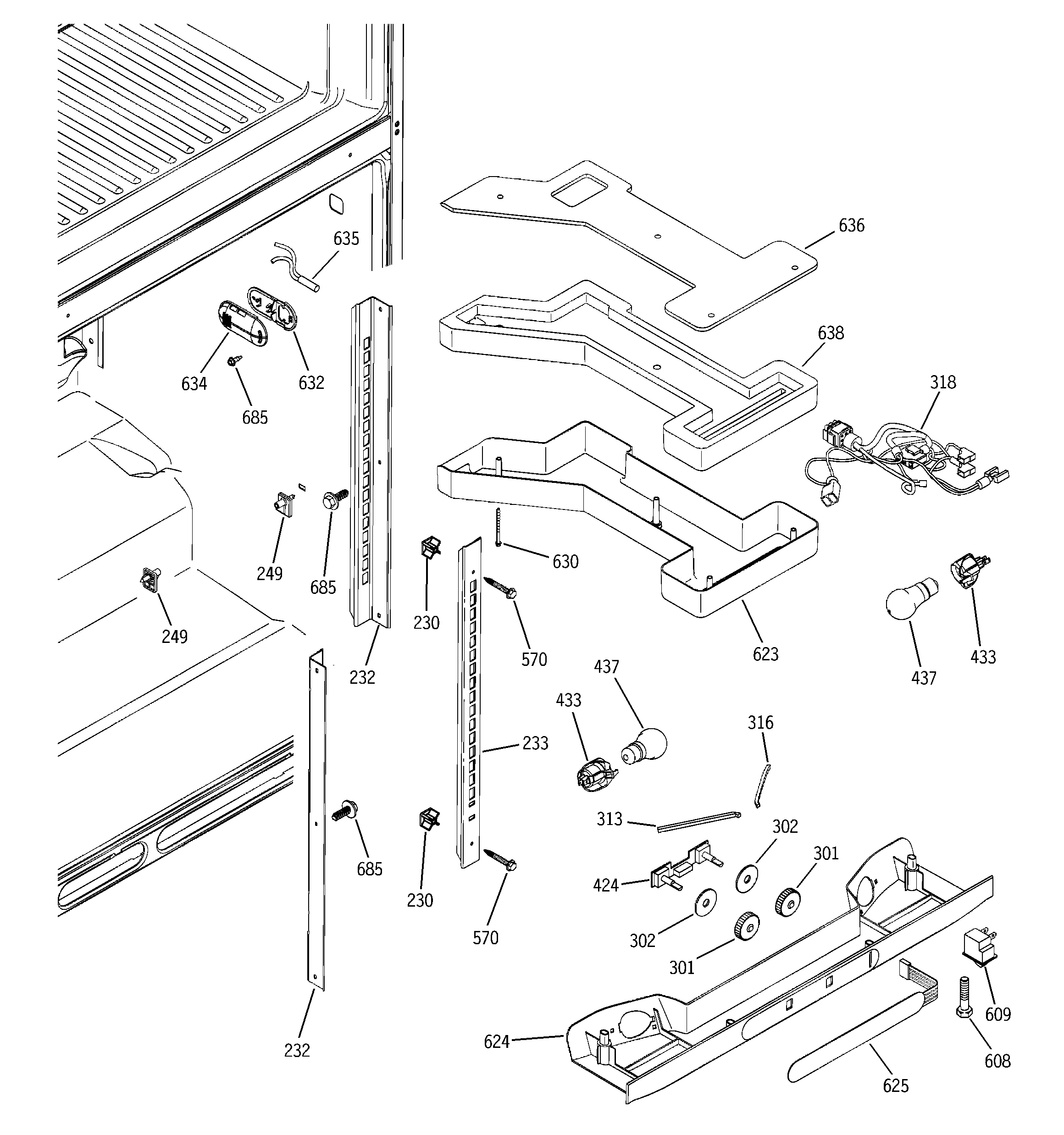

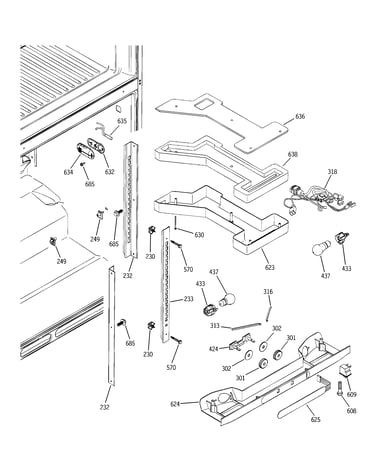

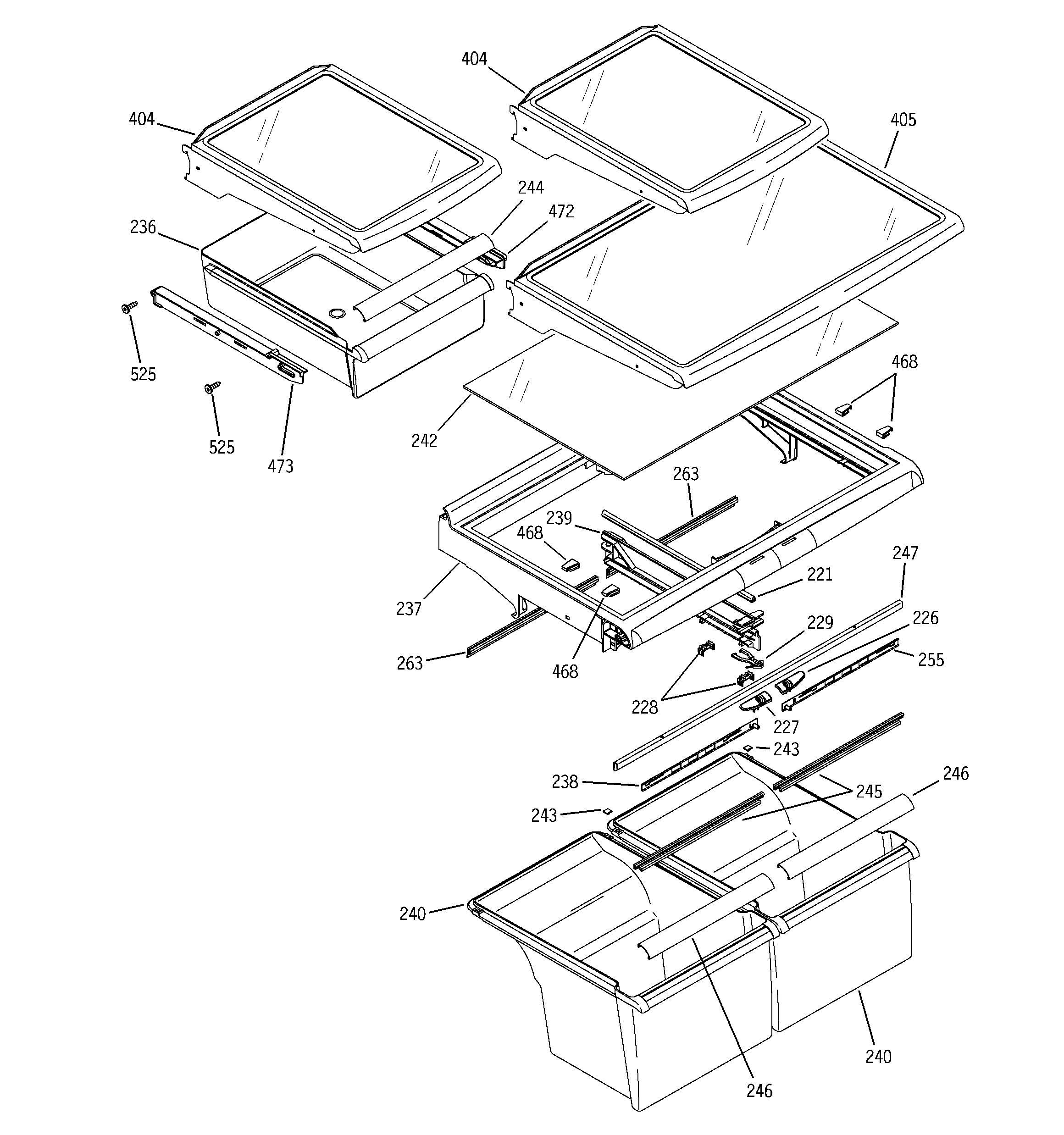

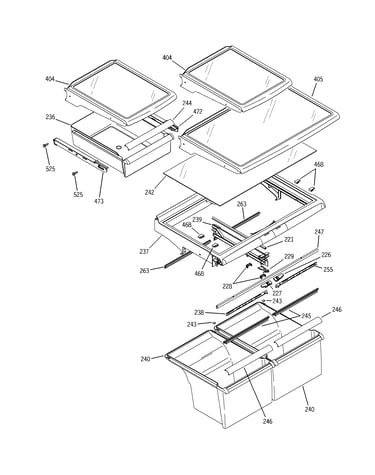

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10087

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10087. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10088
#203

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10088

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10088. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

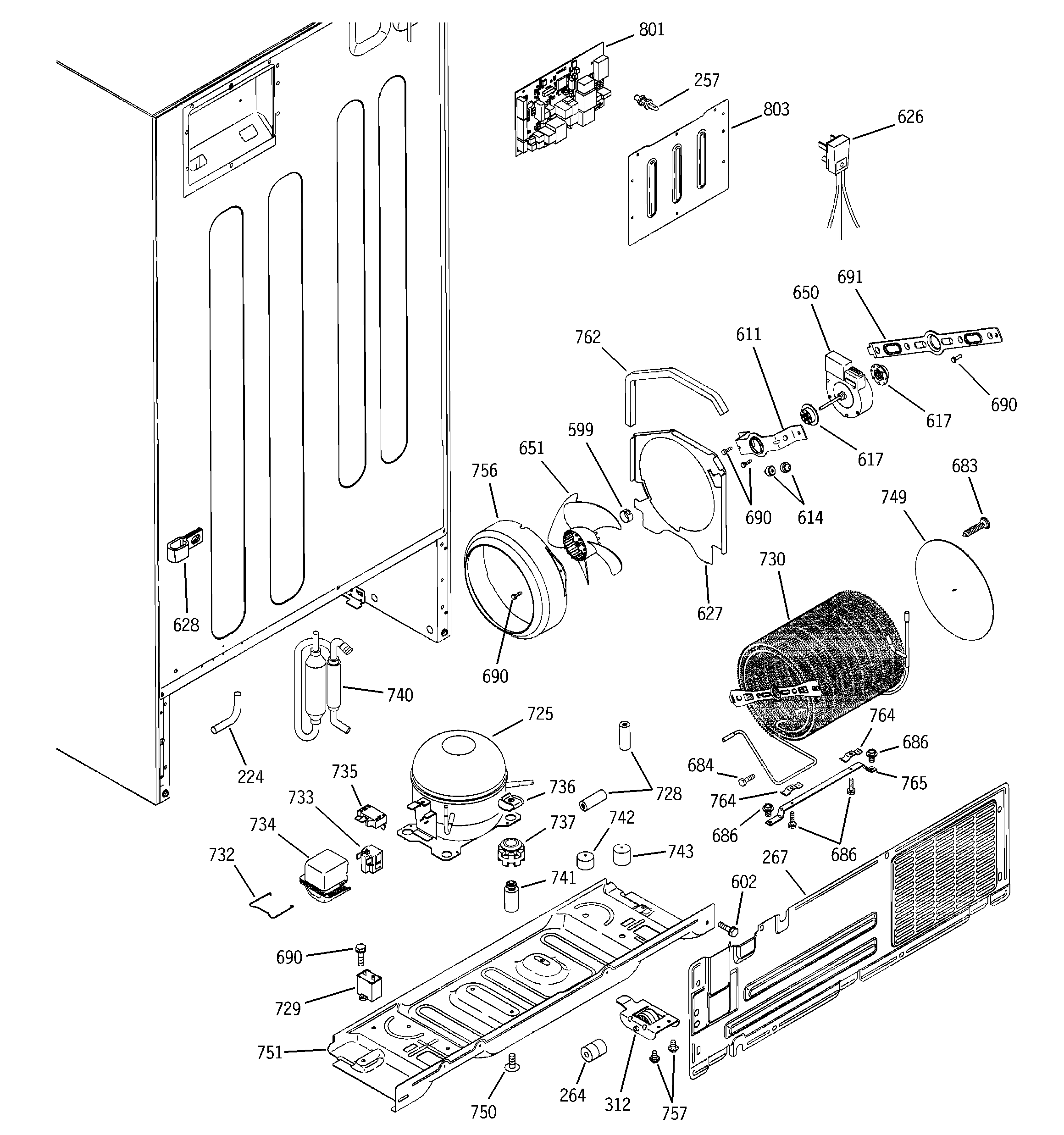

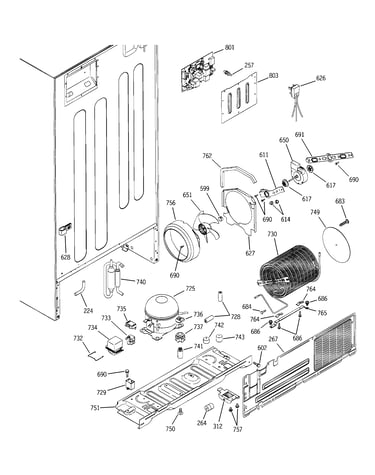

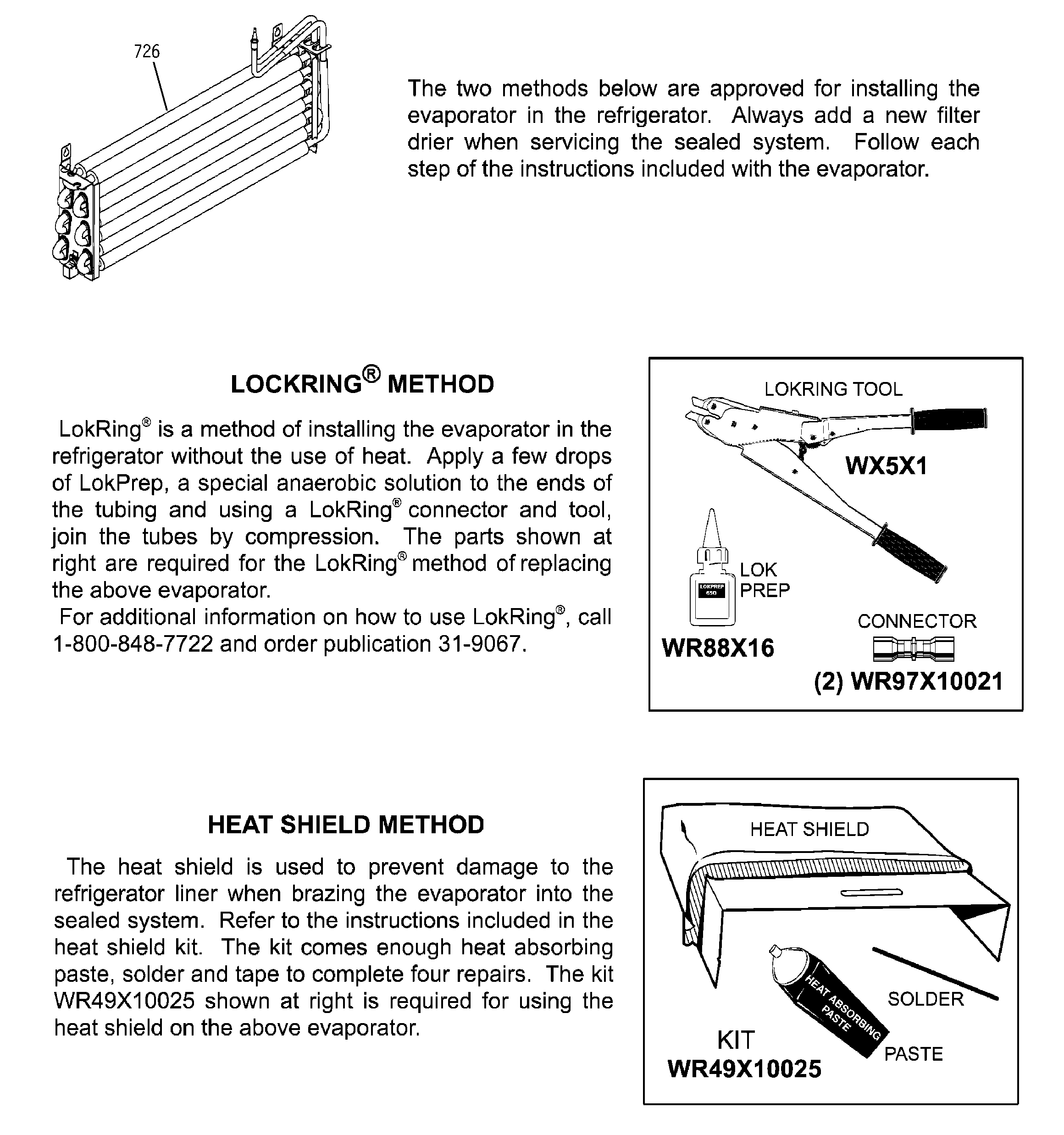

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#437

Fresh food section diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Thermostat WR50X10015
#620

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93 |
22% OFF Phone Price : $26.93
In Stock
Comp Repl Kt WR87X10042
#725

Sealed system & mother board diagram

Comp repl kt

Part #WR87X10042

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10042. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Motor Dc Con WR60X10053
#650

Sealed system & mother board diagram

Motor dc con

Part #WR60X10053

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10053. Substitute parts can look different from the original.
BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
$19.32
In Stock
Ge Profile Refrigerator Condenser Coil (replaces Wr49x10151, Wr84x10065, Wr84x10071, Wr84x10072, Wr84x10074, Wr84x10078, Wr84x37865, Wr87x37966) WR84X10022
#730

Sealed system & mother board diagram

Ge profile refrigerator condenser coil (replaces wr49x10151, wr84x10065, wr84x10071, wr84x10072, wr84x10074, wr84x10078, wr84x37865, wr87x37966)

Part #WR84X10022

BEST SELLER
$386.88 |
$12.00 OFF Phone Price : $398.88
In Stock
