LG
Bottom-Mount Refrigerator

Model # LRFC21755ST Official LG refrigerator

Here are the diagrams and repair parts for Official LG LRFC21755ST refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

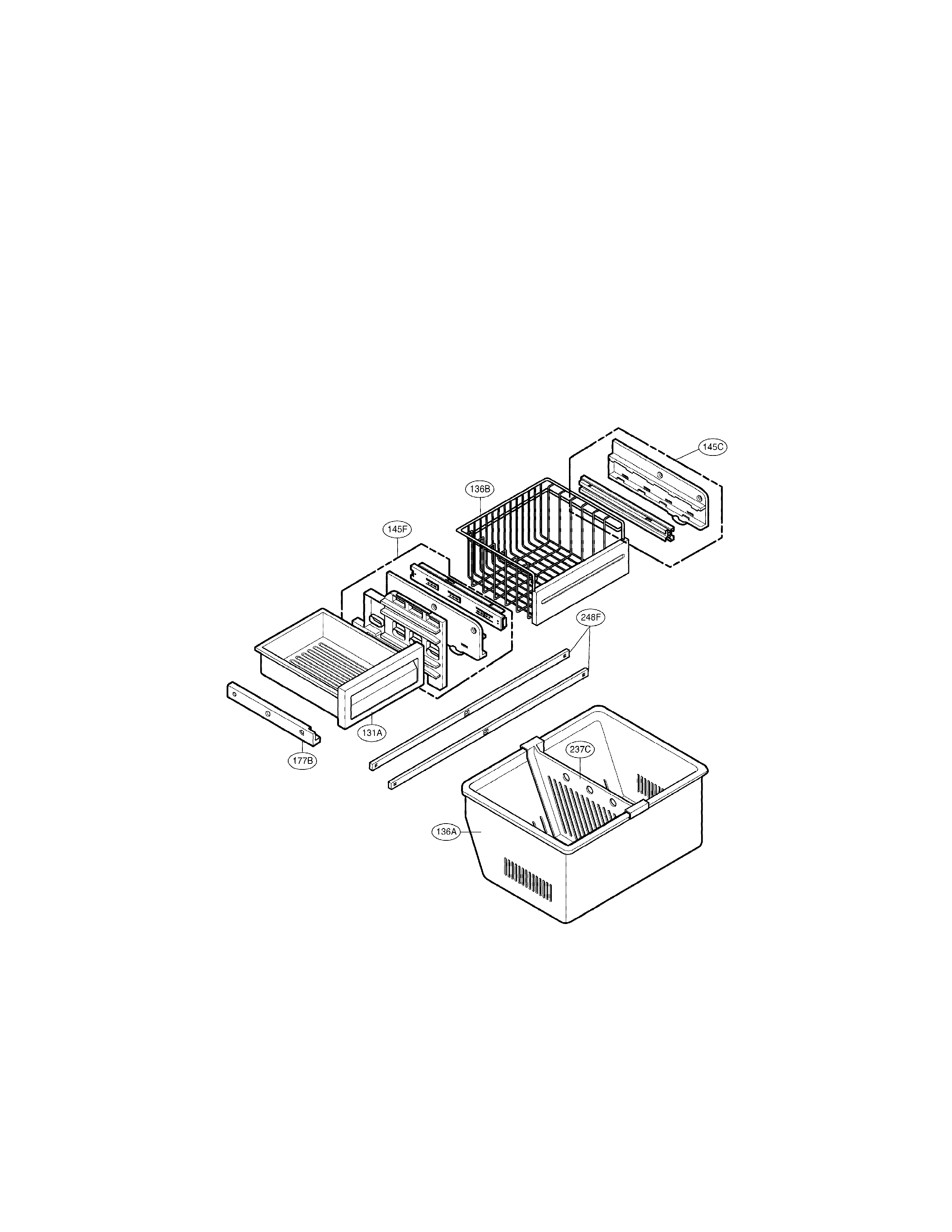

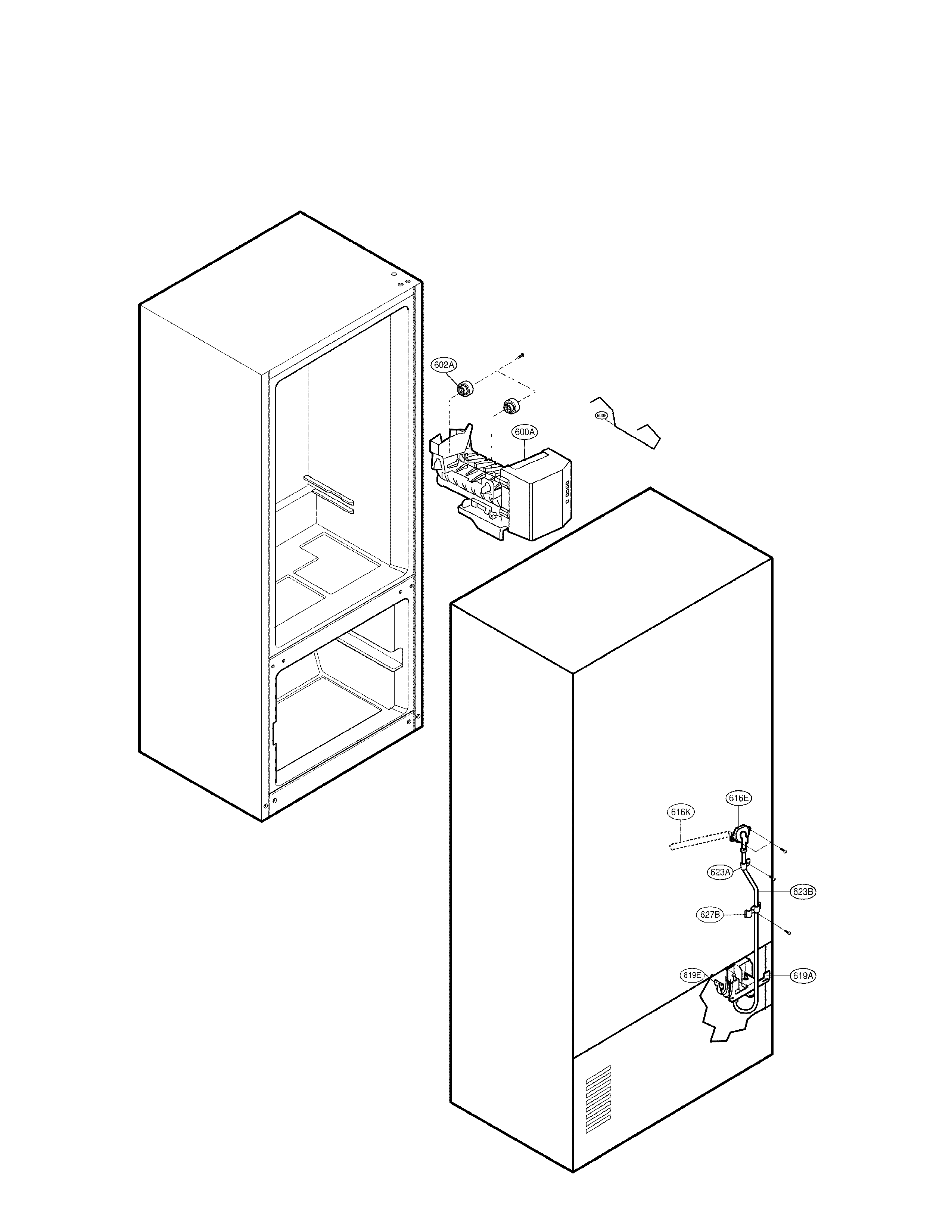

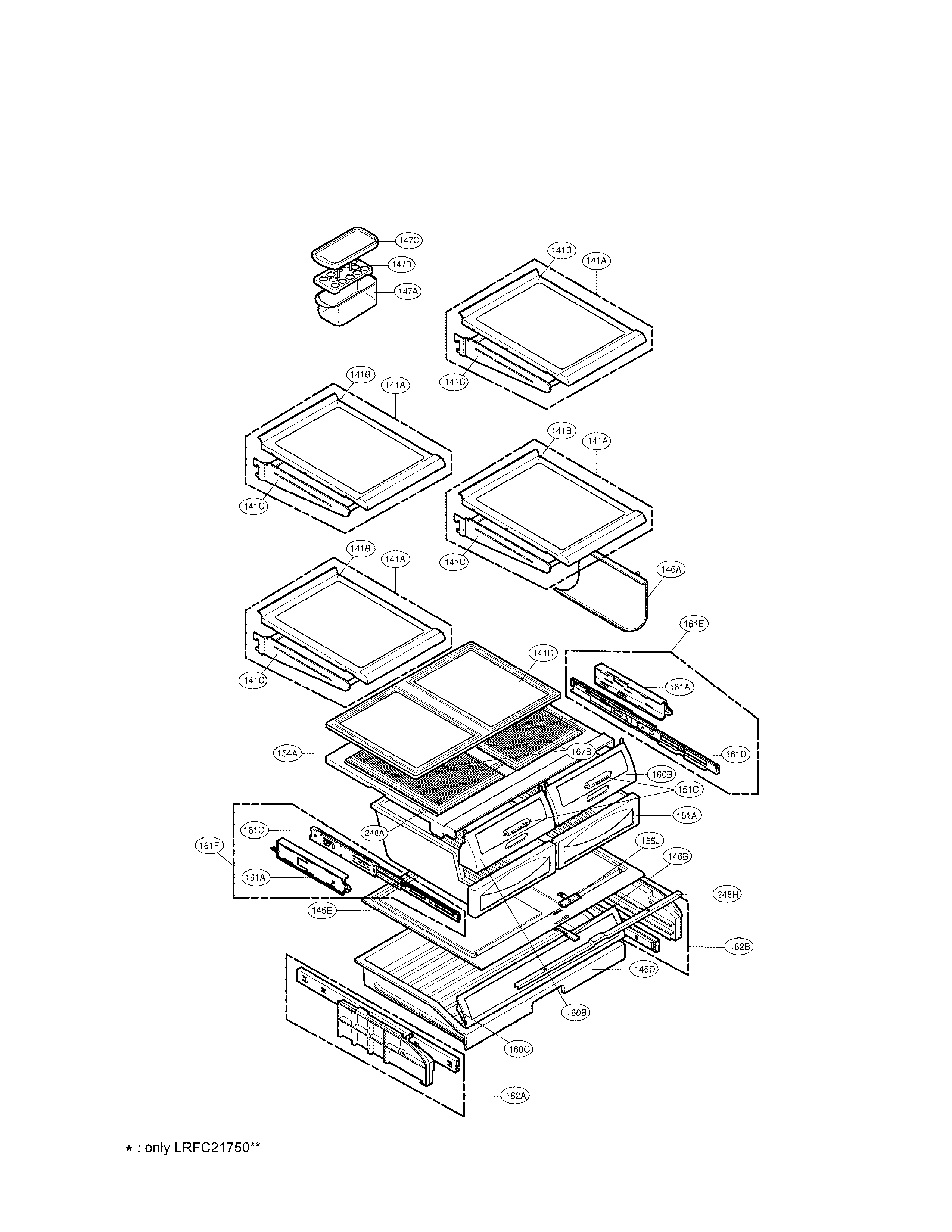

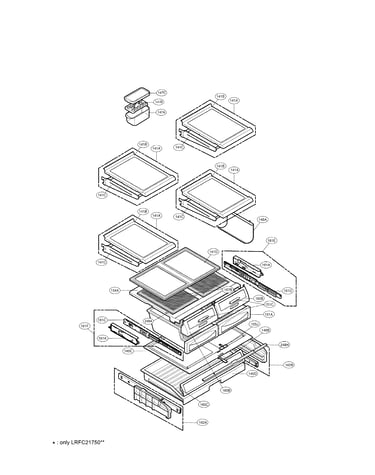

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

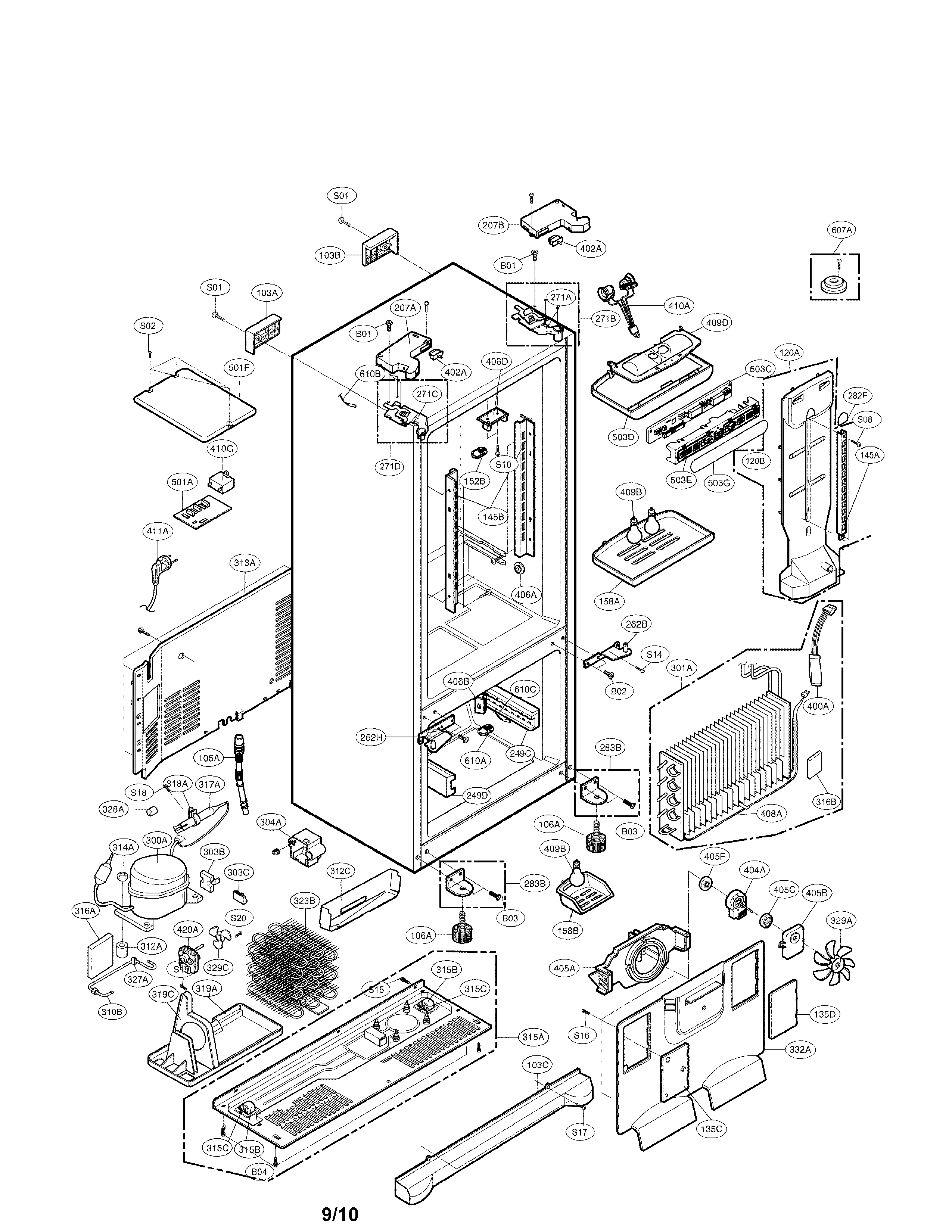

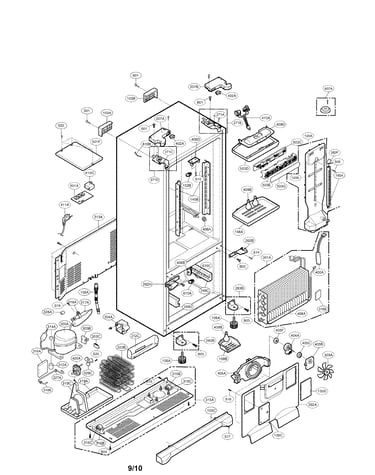

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Drain Tube (replaces 5251ja3003a, 5251ja3003e) 5251JA3003D
#105A

Case parts diagram

Refrigerator drain tube (replaces 5251ja3003a, 5251ja3003e)

Part #5251JA3003D

BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Refrigerator Defrost Sensor Assembly (replaces 6007ja3006r, 6615jb2005m) 6615JB2005H
#400A

Case parts diagram

Refrigerator defrost sensor assembly (replaces 6007ja3006r, 6615jb2005m)

Part #6615JB2005H

BEST SELLER
$22.07 |
21% OFF Phone Price : $28.07
In Stock
Refrigerator Evaporator Fan Blade 5901JA1021A
#329A

Case parts diagram

Refrigerator evaporator fan blade

Part #5901JA1021A

BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Refrigerator Motor Assembly 4681JK1004D
#404AA

Case parts diagram

Refrigerator motor assembly

Part #4681JK1004D

Replaced by #4681JB1029H

?
Manufacturer substitution
This part replaces 4681JK1004D. Substitute parts can look different from the original.
BEST SELLER
$76.72 |
7% OFF Phone Price : $82.72
In Stock
Refrigerator Evaporator Fan Motor 4681JB1027H
#404A

Case parts diagram

Refrigerator evaporator fan motor

Part #4681JB1027H

Replaced by #4681JB1029H

?
Manufacturer substitution
This part replaces 4681JB1027H. Substitute parts can look different from the original.
BEST SELLER
$76.72 |
7% OFF Phone Price : $82.72
In Stock
Refrigerator Door Stop 4620JJ2009A
#243B

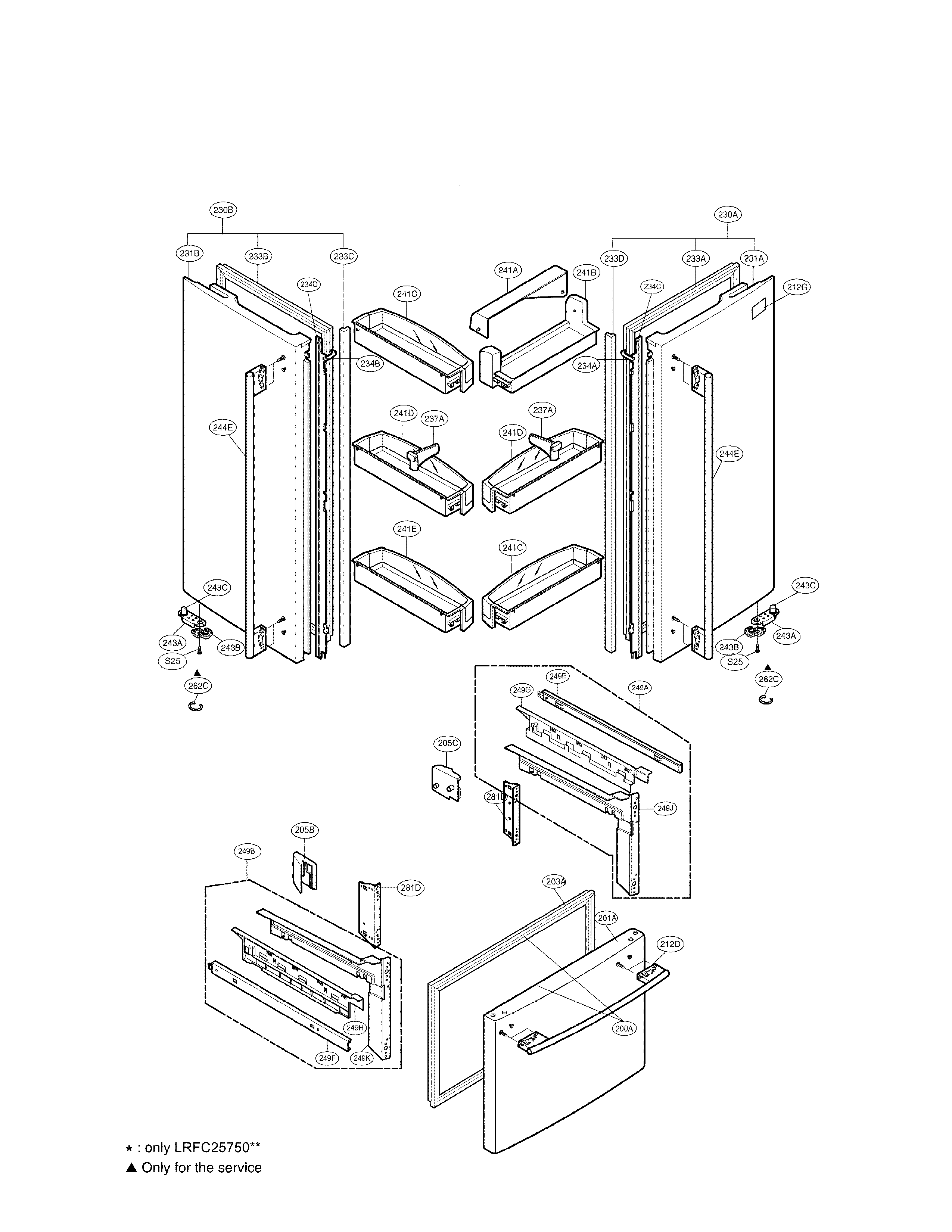

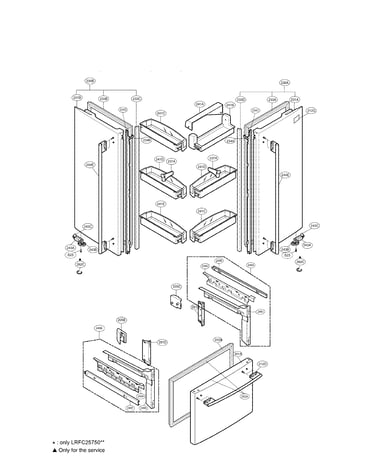

Door parts diagram

Refrigerator door stop

Part #4620JJ2009A

BEST SELLER
$11.40 |
15% OFF Phone Price : $13.40
In Stock
Refrigerator Temperature Sensor 6500JB2002P
#610C

Case parts diagram

Refrigerator temperature sensor

Part #6500JB2002P

Replaced by #6500JB2002X

?
Manufacturer substitution
This part replaces 6500JB2002P. Substitute parts can look different from the original.
BEST SELLER
$20.38 |
23% OFF Phone Price : $26.38
In Stock
Refrigerator Defrost Heater (replaces 5300jk1005l) 5300JK1005D
#408A

Case parts diagram

Refrigerator defrost heater (replaces 5300jk1005l)

Part #5300JK1005D

BEST SELLER
$72.05 |
8% OFF Phone Price : $78.05
In Stock
