Model # 217585281 Official Craftsman 3.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585281 3.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

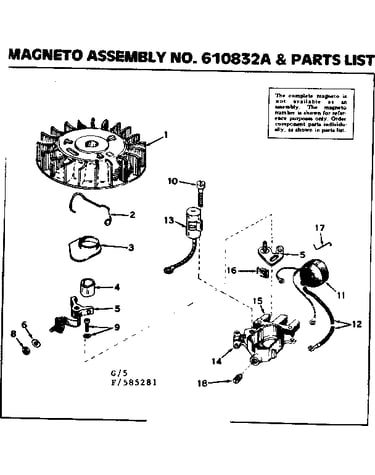

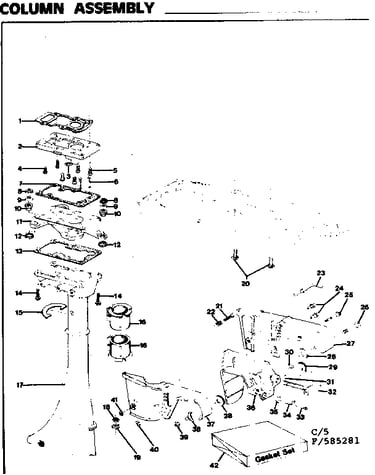

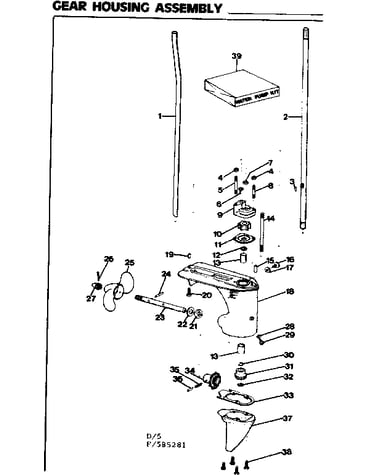

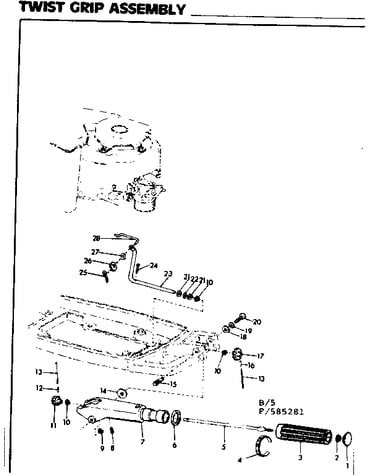

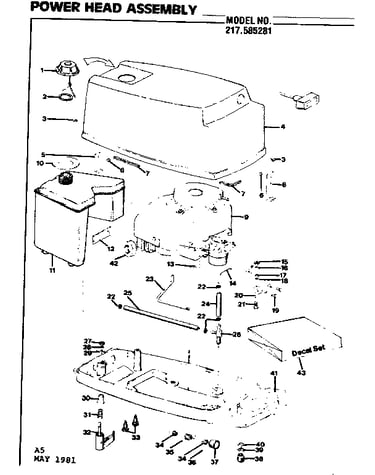

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Gasket 631028
#25

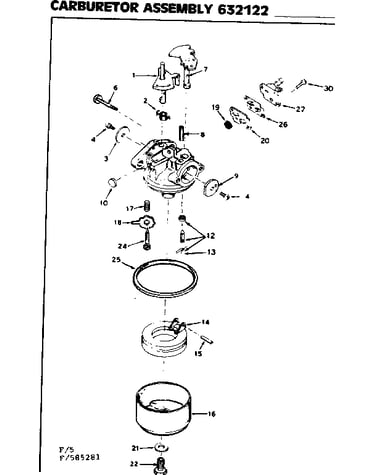

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Float 632019
#14

Carburetor assembly diagram

Float

Part #632019

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

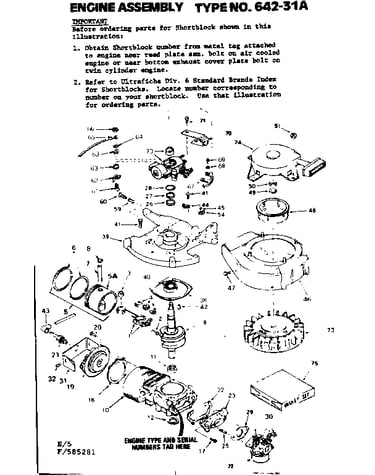

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 310190
#6

Engine assembly diagram

Ring set

Part #310190

The manufacturer no longer makes this part, and there's no substitute part

Washer 650763
#49

Engine assembly diagram

Washer

Part #650763

The manufacturer no longer makes this part, and there's no substitute part

Piston 310230B
#5A

Engine assembly diagram

Piston

Part #310230B

The manufacturer no longer makes this part, and there's no substitute part

Gasket 631334
#21

Carburetor assembly diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

Engine assembly diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Element 630953
#6

Carburetor assembly diagram

Element

Part #630953

The manufacturer no longer makes this part, and there's no substitute part

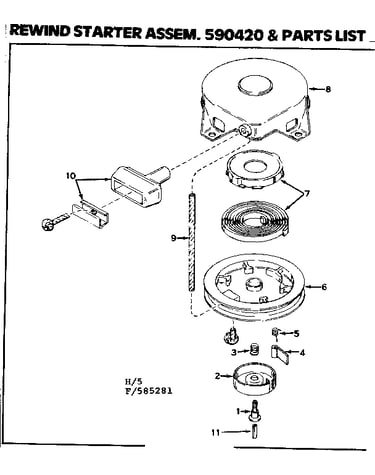

Starter 590420
#74

Engine assembly diagram

Starter

Part #590420

The manufacturer no longer makes this part, and there's no substitute part
