Kenmore
Top-Mount Refrigerator

Model # 25338677894 Official Kenmore top-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 25338677894 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Ice Maker Mold 5303320545
#17

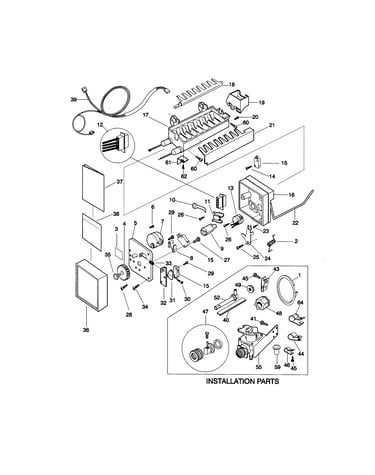

Icemaker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Drier-r12 218541000
#4

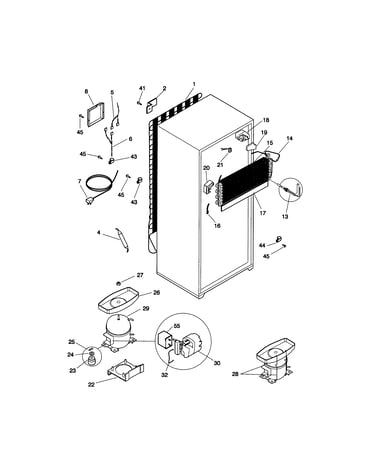

System diagram

Drier-r12

Part #218541000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218541000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

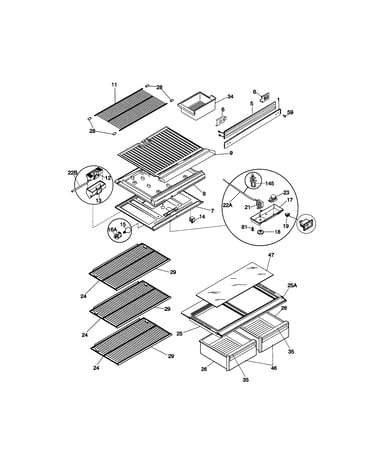

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Defrost Thermostat 218673008
#21

System diagram

Defrost thermostat

Part #218673008

Replaced by #297216600

?
Manufacturer substitution
This part replaces 218673008. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Refrigerator Timer 215267800
#23

Shelves diagram

Refrigerator timer

Part #215267800

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215267800. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Ice Maker Assembly 3206306
#7

Icemaker diagram

Refrigerator ice maker assembly

Part #3206306

Replaced by #5303918277

?
Manufacturer substitution
This part replaces 3206306. Substitute parts can look different from the original.
BEST SELLER
$116.77 |
9% OFF Phone Price : $128.77
In Stock
Refrigerator Blower Motor 218878700
#13

Cabinet diagram

Refrigerator blower motor

Part #218878700

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 218878700. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Door Rack 218027017
#8

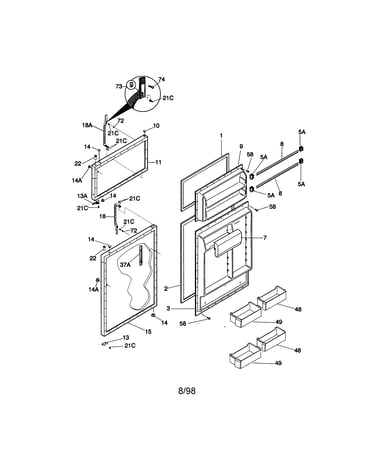

Door diagram

Refrigerator door rack

Part #218027017

Replaced by #215366002

?
Manufacturer substitution
This part replaces 218027017. Substitute parts can look different from the original.
$43.63 |
12% OFF Phone Price : $49.63
In Stock
Touch Paint 5303305324
#NI

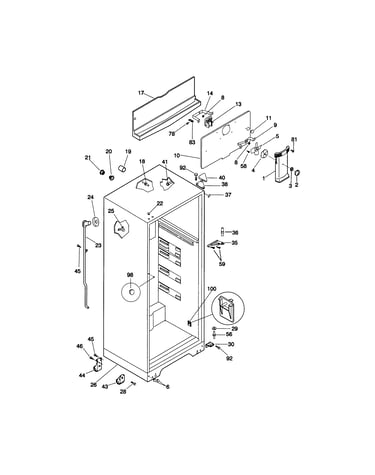

Cabinet diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Refrigerator Evaporator Fan Mounting Bracket Screw 5308016566
Refrigerator evaporator fan mounting bracket screw

Part #5308016566

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 5308016566. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
