Model # 247796893 Official Craftsman 5-hp chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 247796893 5-hp chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Tap Screw 710-0601
#50

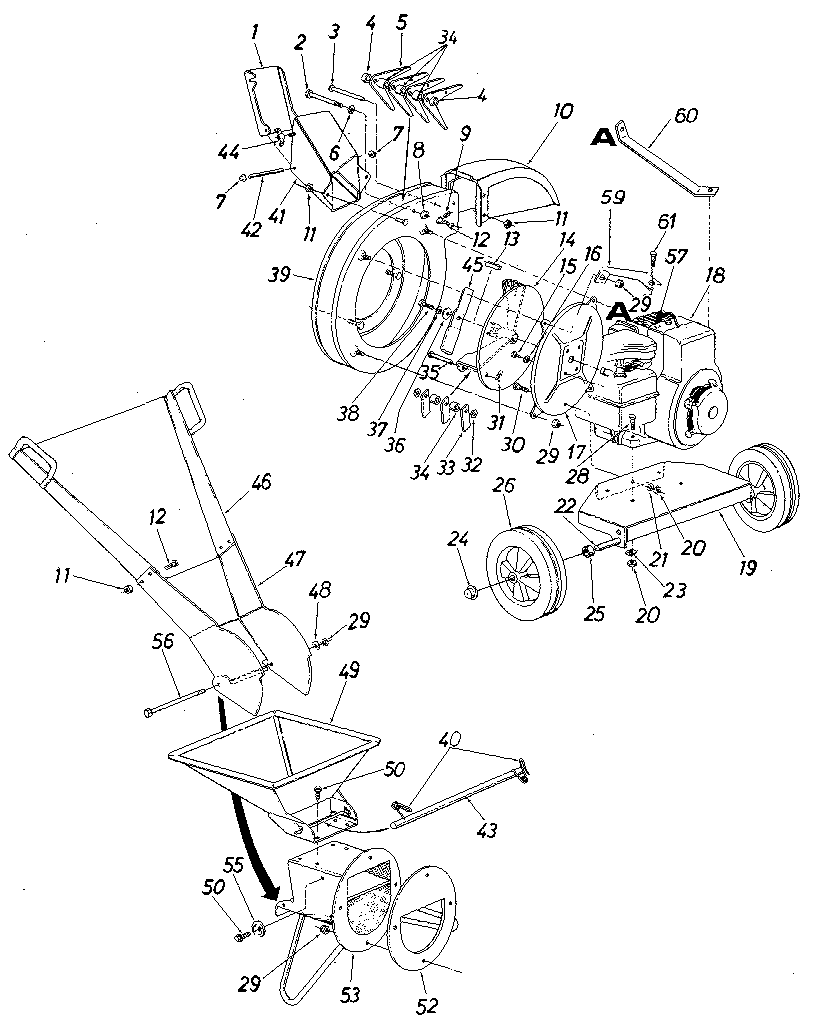

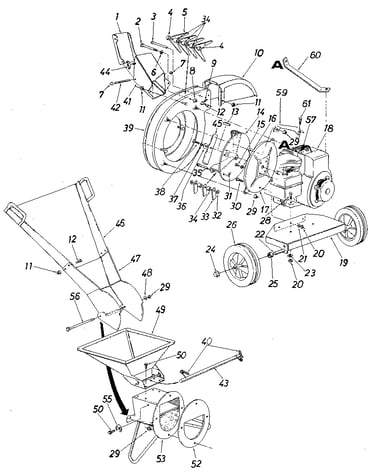

Replacement parts diagram

Tap screw

Part #710-0601

Replaced by #710-1260A

?
Manufacturer substitution
This part replaces 710-0601. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.25 |
19% OFF Phone Price : $5.25
In Stock
Lock Washer 736-0119
Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Bag 764-0199

#NI

All parts diagram

Bag

Part #764-0199

Replaced by #664P04022A

?
Manufacturer substitution
This part replaces 764-0199. Substitute parts can look different from the original.
$96.09 |
11% OFF Phone Price : $108.09
In Stock
Spring 732-0546
#40

Replacement parts diagram

Spring

Part #732-0546

Replaced by #932-0546

?
Manufacturer substitution
This part replaces 732-0546. Substitute parts can look different from the original.
This item is not returnable
$8.43
In Stock
Flail 11459A
#33

Replacement parts diagram

Flail

Part #11459A

Replaced by #91459B

?
Manufacturer substitution
This part replaces 11459A. Substitute parts can look different from the original.
$29.22 |
17% OFF Phone Price : $35.22
In Stock
Spacer 711-0564
#34

Replacement parts diagram

Spacer

Part #711-0564

Replaced by #911-0564

?
Manufacturer substitution
This part replaces 711-0564. Substitute parts can look different from the original.
This item is not returnable
$24.81 |
19% OFF Phone Price : $30.81
In Stock
Ryobi Lawn & Garden Equipment Lock Washer (replaces 936-0921) 736-0921
#6

Replacement parts diagram

Ryobi lawn & garden equipment lock washer (replaces 936-0921)

Part #736-0921

$7.71
In Stock
Lawn & Garden Equipment Bolt 710-0624
#28

Replacement parts diagram

Lawn & garden equipment bolt

Part #710-0624

$8.51
In Stock
Washer 736-0237
#36

Replacement parts diagram

Washer

Part #736-0237

This item is not returnable
$6.17
In Stock
Glasses (replaces 400069, 5003, 706-10216, 706-rg533, 706-uo720, 706-ur720, Hf-212112h) 723-0400

#NI

All parts diagram

Glasses (replaces 400069, 5003, 706-10216, 706-rg533, 706-uo720, 706-ur720, hf-212112h)

Part #723-0400

$35.64
In Stock
