Craftsman
Front-Engine Lawn Tractor

Model # 917575121 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 917575121 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Ball 7392M
#42

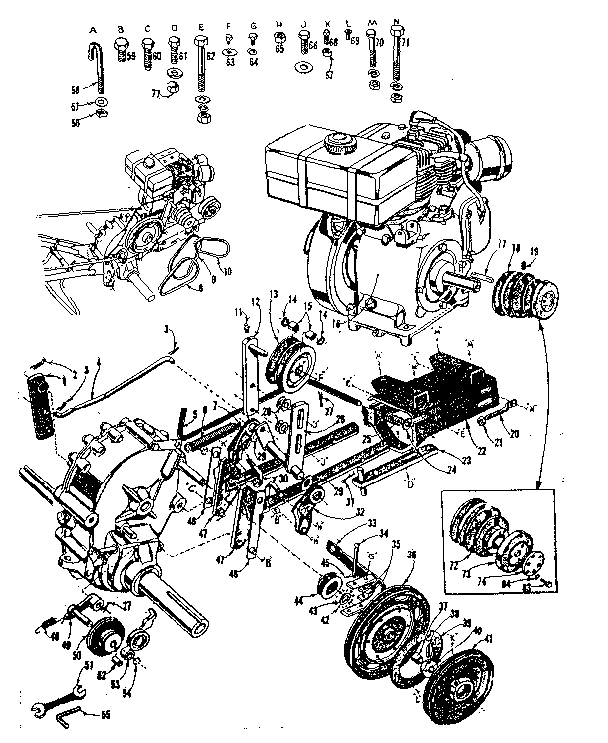

Main frame diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#11

Main frame diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Nut 357H
#77

Main frame diagram

Nut

Part #357H

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 4280M
#70

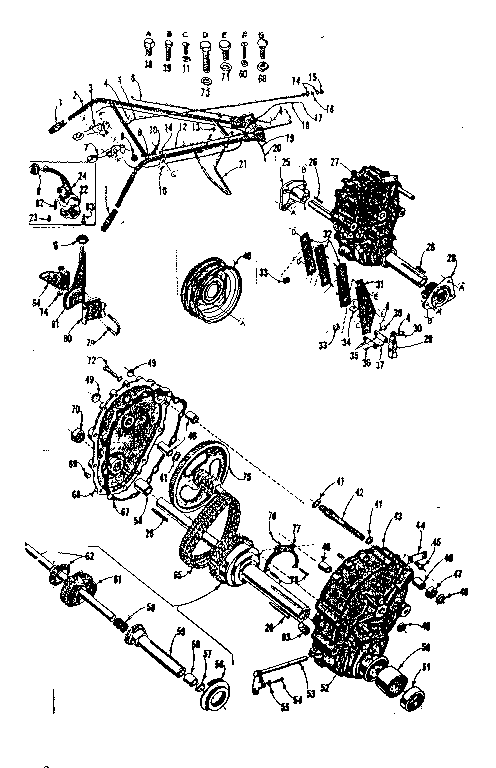

Transmission diagram

Oil seal

Part #4280M

The manufacturer no longer makes this part, and there's no substitute part

Hub Bolt 502H
#38

Transmission diagram

Hub bolt

Part #502H

The manufacturer no longer makes this part, and there's no substitute part

Washer, Flat 15/16x1-1/2x16 Ga. 09262410
#29

Main frame diagram

Washer, flat 15/16x1-1/2x16 ga.

Part #09262410

The manufacturer no longer makes this part, and there's no substitute part

Saddle 575PA220
#21

Transmission diagram

Saddle

Part #575PA220

The manufacturer no longer makes this part, and there's no substitute part

Clamp 7069E
#34

Transmission diagram

Clamp

Part #7069E

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 9439M
#8

Transmission diagram

Control knob

Part #9439M

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 09171520
#24

Main frame diagram

Flat washer

Part #09171520

The manufacturer no longer makes this part, and there's no substitute part
