Kenmore
Gas Grill

Model # 14115222 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 14115222 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Gas Grill Burner Air Shutter Heat Shield P06801007F
#23

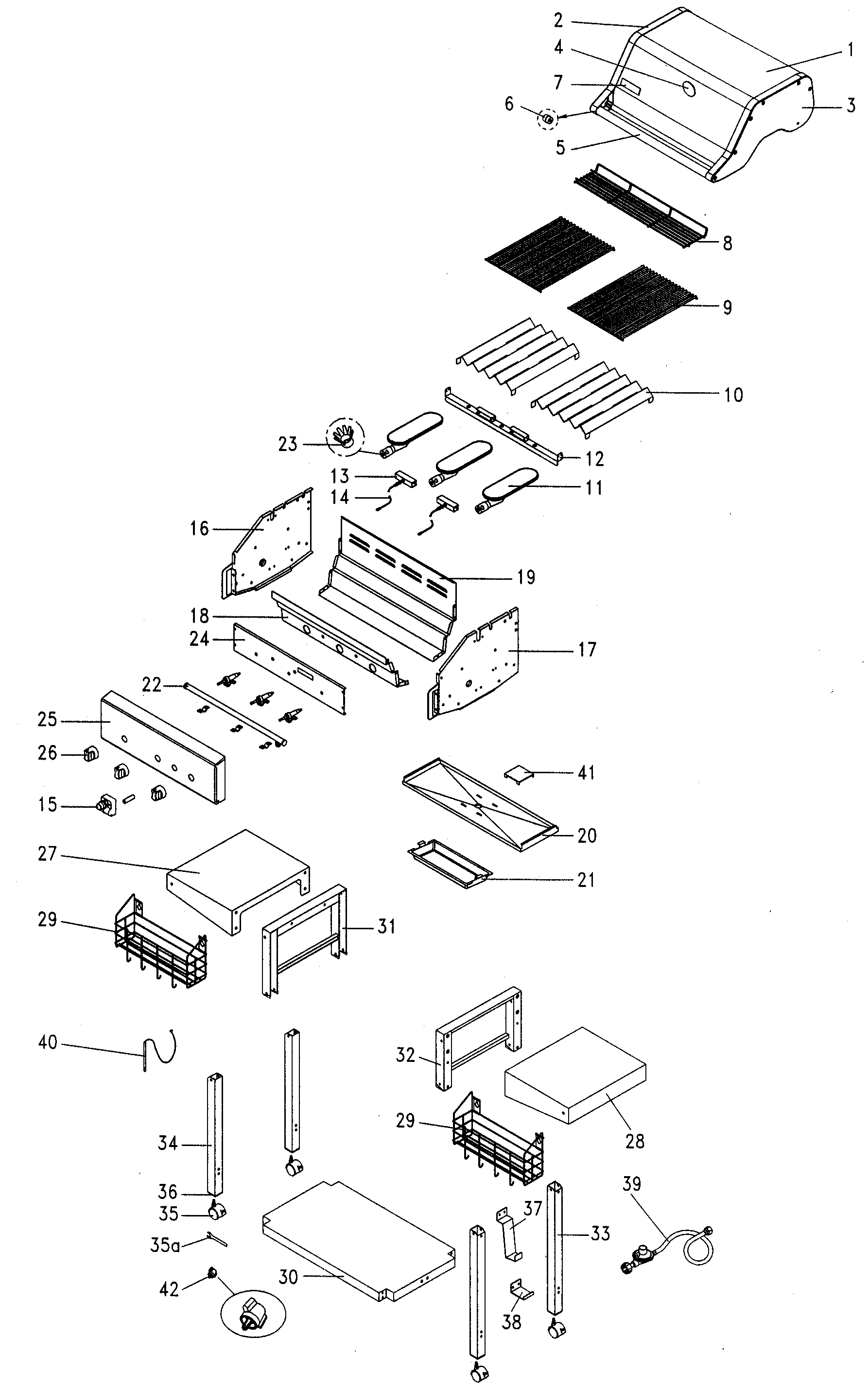

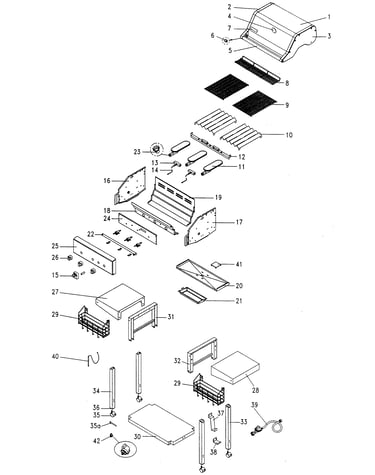

Grill diagram

Gas grill burner air shutter heat shield

Part #P06801007F

The manufacturer no longer makes this part, and there's no substitute part

Panel P0783A
#17

Grill diagram

Panel

Part #P0783A

The manufacturer no longer makes this part, and there's no substitute part

Regulator P3632L
#39

Grill diagram

Regulator

Part #P3632L

The manufacturer no longer makes this part, and there's no substitute part

Burner P1955A
#11

Grill diagram

Burner

Part #P1955A

The manufacturer no longer makes this part, and there's no substitute part

Wrench P55F5A
#35A

Grill diagram

Wrench

Part #P55F5A

The manufacturer no longer makes this part, and there's no substitute part

Receptacle P2741B
#21

Grill diagram

Receptacle

Part #P2741B

The manufacturer no longer makes this part, and there's no substitute part

Grid P1657A
#9

Grill diagram

Grid

Part #P1657A

The manufacturer no longer makes this part, and there's no substitute part

Bracket P1342B
#32

Grill diagram

Bracket

Part #P1342B

The manufacturer no longer makes this part, and there's no substitute part

Temperature Gauge P0616C
#4

Grill diagram

Temperature gauge

Part #P0616C

The manufacturer no longer makes this part, and there's no substitute part

Heatshield P80P7A
#41

Grill diagram

Heatshield

Part #P80P7A

The manufacturer no longer makes this part, and there's no substitute part
