Craftsman
Front-Engine Lawn Tractor

Model # 917575121 Official Craftsman garden tractor

Here are the diagrams and repair parts for Official Craftsman 917575121 garden tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Ball 7392M
#42

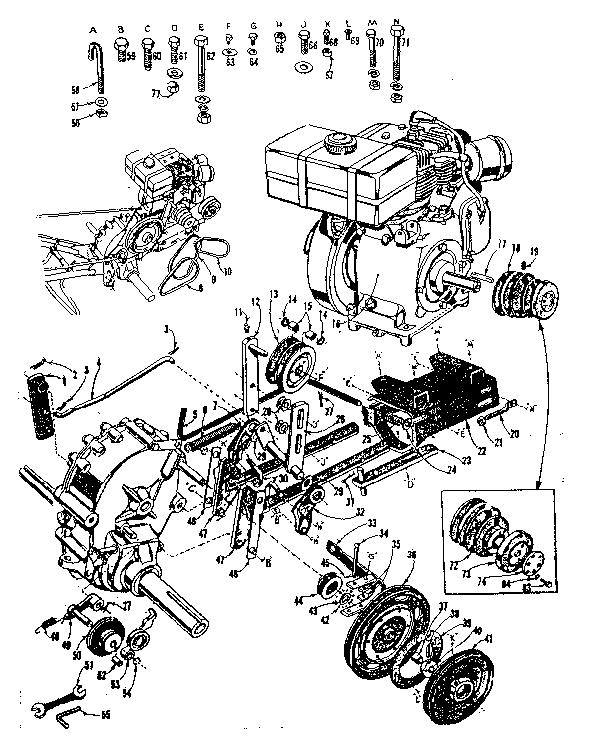

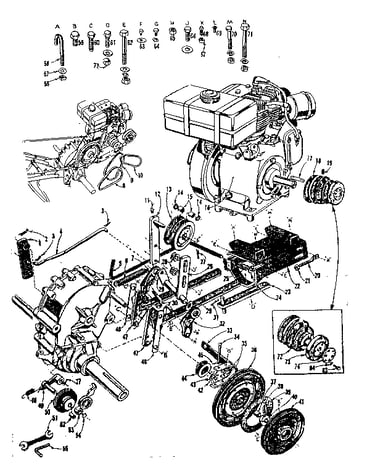

Main frame diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#11

Main frame diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Control Clamp 495H
#10

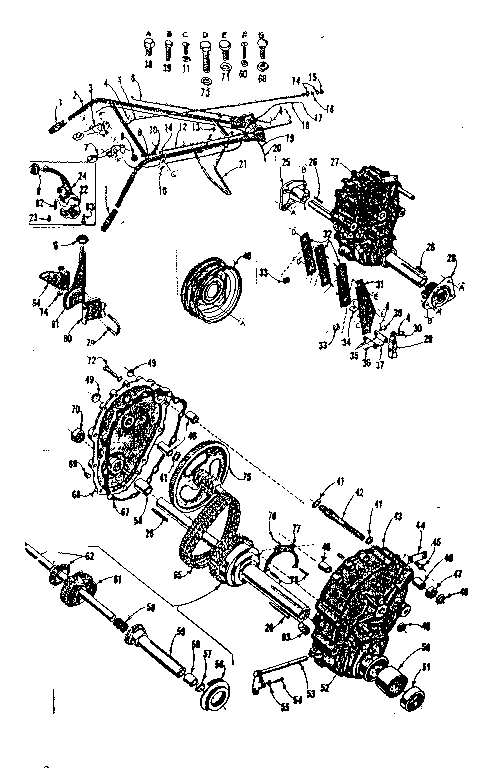

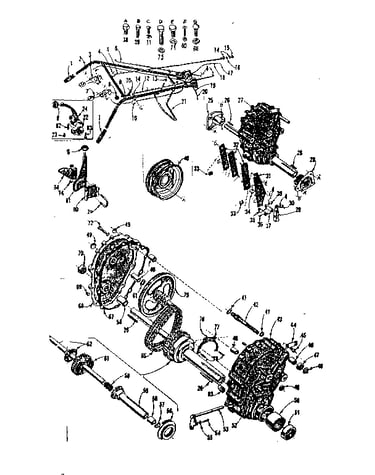

Transmission diagram

Control clamp

Part #495H

The manufacturer no longer makes this part, and there's no substitute part

Wisconsin Acn Engine/133936 575PA840A
#16

Main frame diagram

Wisconsin acn engine/133936

Part #575PA840A

The manufacturer no longer makes this part, and there's no substitute part

Strand 501H
#65

Transmission diagram

Strand

Part #501H

The manufacturer no longer makes this part, and there's no substitute part

Ax Tube/brng 575PA835
#59

Transmission diagram

Ax tube/brng

Part #575PA835

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 4280M
#70

Transmission diagram

Oil seal

Part #4280M

The manufacturer no longer makes this part, and there's no substitute part

Bushing 1966E
#16

Transmission diagram

Bushing

Part #1966E

The manufacturer no longer makes this part, and there's no substitute part

Riding Lawn Mower Engine Support Bracket 575PA829
#47

Main frame diagram

Riding lawn mower engine support bracket

Part #575PA829

The manufacturer no longer makes this part, and there's no substitute part

Pul W/facing 575PA816
#36

Main frame diagram

Pul w/facing

Part #575PA816

The manufacturer no longer makes this part, and there's no substitute part
