Model # 62534221 Official Kenmore automatic clarifier
Here are the diagrams and repair parts for Official Kenmore 62534221 automatic clarifier, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
62534221 Water Treatment
#28

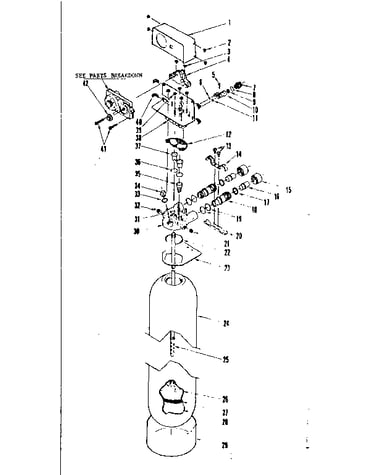

Unit parts diagram
Gravel
Part #501782
Replaced by #7124415
?
Manufacturer substitution
This part replaces 501782. Substitute parts can look different from the original.
$30.58 |
16% OFF Phone Price : $36.58
In Stock
#27
Unit parts diagram
Water filtration system filtering sand, 10-lb
Part #501783
Replaced by #0501783
?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
#95

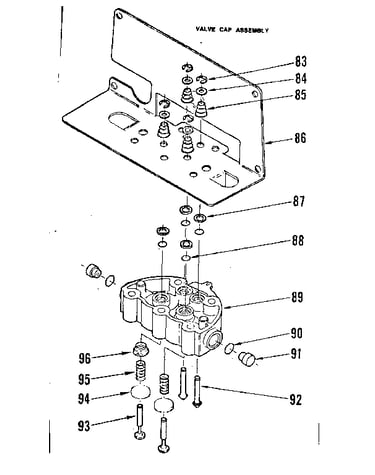

Valve cap assembly diagram
Spring
Part #505792
Replaced by #1219600
?
Manufacturer substitution
This part replaces 505792. Substitute parts can look different from the original.
$7.86
In Stock
#55

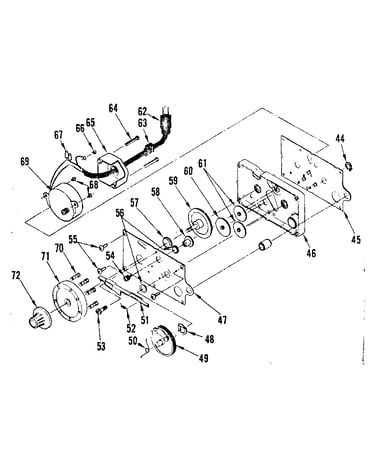

Timer assembly diagram
Screw
Part #900299
Replaced by #9006071
?
Manufacturer substitution
This part replaces 900299. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
#56
Timer assembly diagram
Bushing
Part #503287
This item is not returnable
$2.99
In Stock
#68
Timer assembly diagram
Screw
Part #900290
This item is not returnable
$2.99
In Stock
#81

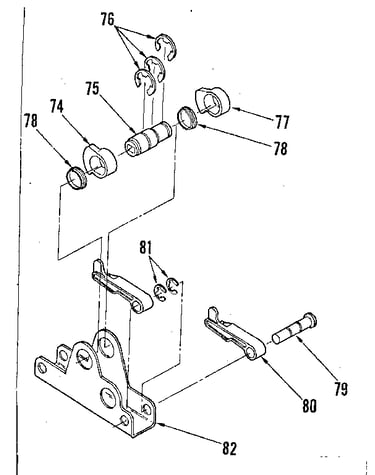

Cam nest assembly diagram
Ring
Part #900287
This item is not returnable
$2.99
In Stock
#58
Timer assembly diagram
Drive gear
Part #503216
This item is not returnable
$5.99
In Stock
#67
Timer assembly diagram
Twist-on wire connector
Part #501653
Replaced by #STD375005
?
Manufacturer substitution
This part replaces 501653. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#16
Unit parts diagram
Tube
Part #507615
Replaced by #0507615
?
Manufacturer substitution
This part replaces 507615. Substitute parts can look different from the original.
This item is not returnable
$19.86 |
9% OFF Phone Price : $21.86
In Stock
