Craftsman
Impact Wrench

Model # 875185070 Official Craftsman impact wrench

Here are the diagrams and repair parts for Official Craftsman 875185070 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Craftsman Pin 9828005
#5

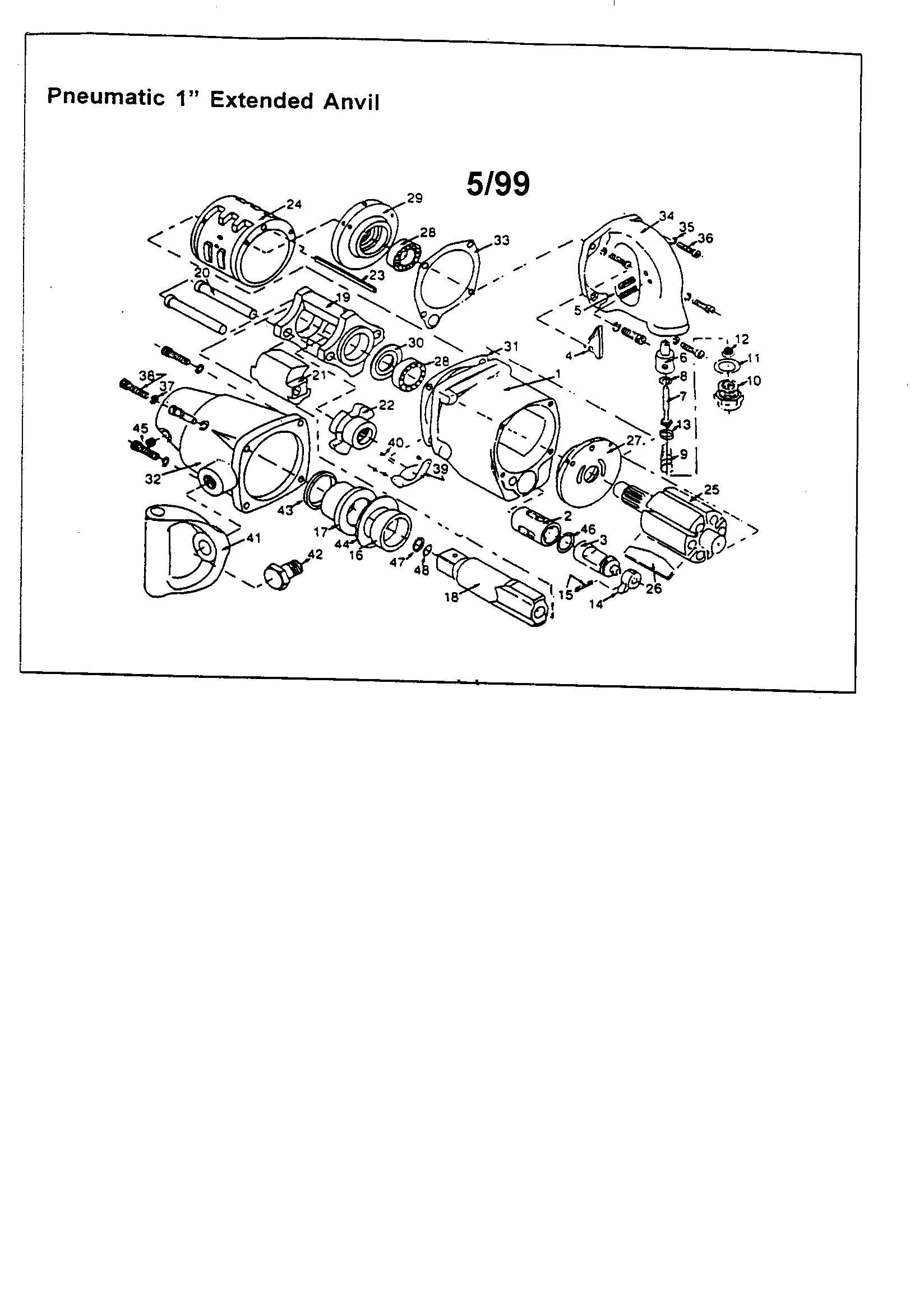

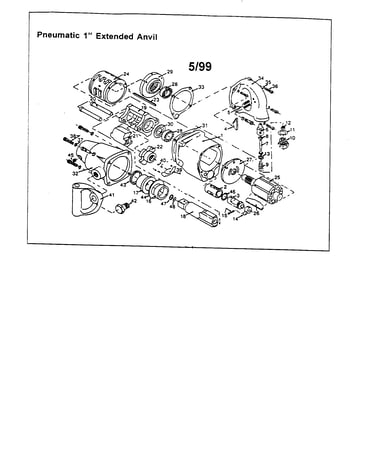

Pneumatic 1" extended anvil diagram

Craftsman pin

Part #9828005

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Hammer Pin 9828020
#20

Pneumatic 1" extended anvil diagram

Craftsman hammer pin

Part #9828020

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Oil Seal 9828015
#43

Pneumatic 1" extended anvil diagram

Craftsman oil seal

Part #9828015

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Fr Plate 9828027
#27

Pneumatic 1" extended anvil diagram

Craftsman fr plate

Part #9828027

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Cage 9828019
#19

Pneumatic 1" extended anvil diagram

Craftsman cage

Part #9828019

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Rr Plate 9828029
#29

Pneumatic 1" extended anvil diagram

Craftsman rr plate

Part #9828029

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bushing 9828017
#17

Pneumatic 1" extended anvil diagram

Craftsman bushing

Part #9828017

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Trigger 9828004
#4

Pneumatic 1" extended anvil diagram

Craftsman trigger

Part #9828004

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Handle 9828041
#41

Pneumatic 1" extended anvil diagram

Craftsman handle

Part #9828041

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lock Washer 9828037
#37

Pneumatic 1" extended anvil diagram

Craftsman lock washer

Part #9828037

The manufacturer no longer makes this part, and there's no substitute part
