Nautilus
Exercise Cycle

Model # 202 Official Nautilus cycle

Here are the diagrams and repair parts for Official Nautilus 202 cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Nautilus Base Frame 001-1029
#32

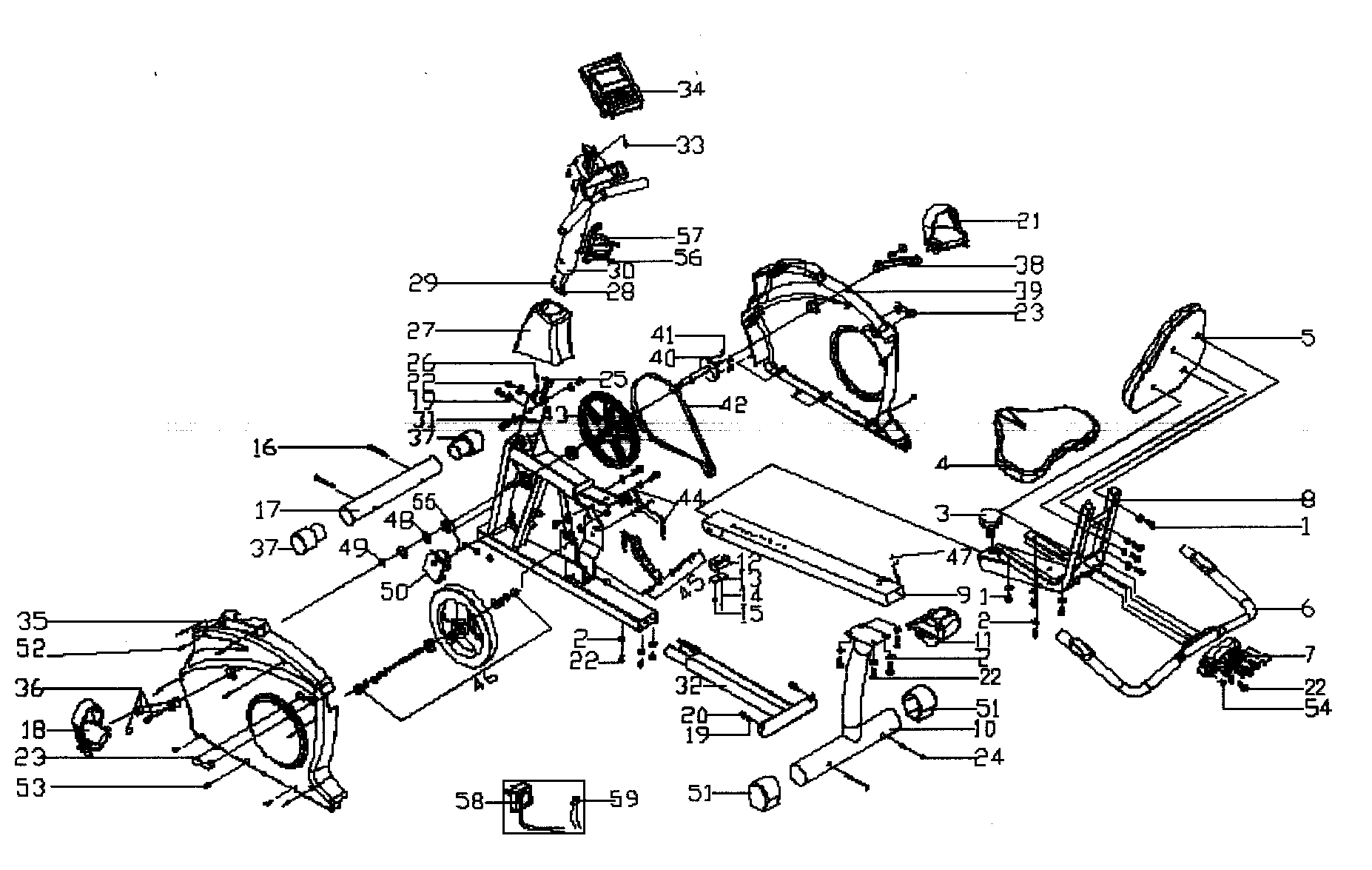

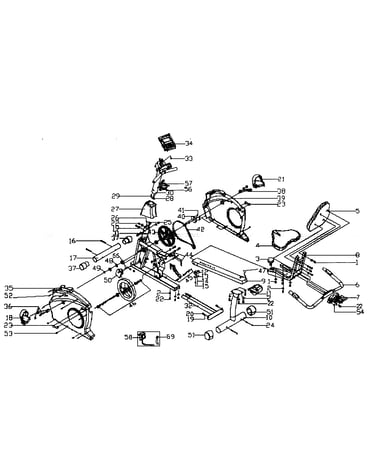

Cabinet parts diagram

Nautilus base frame

Part #001-1029

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Carriage Bolt 18002
#16

Cabinet parts diagram

Nautilus carriage bolt

Part #18002

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Hex Nut 92436
#20

Cabinet parts diagram

Nautilus hex nut

Part #92436

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Exercise Cycle Bottle Holder 18005
#57

Cabinet parts diagram

Nautilus exercise cycle bottle holder

Part #18005

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Screw 18096
#56

Cabinet parts diagram

Nautilus screw

Part #18096

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Screw 18092
#52

Cabinet parts diagram

Nautilus screw

Part #18092

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Bumper Assembly 18053
#12

Cabinet parts diagram

Nautilus bumper assembly

Part #18053

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Seat Frame 001-1037
#32

Cabinet parts diagram

Nautilus seat frame

Part #001-1037

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Curved Washer, M8-2 X 19 18098
#19

Cabinet parts diagram

Nautilus curved washer, m8-2 x 19

Part #18098

The manufacturer no longer makes this part, and there's no substitute part

Nautilus Shroud, L 001-1026
#35

Cabinet parts diagram

Nautilus shroud, l

Part #001-1026

The manufacturer no longer makes this part, and there's no substitute part
