Craftsman
Dozer Attachment

Model # 486244120 Official Craftsman 48" dozer blade

Here are the diagrams and repair parts for Official Craftsman 486244120 48" dozer blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Cable Assembly 746-0366
#23

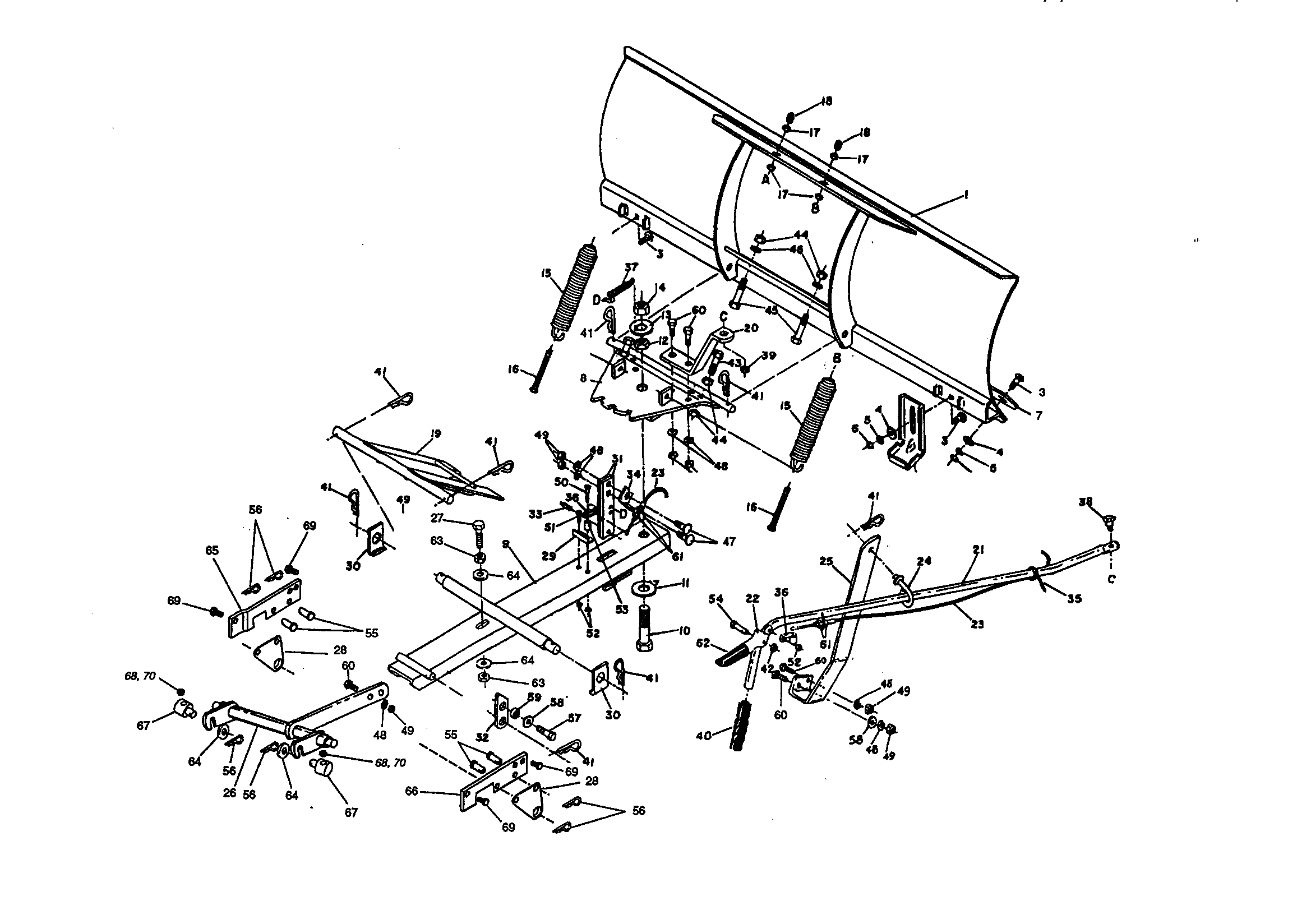

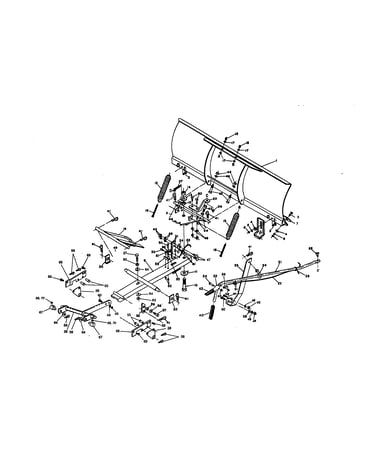

48" dozer blade diagram

Cable assembly

Part #746-0366

Replaced by #49808

?
Manufacturer substitution
This part replaces 746-0366. Substitute parts can look different from the original.
BEST SELLER
$21.07 |
22% OFF Phone Price : $27.07
In Stock
Lawn Tractor Snow Blade Attachment Skid Shoe R3132J
#2

48" dozer blade diagram

Lawn tractor snow blade attachment skid shoe

Part #R3132J

Replaced by #R3132JBL1

?
Manufacturer substitution
This part replaces R3132J. Substitute parts can look different from the original.
BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#41

48" dozer blade diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
Back Order
Lawn Tractor Snow Blade Attachment Angle Lock Spring (replaces 732-0360, Af-43348) 43348
#37

48" dozer blade diagram

Lawn tractor snow blade attachment angle lock spring (replaces 732-0360, af-43348)

Part #43348

$8.11 |
11% OFF Phone Price : $9.11
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#4

48" dozer blade diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#5

48" dozer blade diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn Tractor Snow Blade Attachment Cable End Fitting 746-0260
#36

48" dozer blade diagram

Lawn tractor snow blade attachment cable end fitting

Part #746-0260

Replaced by #48084

?
Manufacturer substitution
This part replaces 746-0260. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#48

48" dozer blade diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#58

48" dozer blade diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Shoulder Bolt 738-0234
#38

48" dozer blade diagram

Shoulder bolt

Part #738-0234

Replaced by #48106

?
Manufacturer substitution
This part replaces 738-0234. Substitute parts can look different from the original.
$44.28 |
12% OFF Phone Price : $50.28
In Stock
