Jenn-Air
Gas Cooktop

Model # JGC1536ADB Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air JGC1536ADB gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Burner Screw 74007714
#10

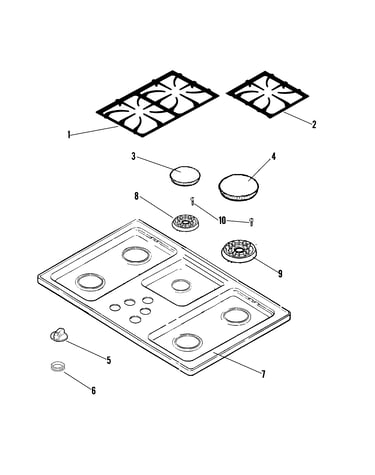

Top assembly diagram

Burner screw

Part #74007714

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 74007714. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.23 |
14% OFF Phone Price : $7.23
In Stock
Burner Base 74007411
#8

Top assembly diagram

Burner base

Part #74007411

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces 74007411. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Burner 74007698
#9

Top assembly diagram

Burner

Part #74007698

Replaced by #WPW10406797

?
Manufacturer substitution
This part replaces 74007698. Substitute parts can look different from the original.
BEST SELLER
$38.61 |
13% OFF Phone Price : $44.61
In Stock
Cooktop Pressure Regulator 74007747
#9

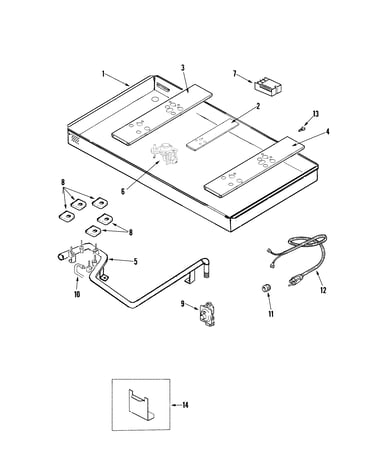

Body diagram

Cooktop pressure regulator

Part #74007747

Replaced by #W11087445

?
Manufacturer substitution
This part replaces 74007747. Substitute parts can look different from the original.
$130.91 |
8% OFF Phone Price : $142.91
In Stock
Range Surface Burner Grate Pad 74007356
Range surface burner grate pad

Part #74007356

Replaced by #W10919249

?
Manufacturer substitution
This part replaces 74007356. Substitute parts can look different from the original.
$8.53 |
10% OFF Phone Price : $9.53
In Stock
Range Surface Burner Cap 74007750
#11

Top assembly diagram

Range surface burner cap

Part #74007750

Replaced by #WP74007750

?
Manufacturer substitution
This part replaces 74007750. Substitute parts can look different from the original.
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Power Cord 74007903
#12

Body diagram

Power cord

Part #74007903

Replaced by #3188867

?
Manufacturer substitution
This part replaces 74007903. Substitute parts can look different from the original.
$76.51
In Stock
Cooktop Lp Conversion Kit 7509P173-60
#3

Supplemental information diagram

Cooktop lp conversion kit

Part #7509P173-60

$70.29 |
8% OFF Phone Price : $76.29
In Stock
Holder Orifice 7527P114-60
#6C

Body diagram

Holder orifice

Part #7527P114-60

$47.93
In Stock
Burner Knob 7733P500-60
#5

Top assembly diagram

Burner knob

Part #7733P500-60

Replaced by #W10168627

?
Manufacturer substitution
This part replaces 7733P500-60. Substitute parts can look different from the original.
$33.89 |
15% OFF Phone Price : $39.89
In Stock
