Whirlpool
Dehumidifier

Model # AD25BBL6 Official Whirlpool dehumidifier

Here are the diagrams and repair parts for Official Whirlpool AD25BBL6 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Valve Kit 978025
#NI

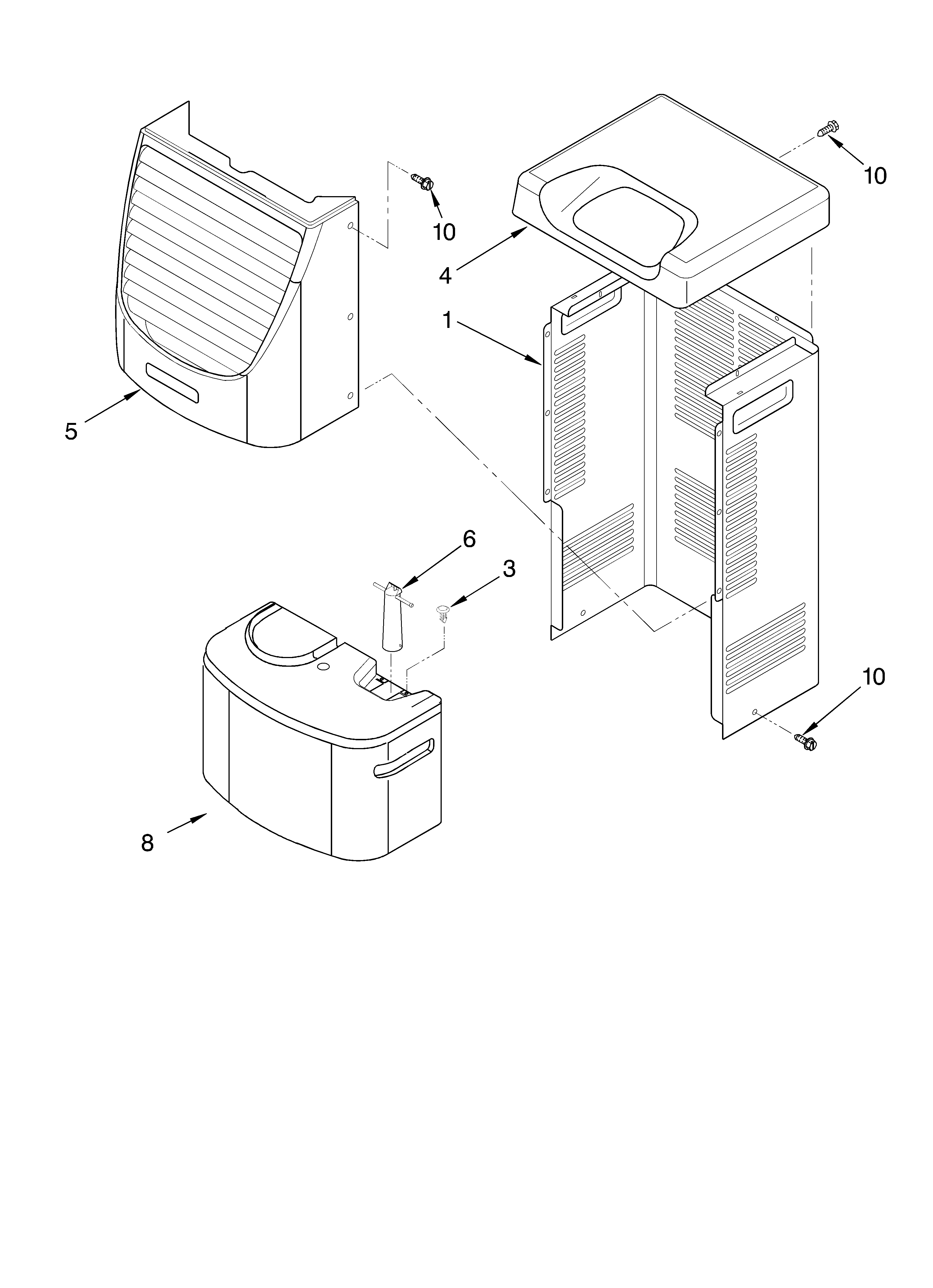

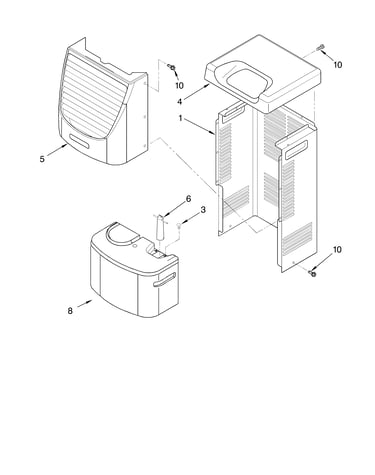

Cabinet parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Refrigerator Screw 1157158
#27

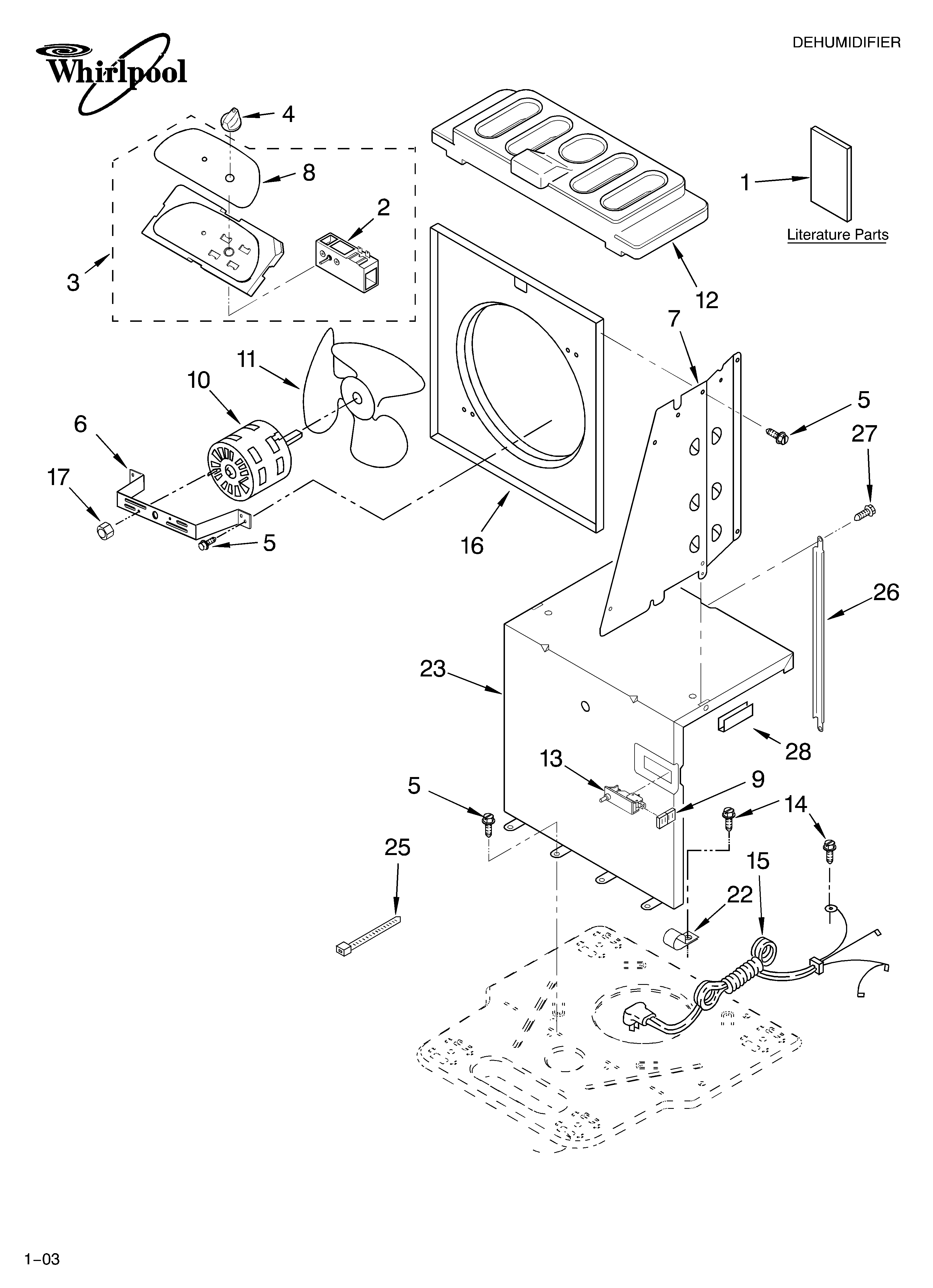

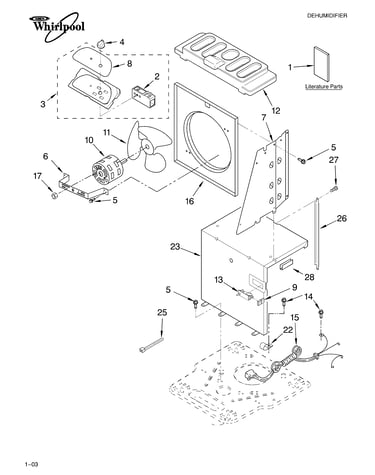

Air flow and control parts diagram

Refrigerator screw

Part #1157158

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, 8 X 1 488480
Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cable Tie 857547
#25

Air flow and control parts diagram

Cable tie

Part #857547

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 857547. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Valve Kit 978027
#NI

Cabinet parts diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Water-level Switch 1186480
#13

Air flow and control parts diagram

Water-level switch

Part #1186480

Replaced by #1188814

?
Manufacturer substitution
This part replaces 1186480. Substitute parts can look different from the original.
$69.62 |
8% OFF Phone Price : $75.62
In Stock
Refrigerant Access Valve, 5/8-in 978029
#NI

Cabinet parts diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
Strainer 1162526
#3

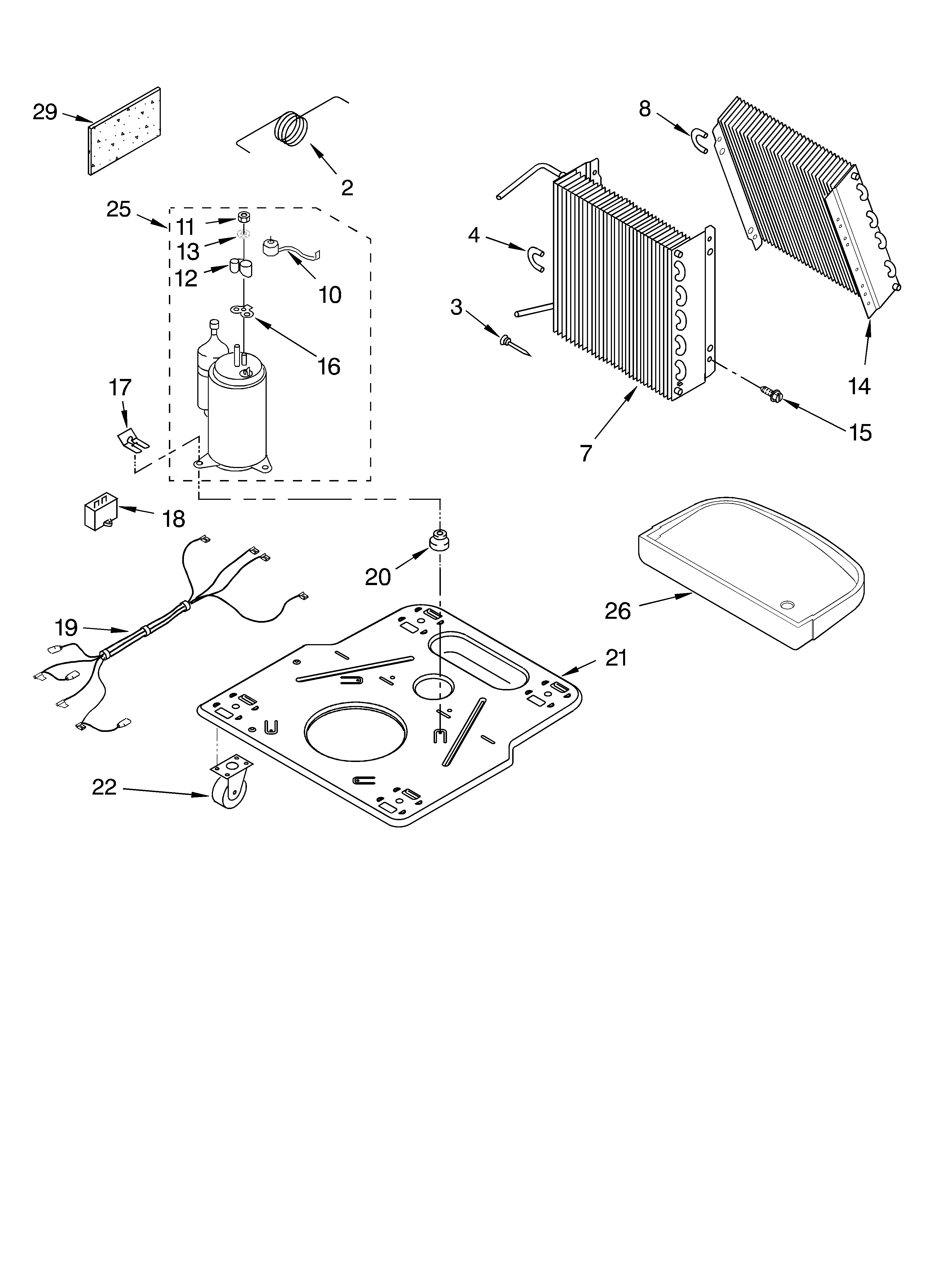

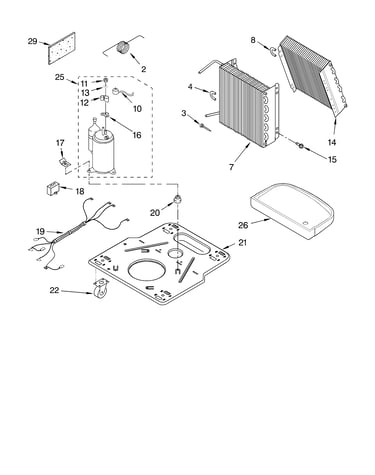

Unit parts diagram

Strainer

Part #1162526

Replaced by #WP1162526

?
Manufacturer substitution
This part replaces 1162526. Substitute parts can look different from the original.
$29.89
In Stock
Screw 1168744
#10

Cabinet parts diagram

Screw

Part #1168744

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 1168744. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Mounting Nut 1186128
#11

Unit parts diagram

Mounting nut

Part #1186128

Replaced by #W10833054

?
Manufacturer substitution
This part replaces 1186128. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
