Kenmore
Gas Cooktop

Model # 9113212990 Official Kenmore 30" gas counter unit

Here are the diagrams and repair parts for Official Kenmore 9113212990 30" gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Screw WB01X1293
#856

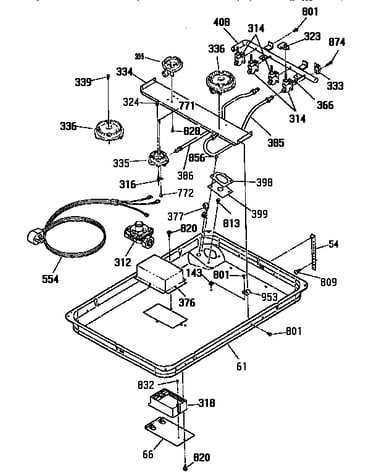

Burner section diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bur Bowl Sea WB32M0008
#67B

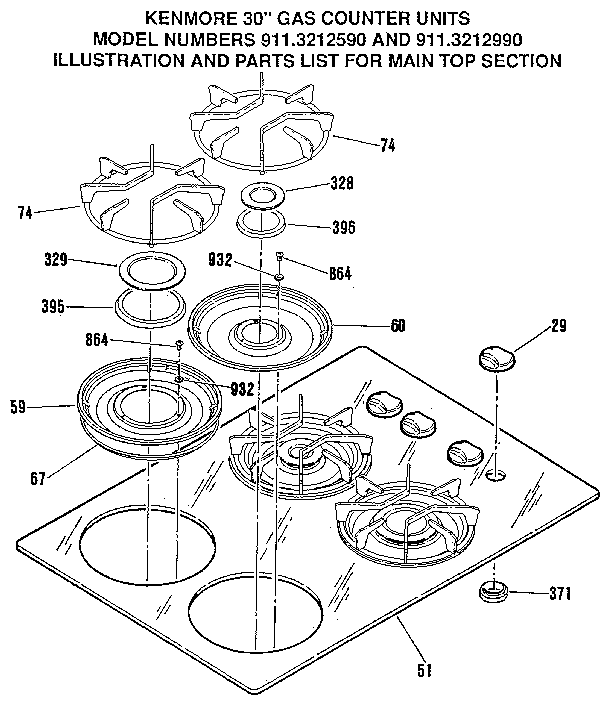

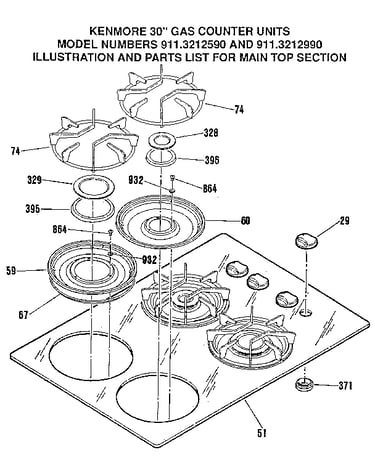

Main top section diagram

Bur bowl sea

Part #WB32M0008

Replaced by #WB32M8

?
Manufacturer substitution
This part replaces WB32M0008. Substitute parts can look different from the original.
This item is not returnable
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Manual Pipe WB28M0002
#400

Burner section diagram

Manual pipe

Part #WB28M0002

Replaced by #WB19T10078

?
Manufacturer substitution
This part replaces WB28M0002. Substitute parts can look different from the original.
$45.34 |
12% OFF Phone Price : $51.34
In Stock
Screw-10ab WB01X1137
#809

Burner section diagram

Screw-10ab

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Parts List SR13004

#NI

All parts diagram

Parts list

Part #SR13004

$14.29 |
12% OFF Phone Price : $16.29
In Stock
Cooktop Owner's Manual SR10007

#NI

All parts diagram

Cooktop owner's manual

Part #SR10007

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Screw WB01M0014
#874

Burner section diagram

Screw

Part #WB01M0014

Replaced by #WB1M14

?
Manufacturer substitution
This part replaces WB01M0014. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Clamp WB06X0093
#333

Burner section diagram

Clamp

Part #WB06X0093

Replaced by #WB6X93

?
Manufacturer substitution
This part replaces WB06X0093. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Screw 10 WB01M0001
#801

Burner section diagram

Screw 10

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01X1420
#864

Main top section diagram

Screw

Part #WB01X1420

The manufacturer no longer makes this part, and there's no substitute part
