Model # 502472551 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472551 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |

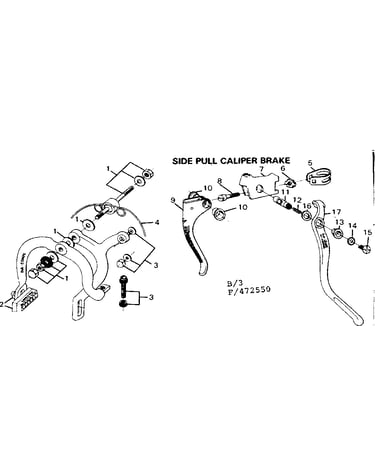

Brake Shoe 308697
Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
#11

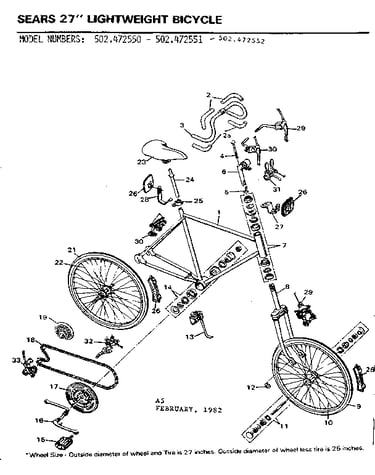

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#13

Unit parts diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Spkt. Asm 36265PA
#19

Unit parts diagram

Spkt. asm

Part #36265PA

The manufacturer no longer makes this part, and there's no substitute part

Adjuster Spring 308733
#2

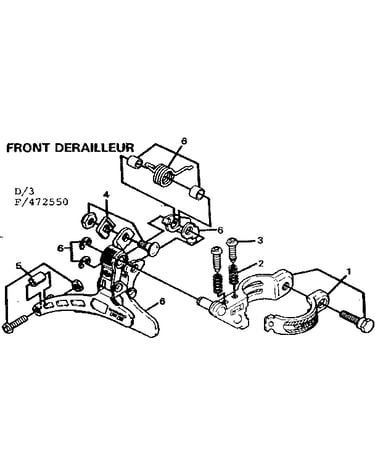

Front derailleur diagram

Adjuster spring

Part #308733

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 308515
#21

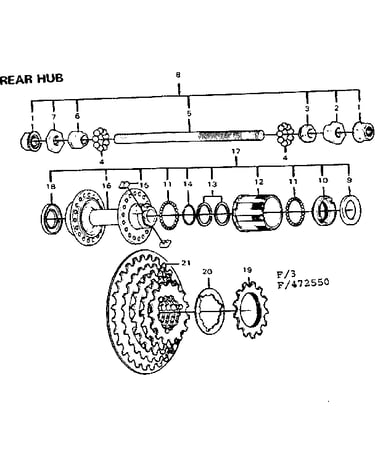

Rear hub diagram

Sprocket

Part #308515

The manufacturer no longer makes this part, and there's no substitute part

Pulley 308755
#16

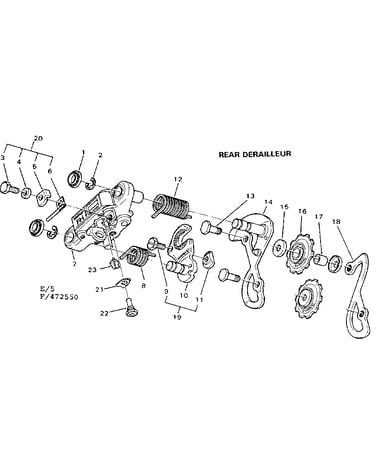

Rear derailleur diagram

Pulley

Part #308755

The manufacturer no longer makes this part, and there's no substitute part

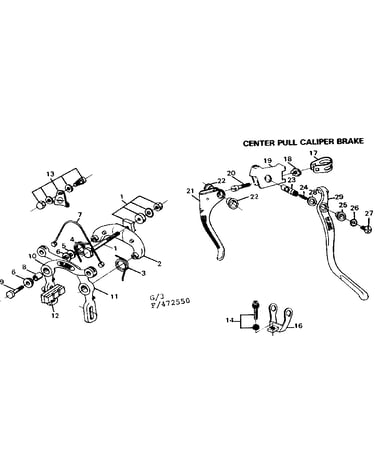

Brk Blue 36664PA
Brk blue

Part #36664PA

The manufacturer no longer makes this part, and there's no substitute part

Ball 301211
#4

Rear hub diagram

Ball

Part #301211

The manufacturer no longer makes this part, and there's no substitute part

Stoppr Plate 308758
#23

Rear derailleur diagram

Stoppr plate

Part #308758

The manufacturer no longer makes this part, and there's no substitute part
