Kenmore
Electric Wall Oven

Model # 79049413312 Official Kenmore wall oven

Here are the diagrams and repair parts for Official Kenmore 79049413312 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

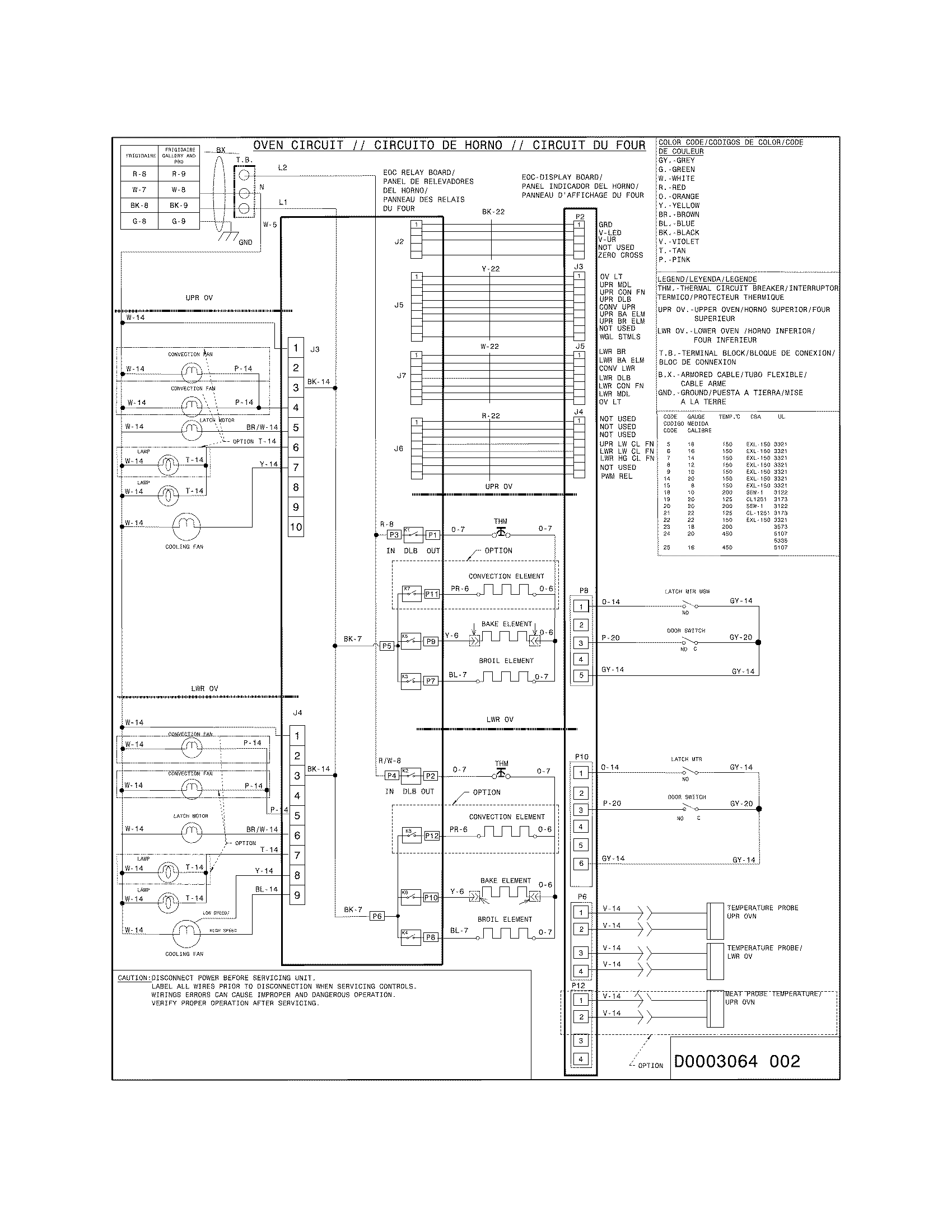

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Range Oven Temperature Sensor 318562500
Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Frigidaire Wall Oven Relay Control Board 316443913
#97

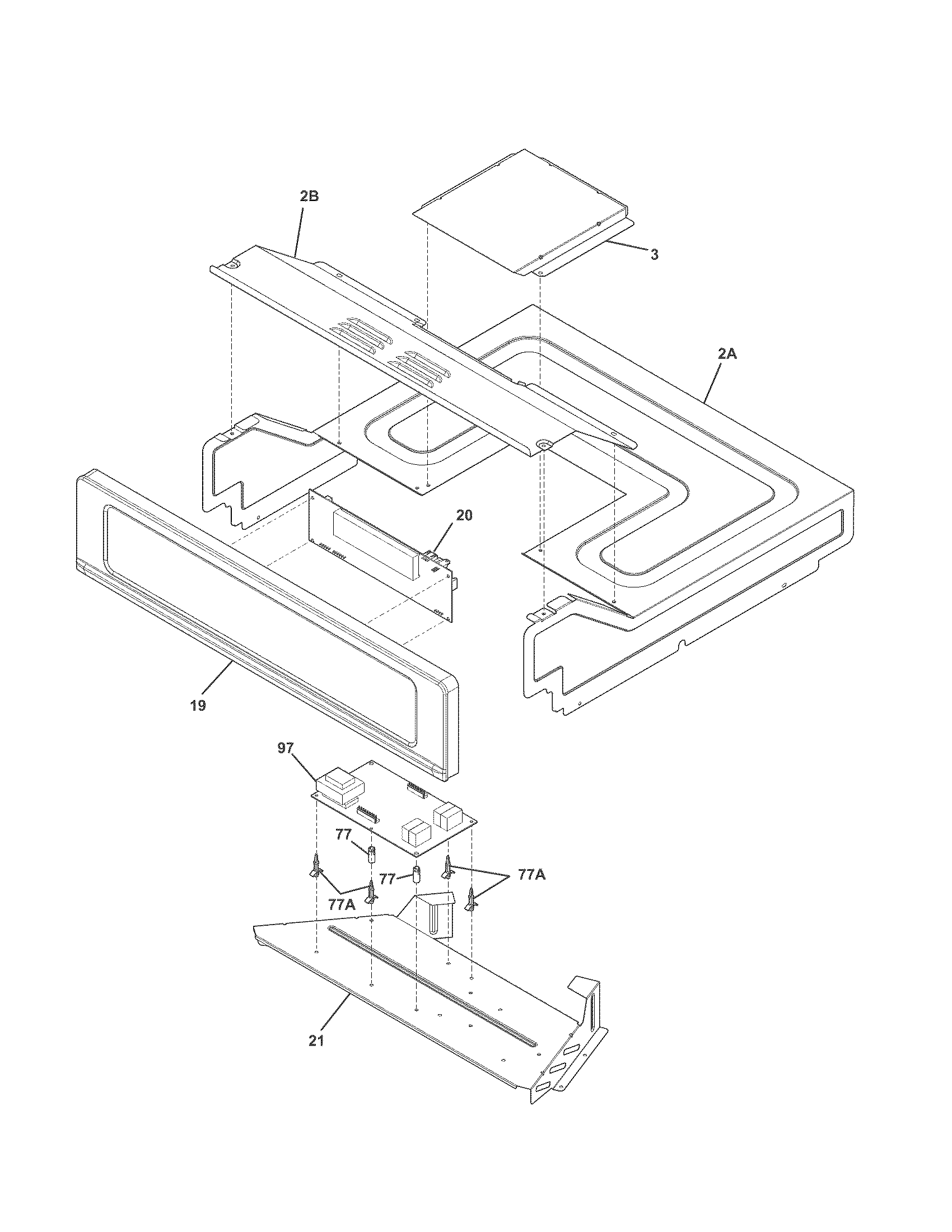

Control panel diagram

Frigidaire wall oven relay control board

Part #316443913

BEST SELLER
This item is not returnable
$245.98 |
5% OFF Phone Price : $257.98
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#NI

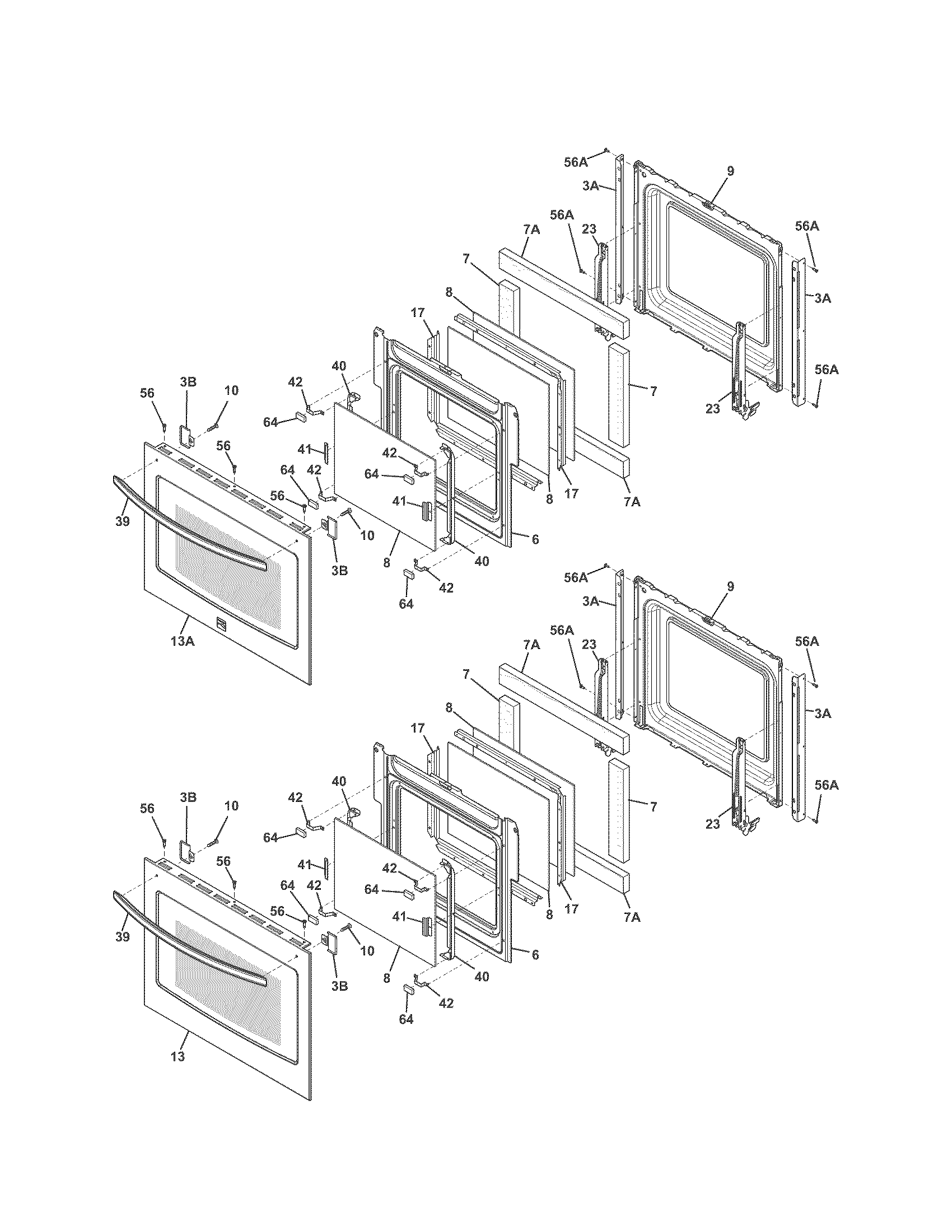

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Control Panel Cooling Fan 318575612
#108

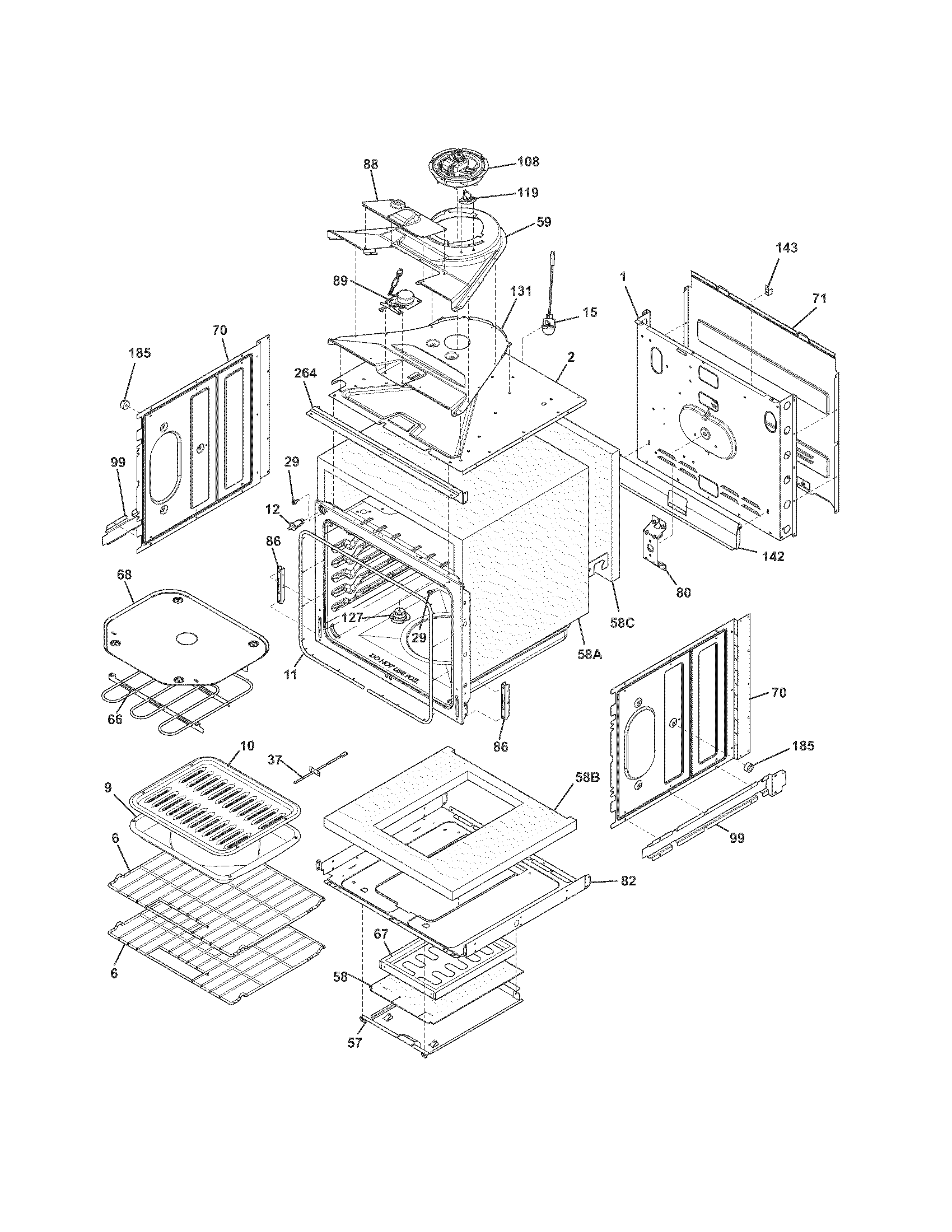

Upper oven diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
Range Door Light Switch 318394802
Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Door diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Range Screw 316001003
#NI

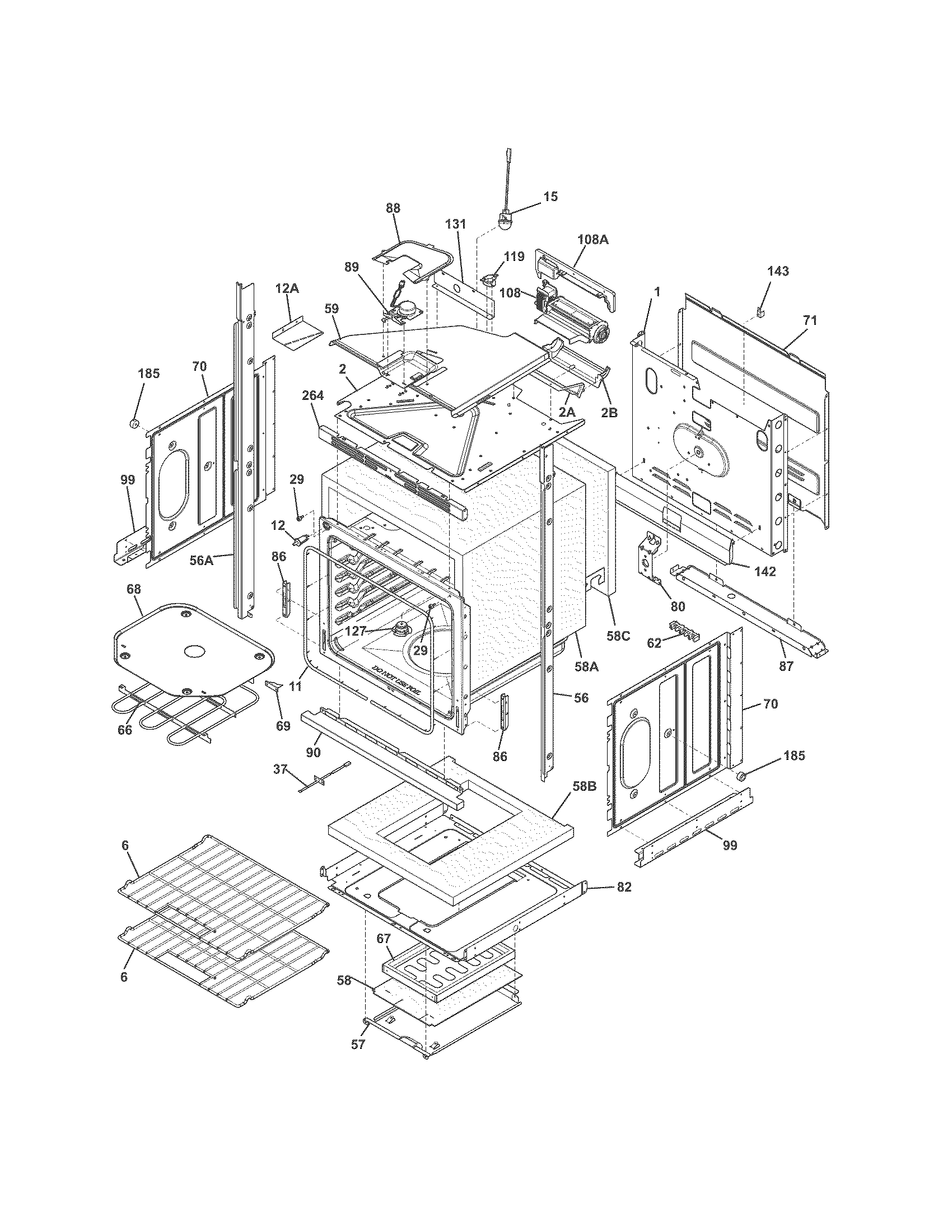

Lower oven diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Range Broil Element 139028200
Range broil element

Part #139028200

$73.39 |
8% OFF Phone Price : $79.39
In Stock
