Model # YMER7651WW2 Official Maytag 30" electric freestanding range

Here are the diagrams and repair parts for Official Maytag YMER7651WW2 30" electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Light Bulb 311255
#25

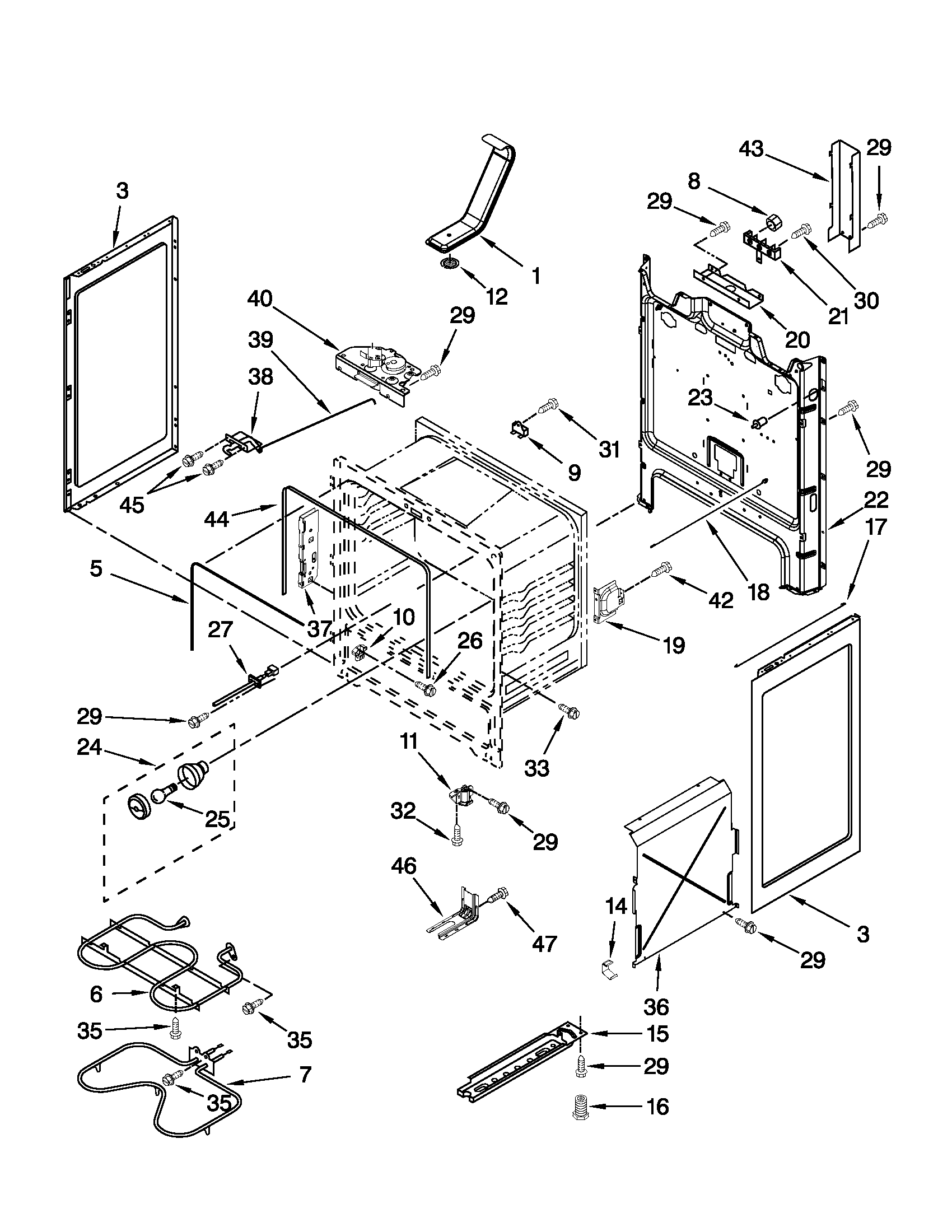

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Infinite Switch 3148954
#4B

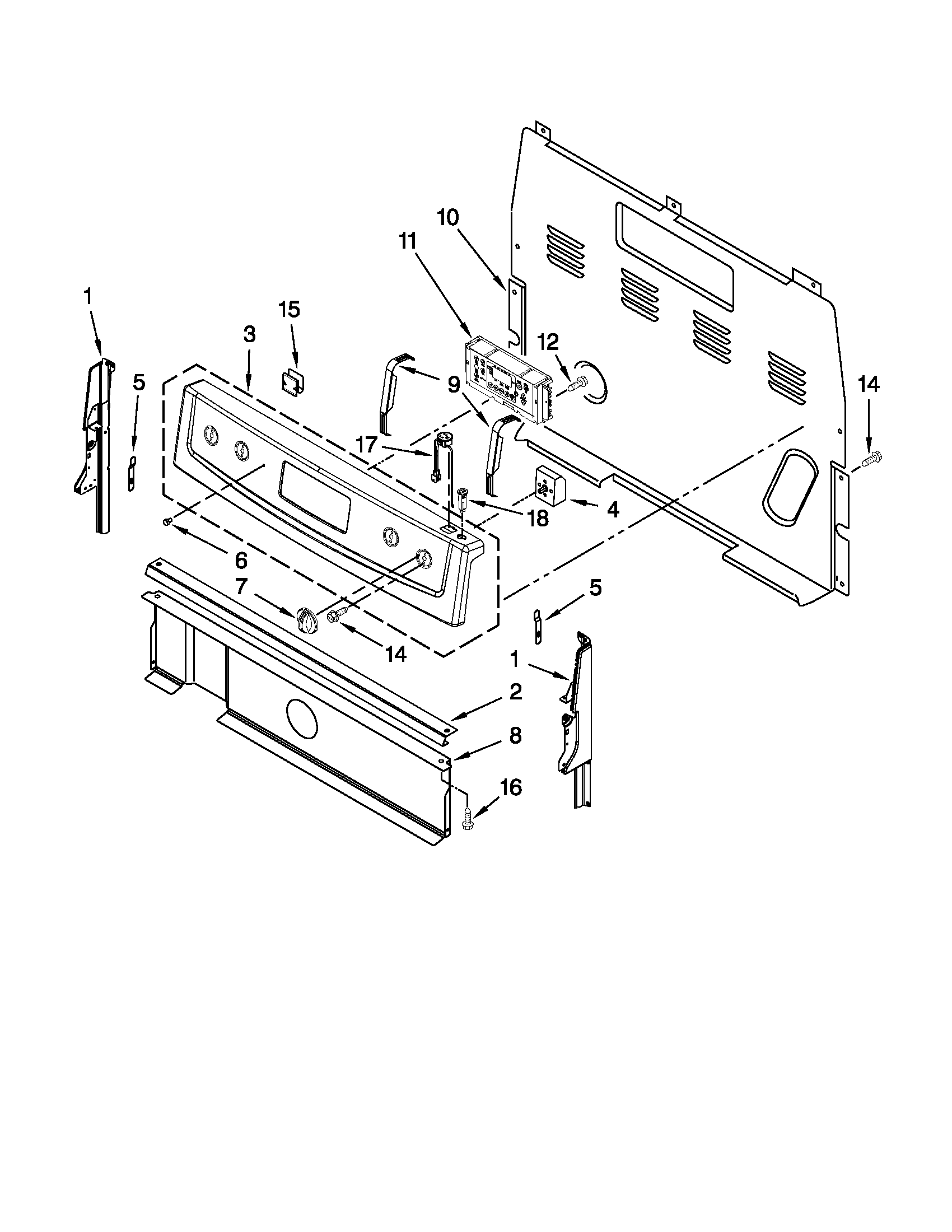

Control panel parts diagram

Infinite switch

Part #3148954

Replaced by #WP3149400

?
Manufacturer substitution
This part replaces 3148954. Substitute parts can look different from the original.
BEST SELLER
$36.70 |
14% OFF Phone Price : $42.70
In Stock
Range Oven Temperature Sensor W10181986
#27

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$65.03 |
8% OFF Phone Price : $71.03
In Stock
Infinite Switch (silver) 3148951
#4A

Control panel parts diagram

Infinite switch (silver)

Part #3148951

Replaced by #WP3149404

?
Manufacturer substitution
This part replaces 3148951. Substitute parts can look different from the original.
BEST SELLER
$37.05 |
14% OFF Phone Price : $43.05
In Stock
Range Radiant Surface Element 8273994
#3B

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Range Bake Element W10308477
#7

Chassis parts diagram

Range bake element

Part #W10308477

Replaced by #WPW10308477

?
Manufacturer substitution
This part replaces W10308477. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Range Radiant Surface Element, 8-in 8273992
#3

Cooktop parts diagram

Range radiant surface element, 8-in

Part #8273992

Replaced by #W11047722

?
Manufacturer substitution
This part replaces 8273992. Substitute parts can look different from the original.
BEST SELLER
$93.79 |
6% OFF Phone Price : $99.79
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Oven Door Hinge W10299224
#10

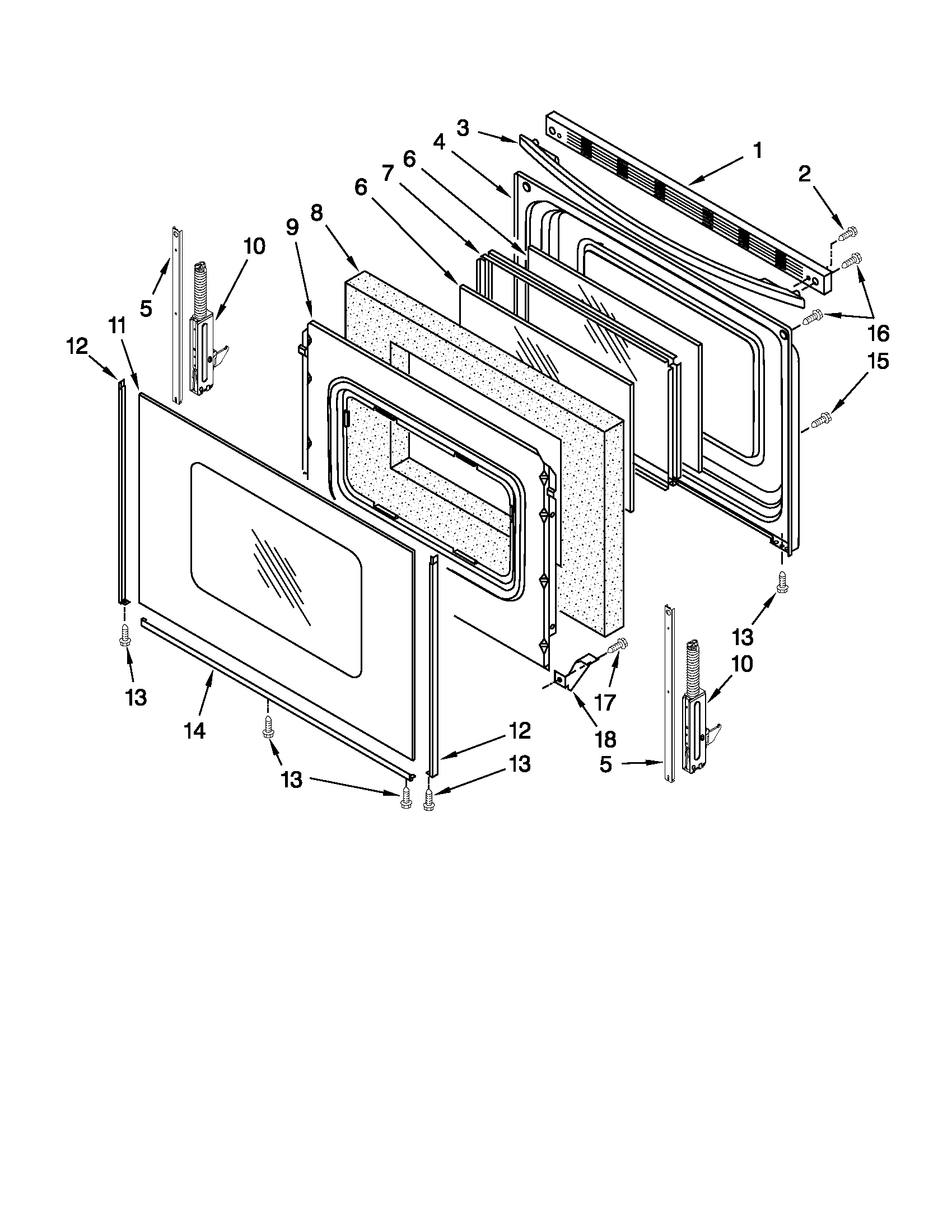

Door parts diagram

Range oven door hinge

Part #W10299224

Replaced by #WPW10299224

?
Manufacturer substitution
This part replaces W10299224. Substitute parts can look different from the original.
BEST SELLER
$35.47 |
14% OFF Phone Price : $41.47
In Stock
Range Oven Door Vent Cap W10310922
#1A

Door parts diagram

Range oven door vent cap

Part #W10310922

Replaced by #WPW10310922

?
Manufacturer substitution
This part replaces W10310922. Substitute parts can look different from the original.
BEST SELLER
$93.66 |
6% OFF Phone Price : $99.66
In Stock
