Model # 30-2237-66-03 Official Tappan gas range - lt32488140

Here are the diagrams and repair parts for Official Tappan 30-2237-66-03 gas range - lt32488140, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Light 374T018P05
#19

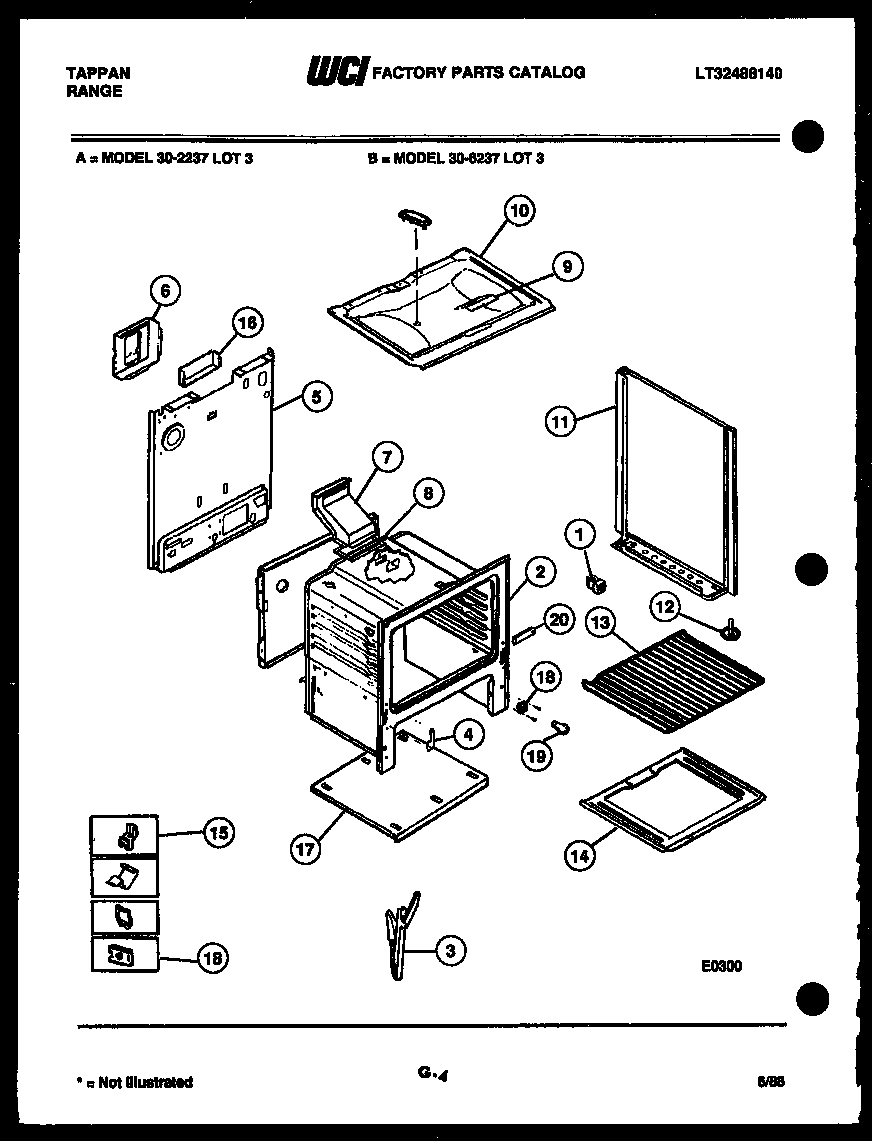

Body parts diagram

Light

Part #374T018P05

Replaced by #316538904

?
Manufacturer substitution
This part replaces 374T018P05. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Power Cord 3131425
#17A

Body parts diagram

Range power cord

Part #3131425

Replaced by #5304509199

?
Manufacturer substitution
This part replaces 3131425. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Screw 636T143P01
#12B

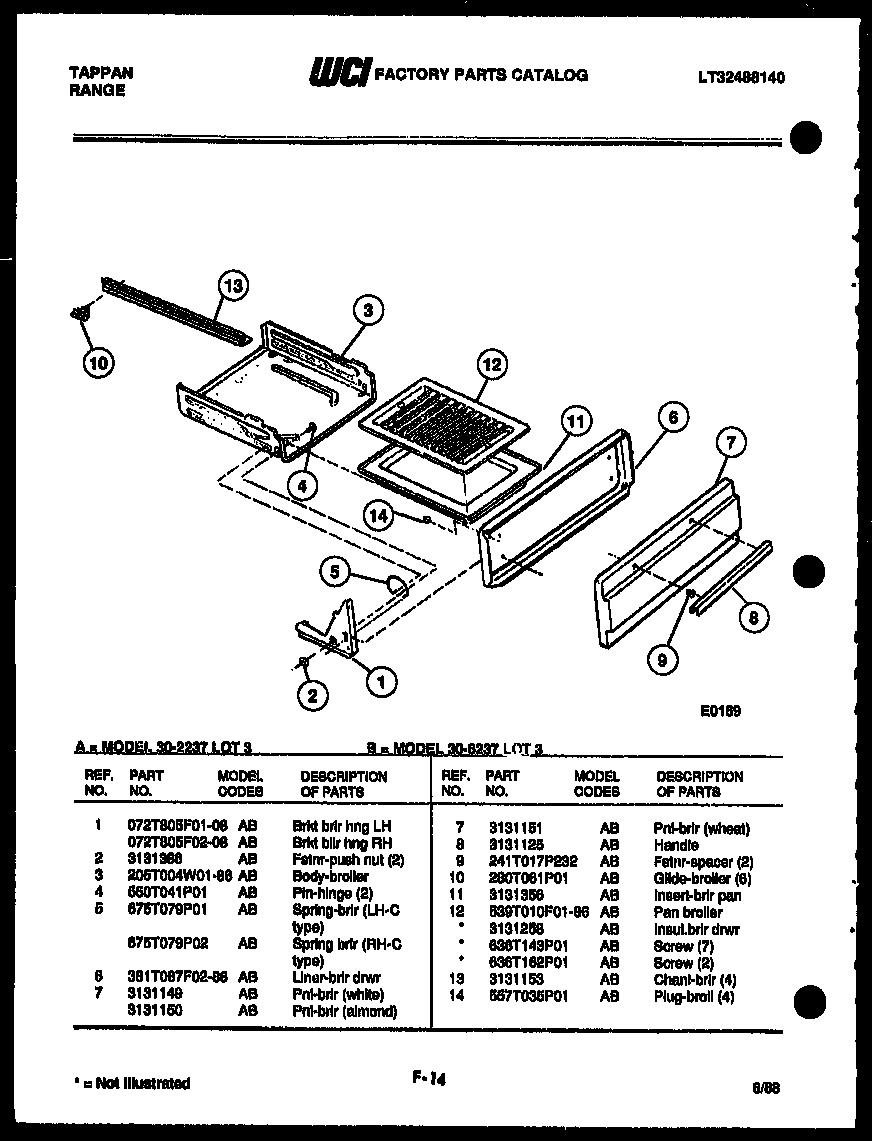

Broiler drawer parts diagram

Screw

Part #636T143P01

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 636T143P01. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Grate 283T013W01-18
#8

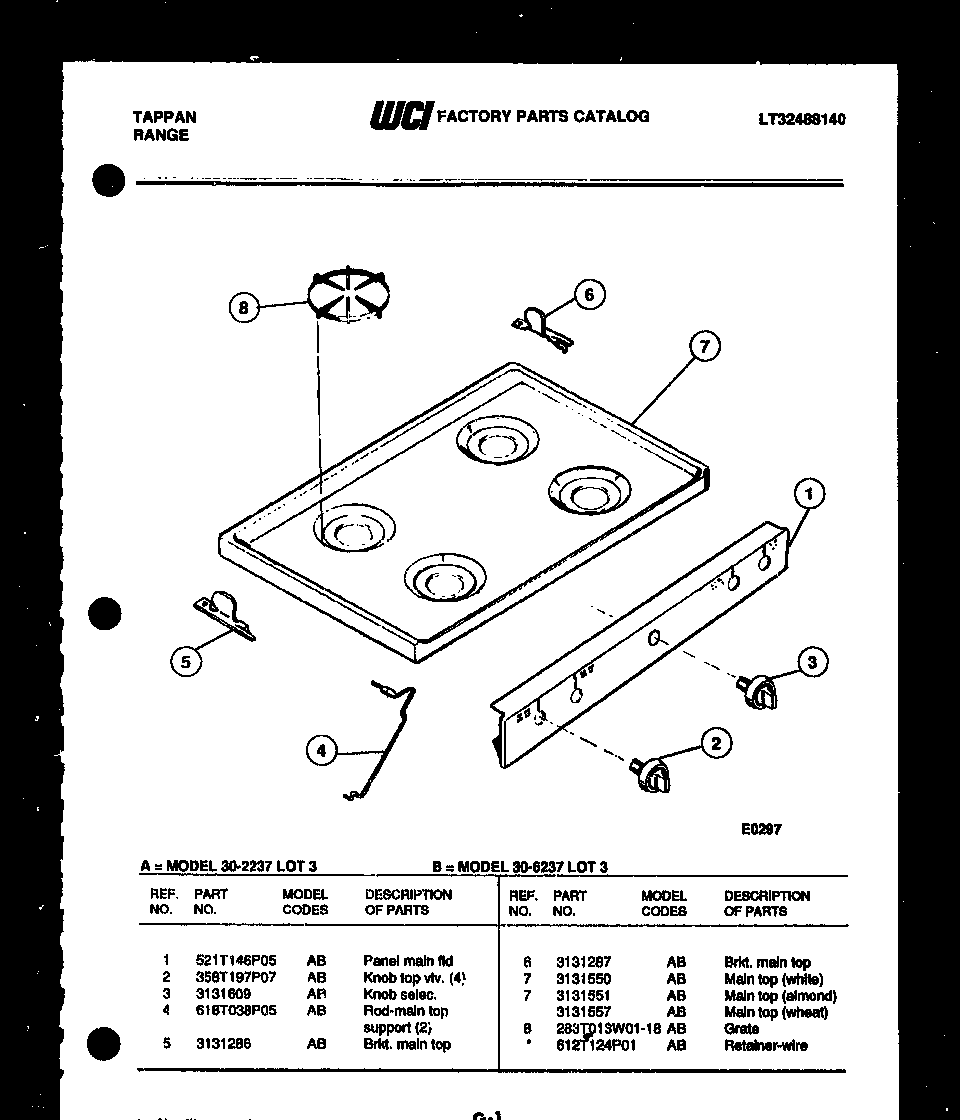

Cooktop parts diagram

Grate

Part #283T013W01-18

Replaced by #316055800

?
Manufacturer substitution
This part replaces 283T013W01-18. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Gsket Flue 3131355
#8

Body parts diagram

Gsket flue

Part #3131355

Replaced by #316542102

?
Manufacturer substitution
This part replaces 3131355. Substitute parts can look different from the original.
$12.51 |
14% OFF Phone Price : $14.51
In Stock
Screw 241T017P16
#17B

Body parts diagram

Screw

Part #241T017P16

This item is not returnable
$2.16
In Stock
End Cap 123T123P01
#4

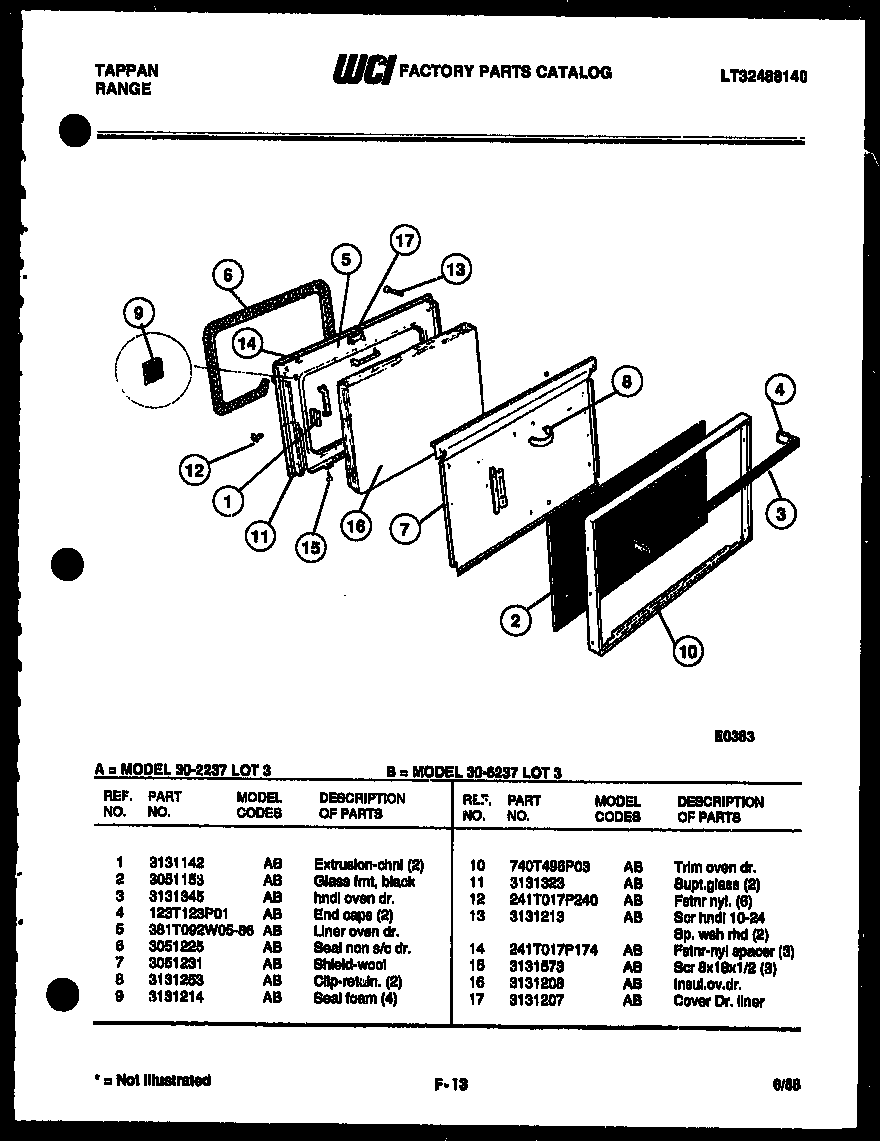

Door parts diagram

End cap

Part #123T123P01

Replaced by #316137003

?
Manufacturer substitution
This part replaces 123T123P01. Substitute parts can look different from the original.
$36.89 |
14% OFF Phone Price : $42.89
In Stock
Igniter 3131330
#28

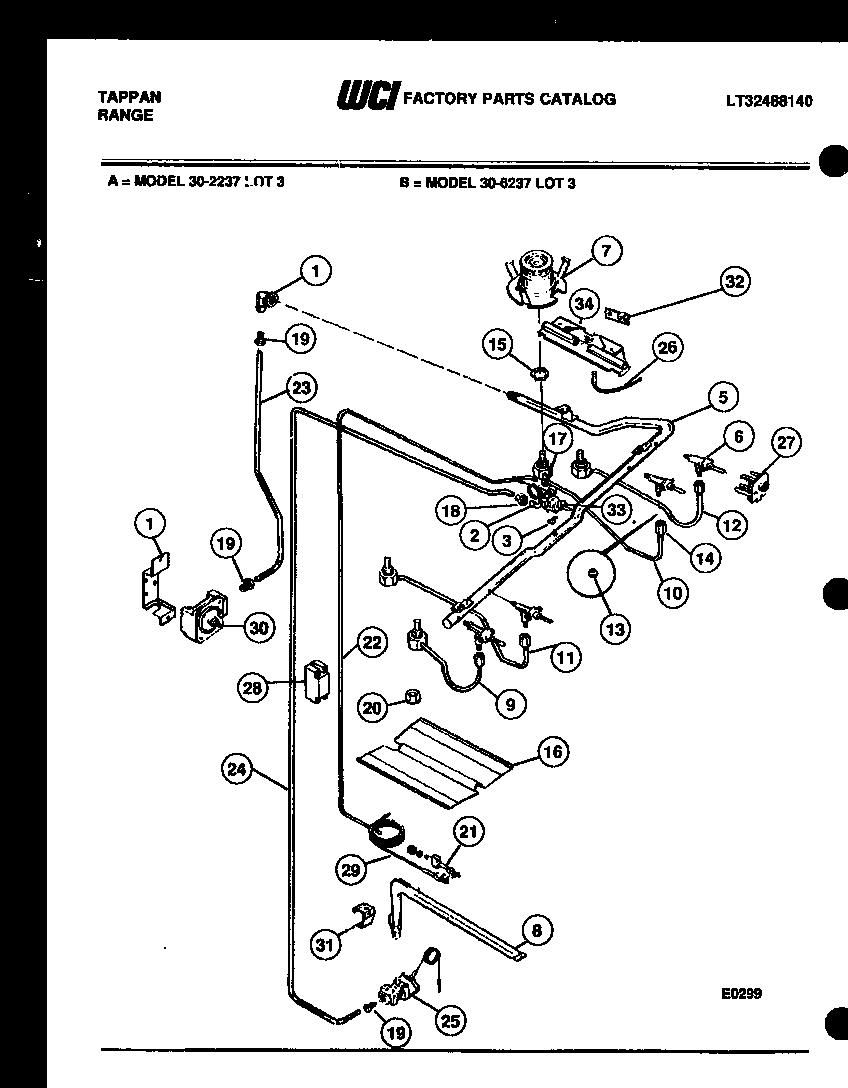

Burner, manifold and gas control diagram

Igniter

Part #3131330

Replaced by #5303200332

?
Manufacturer substitution
This part replaces 3131330. Substitute parts can look different from the original.
$242.35
In Stock
Switch 695T211P02
#4

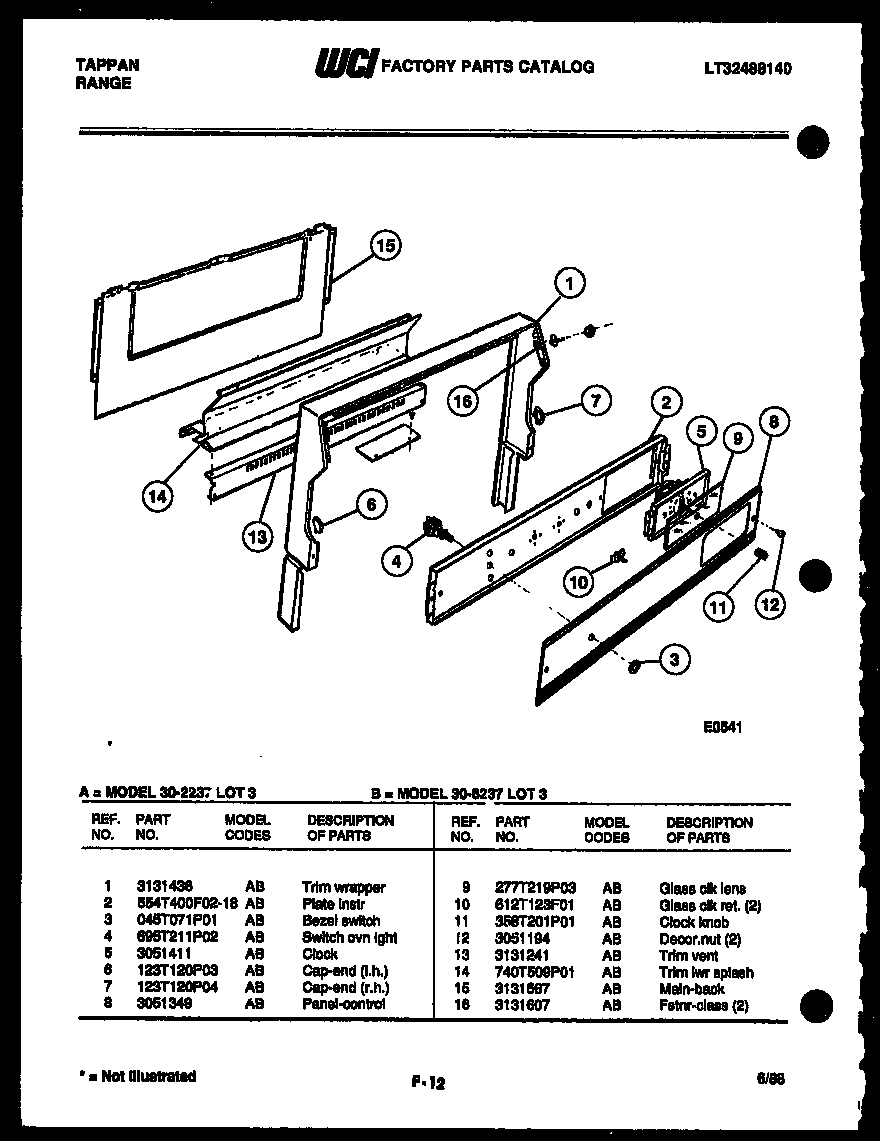

Backguard diagram

Switch

Part #695T211P02

Replaced by #5303200479

?
Manufacturer substitution
This part replaces 695T211P02. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Clip 145T025P01
#15

Body parts diagram

Clip

Part #145T025P01

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 145T025P01. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
