Maytag
Side-By-Side Refrigerator

Model # MSF25D4MDE03 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MSF25D4MDE03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

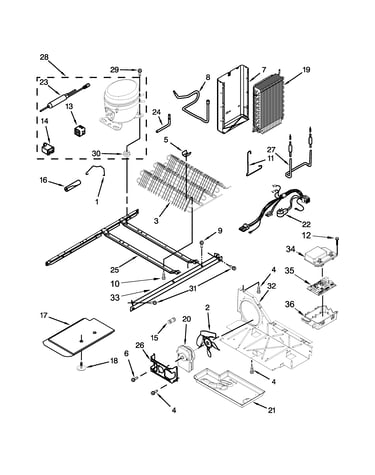

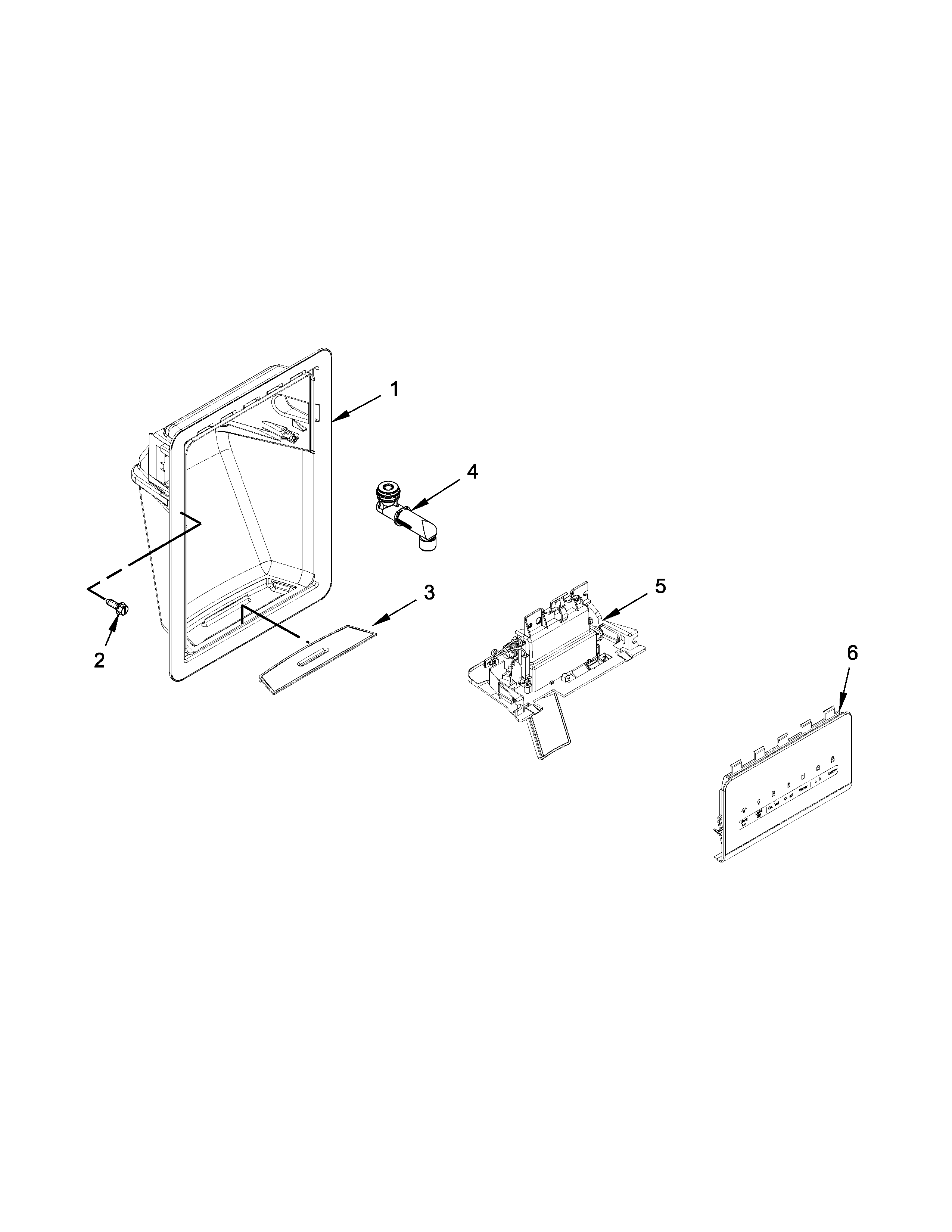

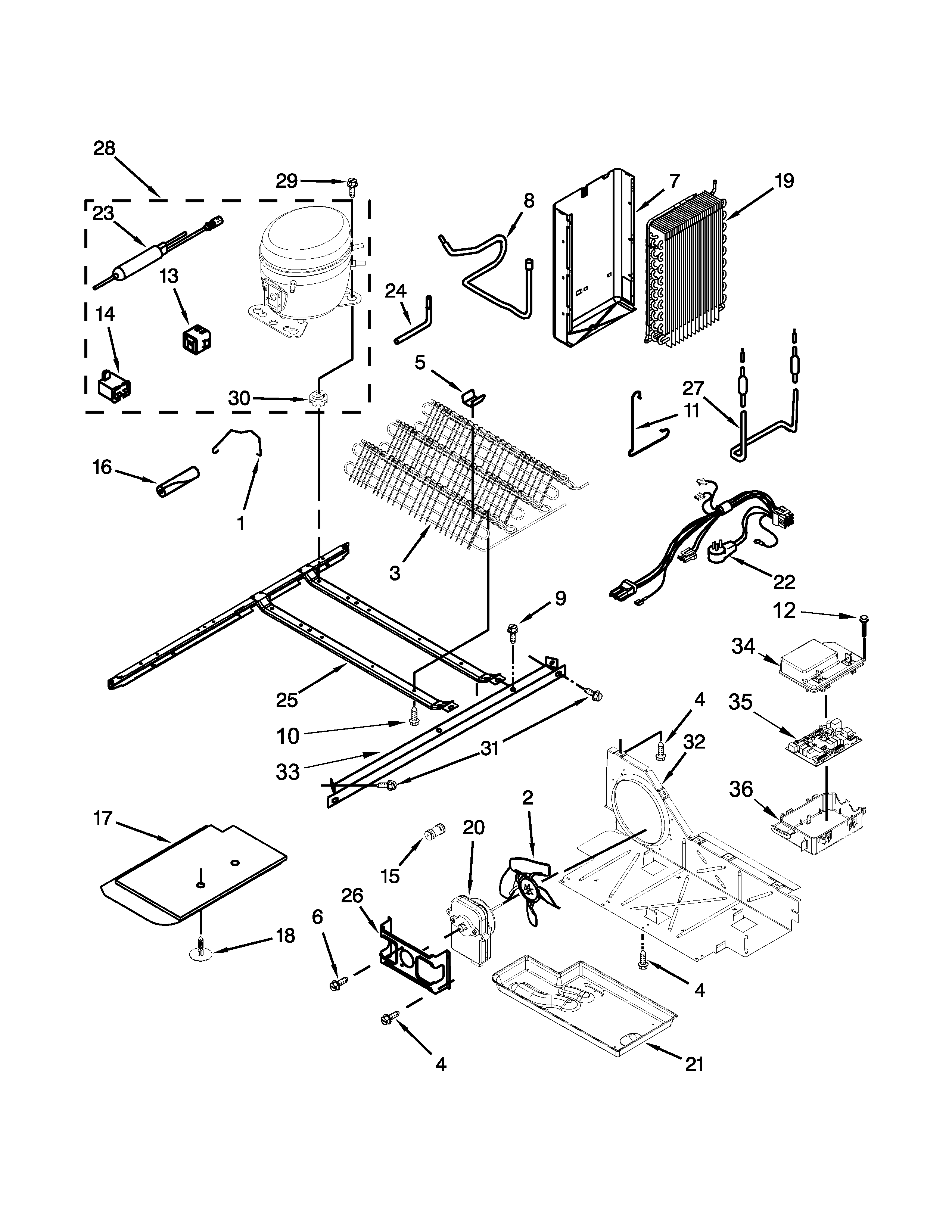

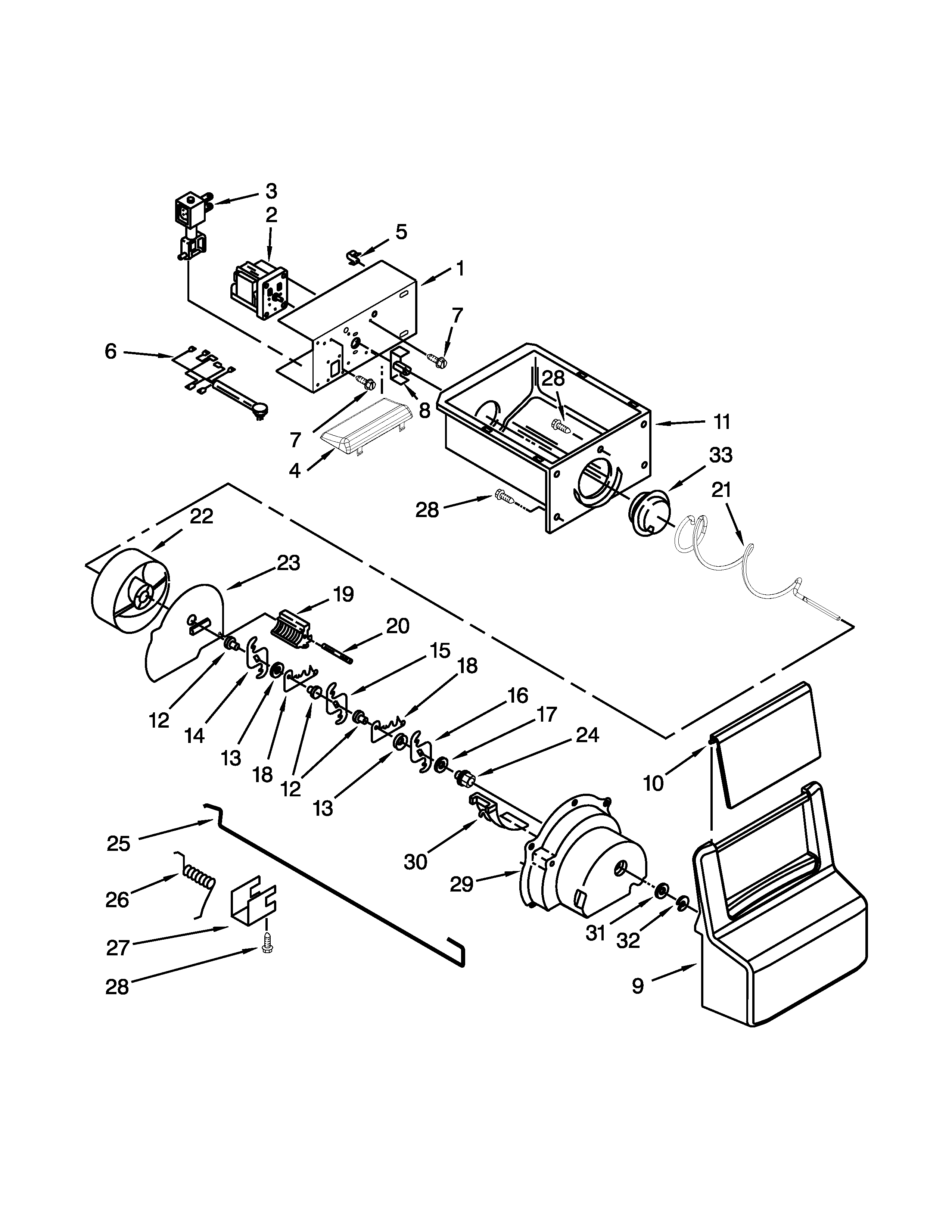

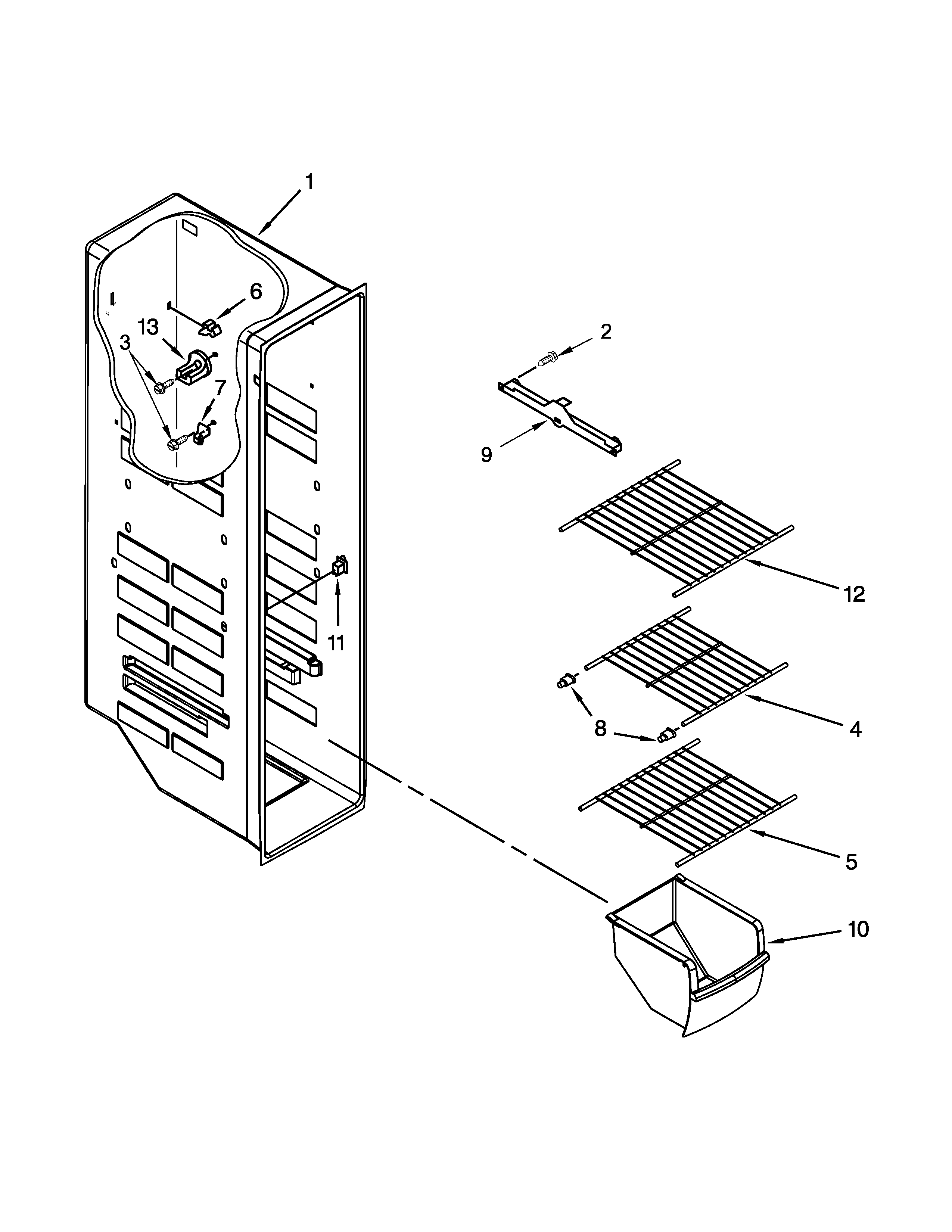

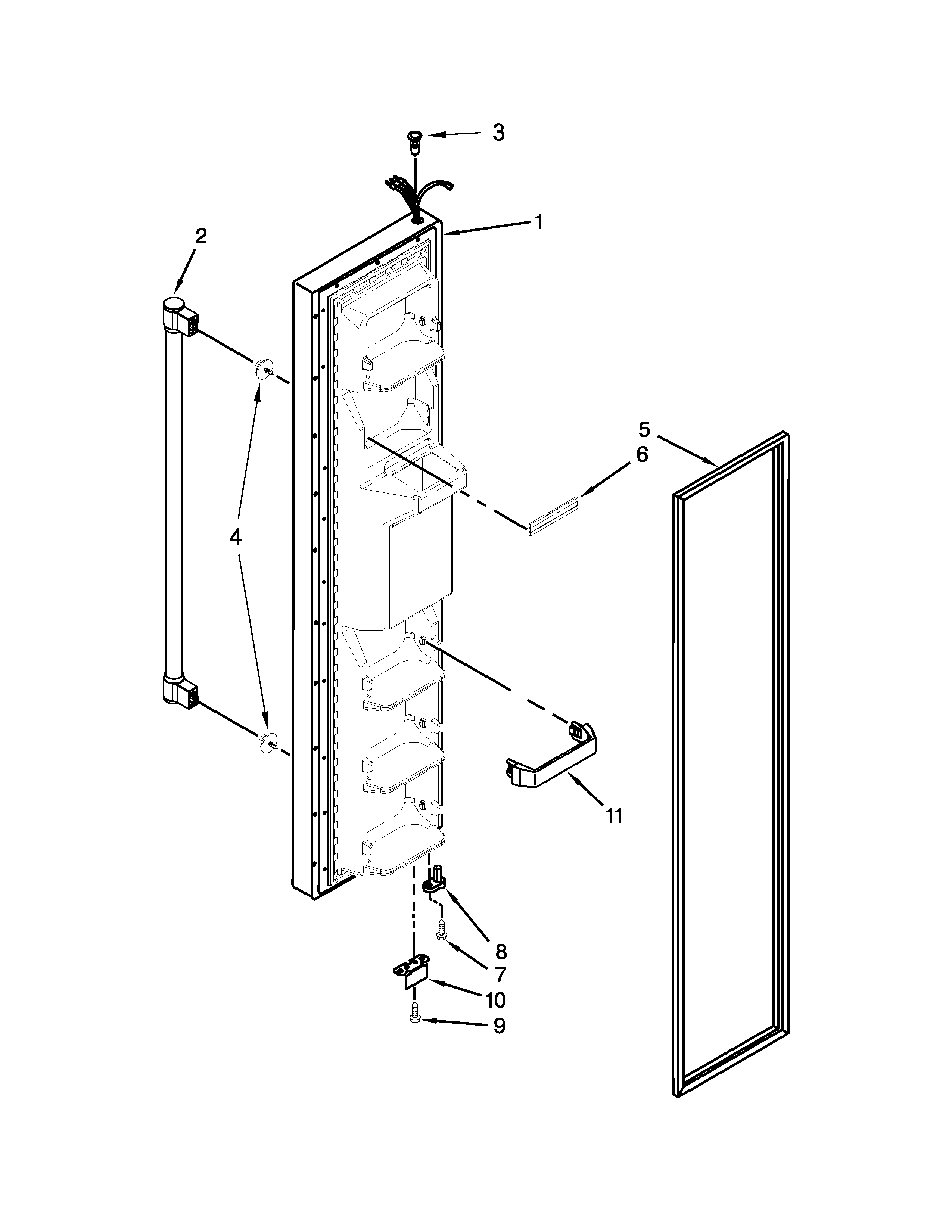

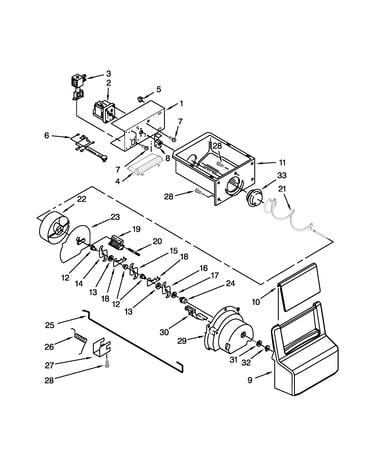

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Refrigerator Cartridge W10735398
#27

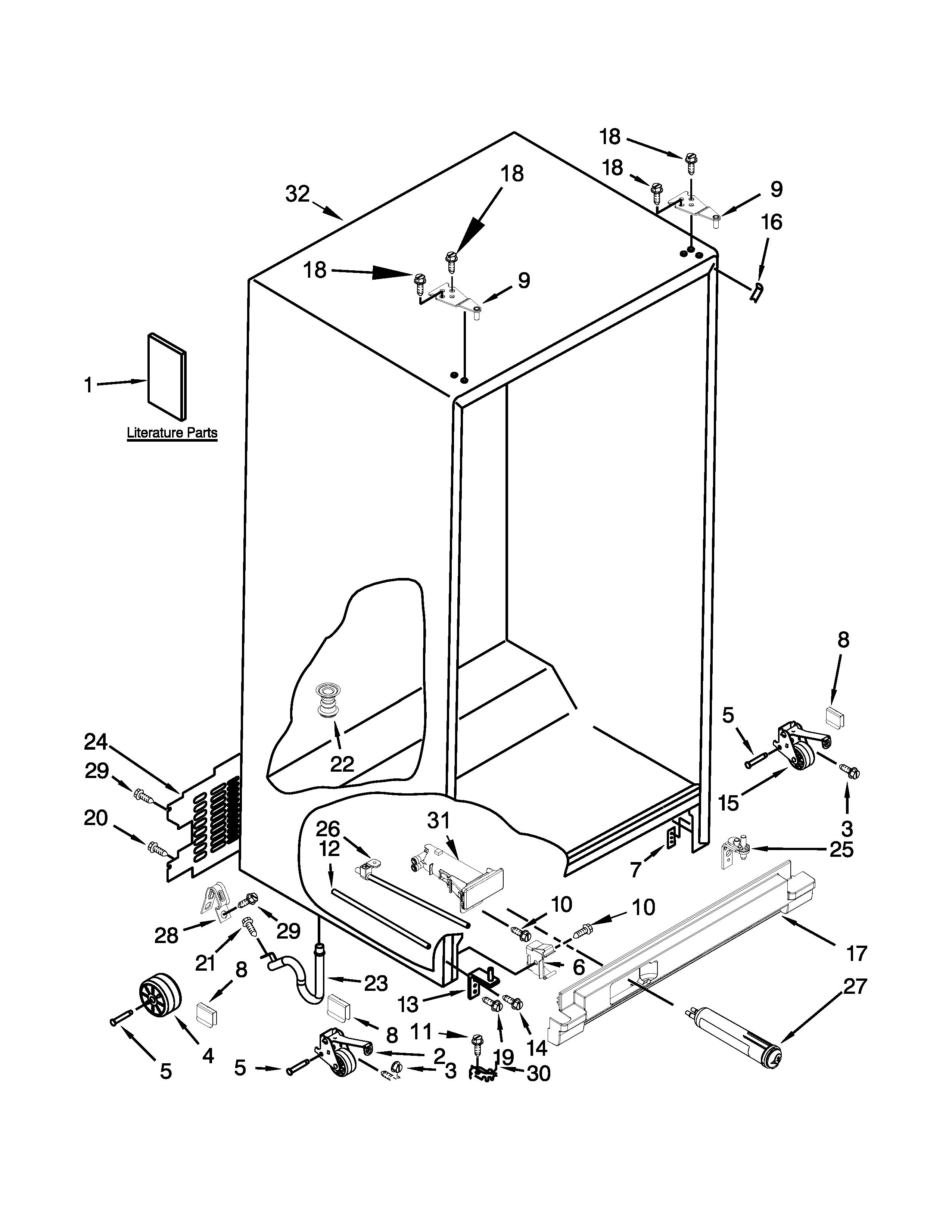

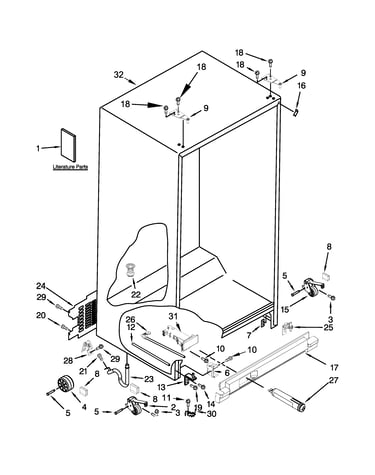

Cabinet parts diagram

Refrigerator cartridge

Part #W10735398

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10735398. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Ice Maker Assembly W10300022
#100

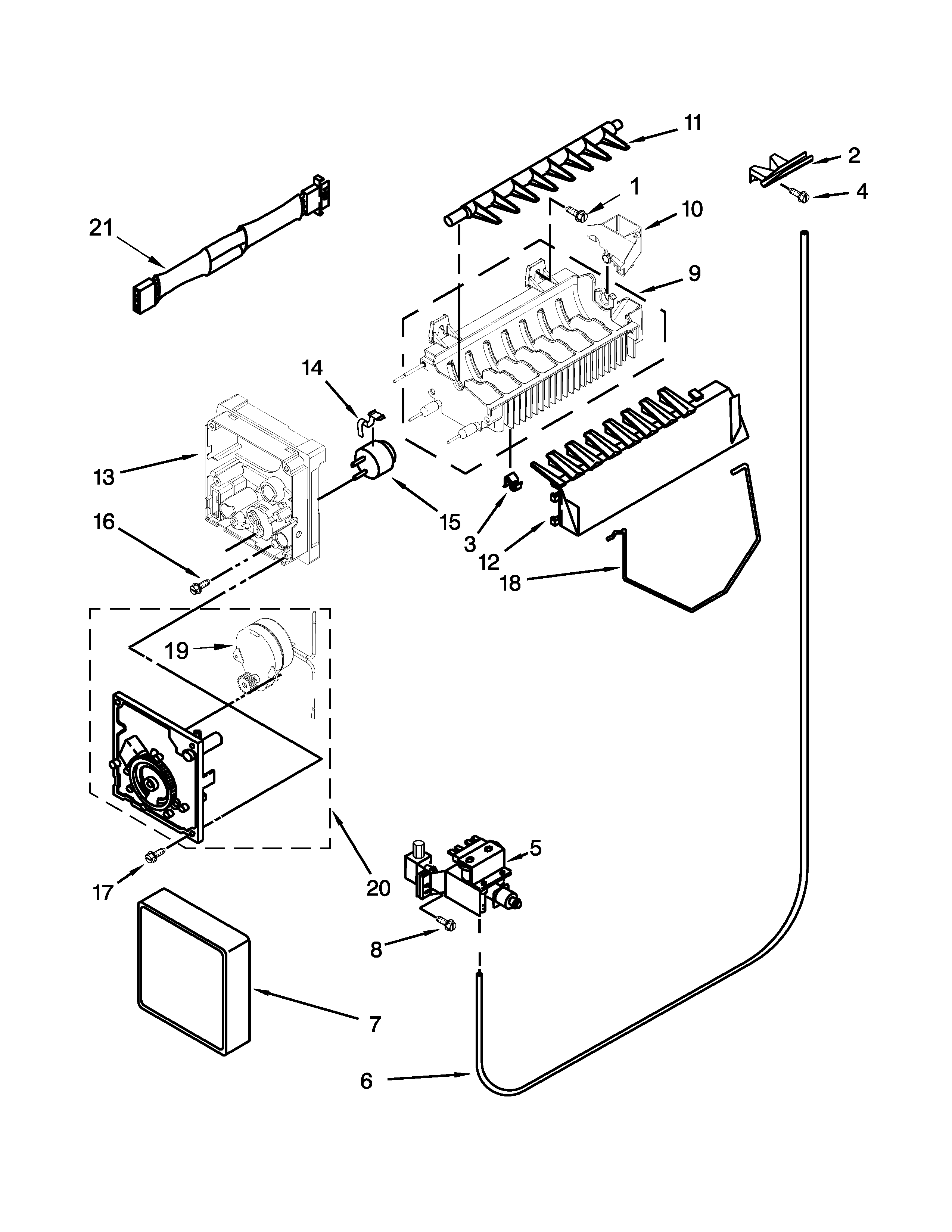

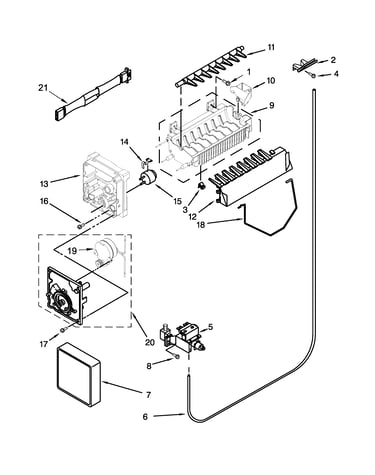

Ice maker parts diagram

Refrigerator ice maker assembly

Part #W10300022

Replaced by #WPW10300022

?
Manufacturer substitution
This part replaces W10300022. Substitute parts can look different from the original.
BEST SELLER
$128.27 |
9% OFF Phone Price : $140.27
In Stock
Refrigerator Crisper Pan 2188652
#15

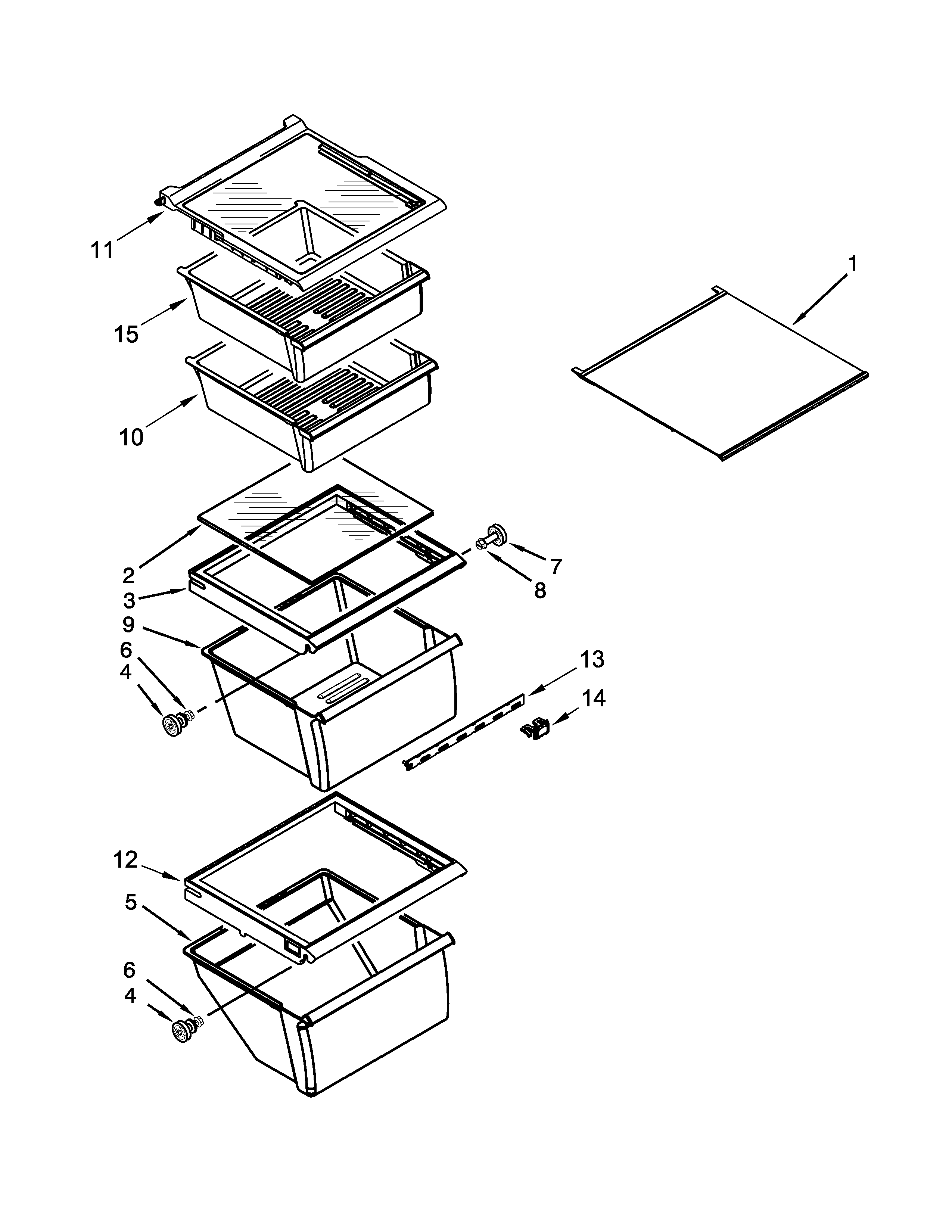

Refrigerator shelf parts diagram

Refrigerator crisper pan

Part #2188652

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2188652. Substitute parts can look different from the original.
BEST SELLER
$73.14 |
8% OFF Phone Price : $79.14
In Stock
Refrigerator Light Board W10515058
#5

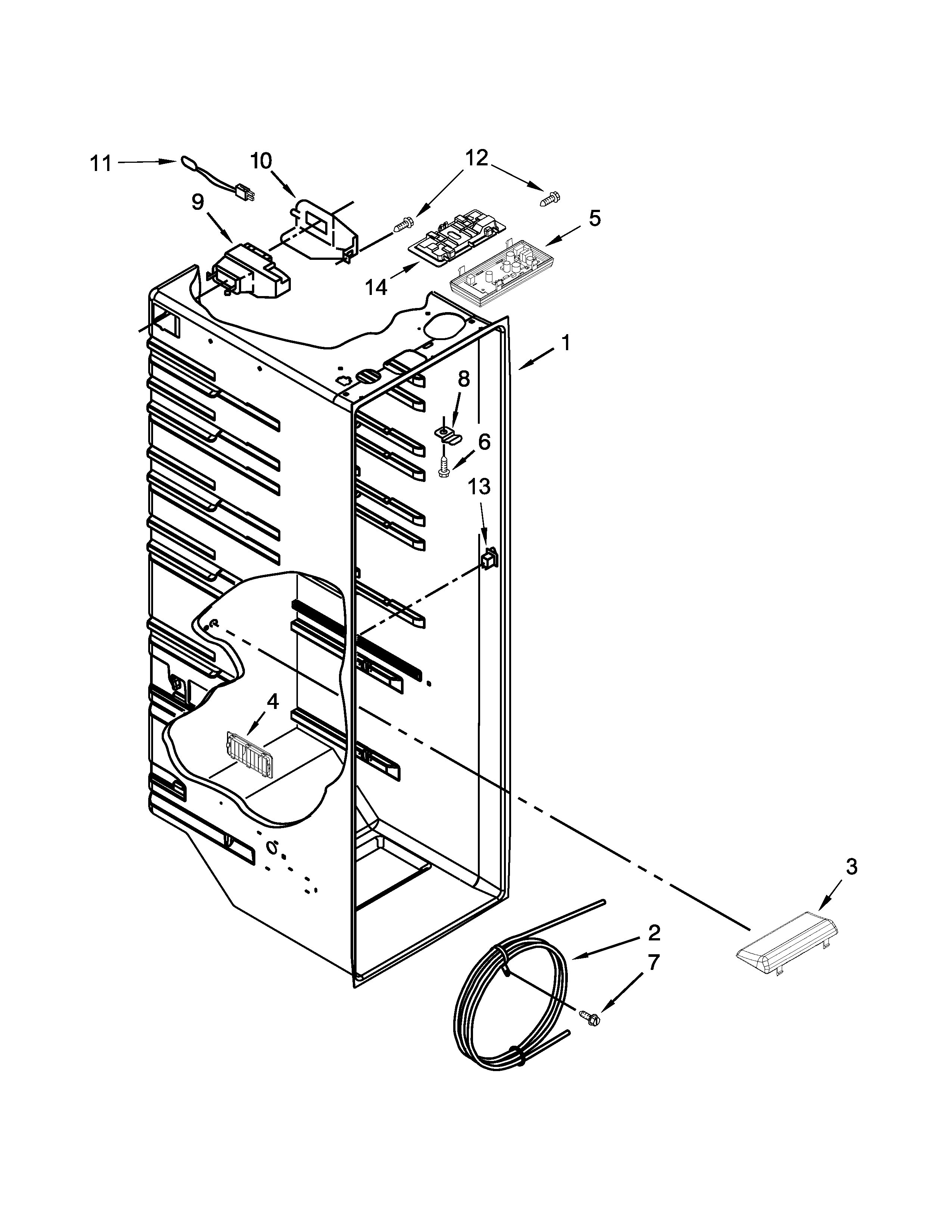

Refrigerator liner parts diagram

Refrigerator light board

Part #W10515058

Replaced by #WPW10515058

?
Manufacturer substitution
This part replaces W10515058. Substitute parts can look different from the original.
BEST SELLER
$145.00 |
8% OFF Phone Price : $157.00
In Stock
Refrigerator Defrost Bi-metal Thermostat W10225581
#6

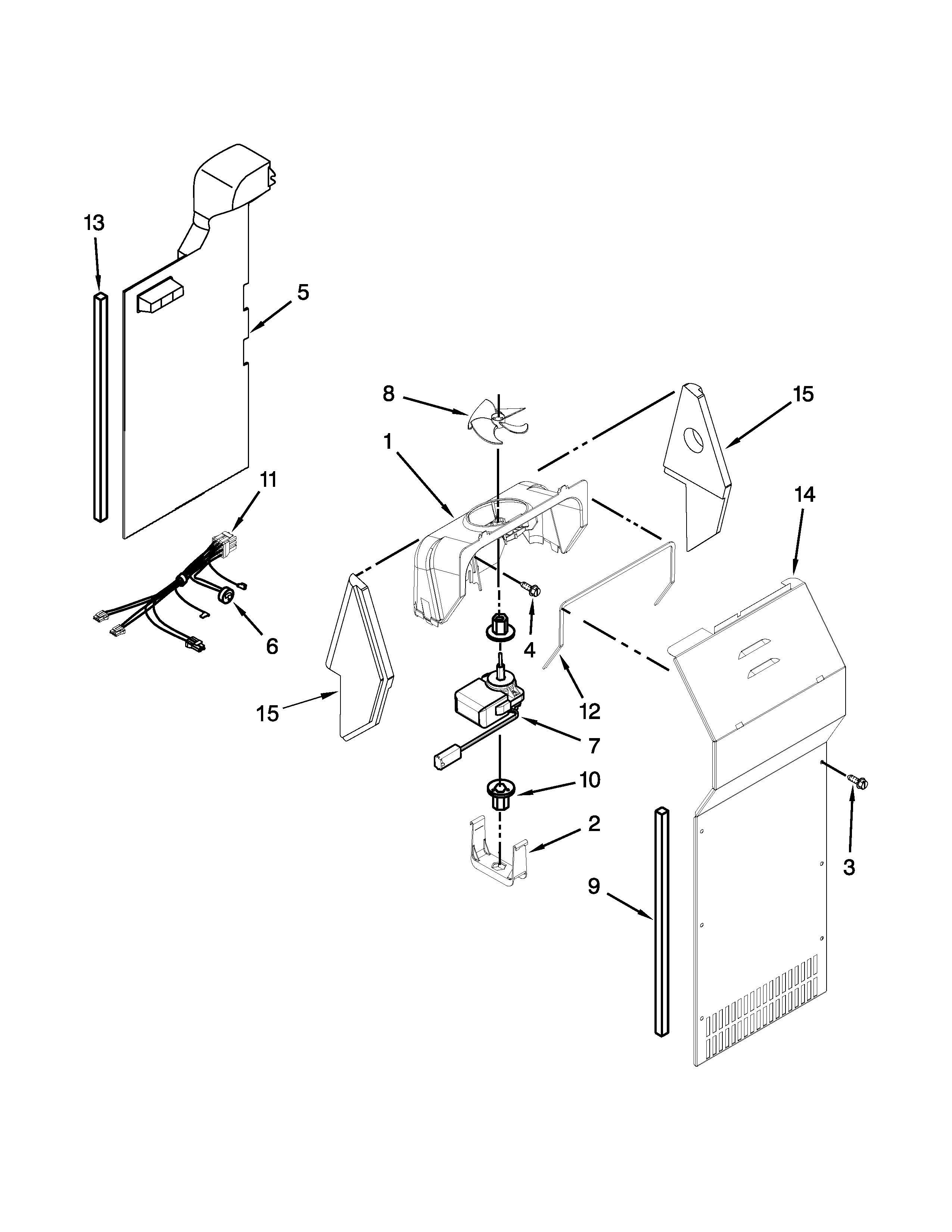

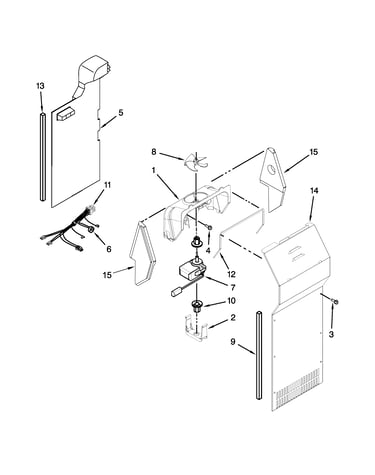

Air flow parts diagram

Refrigerator defrost bi-metal thermostat

Part #W10225581

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces W10225581. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Light Board W10515057
Refrigerator light board

Part #W10515057

Replaced by #WPW10515057

?
Manufacturer substitution
This part replaces W10515057. Substitute parts can look different from the original.
BEST SELLER
$86.75 |
6% OFF Phone Price : $92.75
In Stock
Refrigerator Door Bin W10710203
#5

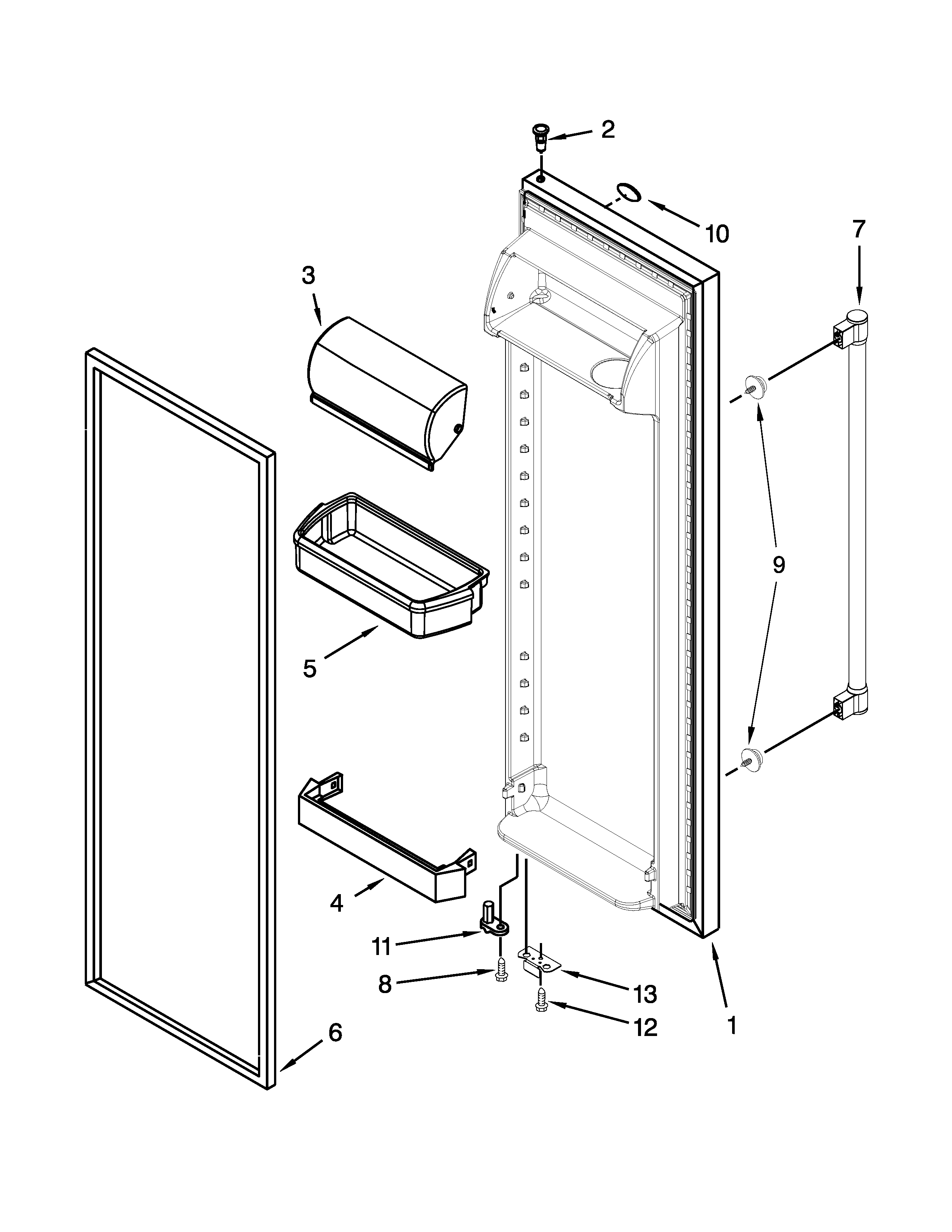

Refrigerator door parts diagram

Refrigerator door bin

Part #W10710203

Replaced by #WPW10710203

?
Manufacturer substitution
This part replaces W10710203. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$40.81 |
13% OFF Phone Price : $46.81
In Stock
Refrigerator Door Cam (black) 2182178
#11

Refrigerator door parts diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Water Inlet Valve W10179146
#5

Ice maker parts diagram

Refrigerator water inlet valve

Part #W10179146

Replaced by #WPW10179146

?
Manufacturer substitution
This part replaces W10179146. Substitute parts can look different from the original.
BEST SELLER
$88.90 |
6% OFF Phone Price : $94.90
In Stock
Refrigerator Meat Pan 2188654
#5

Refrigerator shelf parts diagram

Refrigerator meat pan

Part #2188654

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2188654. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
