Amana
Side-By-Side Refrigerator

Model # ASI2275FRB00 Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana ASI2275FRB00 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

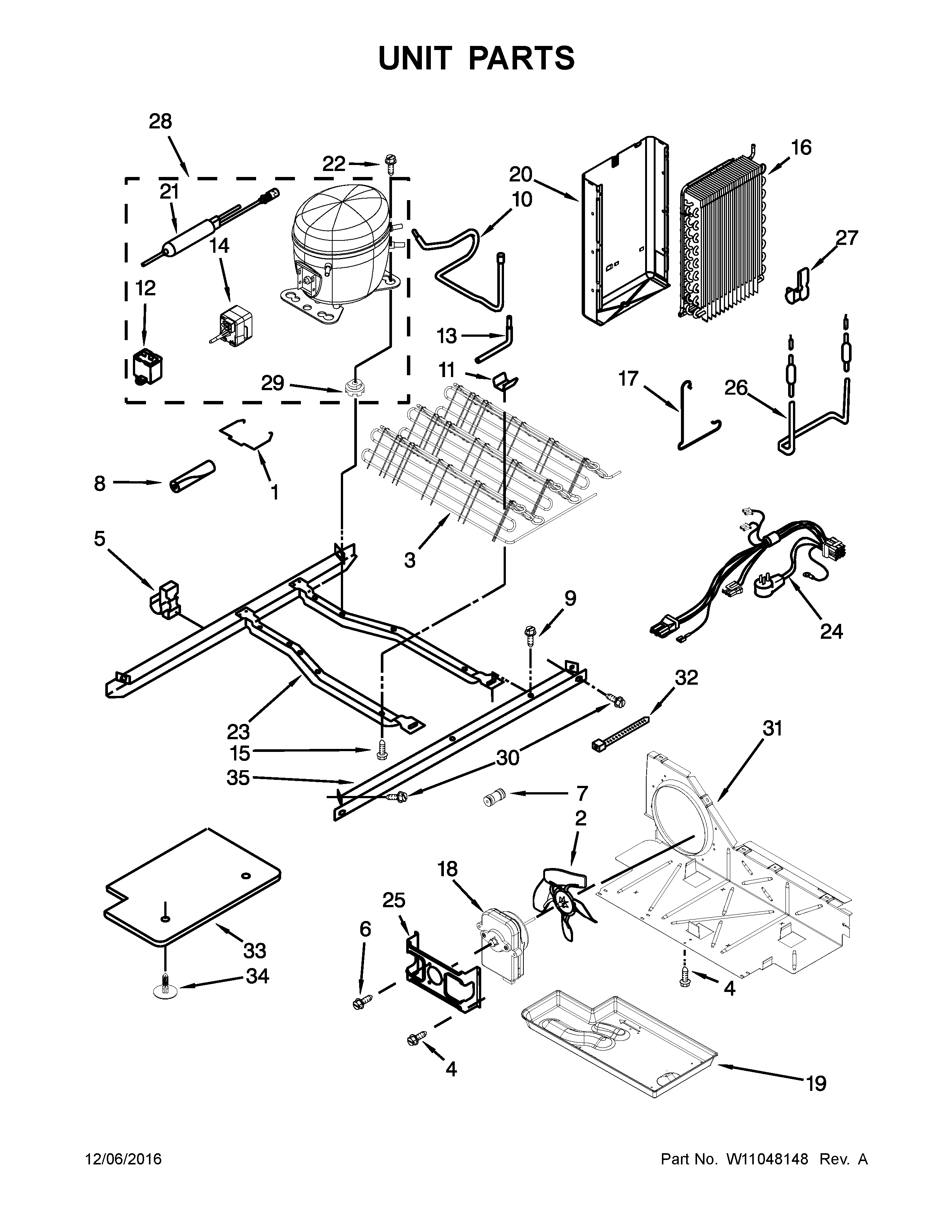

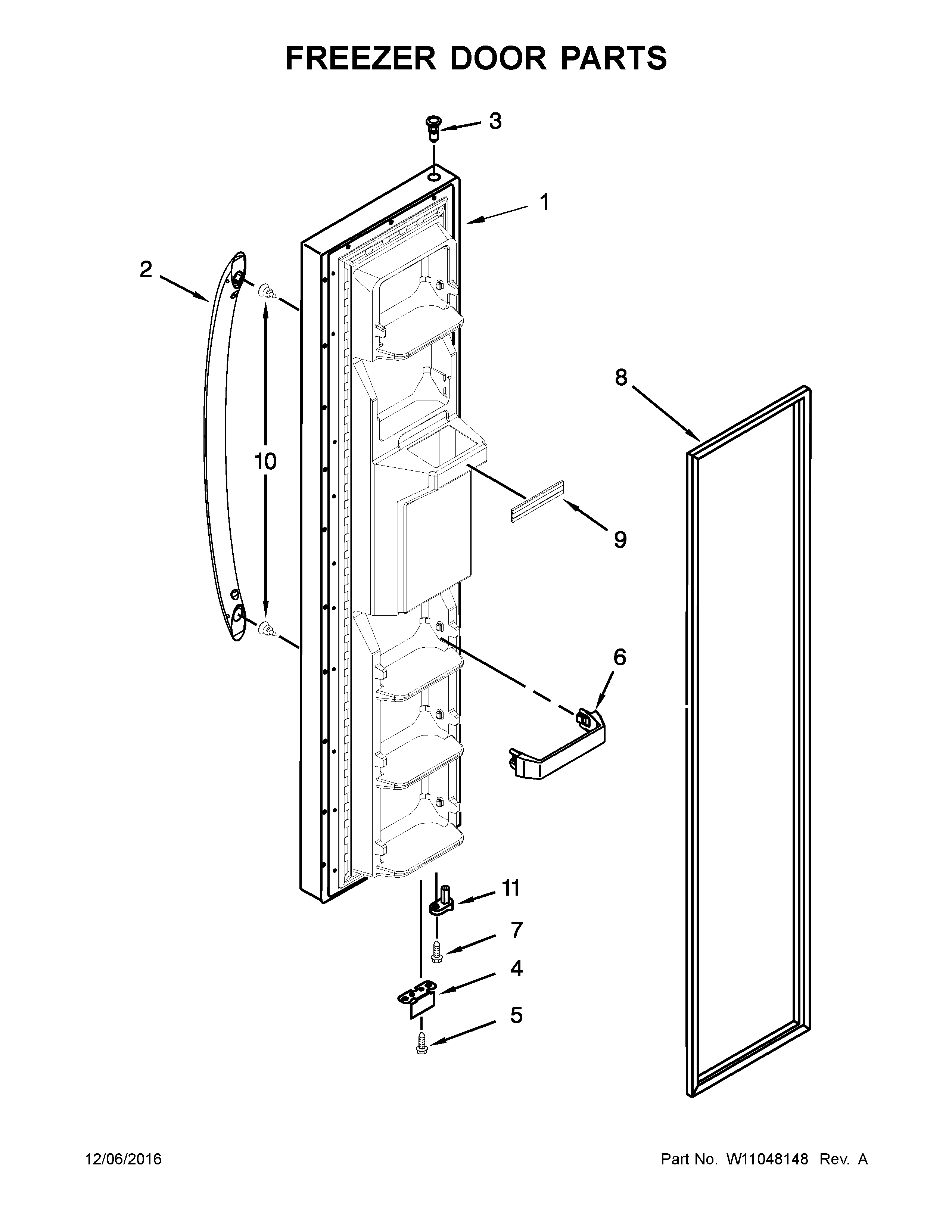

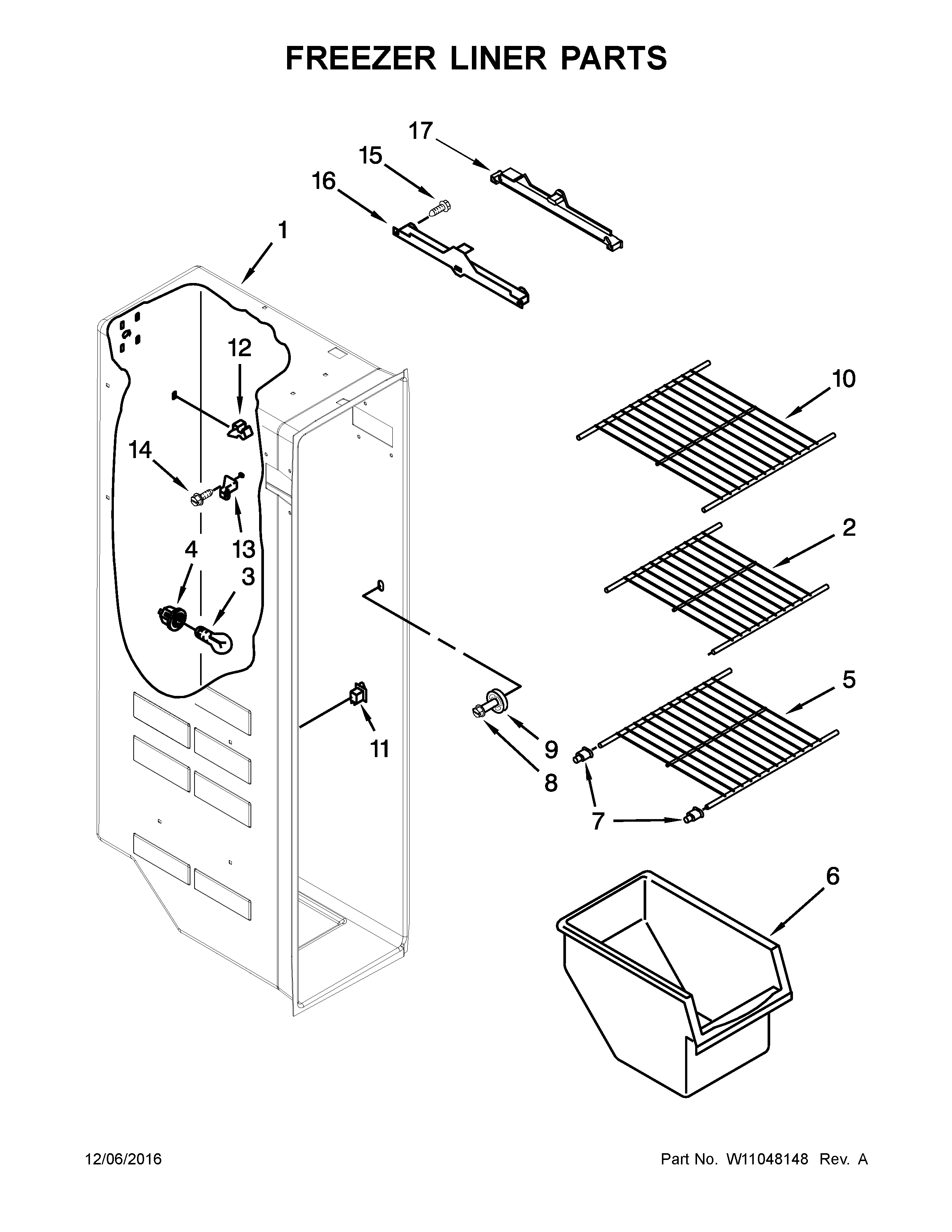

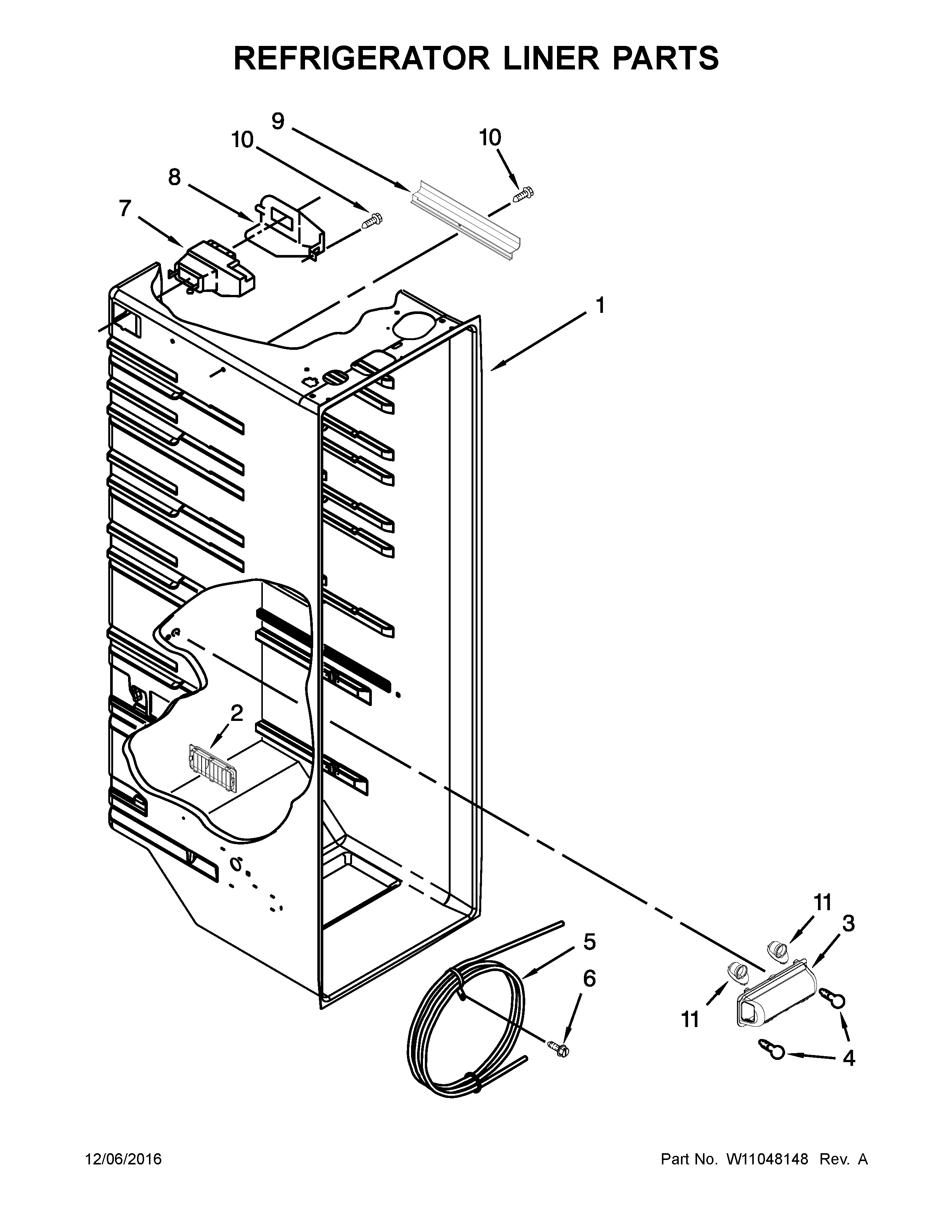

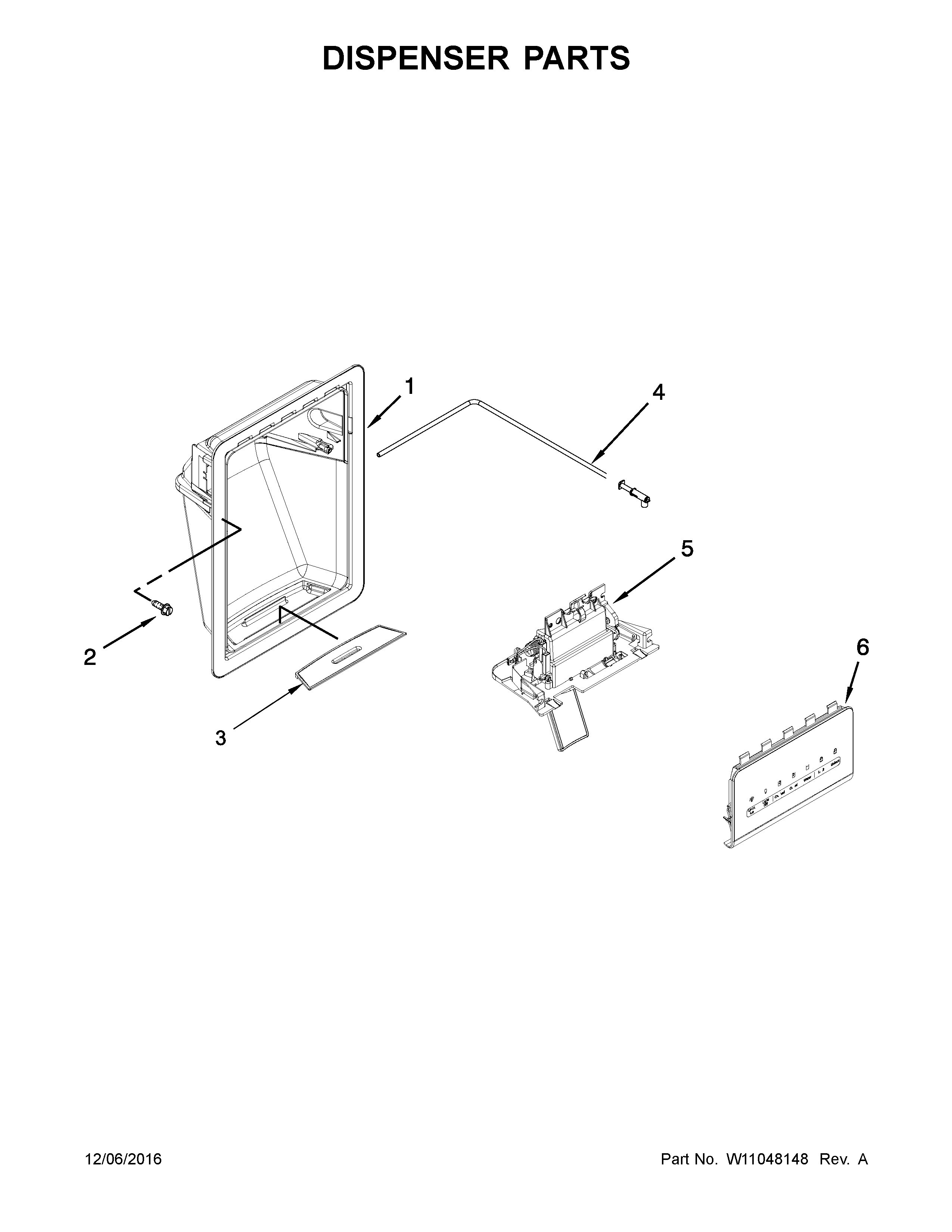

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Refrigerator Filter W10569758
#27

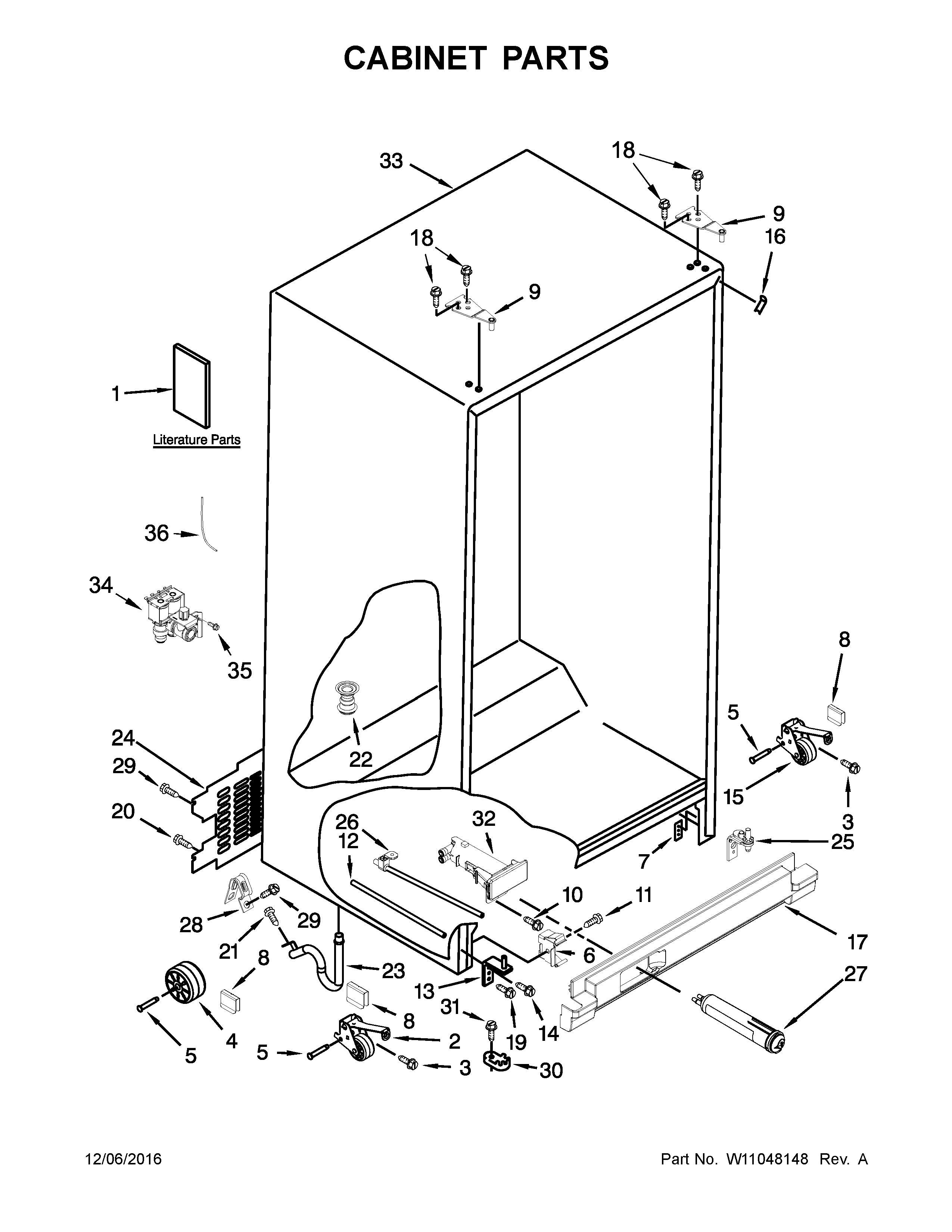

Cabinet parts diagram

Refrigerator filter

Part #W10569758

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10569758. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Ice Maker Assembly W10300022
#37

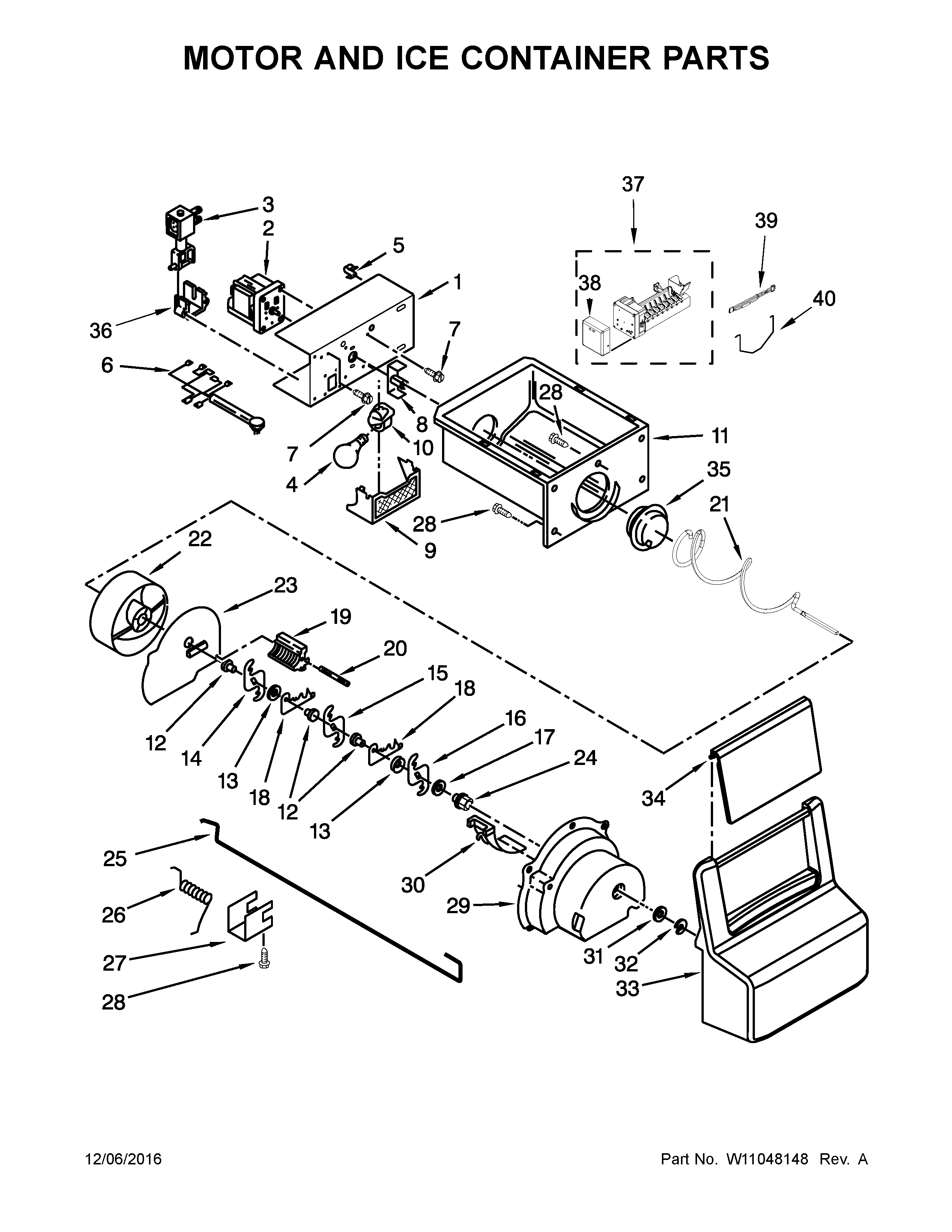

Motor and ice container parts diagram

Refrigerator ice maker assembly

Part #W10300022

Replaced by #WPW10300022

?
Manufacturer substitution
This part replaces W10300022. Substitute parts can look different from the original.
BEST SELLER
$128.27 |
9% OFF Phone Price : $140.27
In Stock
Refrigerator Defrost Bi-metal Thermostat W10225581
#4

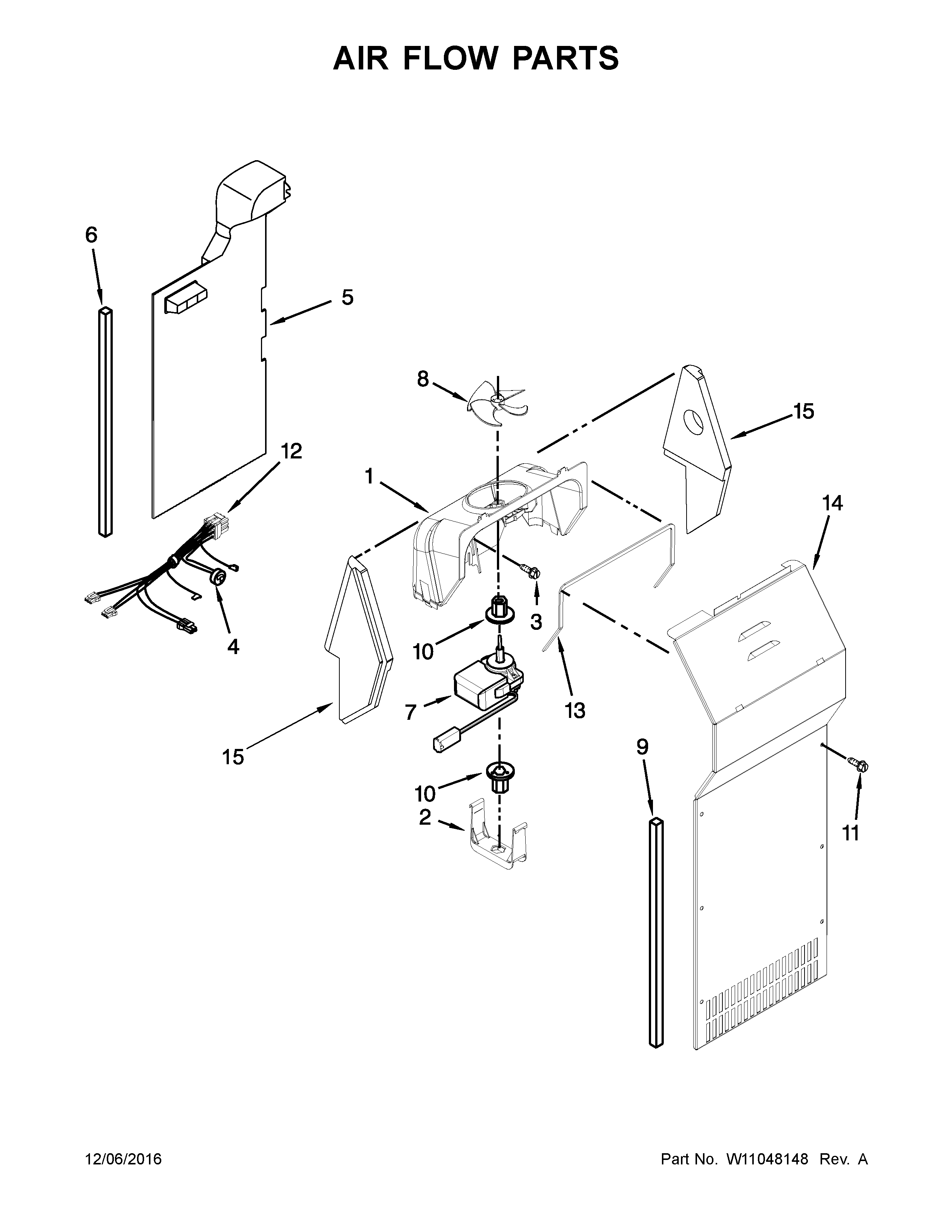

Air flow parts diagram

Refrigerator defrost bi-metal thermostat

Part #W10225581

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces W10225581. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Cam (black) 2182178
#8

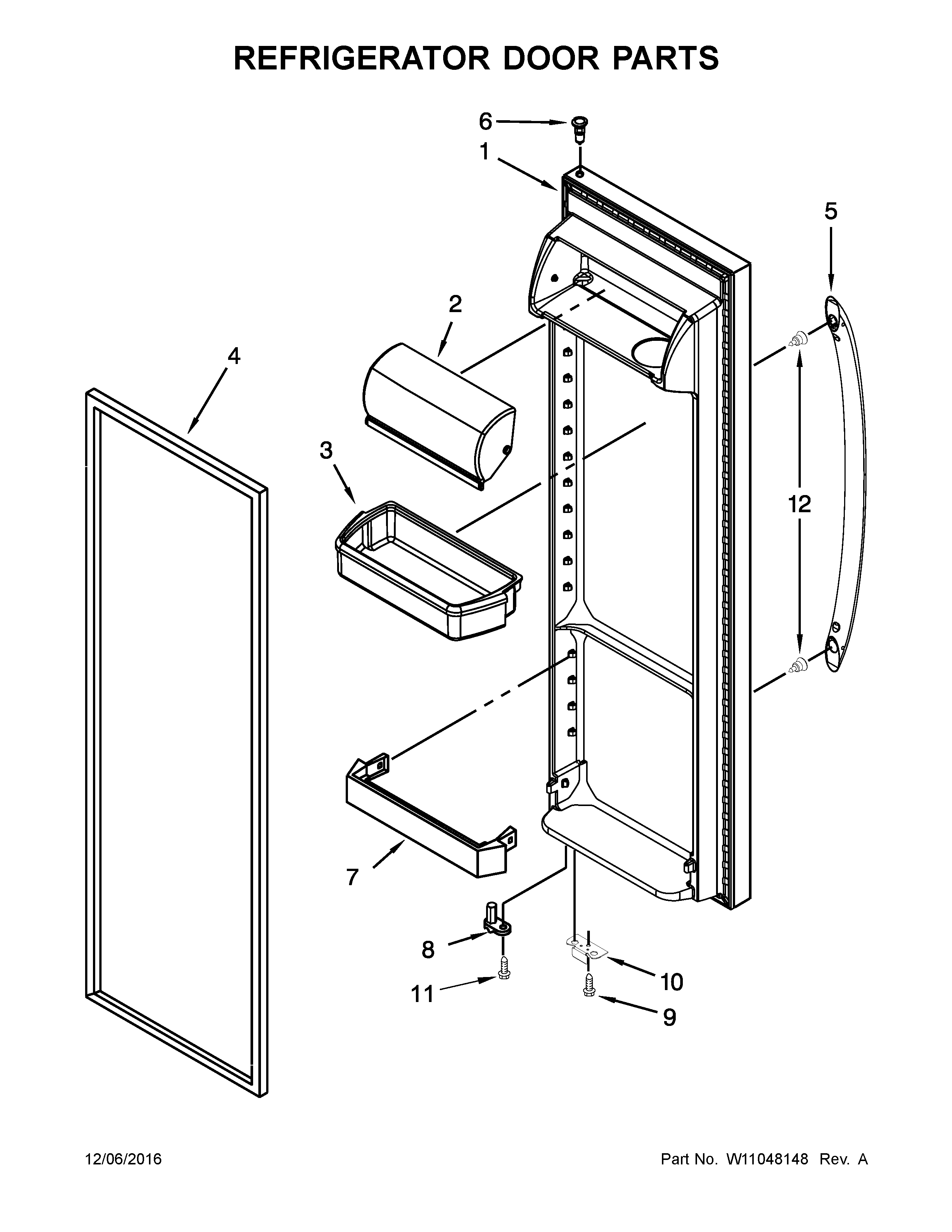

Refrigerator door parts diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Refrigerator Water Inlet Valve W10179146
#34

Cabinet parts diagram

Refrigerator water inlet valve

Part #W10179146

Replaced by #WPW10179146

?
Manufacturer substitution
This part replaces W10179146. Substitute parts can look different from the original.
BEST SELLER
$88.90 |
6% OFF Phone Price : $94.90
In Stock
Refrigerator Door Bin 2187172
#3

Refrigerator door parts diagram

Refrigerator door bin

Part #2187172

Replaced by #WP2187172

?
Manufacturer substitution
This part replaces 2187172. Substitute parts can look different from the original.
BEST SELLER
$30.38 |
16% OFF Phone Price : $36.38
In Stock
Refrigerator Evaporator Fan Blade 2169142
#8

Air flow parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$37.11 |
14% OFF Phone Price : $43.11
In Stock
Refrigerator Electronic Control Board W10366605
#6

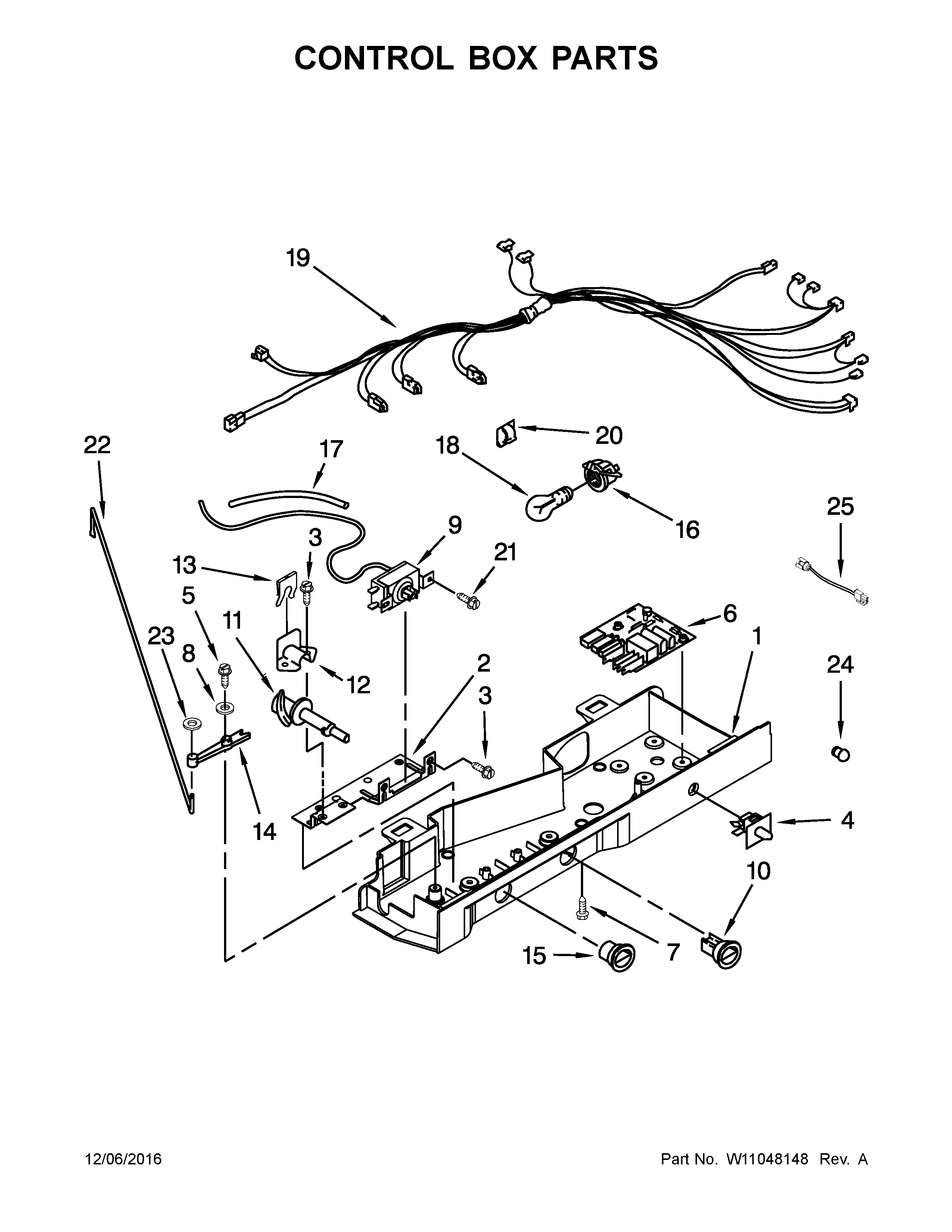

Control box parts diagram

Refrigerator electronic control board

Part #W10366605

Replaced by #WPW10366605

?
Manufacturer substitution
This part replaces W10366605. Substitute parts can look different from the original.
BEST SELLER
$212.82 |
5% OFF Phone Price : $224.82
In Stock
Refrigerator Water Tube W10357069
#36

Cabinet parts diagram

Refrigerator water tube

Part #W10357069

Replaced by #W10823511

?
Manufacturer substitution
This part replaces W10357069. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Spill-safe Shelf W10276348
#13

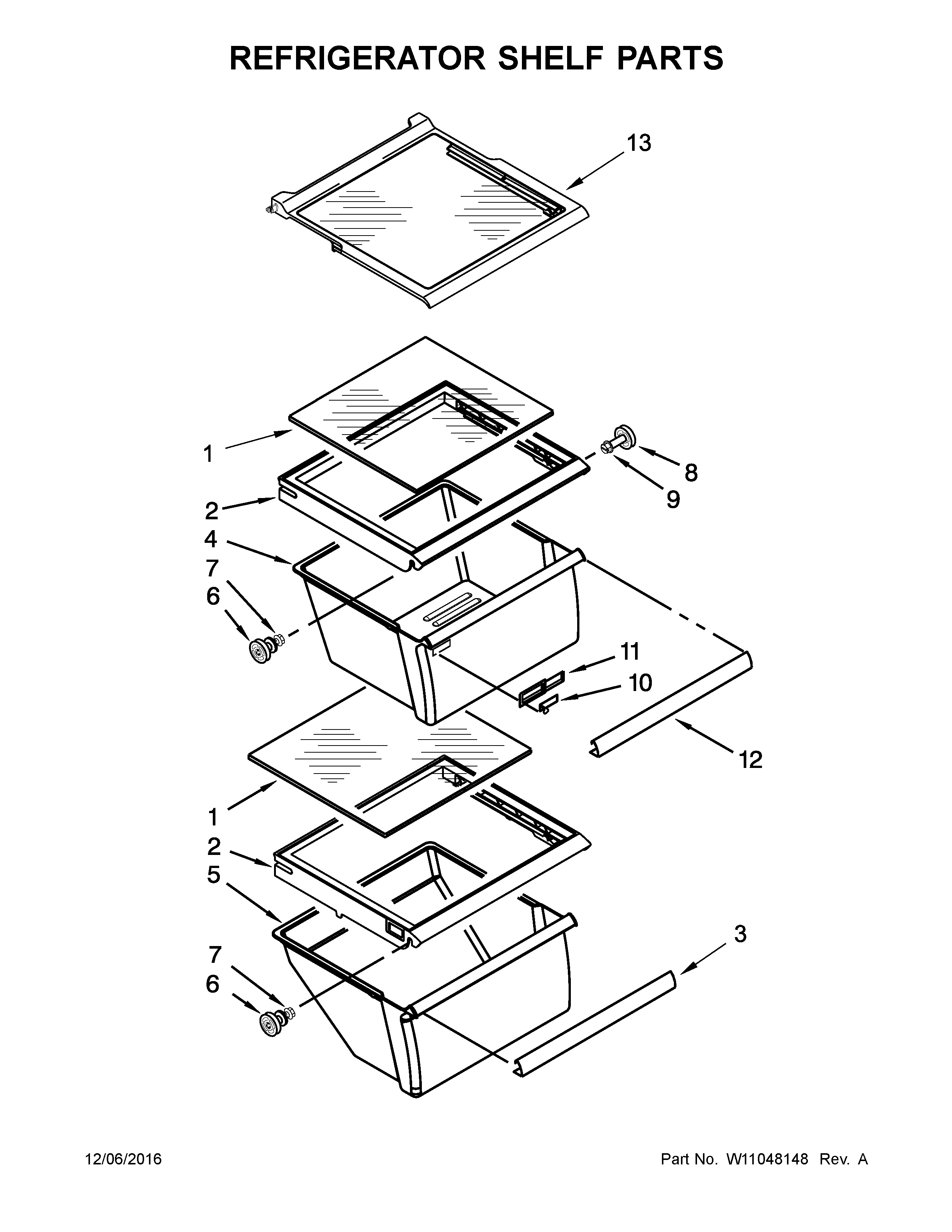

Refrigerator shelf parts diagram

Refrigerator spill-safe shelf

Part #W10276348

Replaced by #WPW10276348

?
Manufacturer substitution
This part replaces W10276348. Substitute parts can look different from the original.
BEST SELLER
$142.76 |
8% OFF Phone Price : $154.76
Back Order
