Model # 867762361 Official Kenmore gas-fired counterflow furnace

Here are the diagrams and repair parts for Official Kenmore 867762361 gas-fired counterflow furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
867762361 Gas-Fired Counterflow Furnace
Line Fitting 606943
#25

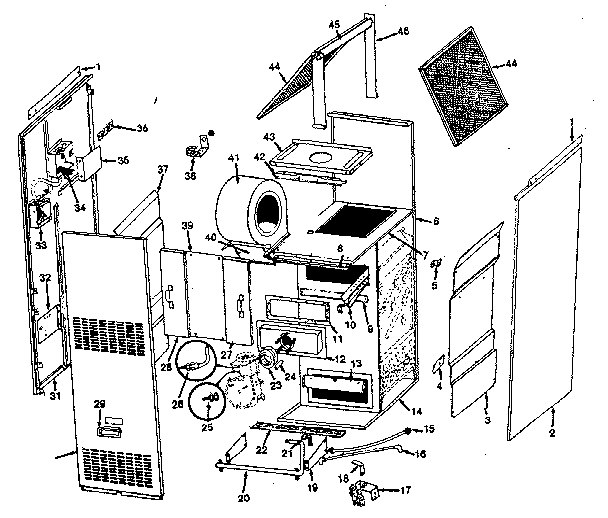

Non-functional replacement parts diagram

Line fitting

Part #606943

$64.09
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#1

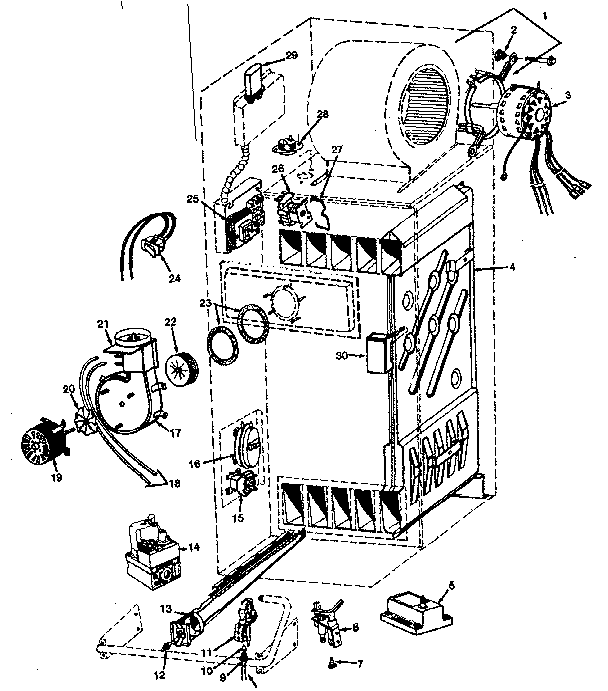

Functional replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Baffle Flue 613425
#10

Non-functional replacement parts diagram

Baffle flue

Part #613425

Replaced by #613082

?
Manufacturer substitution
This part replaces 613425. Substitute parts can look different from the original.
$9.26
In Stock
Fan Housing 610678
#17

Functional replacement parts diagram

Fan housing

Part #610678

Replaced by #1006168

?
Manufacturer substitution
This part replaces 610678. Substitute parts can look different from the original.
$395.09 |
$12.00 OFF Phone Price : $407.09
In Stock
F & L Contro 613517
#30A

Functional replacement parts diagram

F & l contro

Part #613517

The manufacturer no longer makes this part, and there's no substitute part

Pilot Burner 1001658
#11

Functional replacement parts diagram

Pilot burner

Part #1001658

The manufacturer no longer makes this part, and there's no substitute part

Tubing Plt 97646
Tubing plt

Part #97646

Replaced by #100108370

?
Manufacturer substitution
This part replaces 97646. Substitute parts can look different from the original.
$36.67
In Stock
Wire 605754
#16

Non-functional replacement parts diagram

Wire

Part #605754

Replaced by #1160127

?
Manufacturer substitution
This part replaces 605754. Substitute parts can look different from the original.
$163.54
In Stock
Switch 607796
#24

Functional replacement parts diagram

Switch

Part #607796

Replaced by #607900

?
Manufacturer substitution
This part replaces 607796. Substitute parts can look different from the original.
$26.43 |
19% OFF Phone Price : $32.43
In Stock
Dpdt Relay 96467
#26

Functional replacement parts diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part
