Jenn-Air
Dishwasher

Model # DU460 Official Jenn-Air dishwasher

Here are the diagrams and repair parts for Official Jenn-Air DU460 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Clamp 793045
#12

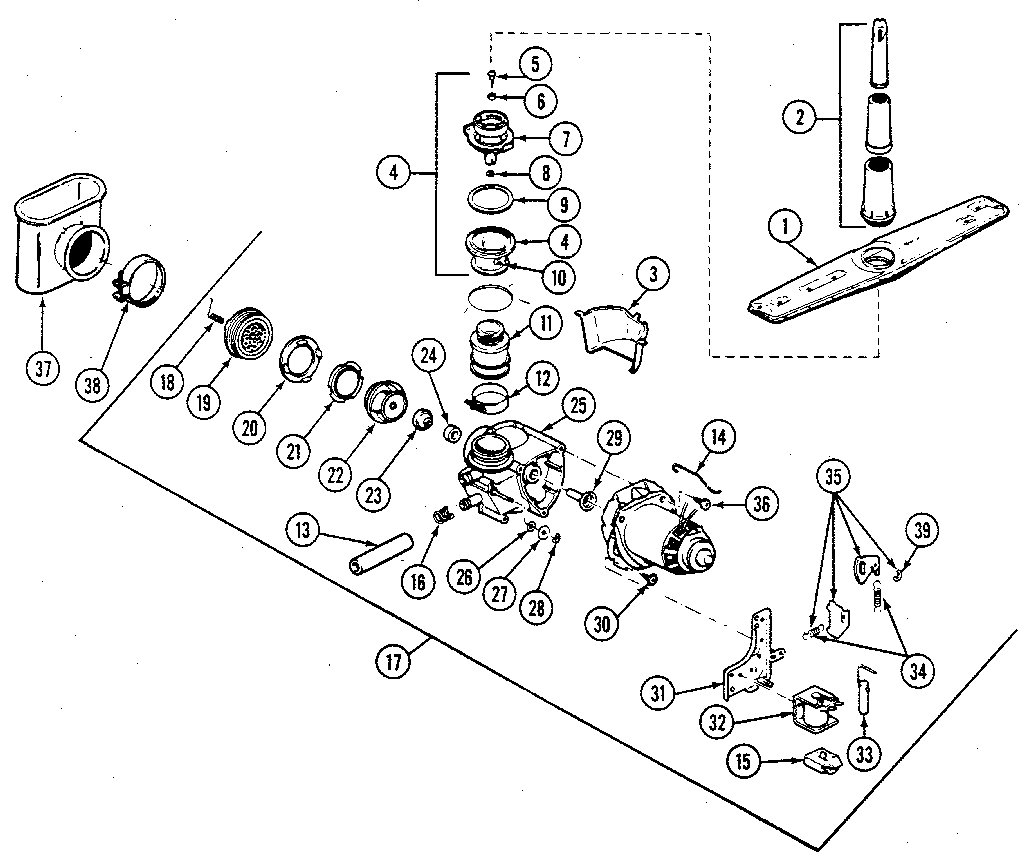

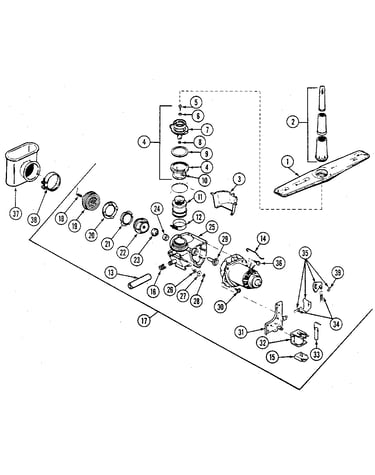

Pump assembly diagram

Clamp

Part #793045

Replaced by #WP696392

?
Manufacturer substitution
This part replaces 793045. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Clamp 793043
#38

Pump assembly diagram

Clamp

Part #793043

Replaced by #WP696392

?
Manufacturer substitution
This part replaces 793043. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
End Cap 793075
#8

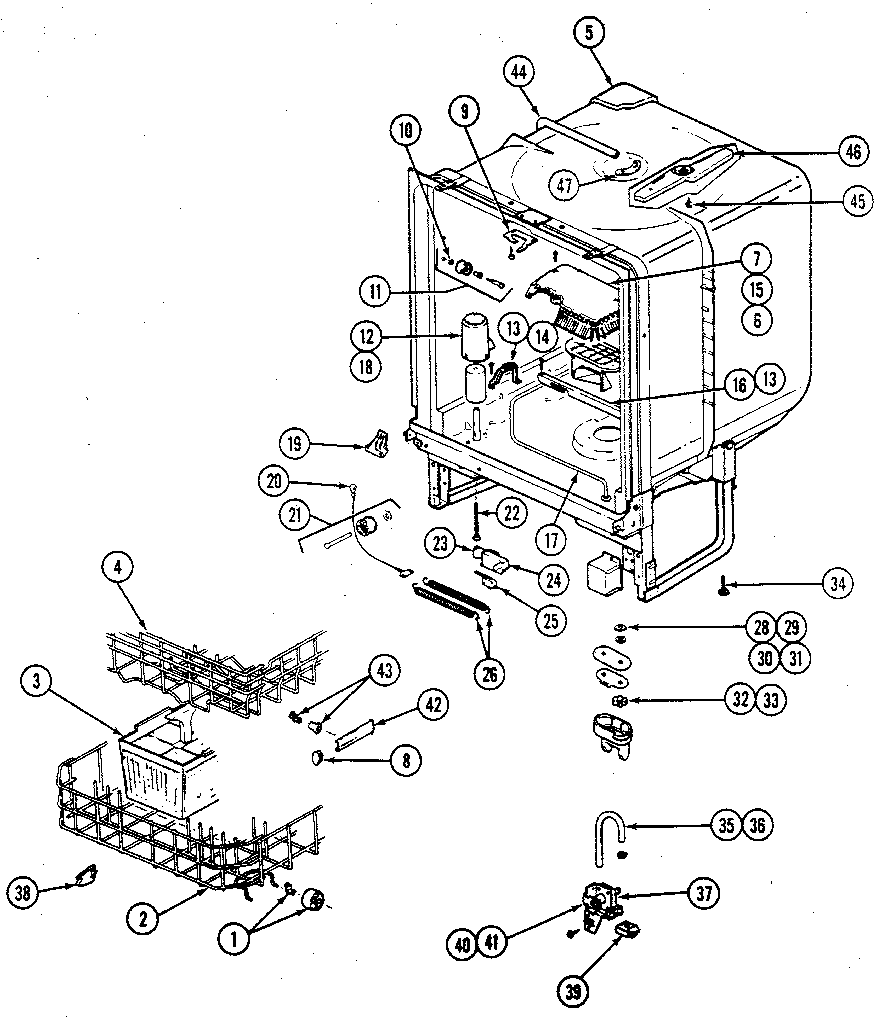

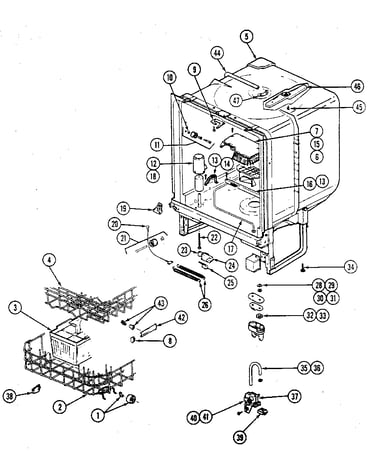

Tub assembly diagram

End cap

Part #793075

Replaced by #2355-0002

?
Manufacturer substitution
This part replaces 793075. Substitute parts can look different from the original.
$14.27
In Stock
Screw 793125
#11

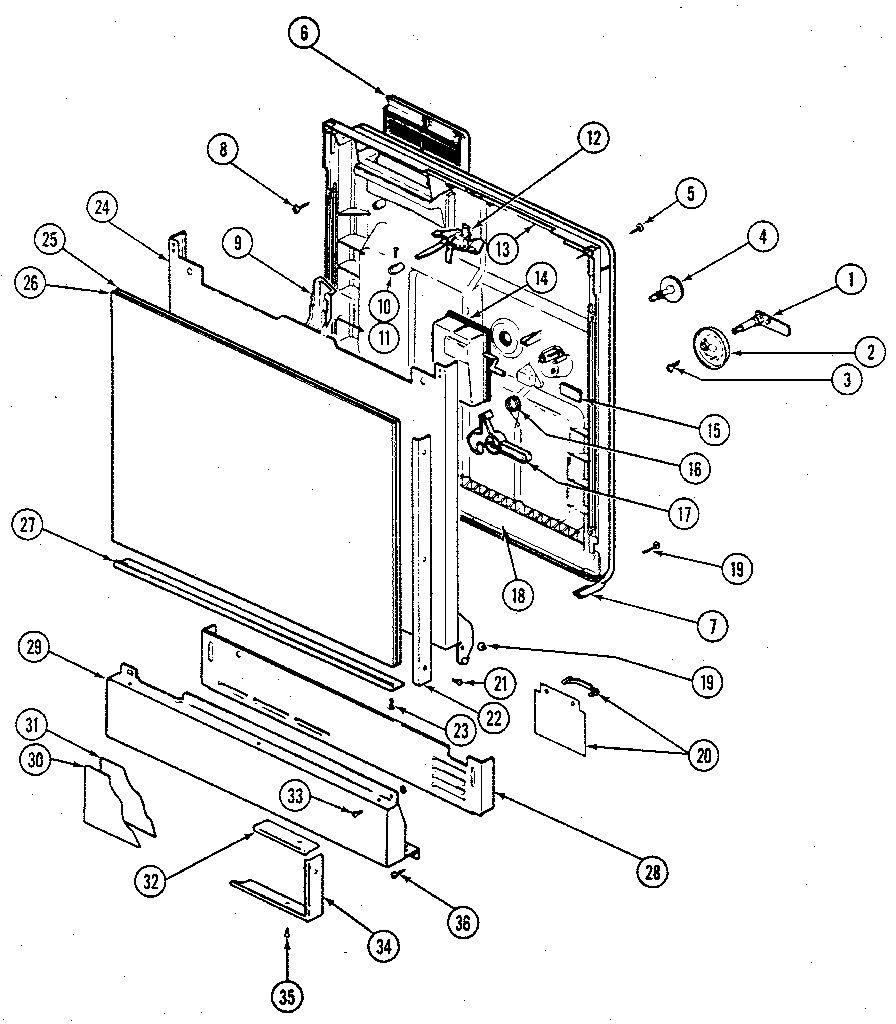

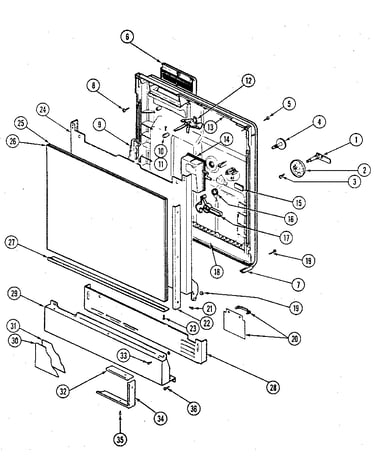

Door assembly diagram

Screw

Part #793125

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 793125. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 793150
#40

Tub assembly diagram

Screw

Part #793150

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 793150. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 793004
#13

Tub assembly diagram

Screw

Part #793004

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 793004. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 793123
Screw

Part #793123

Replaced by #910187

?
Manufacturer substitution
This part replaces 793123. Substitute parts can look different from the original.
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Screw 793143
#36

Door assembly diagram

Screw

Part #793143

Replaced by #61002031

?
Manufacturer substitution
This part replaces 793143. Substitute parts can look different from the original.
$31.13
In Stock
Extension Switch 793116
#11

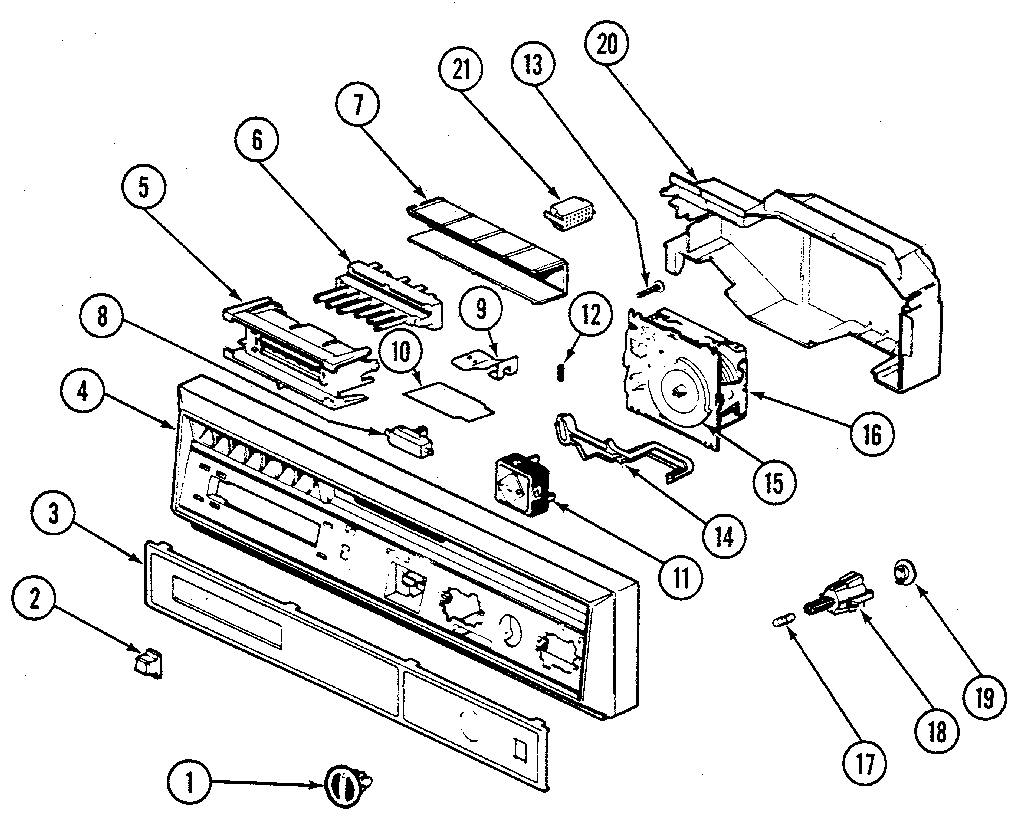

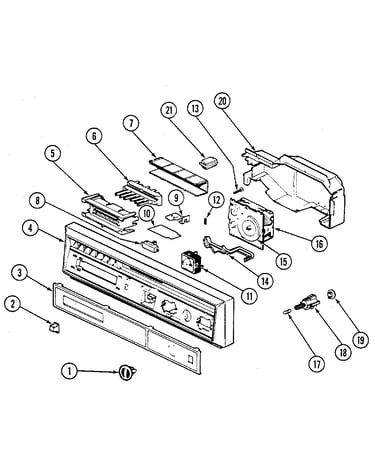

Control panel diagram

Extension switch

Part #793116

The manufacturer no longer makes this part, and there's no substitute part

Seal 793042
#23

Pump assembly diagram

Seal

Part #793042

The manufacturer no longer makes this part, and there's no substitute part
