Model # 315183010 Official Craftsman electric impact wrench

Here are the diagrams and repair parts for Official Craftsman 315183010 electric impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Brush Tube 611385-001
#1

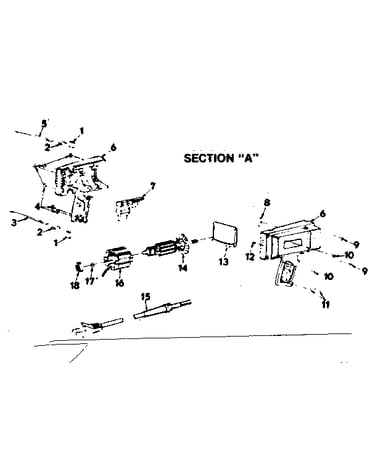

Field and armature assembly diagram

Brush tube

Part #611385-001

The manufacturer no longer makes this part, and there's no substitute part

Sl Bearing 617297-001
#10

Unit parts diagram

Sl bearing

Part #617297-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-813
#3

Unit parts diagram

Washer

Part #706382-813

The manufacturer no longer makes this part, and there's no substitute part

Anvil 615462-011
#20

Unit parts diagram

Anvil

Part #615462-011

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 706239-816
#22

Unit parts diagram

Thrust washer

Part #706239-816

The manufacturer no longer makes this part, and there's no substitute part

Lead W/term 990618-003
#3

Field and armature assembly diagram

Lead w/term

Part #990618-003

The manufacturer no longer makes this part, and there's no substitute part

Brd Plate 607973-013
#8

Unit parts diagram

Brd plate

Part #607973-013

The manufacturer no longer makes this part, and there's no substitute part

Bearing 990133-001
#18

Field and armature assembly diagram

Bearing

Part #990133-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 611515-000
#6

Field and armature assembly diagram

Housing assembly

Part #611515-000

The manufacturer no longer makes this part, and there's no substitute part

Ball 703774-001
#19

Unit parts diagram

Ball

Part #703774-001

The manufacturer no longer makes this part, and there's no substitute part
