Electric Wall Oven

Model # PCT916SR1SS Official GE electric oven

Here are the diagrams and repair parts for Official GE PCT916SR1SS electric oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

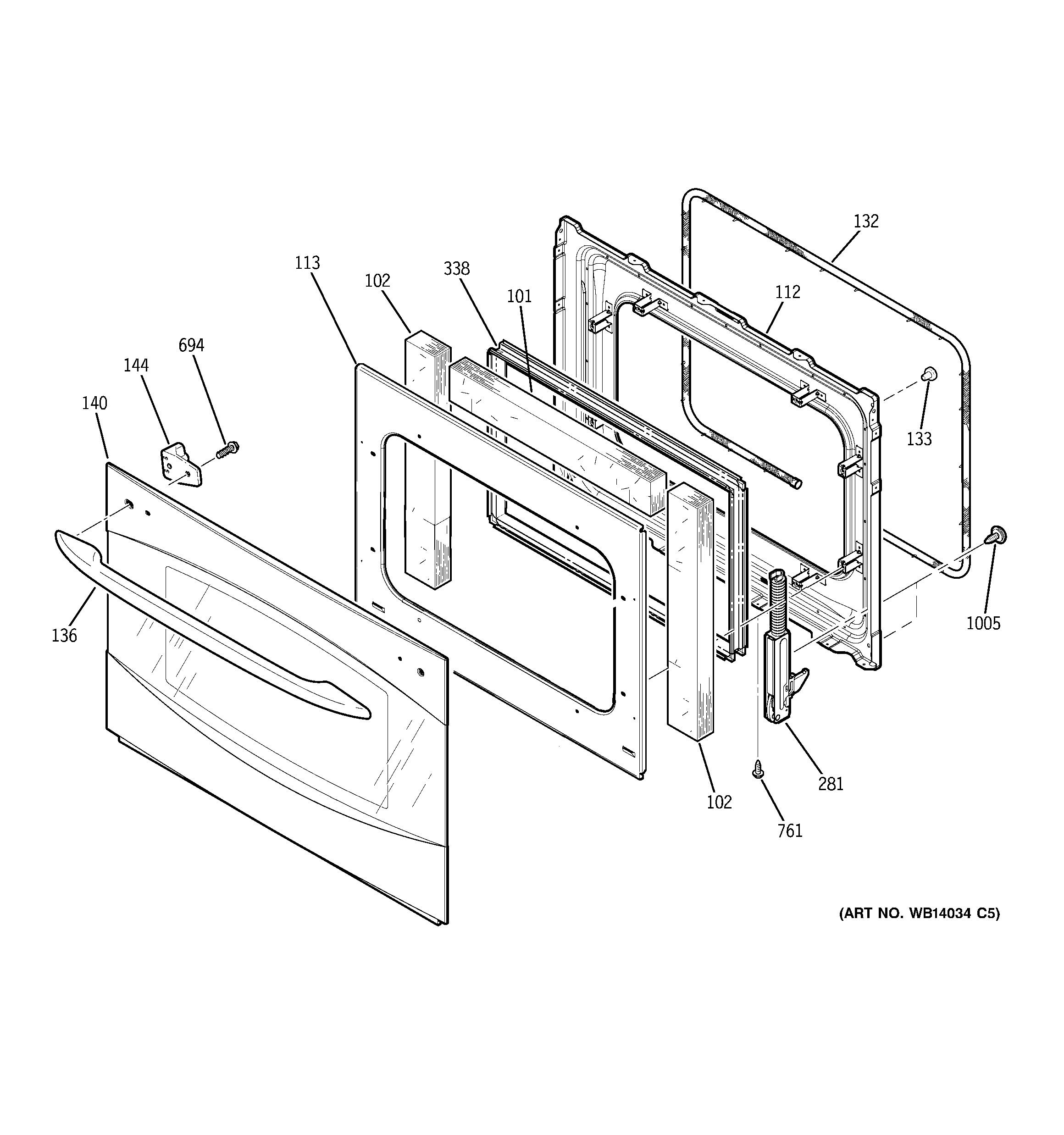

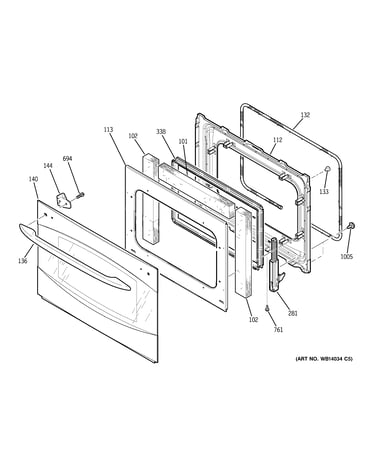

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
PCT916SR1SS Wall Ovens
Oven Lamp WB08T10022
#257

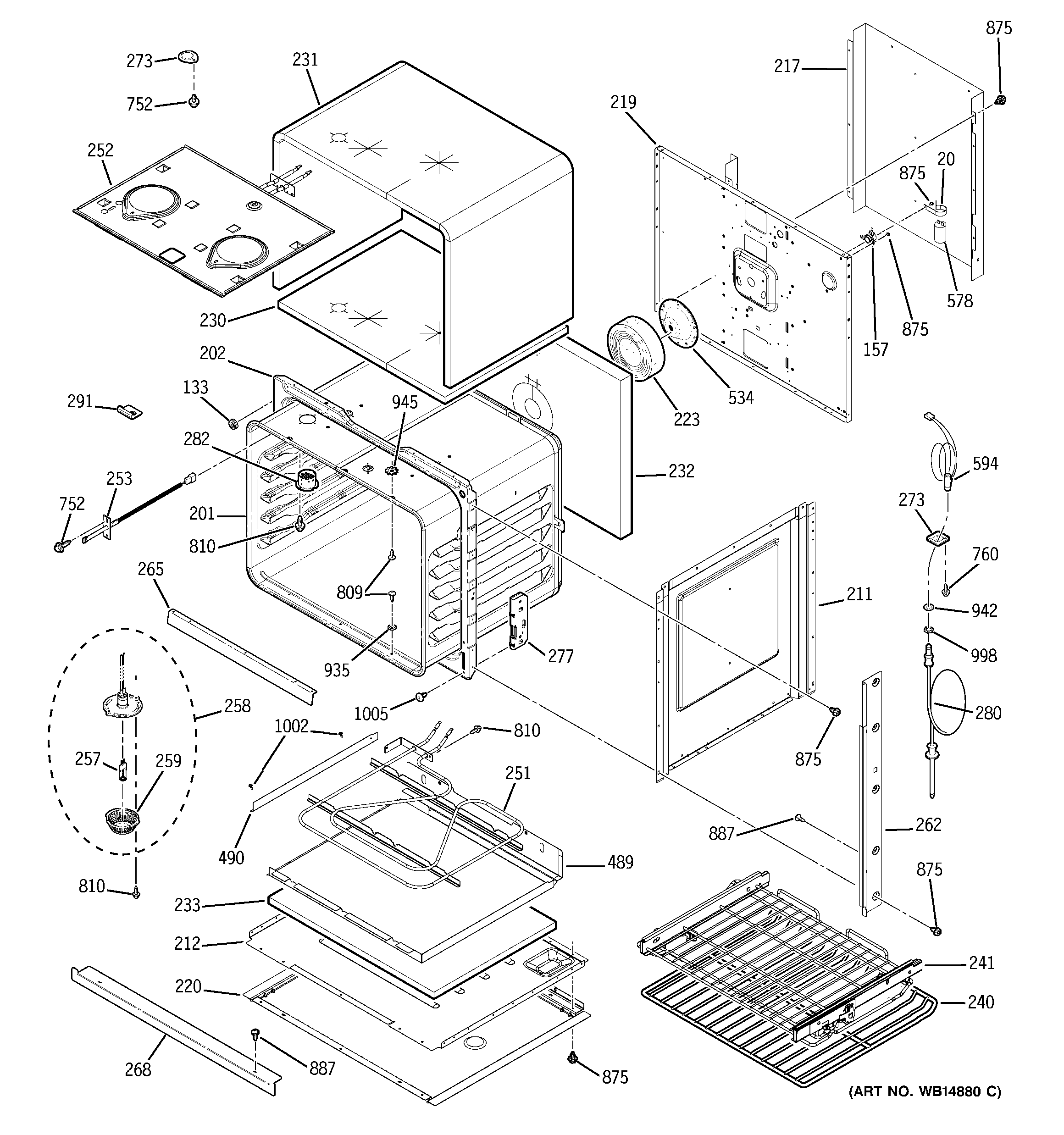

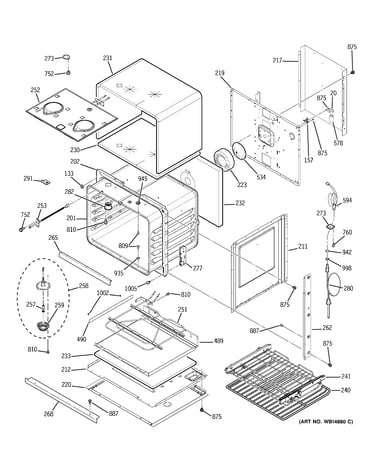

Body parts diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$16.80
11% OFF Phone Price : $18.80
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

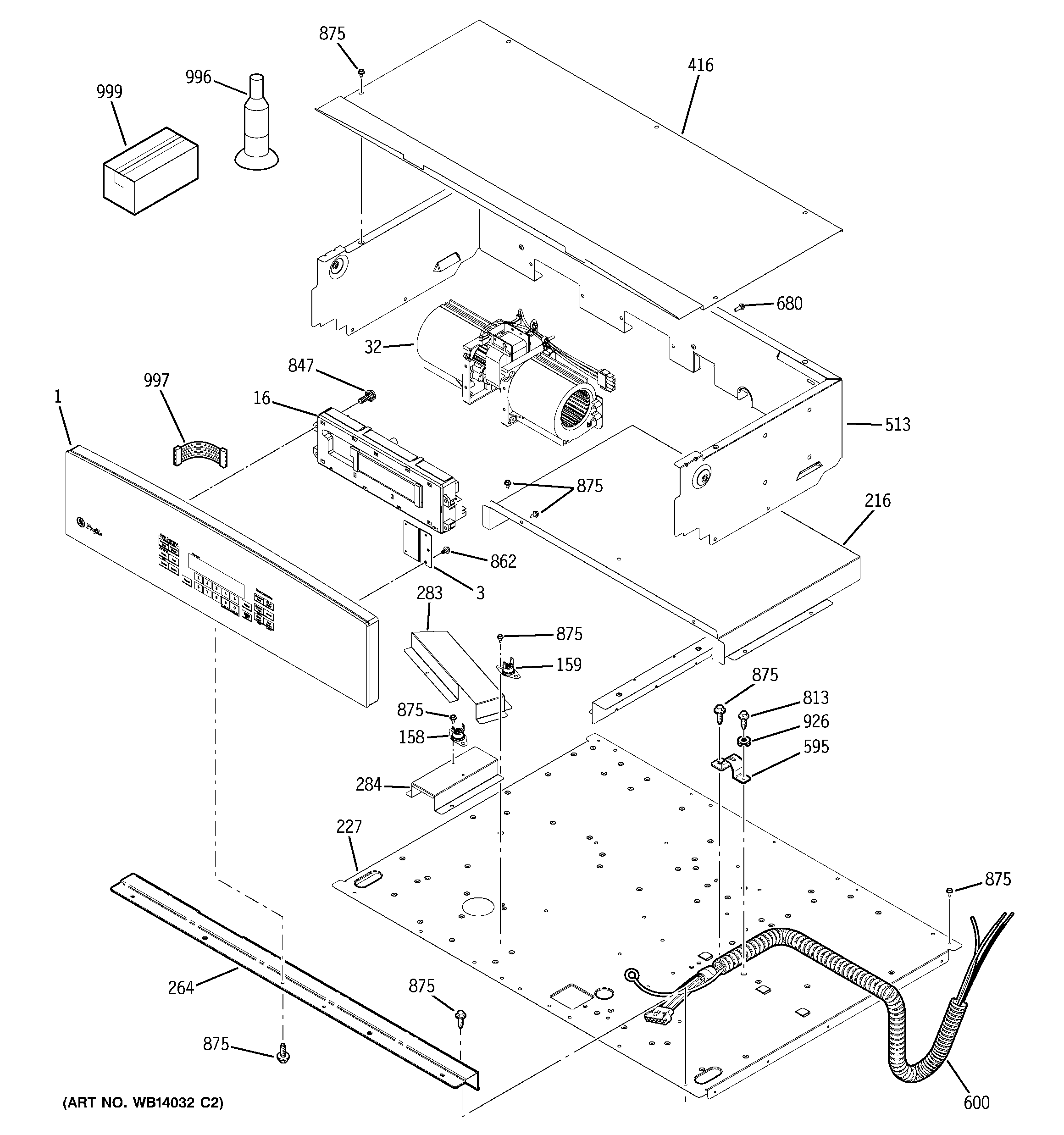

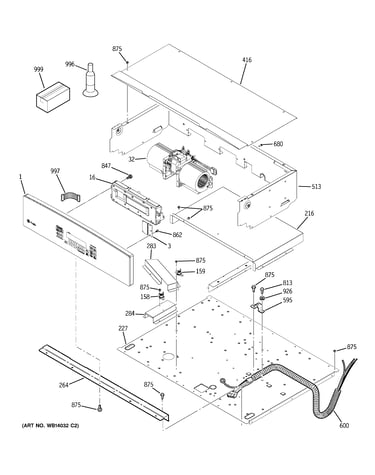

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$8.67
10% OFF Phone Price : $9.67
In Stock
Oven Lamp Holder WB08T10002
#258

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45
15% OFF Phone Price : $40.45
In Stock
Range Oven Meat Probe Sensor WB20T10025
#280

Body parts diagram

Range oven meat probe sensor

Part #WB20T10025

The manufacturer no longer makes this part, and there's no substitute part

Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$9.92
9% OFF Phone Price : $10.92
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54
21% OFF Phone Price : $28.54
In Stock
Blower Fan WB26T10048
#32

Control panel diagram

Blower fan

Part #WB26T10048

Replaced by #WB26X10264

?
Manufacturer substitution
This part replaces WB26T10048. Substitute parts can look different from the original.
$117.68
9% OFF Phone Price : $129.68
In Stock
Screw WB01M0001
#801

Convection fan diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.70
13% OFF Phone Price : $7.70
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$8.67
10% OFF Phone Price : $9.67
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91
10% OFF Phone Price : $20.91
In Stock
