Samsung
Plasma Television

Model # PN63B550T2FXZA Official Samsung plasma television

Here are the diagrams and repair parts for Official Samsung PN63B550T2FXZA plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Remote Control BN59-00852A
#NI

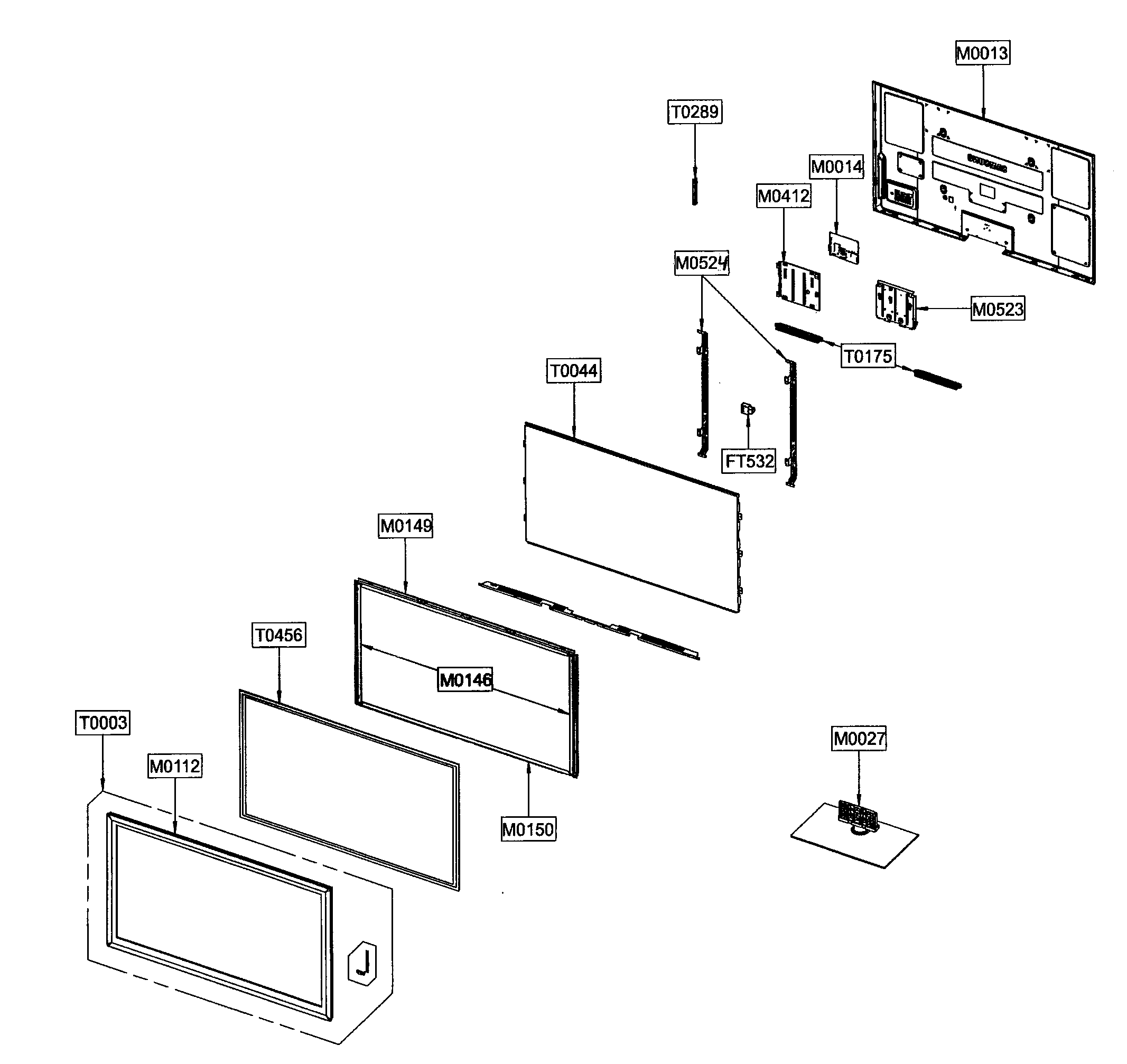

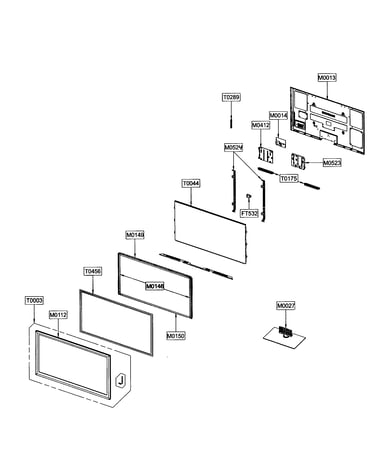

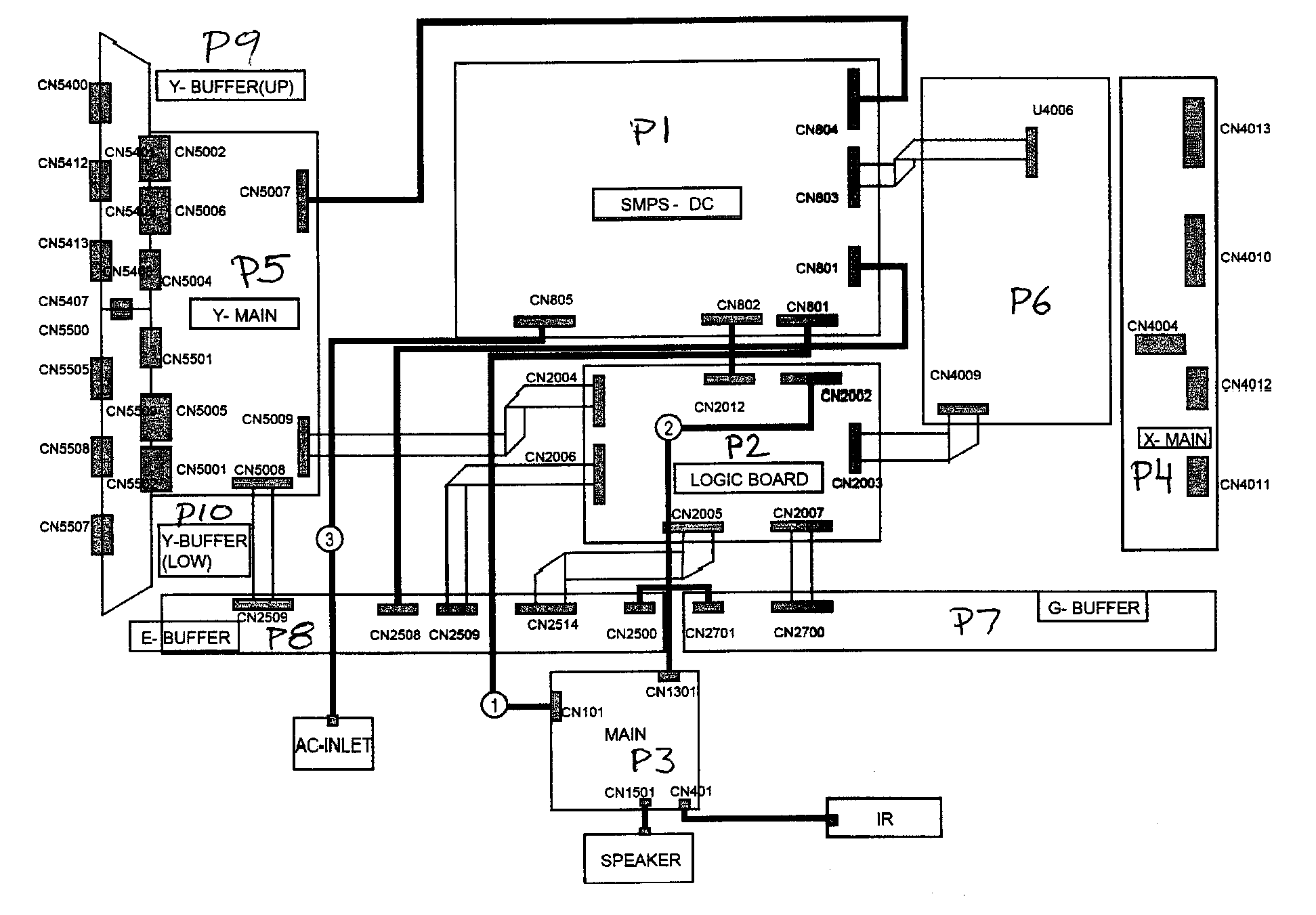

Cabinet parts diagram

Remote control

Part #BN59-00852A

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 3903-000467
#NI

Cabinet parts diagram

Television power cord

Part #3903-000467

The manufacturer no longer makes this part, and there's no substitute part

Accessory BN96-10788A
#NI

Cabinet parts diagram

Accessory

Part #BN96-10788A

The manufacturer no longer makes this part, and there's no substitute part

Samsung Pcb BN96-09794A
#T44

Cabinet parts diagram

Samsung pcb

Part #BN96-09794A

The manufacturer no longer makes this part, and there's no substitute part

Pcb,y-scan BN96-09769A
#NI

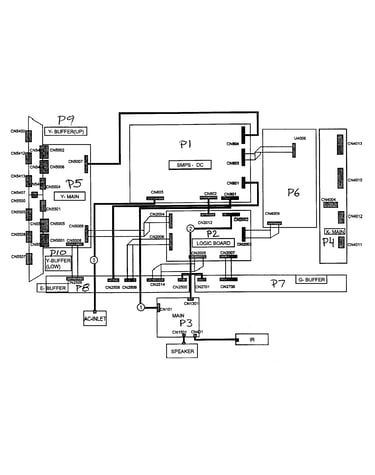

Plasma assy diagram

Pcb,y-scan

Part #BN96-09769A

The manufacturer no longer makes this part, and there's no substitute part

Filter 2901-001506
#NI

Cabinet parts diagram

Filter

Part #2901-001506

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1006-001266
#NI

Cabinet parts diagram

Integrated circuit

Part #1006-001266

The manufacturer no longer makes this part, and there's no substitute part

Tuner BN40-00138A
#NI

Cabinet parts diagram

Tuner

Part #BN40-00138A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1107-001777
#NI

Cabinet parts diagram

Integrated circuit

Part #1107-001777

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker BN96-09466C
#T175

Cabinet parts diagram

Television speaker

Part #BN96-09466C

The manufacturer no longer makes this part, and there's no substitute part
