Model # 15-7200 Official DP dual flex bench

Here are the diagrams and repair parts for Official DP 15-7200 dual flex bench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

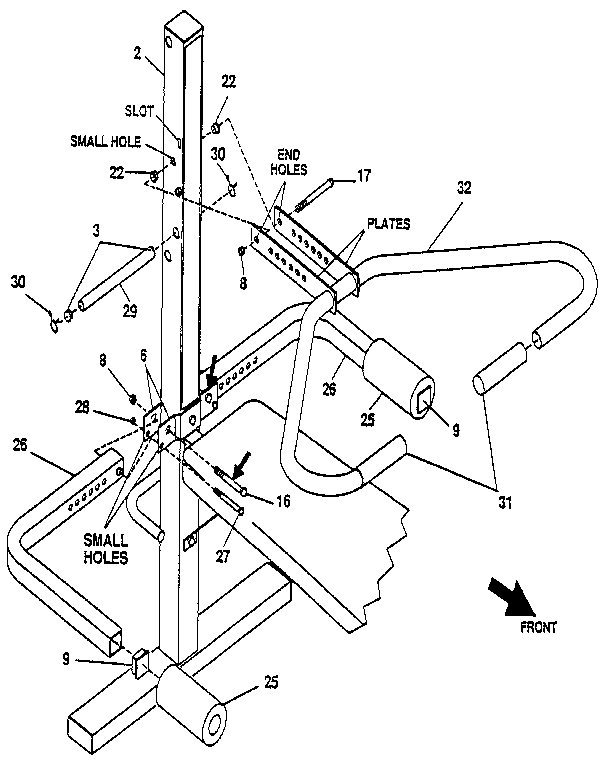

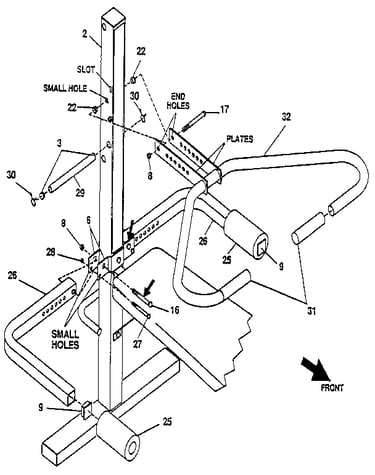

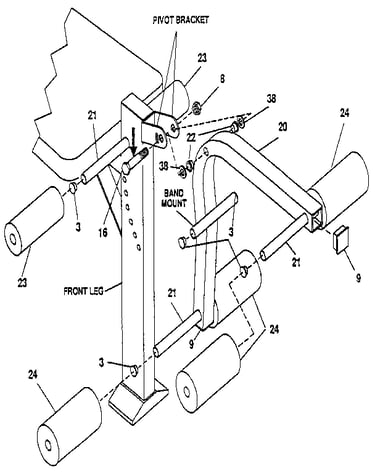

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Brace 31283716
#15

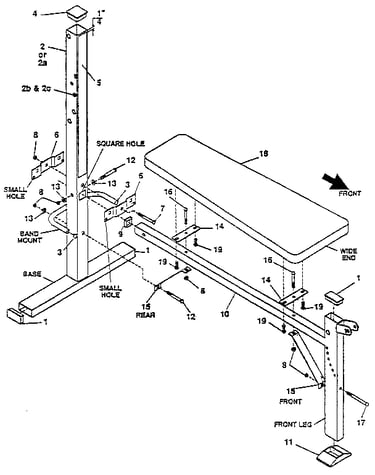

Figure 1 diagram

Brace

Part #31283716

The manufacturer no longer makes this part, and there's no substitute part

Usage Chart 60097200

#NI

All parts diagram

Usage chart

Part #60097200

The manufacturer no longer makes this part, and there's no substitute part

Asm Instret 61186100

#NI

All parts diagram

Asm instret

Part #61186100

The manufacturer no longer makes this part, and there's no substitute part

Cush Plate 31283816
#14

Figure 1 diagram

Cush plate

Part #31283816

The manufacturer no longer makes this part, and there's no substitute part

Bolt 22003000
#19

Figure 1 diagram

Bolt

Part #22003000

The manufacturer no longer makes this part, and there's no substitute part

Flex Band 39341800
#34

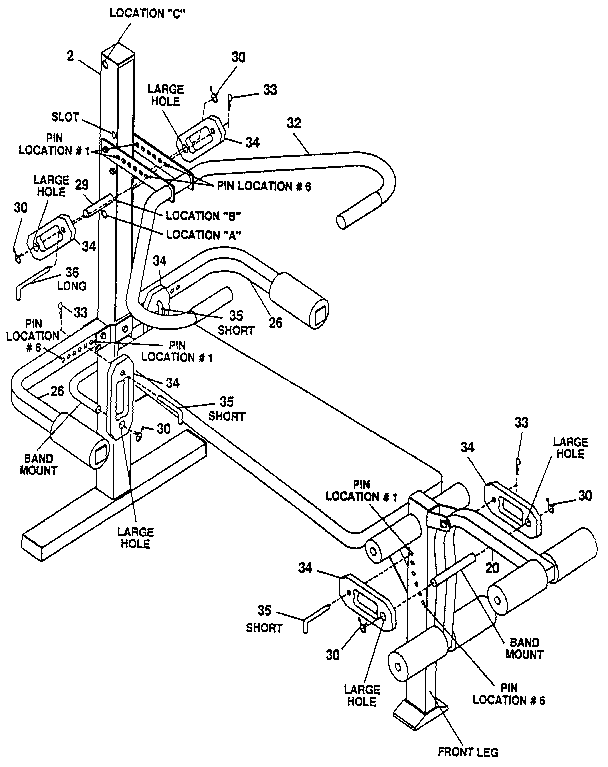

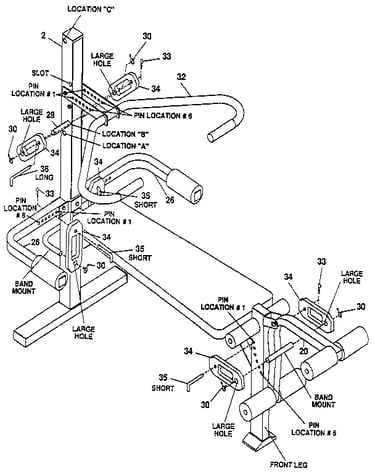

Figure 4 diagram

Flex band

Part #39341800

The manufacturer no longer makes this part, and there's no substitute part

Bushing 29253600
Bushing

Part #29253600

The manufacturer no longer makes this part, and there's no substitute part

Pivot Plate 31283916
Pivot plate

Part #31283916

The manufacturer no longer makes this part, and there's no substitute part

Bolt 22003300
Bolt

Part #22003300

The manufacturer no longer makes this part, and there's no substitute part

Screw 22012900
Screw

Part #22012900

The manufacturer no longer makes this part, and there's no substitute part
