Model # 15554440 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 15554440 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Light Lens K12237
#26G

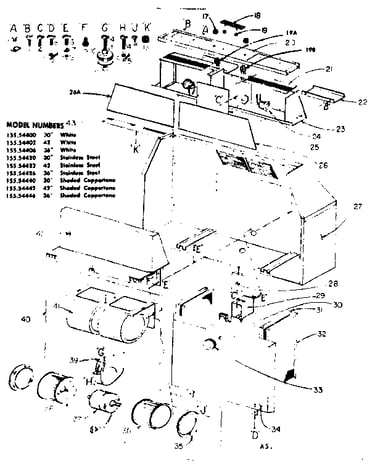

Range hood assembly diagram

Light lens

Part #K12237

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut GM126177
#9

Range hood assembly diagram

Wing nut

Part #GM126177

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Cover Y10451
#34B

Range hood assembly diagram

Range hood blower cover

Part #Y10451

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel K12234
#38

Range hood assembly diagram

Range hood blower wheel

Part #K12234

The manufacturer no longer makes this part, and there's no substitute part

Baffle T14178
#22C

Range hood assembly diagram

Baffle

Part #T14178

The manufacturer no longer makes this part, and there's no substitute part

Screw GM436715
#14

Range hood assembly diagram

Screw

Part #GM436715

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb K4150

#NI

All parts diagram

Light bulb

Part #K4150

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount Y10452
#39

Range hood assembly diagram

Motor mount

Part #Y10452

The manufacturer no longer makes this part, and there's no substitute part

Cover Y10448
#28

Range hood assembly diagram

Cover

Part #Y10448

The manufacturer no longer makes this part, and there's no substitute part

Spring Nut GM445440
#5

Range hood assembly diagram

Spring nut

Part #GM445440

The manufacturer no longer makes this part, and there's no substitute part
