Model # HT-SL77 Official Sharp home theater

Here are the diagrams and repair parts for Official Sharp HT-SL77 home theater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Quick Guide TINSKA069AWZZ
#NI

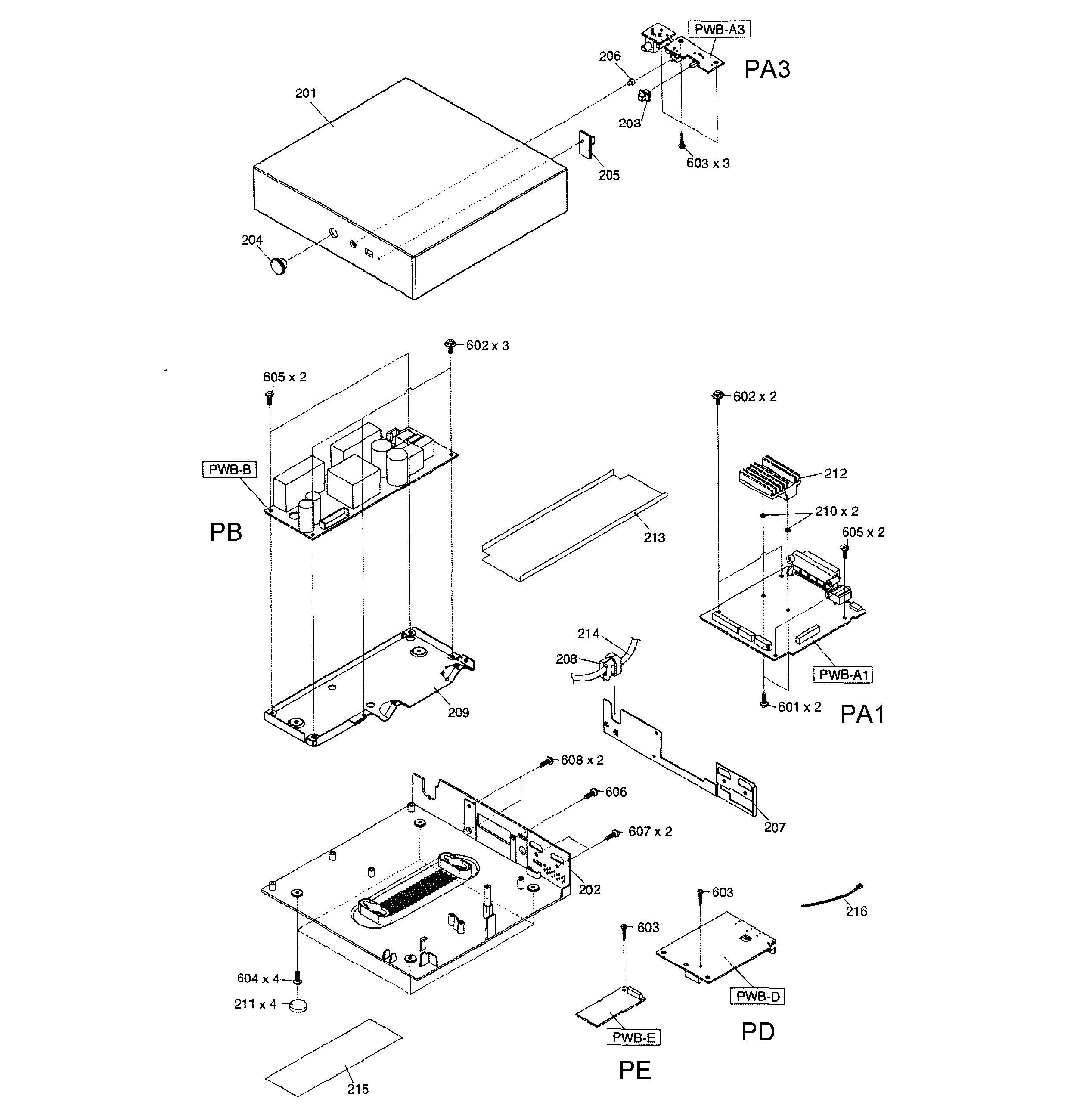

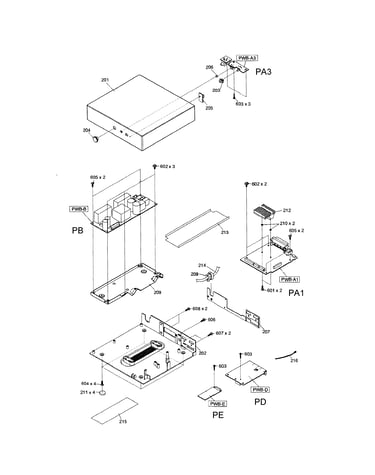

Amplifier diagram

Quick guide

Part #TINSKA069AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Sound Abso PCUSSA232AWZZ
#907

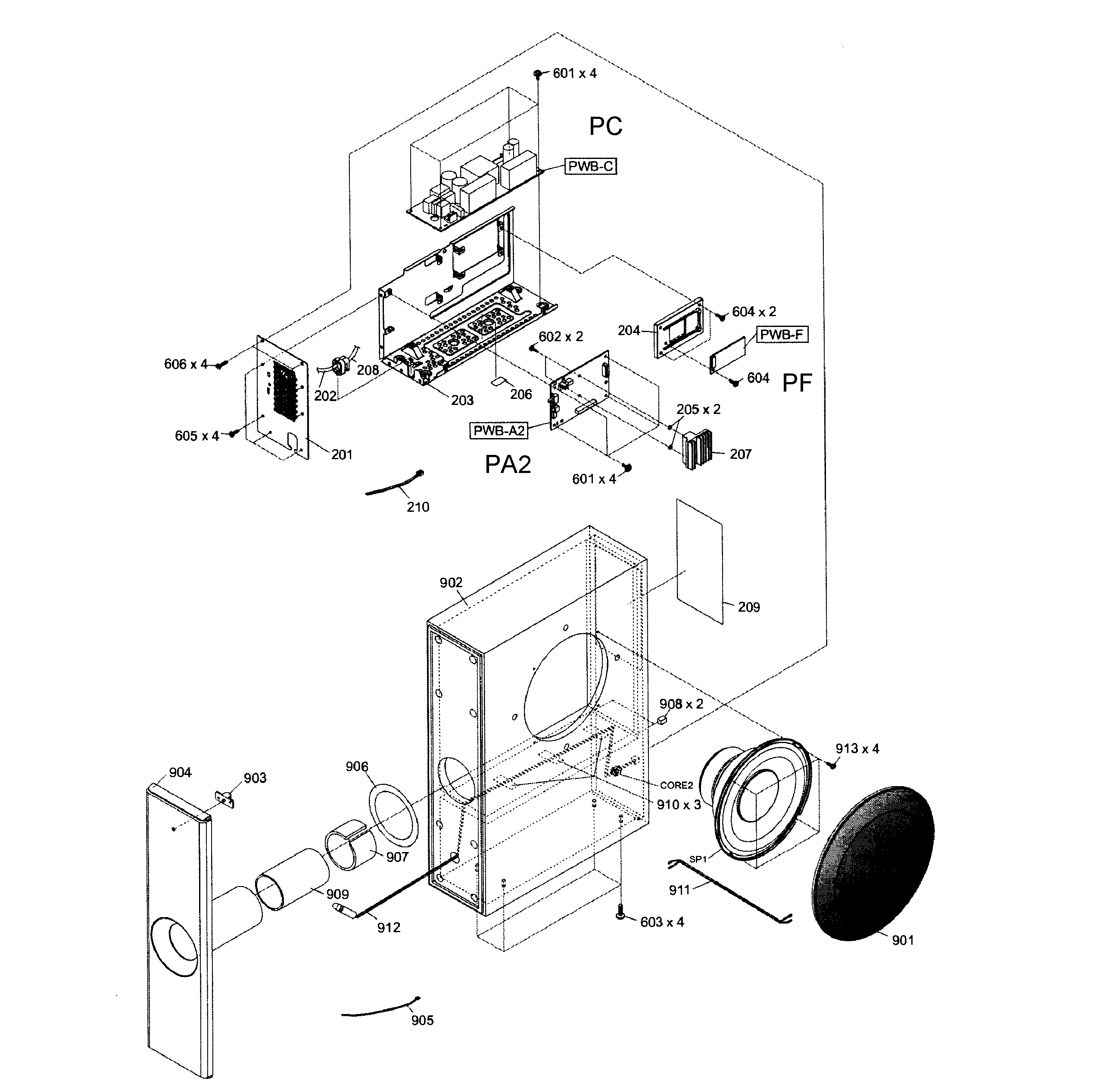

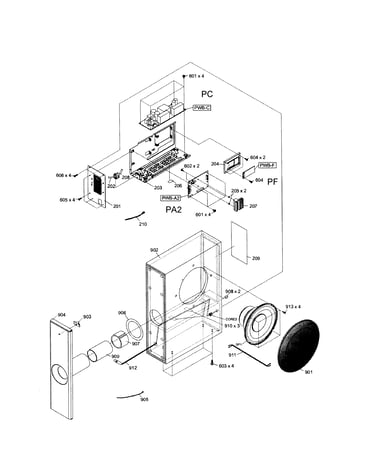

Subwoofer diagram

Sound abso

Part #PCUSSA232AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Spec Label TSPC-B676AWZZ
#215

Amplifier diagram

Spec label

Part #TSPC-B676AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XJBY830P08000
#608

Amplifier diagram

Screw

Part #XJBY830P08000

The manufacturer no longer makes this part, and there's no substitute part

Cable Tie LBNDZA001AWZZ
#905

Subwoofer diagram

Cable tie

Part #LBNDZA001AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XEBY726P08000
#603

Amplifier diagram

Screw

Part #XEBY726P08000

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-JZ0044AWF8
Screw

Part #LX-JZ0044AWF8

The manufacturer no longer makes this part, and there's no substitute part

Rca Cable QCNWGA081AWPZ
#NI

Amplifier diagram

Rca cable

Part #QCNWGA081AWPZ

The manufacturer no longer makes this part, and there's no substitute part

Transmitter RUITZA060AWZZ
#PE

Amplifier diagram

Transmitter

Part #RUITZA060AWZZ

The manufacturer no longer makes this part, and there's no substitute part

Smps RUITZA053AWZZ
#PC

Subwoofer diagram

Smps

Part #RUITZA053AWZZ

The manufacturer no longer makes this part, and there's no substitute part
