Model # 61-1157-10-00 Official Tappan undercounter dishwasher - lt33086010

Here are the diagrams and repair parts for Official Tappan 61-1157-10-00 undercounter dishwasher - lt33086010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

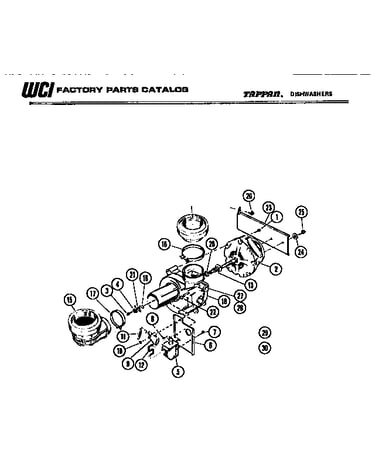

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Nut 3351029
#8

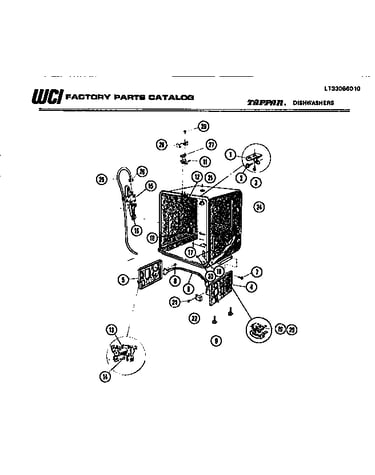

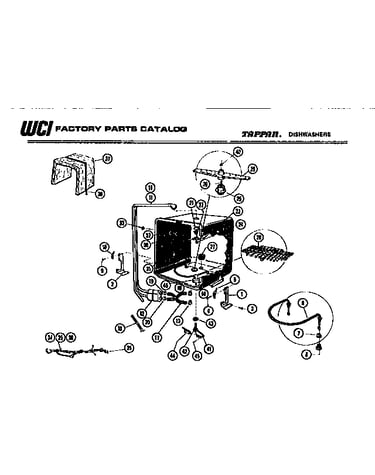

Tub assembly diagram

Nut

Part #3351029

Replaced by #154106202

?
Manufacturer substitution
This part replaces 3351029. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Basket 3351194
#14

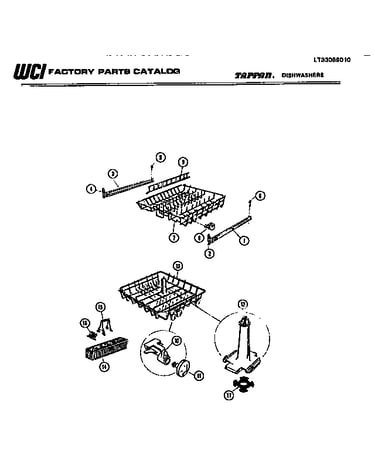

Rack assembly diagram

Basket

Part #3351194

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 3351194. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Frigidaire Angle 3351190
#11

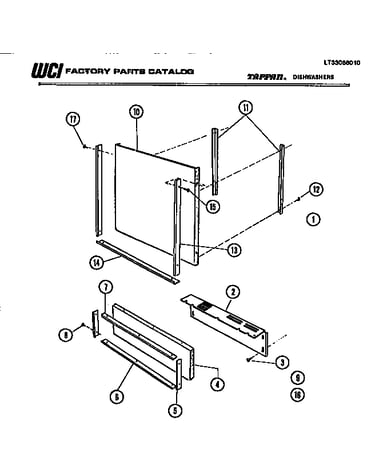

Door diagram

Frigidaire angle

Part #3351190

This item is not returnable
$2.29
In Stock
Retainer 3351144
#18

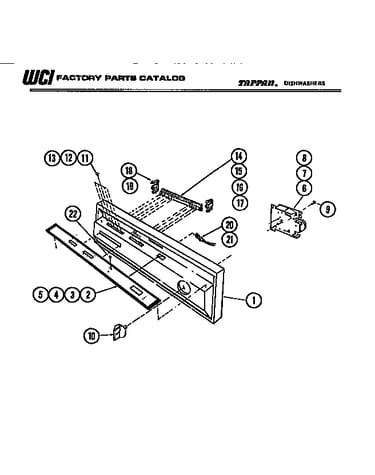

Control panel diagram

Retainer

Part #3351144

This item is not returnable
$2.29
In Stock
Nut 3351166
#43

Tub assembly diagram

Nut

Part #3351166

This item is not returnable
$2.16
In Stock
Screw 3351094
Screw

Part #3351094

This item is not returnable
$2.16
In Stock
Hinge 3351095
#8

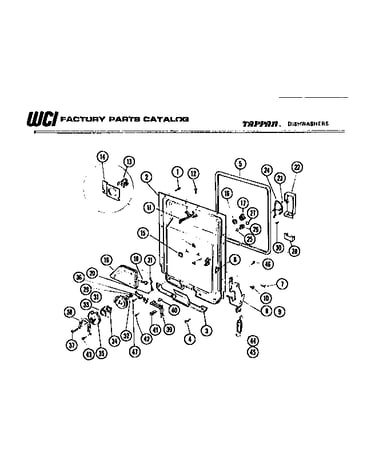

Inner door diagram

Hinge

Part #3351095

Replaced by #5303351095

?
Manufacturer substitution
This part replaces 3351095. Substitute parts can look different from the original.
$24.73
In Stock
Screw 3351040
Screw

Part #3351040

Replaced by #08014822

?
Manufacturer substitution
This part replaces 3351040. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 3351091
#4

Inner door diagram

Screw

Part #3351091

Replaced by #08014825

?
Manufacturer substitution
This part replaces 3351091. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 3351128
#42

Inner door diagram

Screw

Part #3351128

Replaced by #08014826

?
Manufacturer substitution
This part replaces 3351128. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
