Model # CDNS22T9/8L07B Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag CDNS22T9-8L07B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

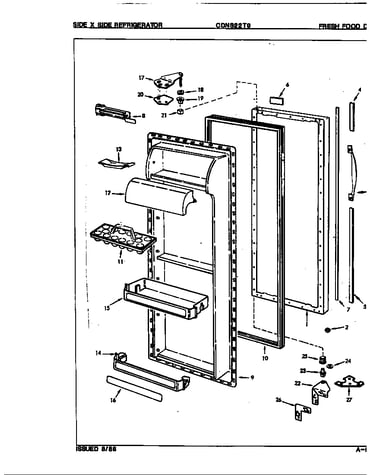

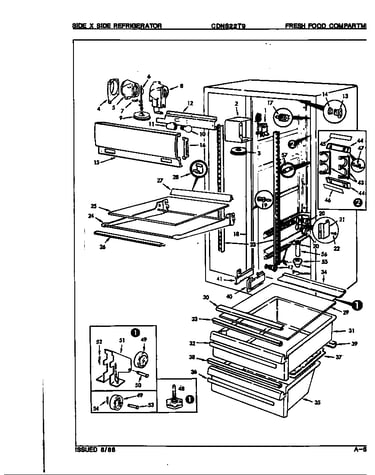

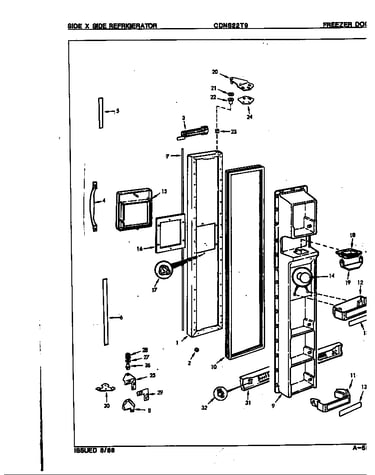

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Drier 13900
#28

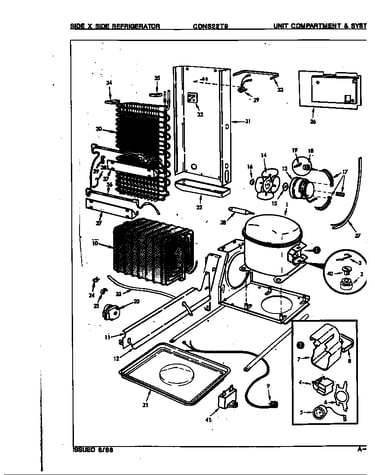

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Bulb 68123-1
#6

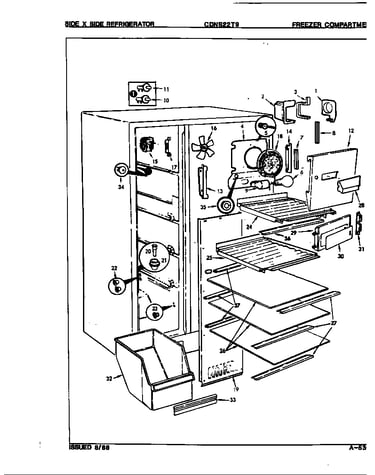

Freezer compartment diagram

Refrigerator light bulb

Part #68123-1

Replaced by #40A15

?
Manufacturer substitution
This part replaces 68123-1. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Drain Hose Clamp 9602-3
#24

Unit compartment & system diagram

Drain hose clamp

Part #9602-3

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9602-3. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Yoke,ice Dis 63052-1
#29

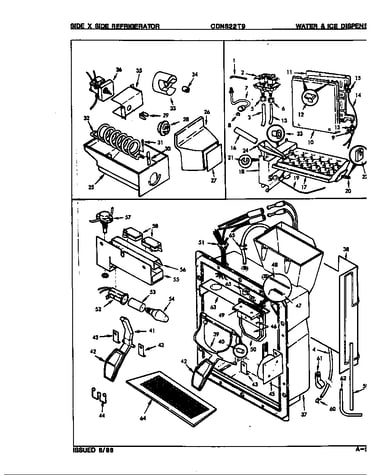

Water & ice dispenser diagram

Yoke,ice dis

Part #63052-1

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052-1. Substitute parts can look different from the original.
BEST SELLER
$33.77 |
15% OFF Phone Price : $39.77
In Stock
Screw 9986-45
#12A

Unit compartment & system diagram

Screw

Part #9986-45

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Condenser Blade 60683-2
#14

Unit compartment & system diagram

Refrigerator condenser blade

Part #60683-2

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 60683-2. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock
Screw, Ice D 402015-103
#42A

Water & ice dispenser diagram

Screw, ice d

Part #402015-103

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 402015-103. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Refrigerator Defrost Timer 66556-5
#20

Unit compartment & system diagram

Refrigerator defrost timer

Part #66556-5

Replaced by #WP4391974

?
Manufacturer substitution
This part replaces 66556-5. Substitute parts can look different from the original.
$88.36 |
6% OFF Phone Price : $94.36
In Stock
Refrigerator Screw 400021-1
#18A

Water & ice dispenser diagram

Refrigerator screw

Part #400021-1

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 400021-1. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Ice Tray 59688-1
#17

Water & ice dispenser diagram

Ice tray

Part #59688-1

Replaced by #WP59688-1A

?
Manufacturer substitution
This part replaces 59688-1. Substitute parts can look different from the original.
$14.99 |
12% OFF Phone Price : $16.99
In Stock
