Model # EE2H40RD045V Official American Water Heaters water heater

Here are the diagrams and repair parts for Official American Water Heaters EE2H40RD045V water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

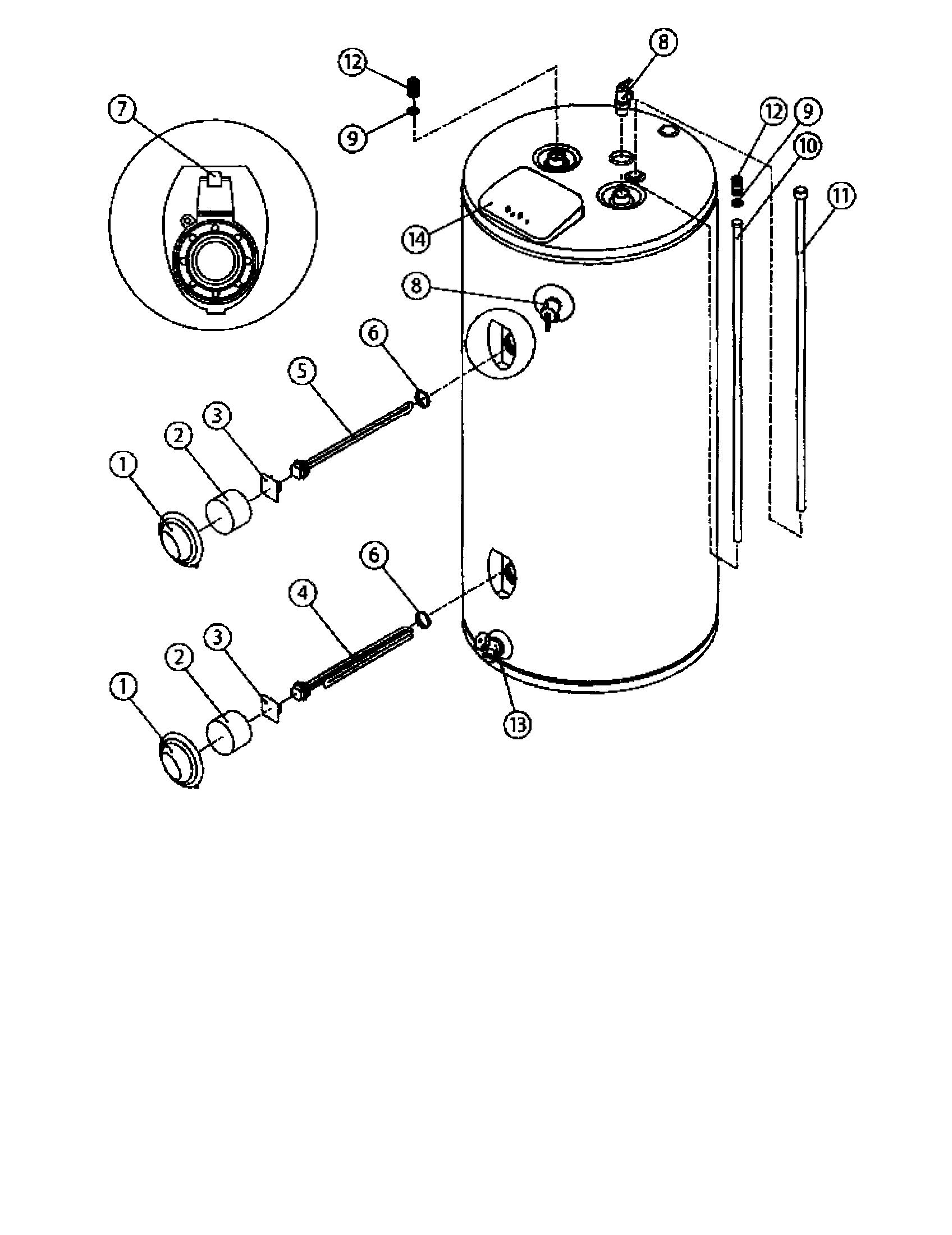

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |

Water Heater Electronic Control Board Kit 6910605
#14

Water heater diagram

Water heater electronic control board kit

Part #6910605

Replaced by #100093769

?
Manufacturer substitution
This part replaces 6910605. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$160.71
7% OFF Phone Price : $172.71
In Stock
Electronic Cover 2610110
#14A

Water heater diagram

Electronic cover

Part #2610110

Replaced by #100341931

?
Manufacturer substitution
This part replaces 2610110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$20.60
23% OFF Phone Price : $26.60
In Stock
Water Heater Thermistor Kit 6910545
#NI

Water heater diagram

Water heater thermistor kit

Part #6910545

Replaced by #100093745

?
Manufacturer substitution
This part replaces 6910545. Substitute parts can look different from the original.
$66.92
8% OFF Phone Price : $72.92
In Stock
Drain Valve 6900820
#13

Water heater diagram

Drain valve

Part #6900820

Replaced by #100108269

?
Manufacturer substitution
This part replaces 6900820. Substitute parts can look different from the original.
In Stock
Element 6900846
#5

Water heater diagram

Element

Part #6900846

Replaced by #100108967

?
Manufacturer substitution
This part replaces 6900846. Substitute parts can look different from the original.
In Stock
Lower Element 6900706
#4

Water heater diagram

Lower element

Part #6900706

Replaced by #100093526

?
Manufacturer substitution
This part replaces 6900706. Substitute parts can look different from the original.
$47.23
11% OFF Phone Price : $53.23
In Stock
Element Ga 4400032
#6

Water heater diagram

Element ga

Part #4400032

Replaced by #100108414

?
Manufacturer substitution
This part replaces 4400032. Substitute parts can look different from the original.
In Stock
Water Heater Dip Tube 4710830
#10

Water heater diagram

Water heater dip tube

Part #4710830

Replaced by #100089234

?
Manufacturer substitution
This part replaces 4710830. Substitute parts can look different from the original.
In Stock
Water Heater Anode Rod 4710185
#11

Water heater diagram

Water heater anode rod

Part #4710185

Replaced by #9005095205

?
Manufacturer substitution
This part replaces 4710185. Substitute parts can look different from the original.
$46.27
11% OFF Phone Price : $52.27
In Stock
Temperature And Pressure Valve 6900829
#8

Water heater diagram

Temperature and pressure valve

Part #6900829

The manufacturer no longer makes this part, and there's no substitute part
