Frigidaire
Electric Range

Model # GLED388ASA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire GLED388ASA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

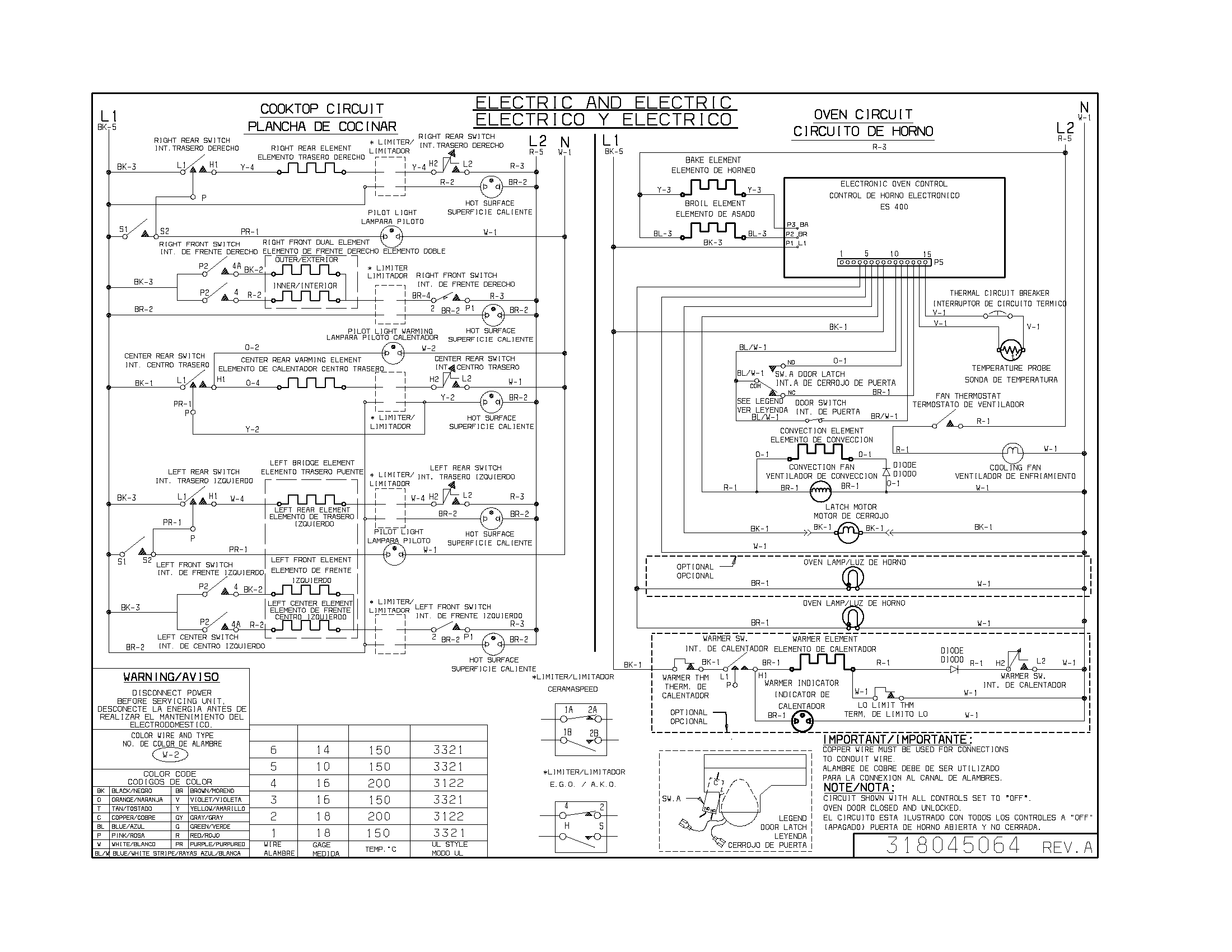

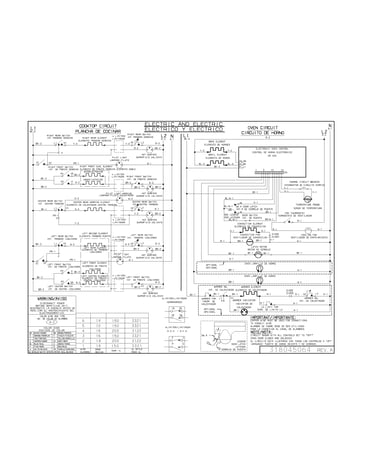

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Bulb 3201908
#15

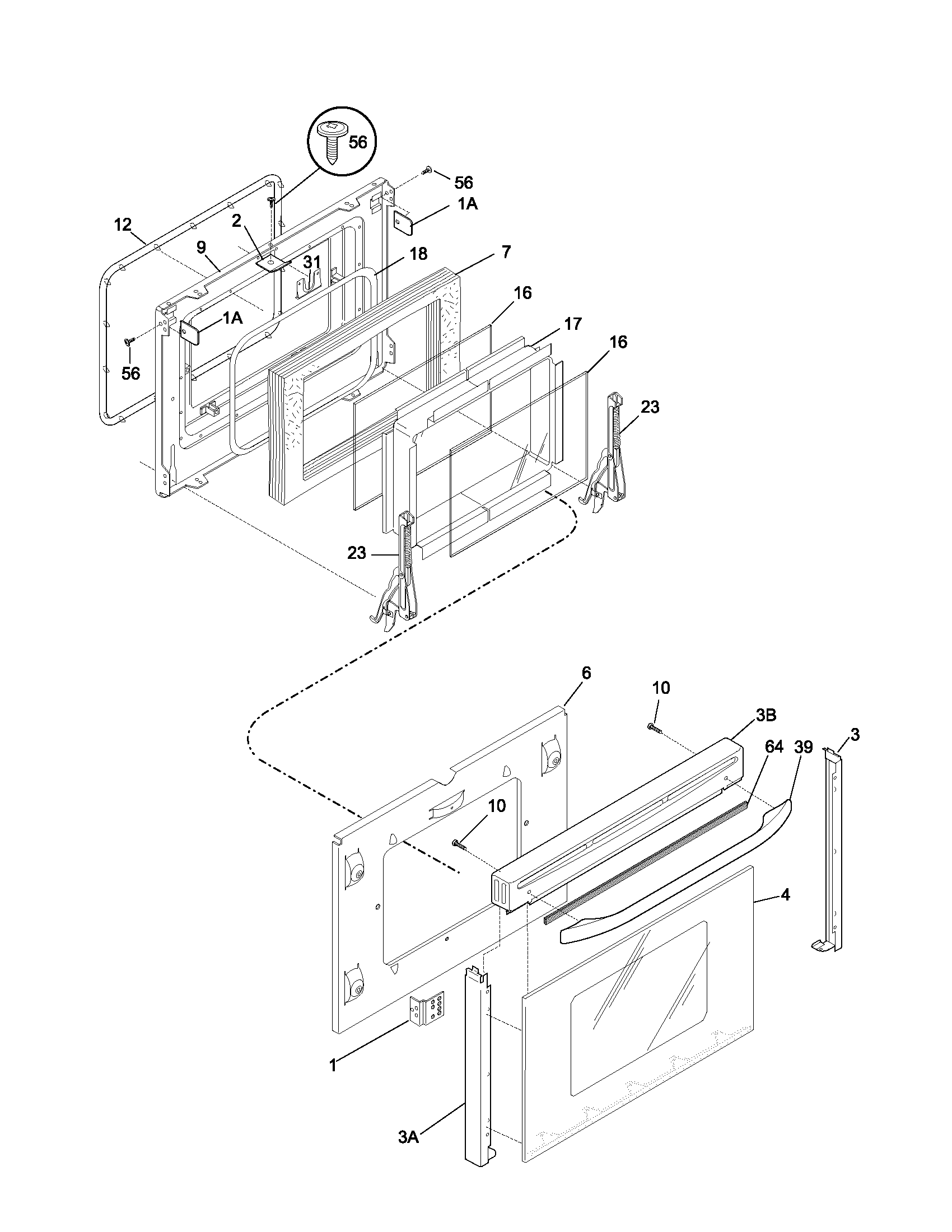

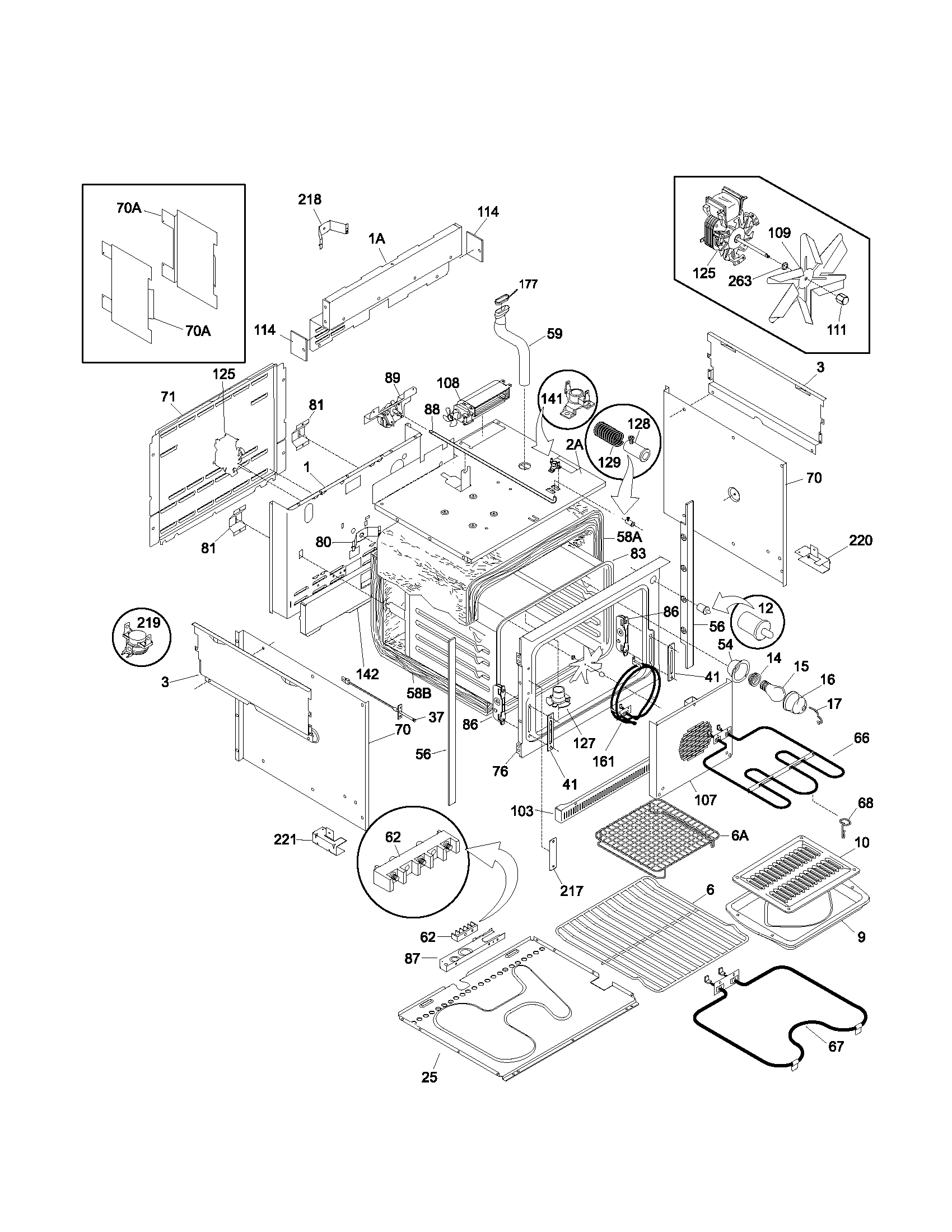

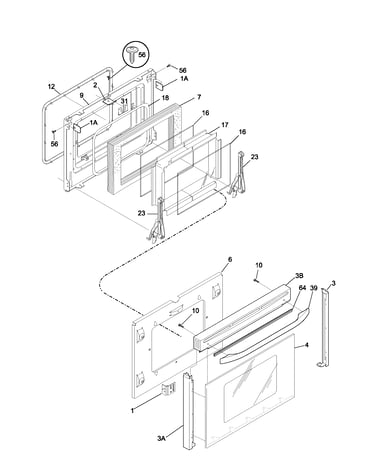

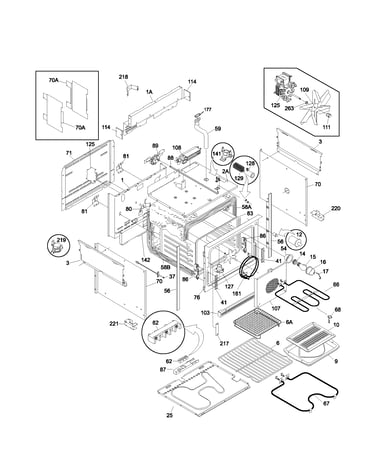

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Probe 318198500
#37

Body diagram

Probe

Part #318198500

Replaced by #316217002

?
Manufacturer substitution
This part replaces 318198500. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Range Radiant Surface Element, 6-in 316010205
#15

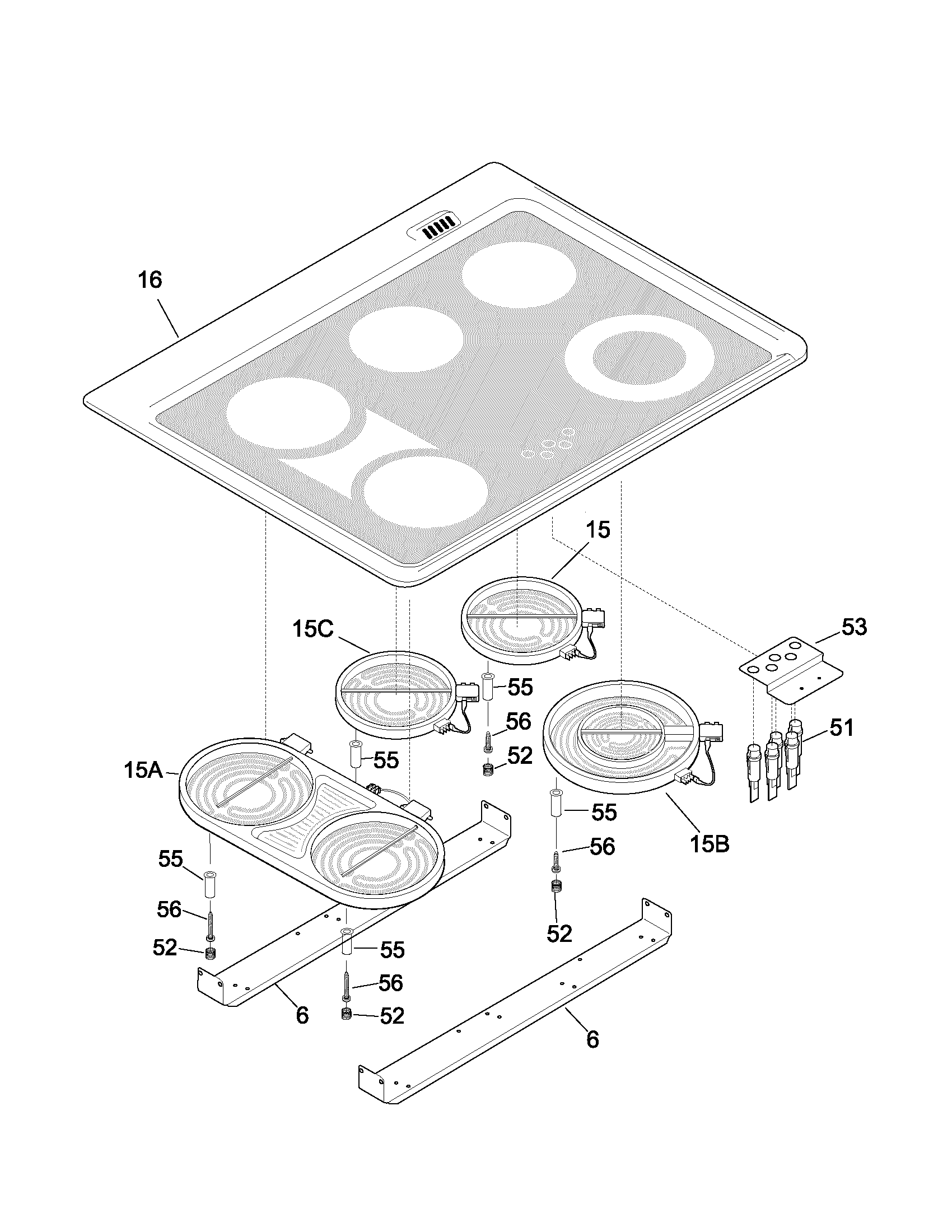

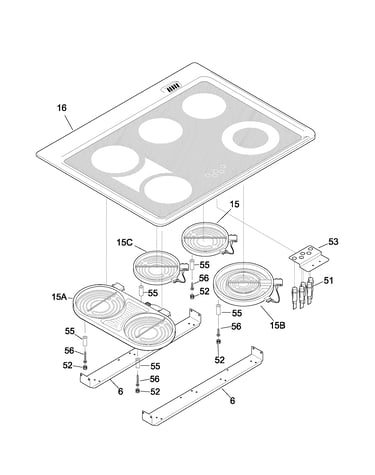

Cooktop diagram

Range radiant surface element, 6-in

Part #316010205

Replaced by #318178110

?
Manufacturer substitution
This part replaces 316010205. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Element-su 316224300
#15B

Cooktop diagram

Element-su

Part #316224300

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316224300. Substitute parts can look different from the original.
BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Terminal Block 5303310518
#62

Body diagram

Terminal block

Part #5303310518

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303310518. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Convection Fan Blade 316136400
#109

Body diagram

Range convection fan blade

Part #316136400

The manufacturer no longer makes this part, and there's no substitute part

Oven Broiler Element 5303310513
#66

Body diagram

Oven broiler element

Part #5303310513

Replaced by #318255605

?
Manufacturer substitution
This part replaces 5303310513. Substitute parts can look different from the original.
BEST SELLER
$116.83 |
9% OFF Phone Price : $128.83
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Body diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Range Screw 5303323134
#69

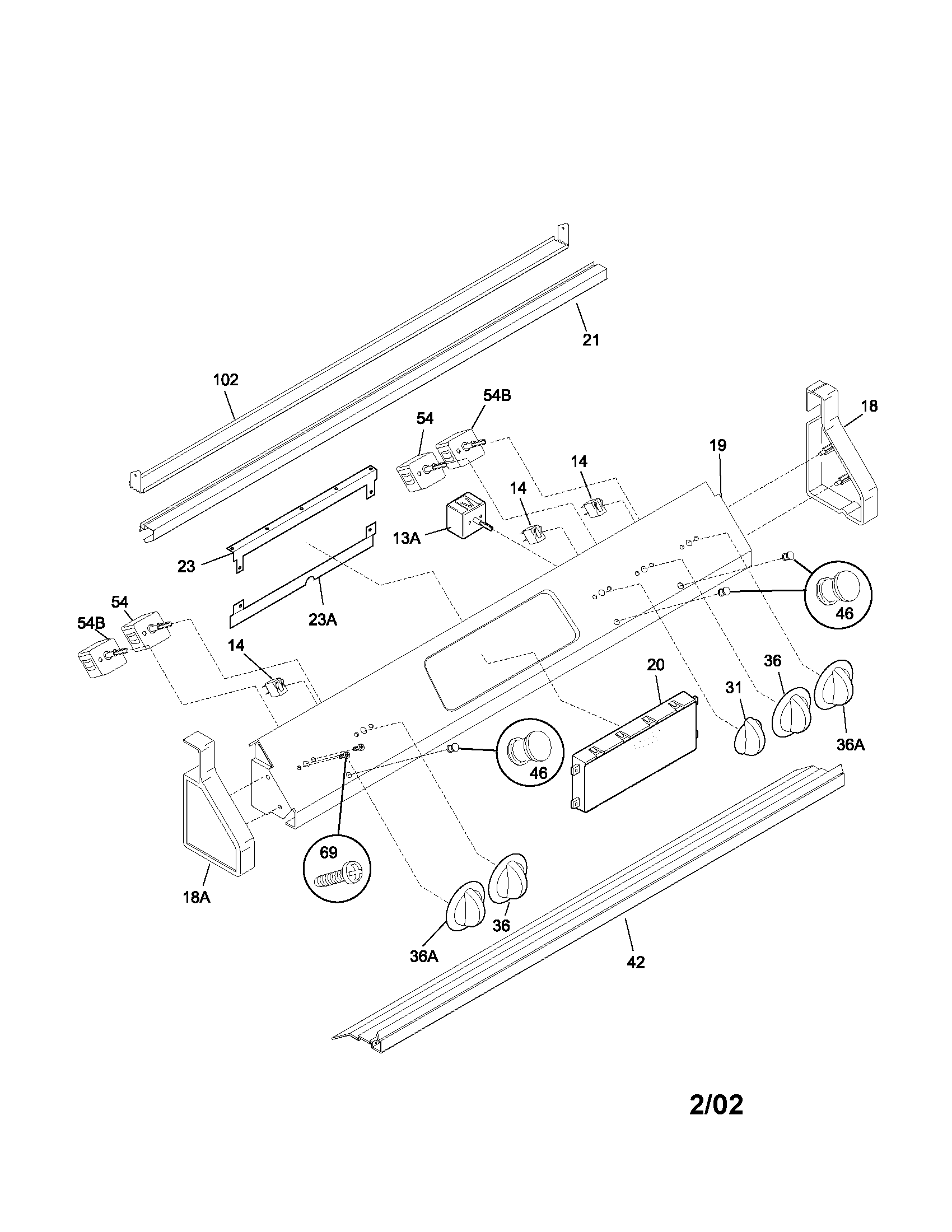

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
