KitchenAid
Top-Mount Refrigerator

Model # KTRS22KDWH00 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KTRS22KDWH00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

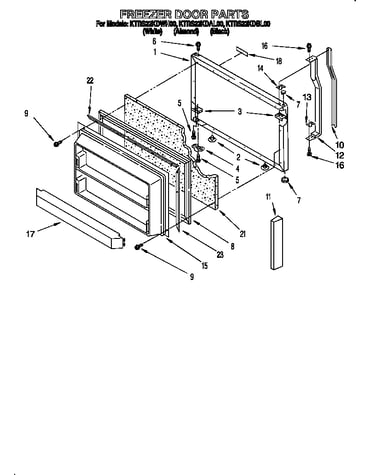

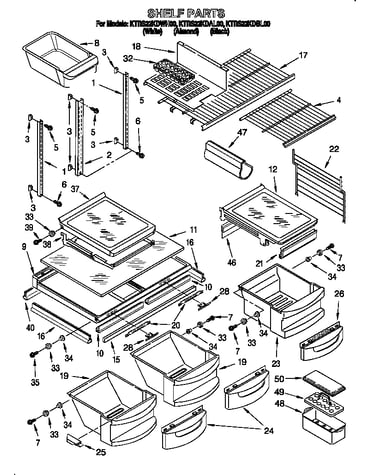

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 286 parts  |
Switch 1108112
#11

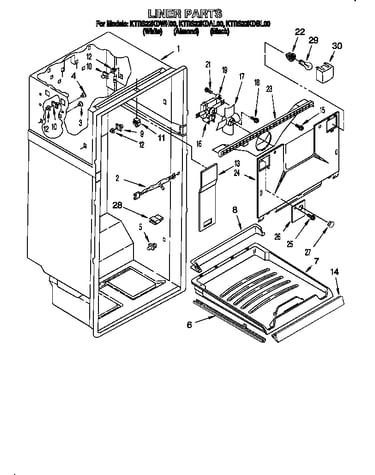

Liner diagram

Switch

Part #1108112

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1108112. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 2174865
#27

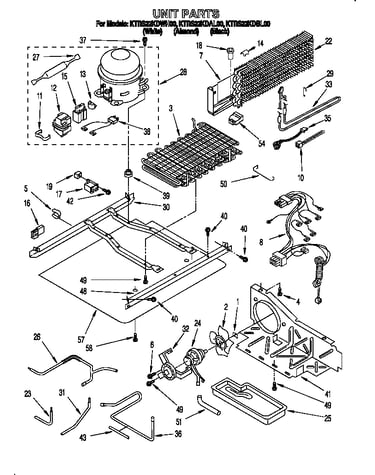

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Compressor 2162354
#28

Unit diagram

Refrigerator compressor

Part #2162354

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 2162354. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Bimetl-del 2149641
#35

Unit diagram

Bimetl-del

Part #2149641

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2149641. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Condenser Motor 2162431
#24

Unit diagram

Condenser motor

Part #2162431

Replaced by #833697

?
Manufacturer substitution
This part replaces 2162431. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Door Switch 2149705
#3

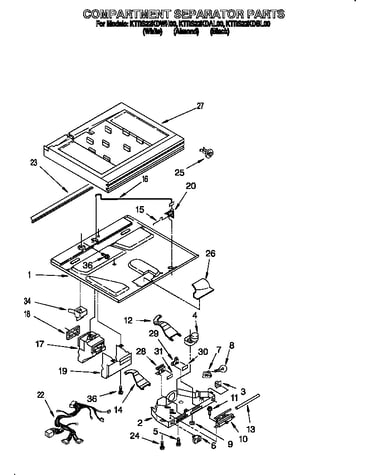

Compartment separator diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$27.81 |
18% OFF Phone Price : $33.81
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764

#NI

All parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Screw 489084
#53

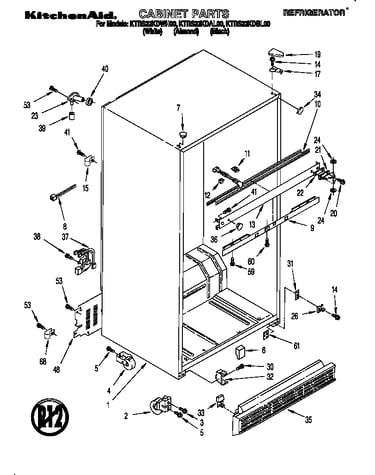

Cabinet diagram

Screw

Part #489084

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487909
#17

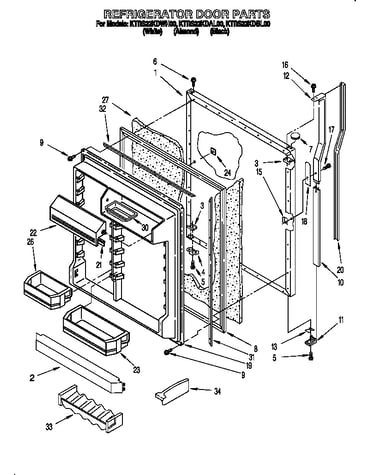

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
