Model # 58CVX110-10022 Official Carrier gas furnace

Here are the diagrams and repair parts for Official Carrier 58CVX110-10022 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004

#90

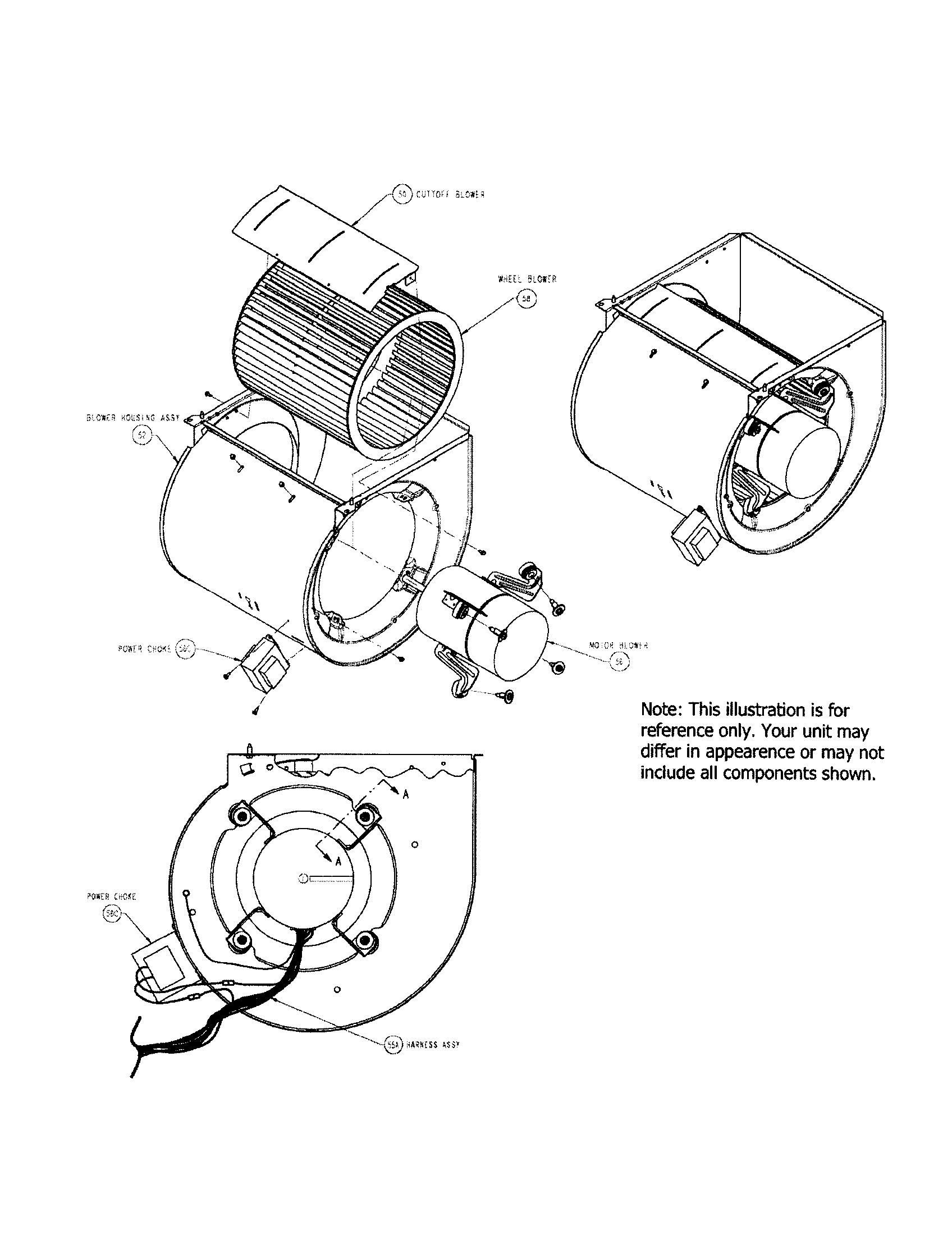

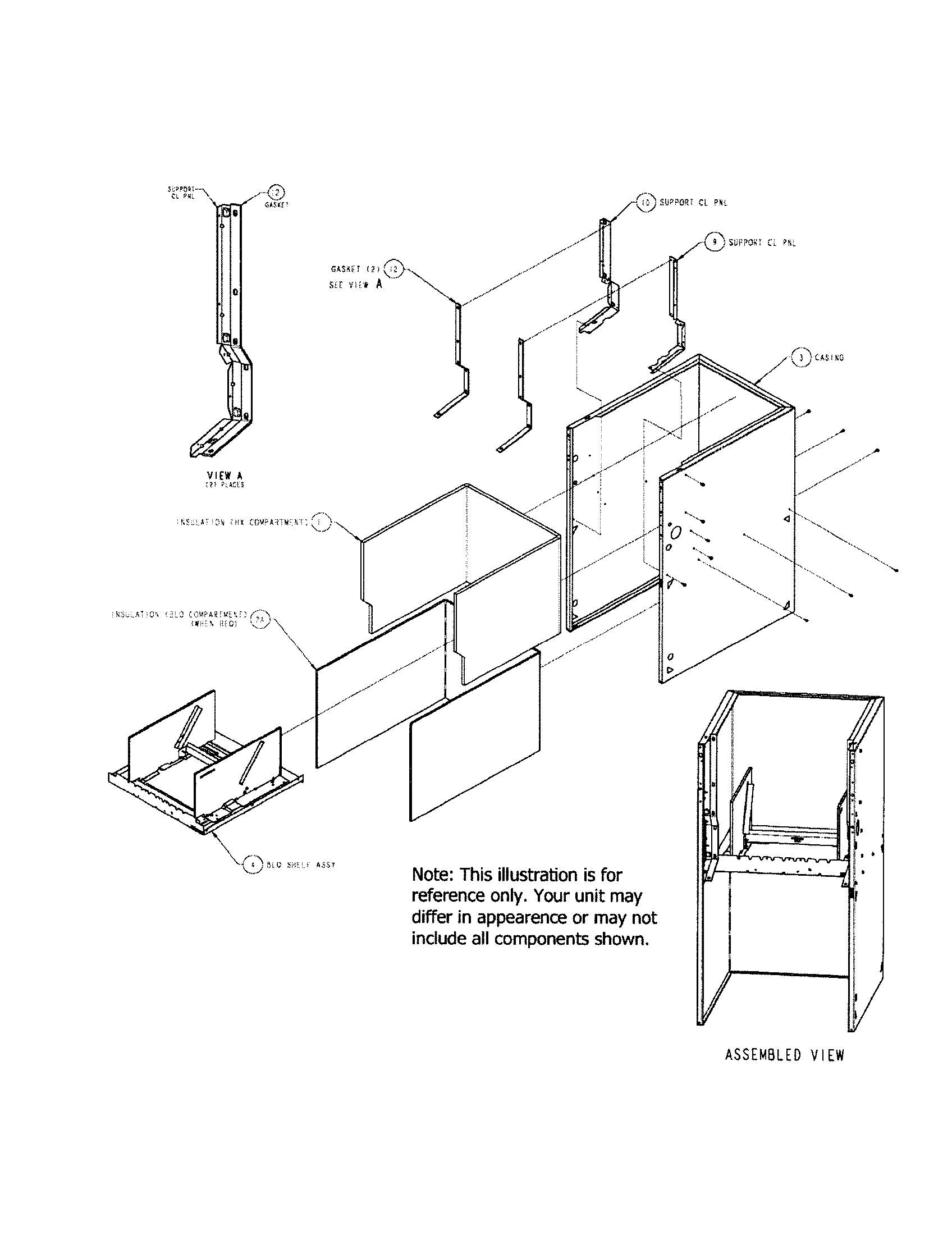

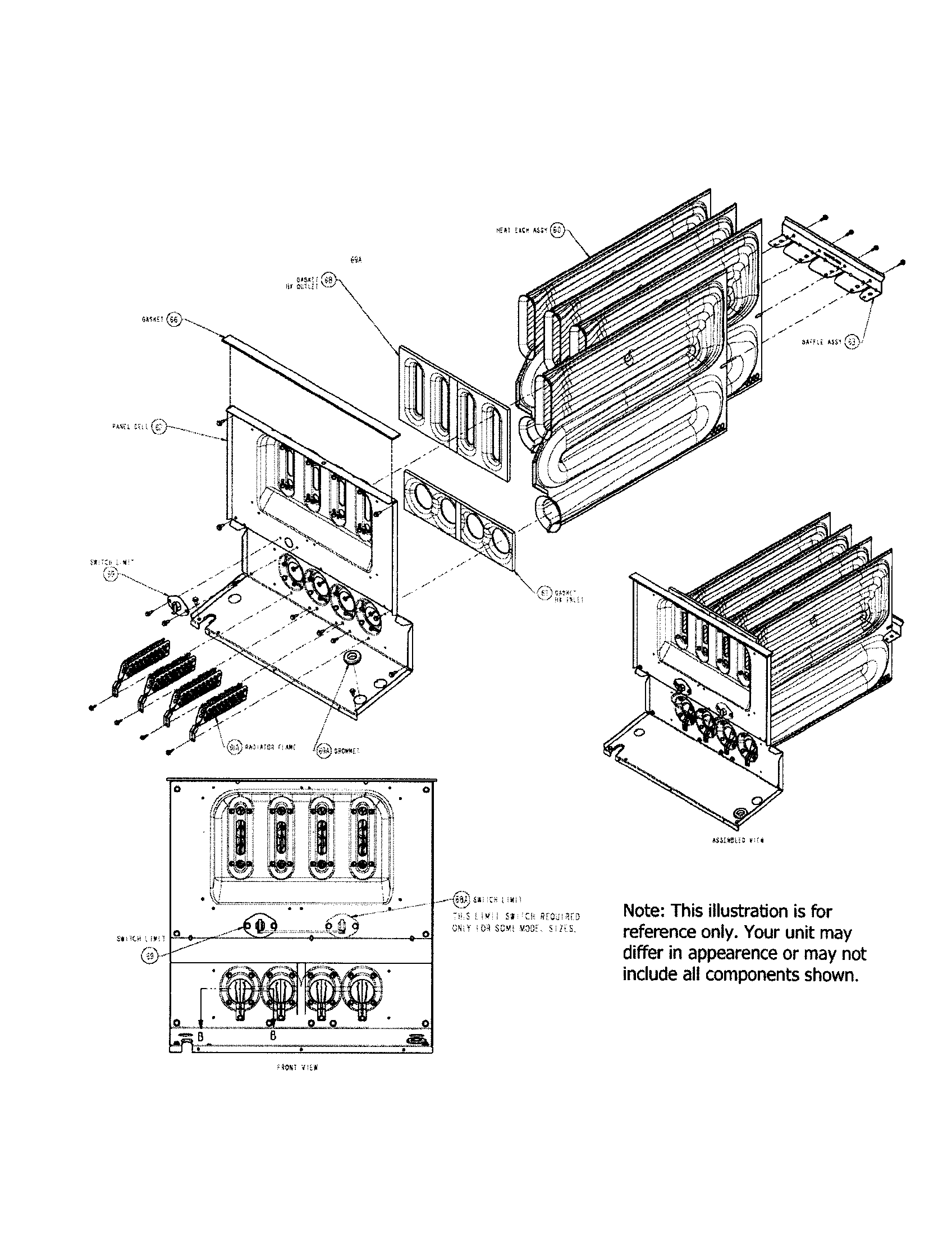

All parts diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
In Stock
Mtr Module HK52EA120

#56A

All parts diagram

Mtr module

Part #HK52EA120

Replaced by #58MV660005

?
Manufacturer substitution
This part replaces HK52EA120. Substitute parts can look different from the original.
$1601.81 |
$12.00 OFF Phone Price : $1613.81
In Stock
Control Board HK42FZ022

#46

All parts diagram

Control board

Part #HK42FZ022

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ022. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Rad Flame 326625-401

#61A

All parts diagram

Rad flame

Part #326625-401

$99.82
In Stock
Plug,model HK70EZ004

#48D

All parts diagram

Plug,model

Part #HK70EZ004

$30.09
In Stock
Furnace Temperature Limit Switch HH18HA499

#69

All parts diagram

Furnace temperature limit switch

Part #HH18HA499

$15.90 |
11% OFF Phone Price : $17.90
In Stock
Furnace Temperature Limit Switch HH18HA495

#88

All parts diagram

Furnace temperature limit switch

Part #HH18HA495

This item is not returnable
$18.57
In Stock
Payne Sub Base KGASB0201ALL

#306

All parts diagram

Payne sub base

Part #KGASB0201ALL

$220.07
In Stock
Furnace Burner 326643-704

#71

All parts diagram

Furnace burner

Part #326643-704

$48.31
In Stock
Icp Terminal HY60CM500

#37

All parts diagram

Icp terminal

Part #HY60CM500

This item is not returnable
$2.16
In Stock
