Digital Camcorder

Model # ES410VA Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ES410VA digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Integrated Circuit Y22-3526-000
#NI

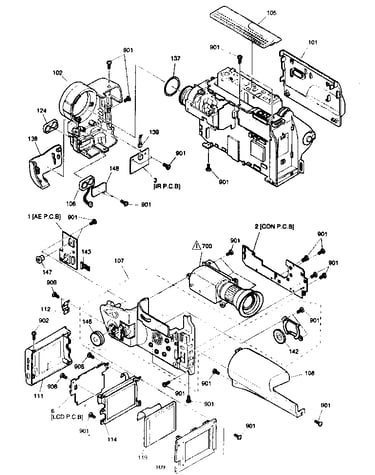

Case parts 1 diagram

Integrated circuit

Part #Y22-3526-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Microphone Cover DY4-4716-000
#138

Case parts 1 diagram

Canon microphone cover

Part #DY4-4716-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Service Manual DY8-1175-632
#NI

Case parts 1 diagram

Canon service manual

Part #DY8-1175-632

The manufacturer no longer makes this part, and there's no substitute part

Canon Microphone DY4-4746-000
#106

Case parts 1 diagram

Canon microphone

Part #DY4-4746-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Con Pcb DY4-4731-000
#2

Case parts 1 diagram

Canon con pcb

Part #DY4-4731-000

The manufacturer no longer makes this part, and there's no substitute part

Motor YG1-0167-000
#603B

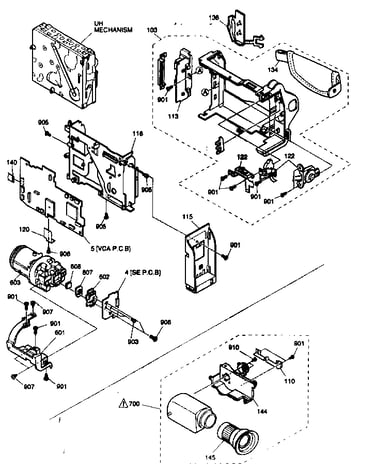

Case parts 2 diagram

Motor

Part #YG1-0167-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Lcd Cover DY4-4701-000
#109

Case parts 1 diagram

Canon lcd cover

Part #DY4-4701-000

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit Y22-3343-000
#NI

Case parts 1 diagram

Integrated circuit

Part #Y22-3343-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Integrated Circuit Y22-3748-000
#NI

Case parts 1 diagram

Canon integrated circuit

Part #Y22-3748-000

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit Y22-3359-000
#NI

Case parts 1 diagram

Integrated circuit

Part #Y22-3359-000

The manufacturer no longer makes this part, and there's no substitute part
