Model # HD-336 Official Modern Maid range hood

Here are the diagrams and repair parts for Official Modern Maid HD-336 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Motor - Double Shaft Speed 44645
#30

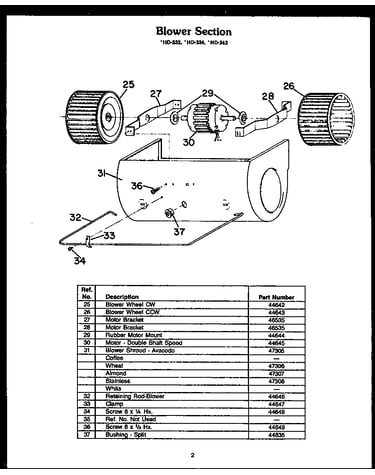

Blower section diagram

Motor - double shaft speed

Part #44645

The manufacturer no longer makes this part, and there's no substitute part

Screw 8 X 1/4 Hx. 44648
#34

Blower section diagram

Screw 8 x 1/4 hx.

Part #44648

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel 44643
#26

Blower section diagram

Range hood blower wheel

Part #44643

The manufacturer no longer makes this part, and there's no substitute part

Light Switch 3-p Rotary 44620
#7

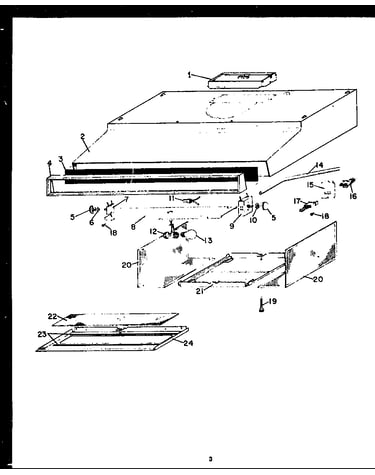

Body section diagram

Light switch 3-p rotary

Part #44620

The manufacturer no longer makes this part, and there's no substitute part

Retaining Rod-blower 44646
#32

Blower section diagram

Retaining rod-blower

Part #44646

The manufacturer no longer makes this part, and there's no substitute part

Frame Glass - Coffee 44637
#24B

Body section diagram

Frame glass - coffee

Part #44637

The manufacturer no longer makes this part, and there's no substitute part

Clamp 44647
#33

Blower section diagram

Clamp

Part #44647

The manufacturer no longer makes this part, and there's no substitute part

Blower Shroud - Stainless 47308
#31E

Blower section diagram

Blower shroud - stainless

Part #47308

The manufacturer no longer makes this part, and there's no substitute part

Speed Control-motor 46370
#9

Body section diagram

Speed control-motor

Part #46370

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket-double 44622
#12

Body section diagram

Lamp socket-double

Part #44622

The manufacturer no longer makes this part, and there's no substitute part
