Model # KEMC308KBT02 Official KitchenAid wall oven
Here are the diagrams and repair parts for Official KitchenAid KEMC308KBT02 wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part

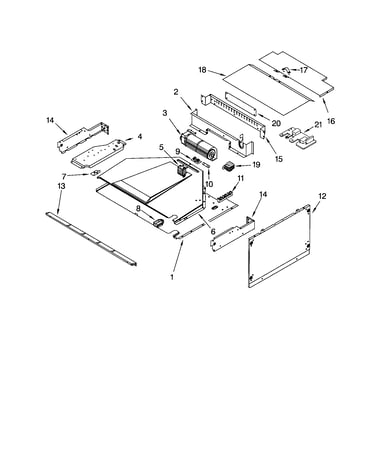

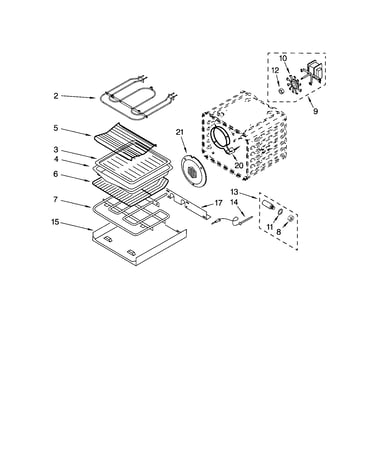

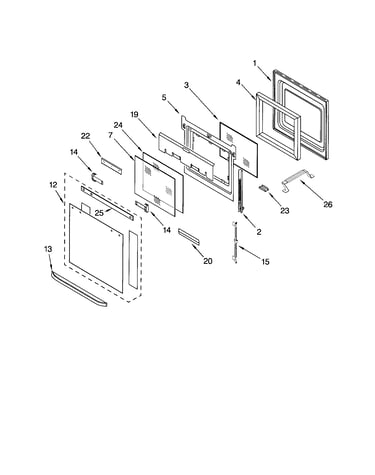

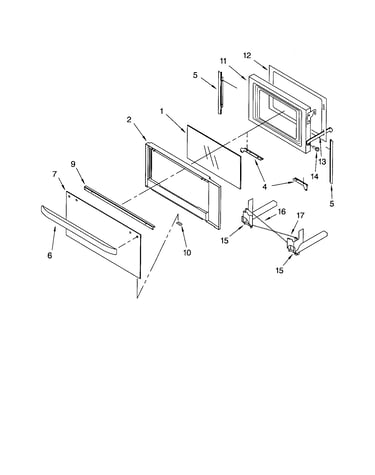

SELECT DIAGRAM
Browse Parts for
KEMC308KBT02 Wall Oven
#73

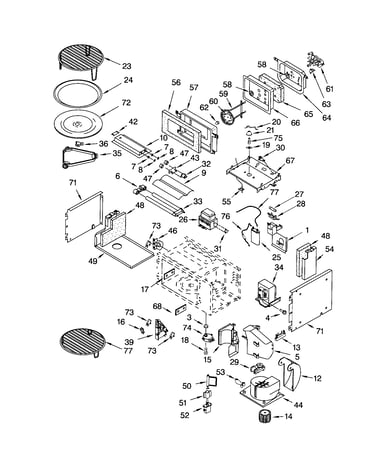

Cabinet and stirrer diagram
Microwave door interlock switch
Part #4375346
Replaced by #W10211972
?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
$28.80 |
17% OFF Phone Price : $34.80
In Stock
#29

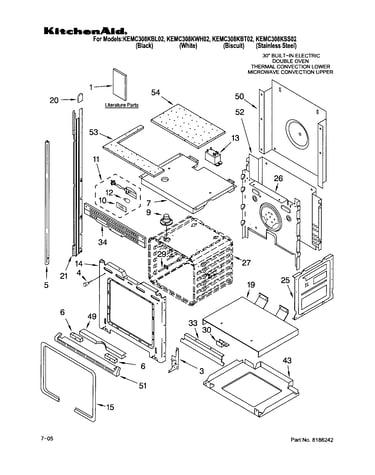

Oven diagram
Wall oven temperature sensor
Part #4455636
Replaced by #WPW10131825
?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
$59.66 |
9% OFF Phone Price : $65.66
In Stock
#NI07
All parts diagram
Spray w
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
#76
Cabinet and stirrer diagram
Diode
Part #4375349
Replaced by #WPW10687786
?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Mounting bracket
Part #4375413
Replaced by #W10727408
?
Manufacturer substitution
This part replaces 4375413. Substitute parts can look different from the original.
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Mounting bracket
Part #4375412
Replaced by #W10727408
?
Manufacturer substitution
This part replaces 4375412. Substitute parts can look different from the original.
$88.84 |
6% OFF Phone Price : $94.84
In Stock
#16
Latch diagram
Blower
Part #4452003
Replaced by #WPW10016550
?
Manufacturer substitution
This part replaces 4452003. Substitute parts can look different from the original.
$153.62 |
7% OFF Phone Price : $165.62
In Stock
#25
Cabinet and stirrer diagram
Capacitor
Part #4375436
Replaced by #WP4375020
?
Manufacturer substitution
This part replaces 4375436. Substitute parts can look different from the original.
$108.39 |
10% OFF Phone Price : $120.39
In Stock
#26
Cabinet and stirrer diagram
Microwave magnetron
Part #4375424
The manufacturer no longer makes this part, and there's no substitute part
#NI06
All parts diagram
Touch-up paint (black)
Part #72032
Replaced by #72032
?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
