Westinghouse
Gas Pressure Washer

Model # WP2500 Official Westinghouse power washer

Here are the diagrams and repair parts for Official Westinghouse WP2500 power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Pressure Washer Bolt 100050
#5

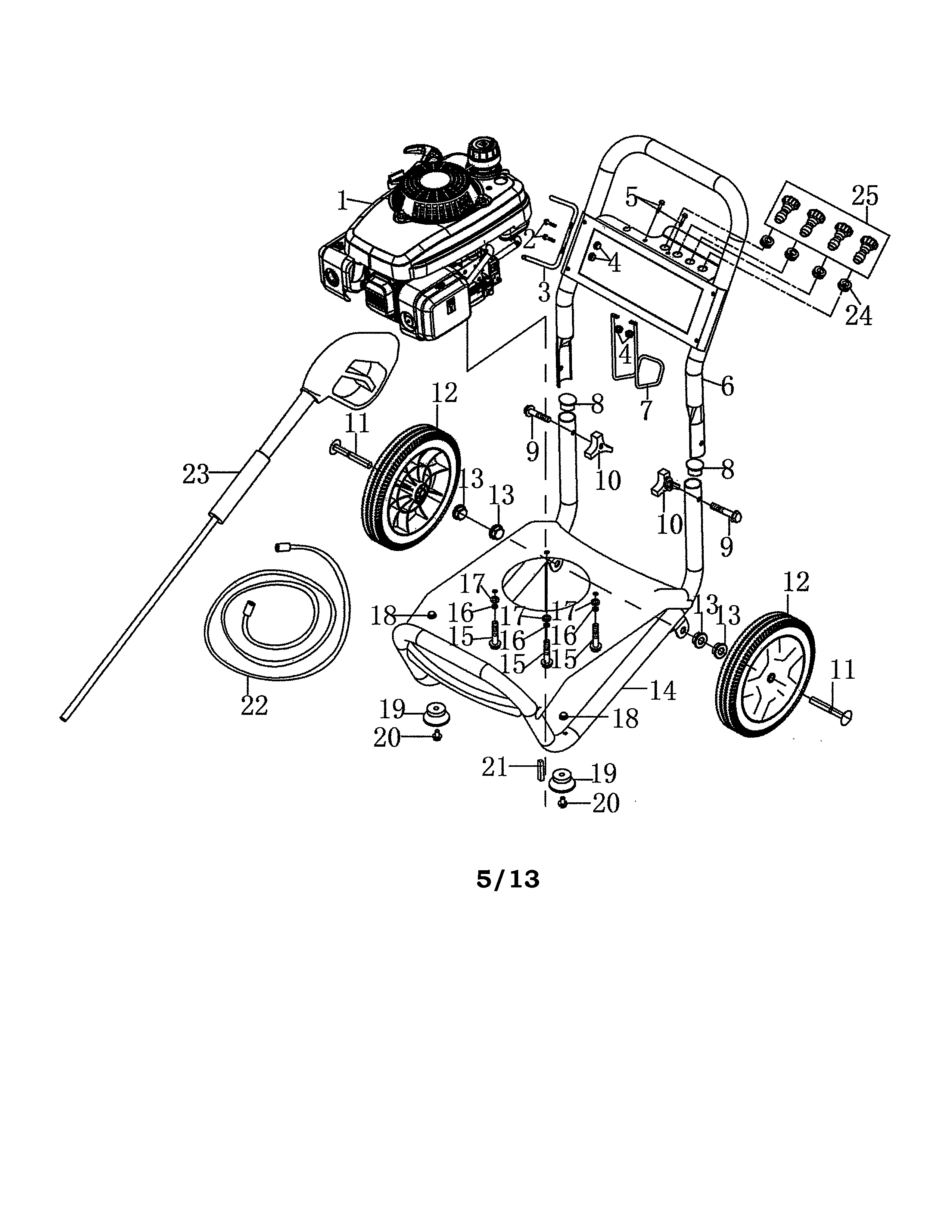

Frame diagram

Pressure washer bolt

Part #100050

The manufacturer no longer makes this part, and there's no substitute part

Dipstick Sea 180173
#68

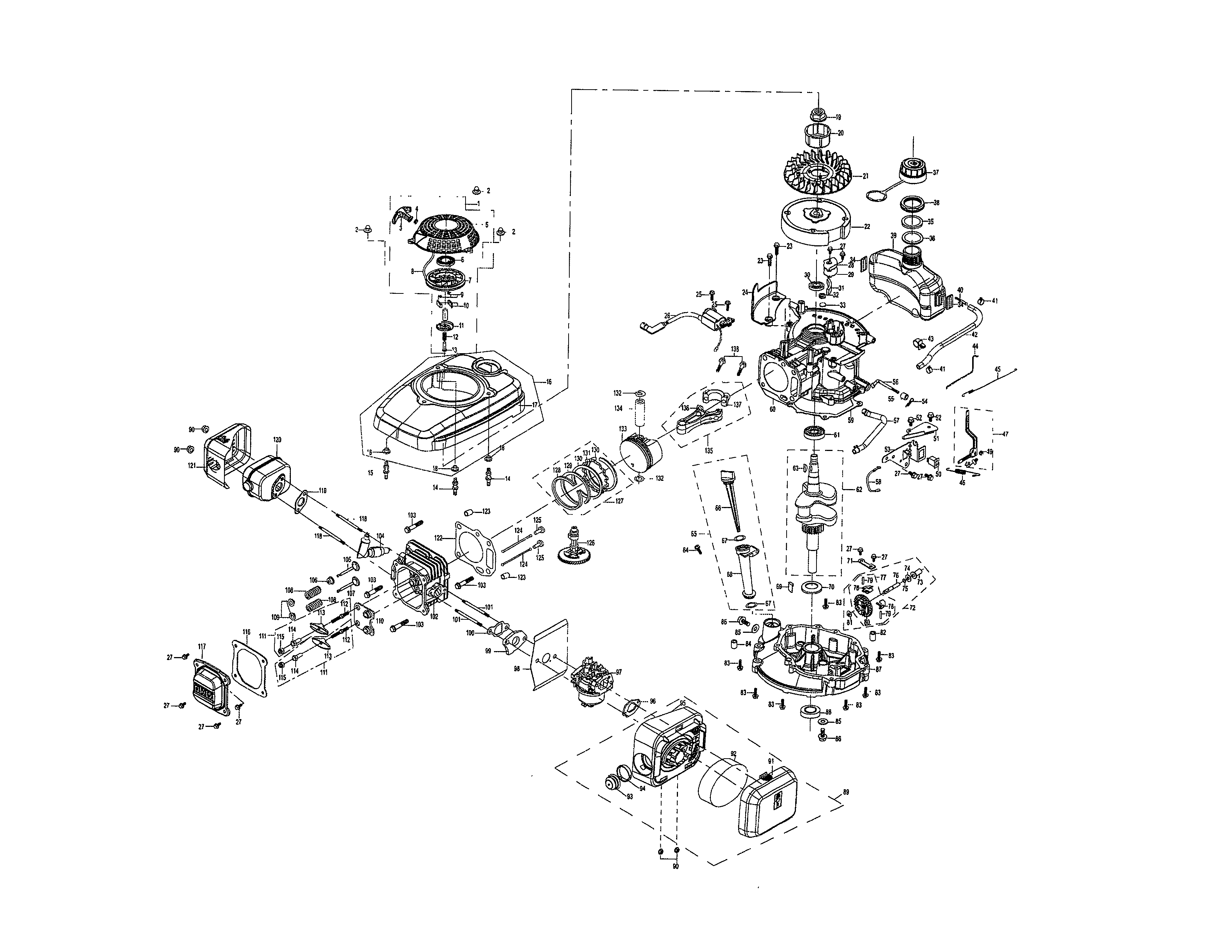

Engine diagram

Dipstick sea

Part #180173

The manufacturer no longer makes this part, and there's no substitute part

Tank Nut 150023
#38

Engine diagram

Tank nut

Part #150023

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing 170034
#16

Engine diagram

Blower housing

Part #170034

The manufacturer no longer makes this part, and there's no substitute part

Nut M6 100060
#18

Frame diagram

Nut m6

Part #100060

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip 230073
#7

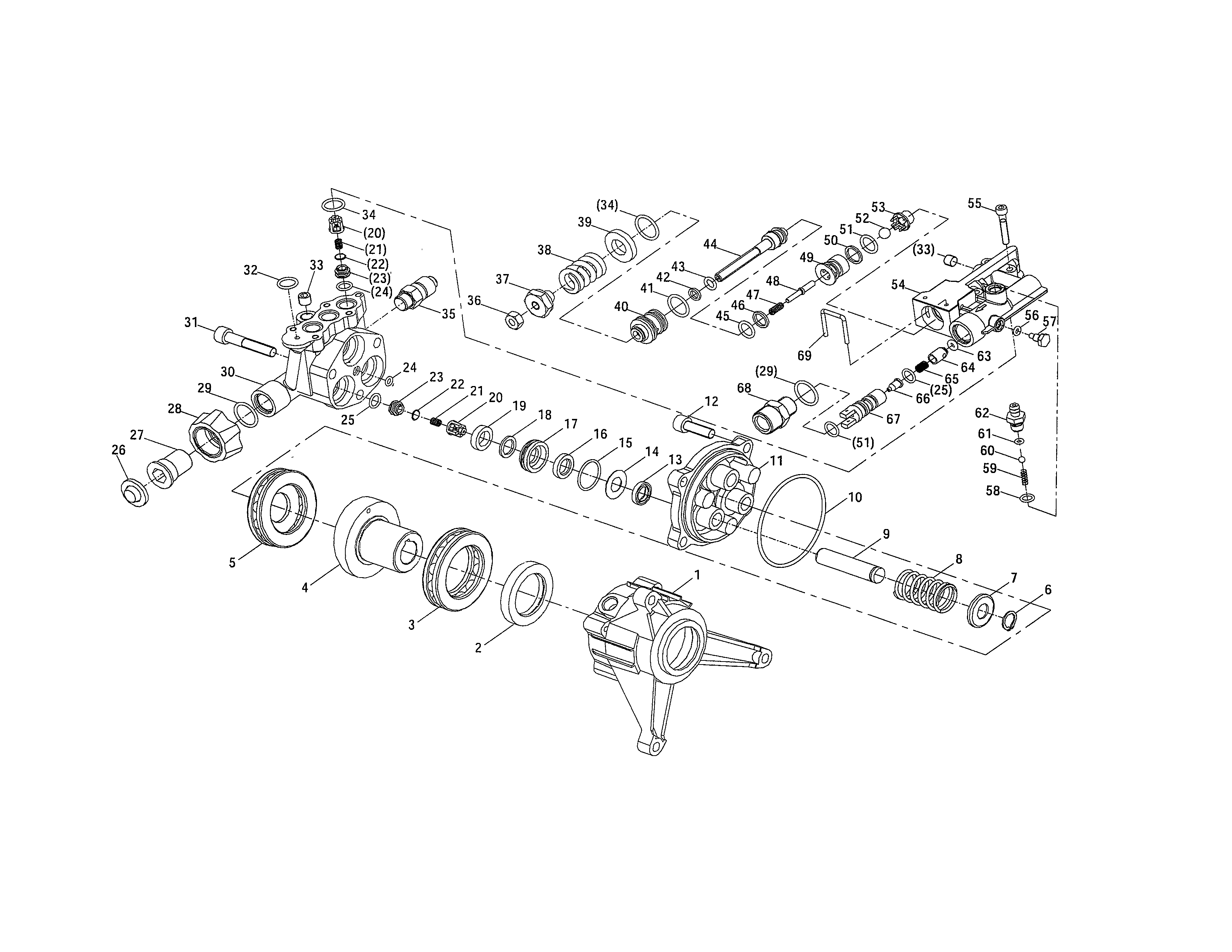

Pump diagram

Spring clip

Part #230073

The manufacturer no longer makes this part, and there's no substitute part

Valve Rod 230109
#44

Pump diagram

Valve rod

Part #230109

The manufacturer no longer makes this part, and there's no substitute part

Lock Handle 100055
#10

Frame diagram

Lock handle

Part #100055

The manufacturer no longer makes this part, and there's no substitute part

Oil Return S 180174
#69

Engine diagram

Oil return s

Part #180174

The manufacturer no longer makes this part, and there's no substitute part

Idler Arm Spring 180051
#45

Engine diagram

Idler arm spring

Part #180051

The manufacturer no longer makes this part, and there's no substitute part
