Craftsman
Lawn Edger

Model # 358796520 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 358796520 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Edger Height Adjuster Knob 530402881
#29

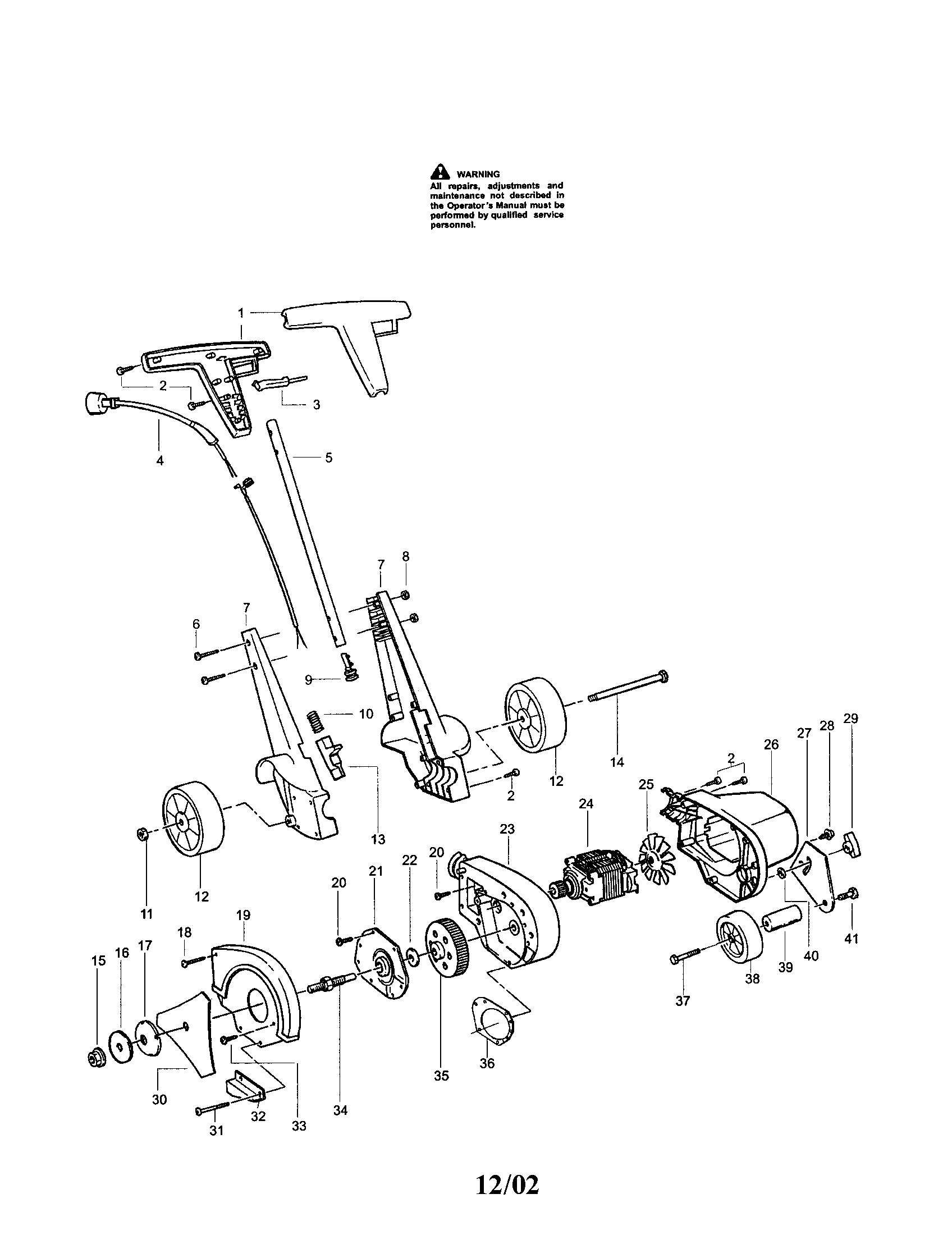

Edger diagram

Edger height adjuster knob

Part #530402881

This item is not returnable
$7.40
In Stock
Lawn & Garden Equipment Screw 534222402
#2

Edger diagram

Lawn & garden equipment screw

Part #534222402

This item is not returnable
$5.11
In Stock
Slide Release 530402871
#13

Edger diagram

Slide release

Part #530402871

The manufacturer no longer makes this part, and there's no substitute part

Gasket 530402928
#36

Edger diagram

Gasket

Part #530402928

The manufacturer no longer makes this part, and there's no substitute part

Protector Harness 530402885
#9

Edger diagram

Protector harness

Part #530402885

The manufacturer no longer makes this part, and there's no substitute part

Blade 71-85718
#30

Edger diagram

Blade

Part #71-85718

The manufacturer no longer makes this part, and there's no substitute part

Axle 530402875
#37

Edger diagram

Axle

Part #530402875

The manufacturer no longer makes this part, and there's no substitute part

Trig Swi Lev 530402860
#3

Edger diagram

Trig swi lev

Part #530402860

The manufacturer no longer makes this part, and there's no substitute part

Edger Bearing 530402912
#21

Edger diagram

Edger bearing

Part #530402912

The manufacturer no longer makes this part, and there's no substitute part

Screw 530016332
#20

Edger diagram

Screw

Part #530016332

The manufacturer no longer makes this part, and there's no substitute part
