Model # 143161052 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143161052 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Fuel Line 29774
#114

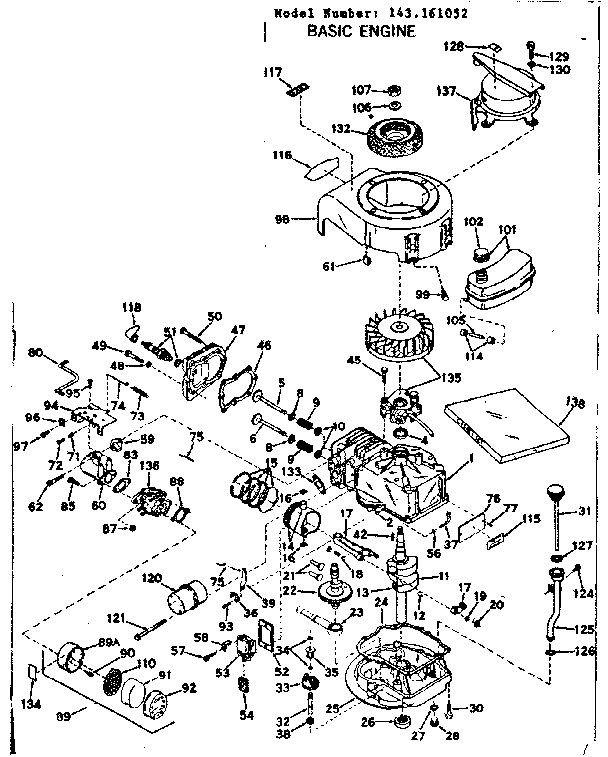

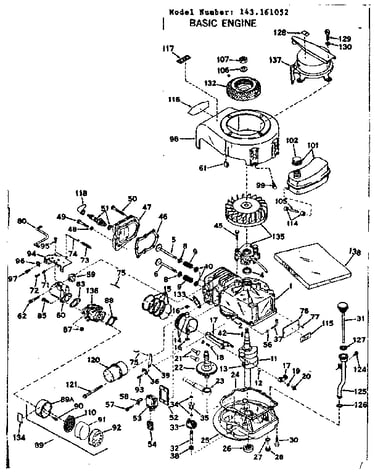

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#118

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Plug 30572
#28

Basic engine diagram

Plug

Part #30572

The manufacturer no longer makes this part, and there's no substitute part

Fitting 631034
#16

Carburetor diagram

Fitting

Part #631034

Replaced by #632527

?
Manufacturer substitution
This part replaces 631034. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Element 31410
#54

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor O-ring 630740
#13

Carburetor diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
/gvnr Shaft 30574
#32

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

/intke Valve 29314A
#5

Basic engine diagram

/intke valve

Part #29314A

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#35

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part
