Frigidaire
Gas Cooktop

Model # FPGC3677RSG Official Frigidaire gas counter unit

Here are the diagrams and repair parts for Official Frigidaire FPGC3677RSG gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

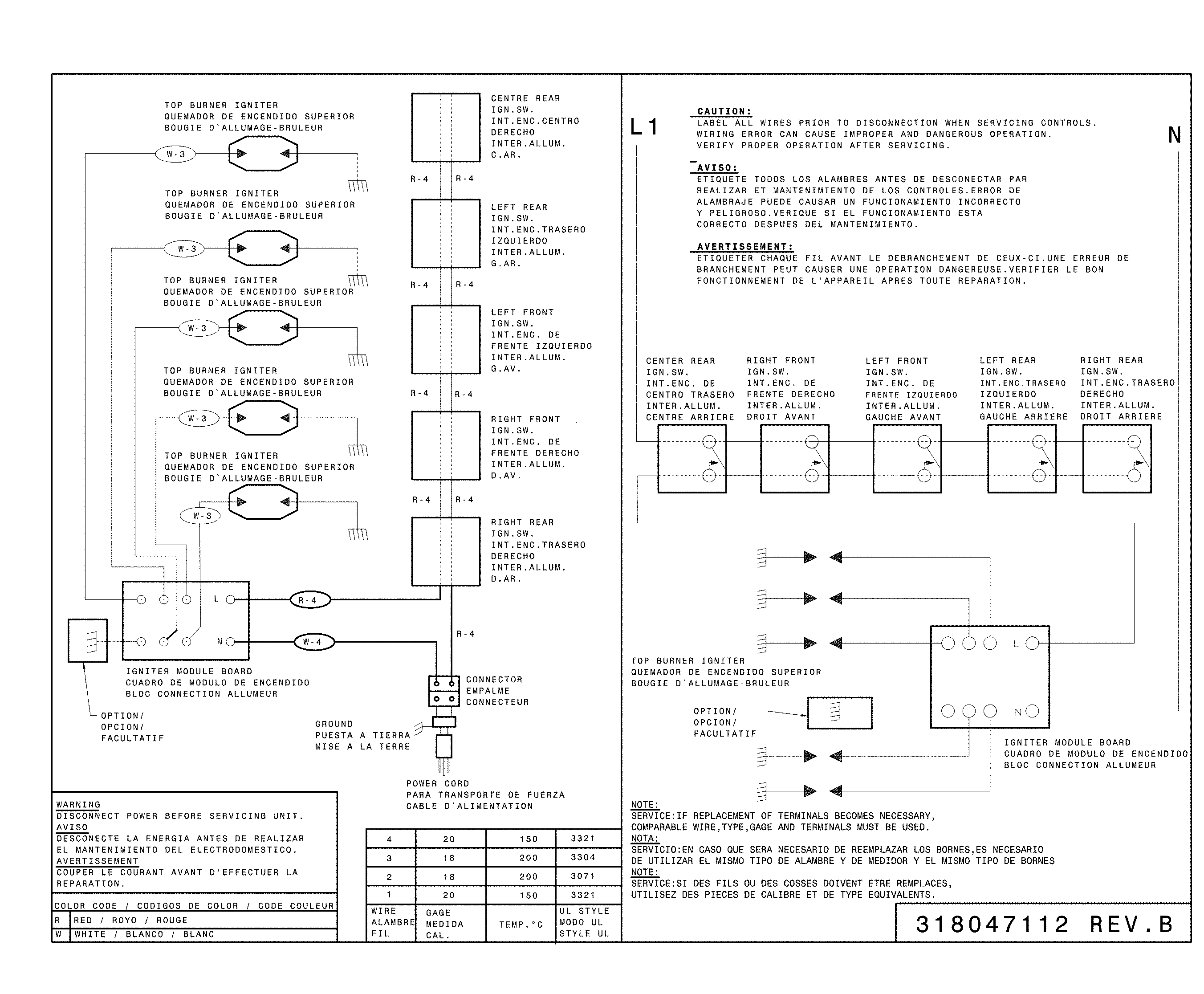

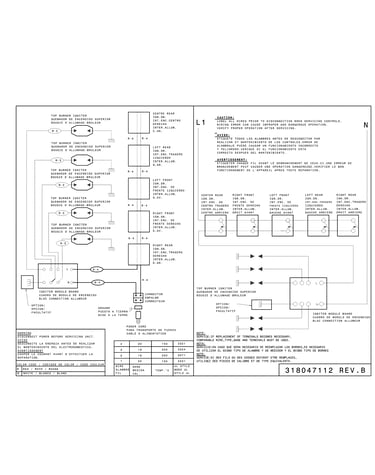

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10A

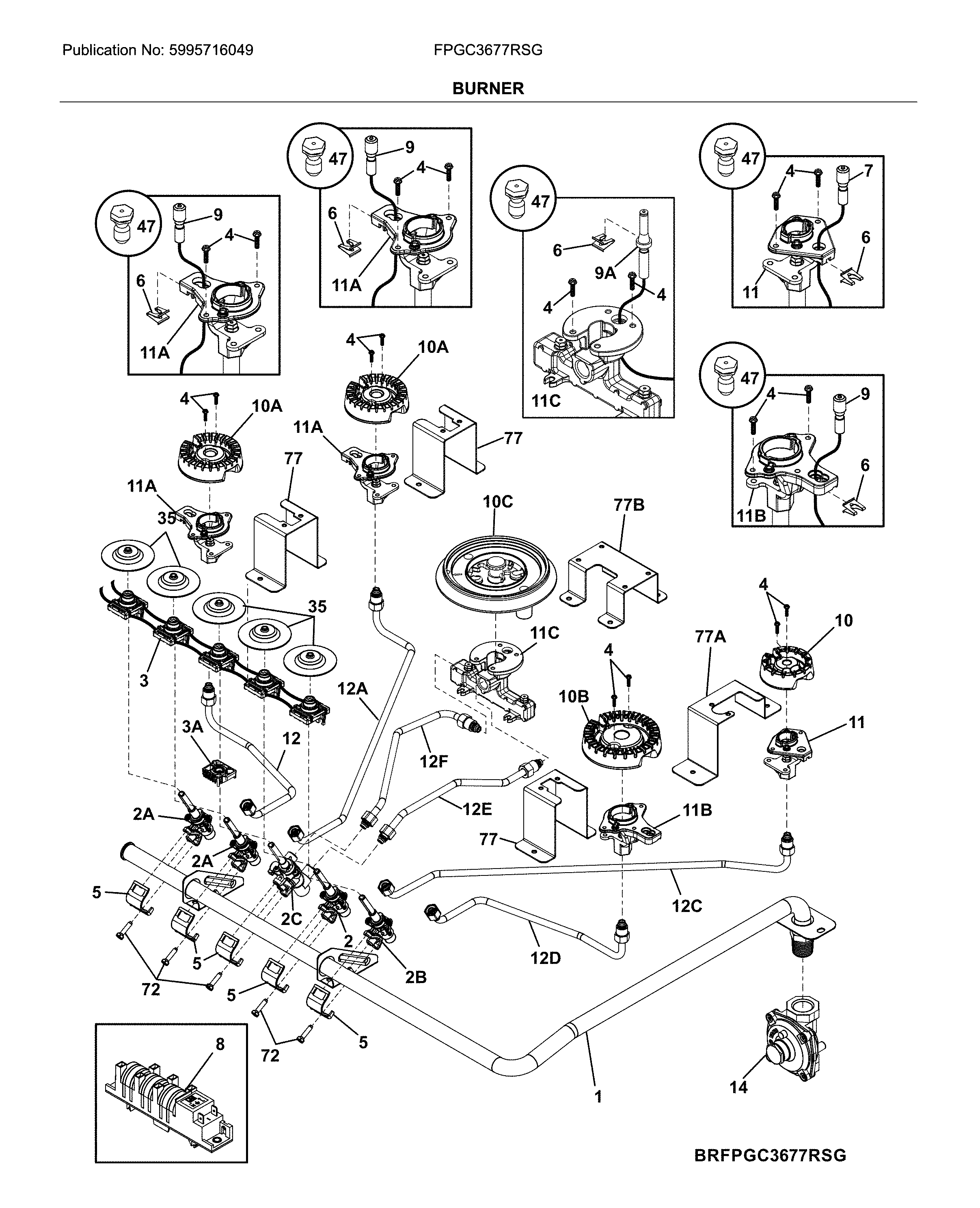

Burners diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Kenmore Pro Range Surface Burner Cap, 9,500-btu (black) (replaces 316261804) 5304508442
#22A

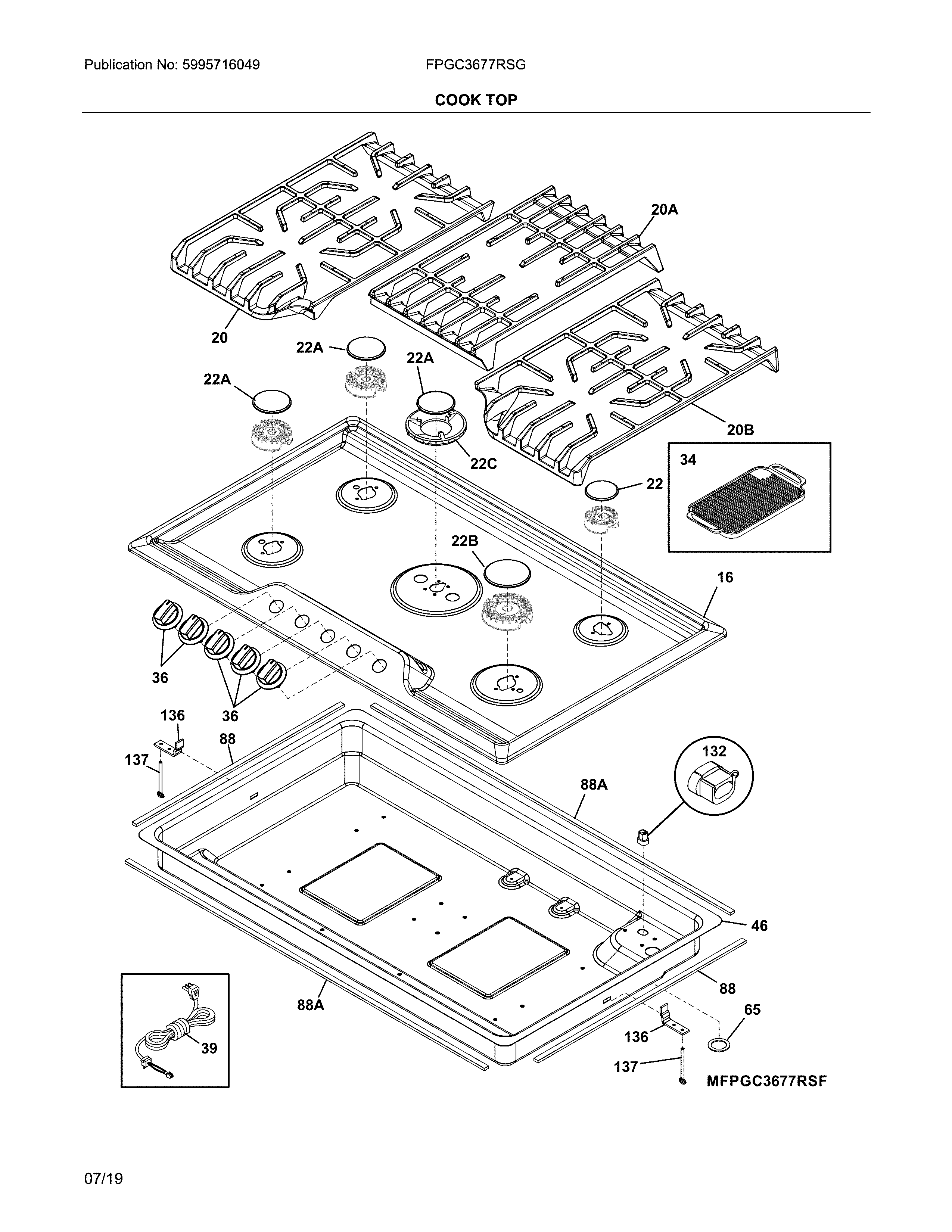

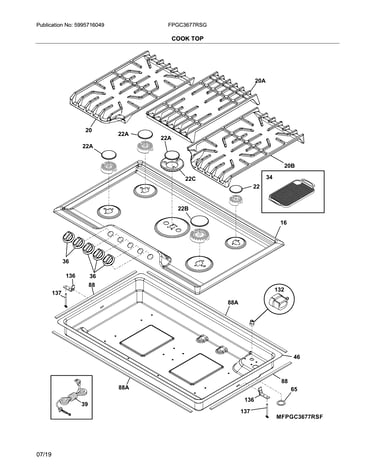

Cook top diagram

Kenmore pro range surface burner cap, 9,500-btu (black) (replaces 316261804)

Part #5304508442

BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Kenmore Pro Cooktop Burner Cap, 5,000-btu (black) (replaces 316261704) 5304508441
#22

Cook top diagram

Kenmore pro cooktop burner cap, 5,000-btu (black) (replaces 316261704)

Part #5304508441

BEST SELLER
This item is not returnable
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Cooktop Blue Stem Burner Valve, 1,125-btu 5304505691
#2B

Burners diagram

Cooktop blue stem burner valve, 1,125-btu

Part #5304505691

$52.49 |
10% OFF Phone Price : $58.49
In Stock
Range Surface Burner Valve, 680-btu (orange) 5304505693
#2

Burners diagram

Range surface burner valve, 680-btu (orange)

Part #5304505693

$53.24 |
10% OFF Phone Price : $59.24
In Stock
Igniter 5304516453
#7

Burners diagram

Igniter

Part #5304516453

This item is not returnable
$16.09
In Stock
Cooktop Screw 305452400
#137

Cook top diagram

Cooktop screw

Part #305452400

This item is not returnable
$11.89
In Stock
Ikea Range Griddle (replaces 316428000, 316526200, 318246100, 318251609, 7316432200) 5304495353
#34

Cook top diagram

Ikea range griddle (replaces 316428000, 316526200, 318246100, 318251609, 7316432200)

Part #5304495353

$165.47 |
7% OFF Phone Price : $177.47
In Stock
Sleeve 316566901
#11C

Burners diagram

Sleeve

Part #316566901

$11.89
In Stock
Gasket 5304521662
#88

Cook top diagram

Gasket

Part #5304521662

$18.31
In Stock
