Kenmore
Sewing Machine

Model # 268VX-810 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 268VX-810 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

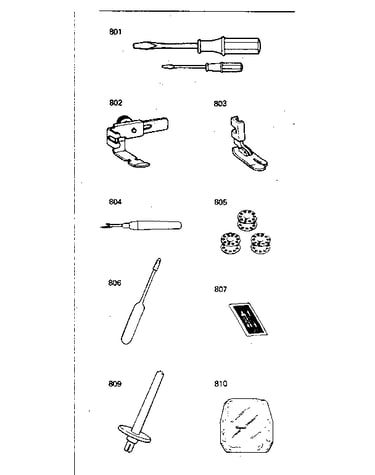

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 294 parts  |
Lead Wire X00232001
#309

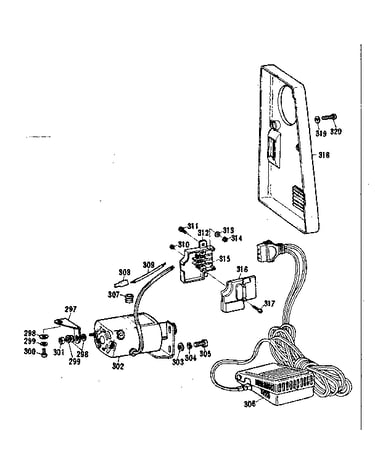

Motor and foot control diagram

Lead wire

Part #X00232001

The manufacturer no longer makes this part, and there's no substitute part

Screw 151604001
Screw

Part #151604001

The manufacturer no longer makes this part, and there's no substitute part

Washer 188440001
#127

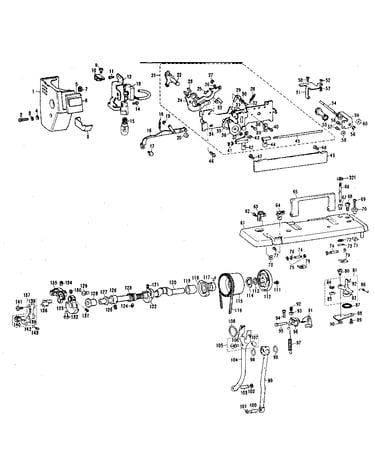

Unit parts diagram

Washer

Part #188440001

The manufacturer no longer makes this part, and there's no substitute part

Spring 128476001
#208

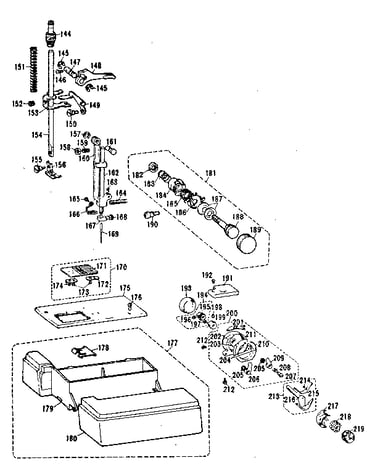

Thread tension and shuttle assembly diagram

Spring

Part #128476001

The manufacturer no longer makes this part, and there's no substitute part

Hanger Assembly 181779001
#247

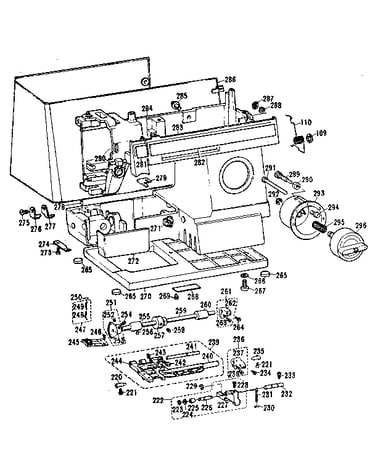

Feed regulator assembly diagram

Hanger assembly

Part #181779001

The manufacturer no longer makes this part, and there's no substitute part

Rod Assembly 128461001
#99

Unit parts diagram

Rod assembly

Part #128461001

The manufacturer no longer makes this part, and there's no substitute part

Screw 002681212
#94

Unit parts diagram

Screw

Part #002681212

The manufacturer no longer makes this part, and there's no substitute part

Washer 100041002
#114

Unit parts diagram

Washer

Part #100041002

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Screw 151602001
#252

Feed regulator assembly diagram

Sewing machine screw

Part #151602001

The manufacturer no longer makes this part, and there's no substitute part

Bushing 131188000
#128

Unit parts diagram

Bushing

Part #131188000

The manufacturer no longer makes this part, and there's no substitute part
