Model # TBT18TABJRWW Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE TBT18TABJRWW refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Refrigerator Filter Dryer WR86X96
#740

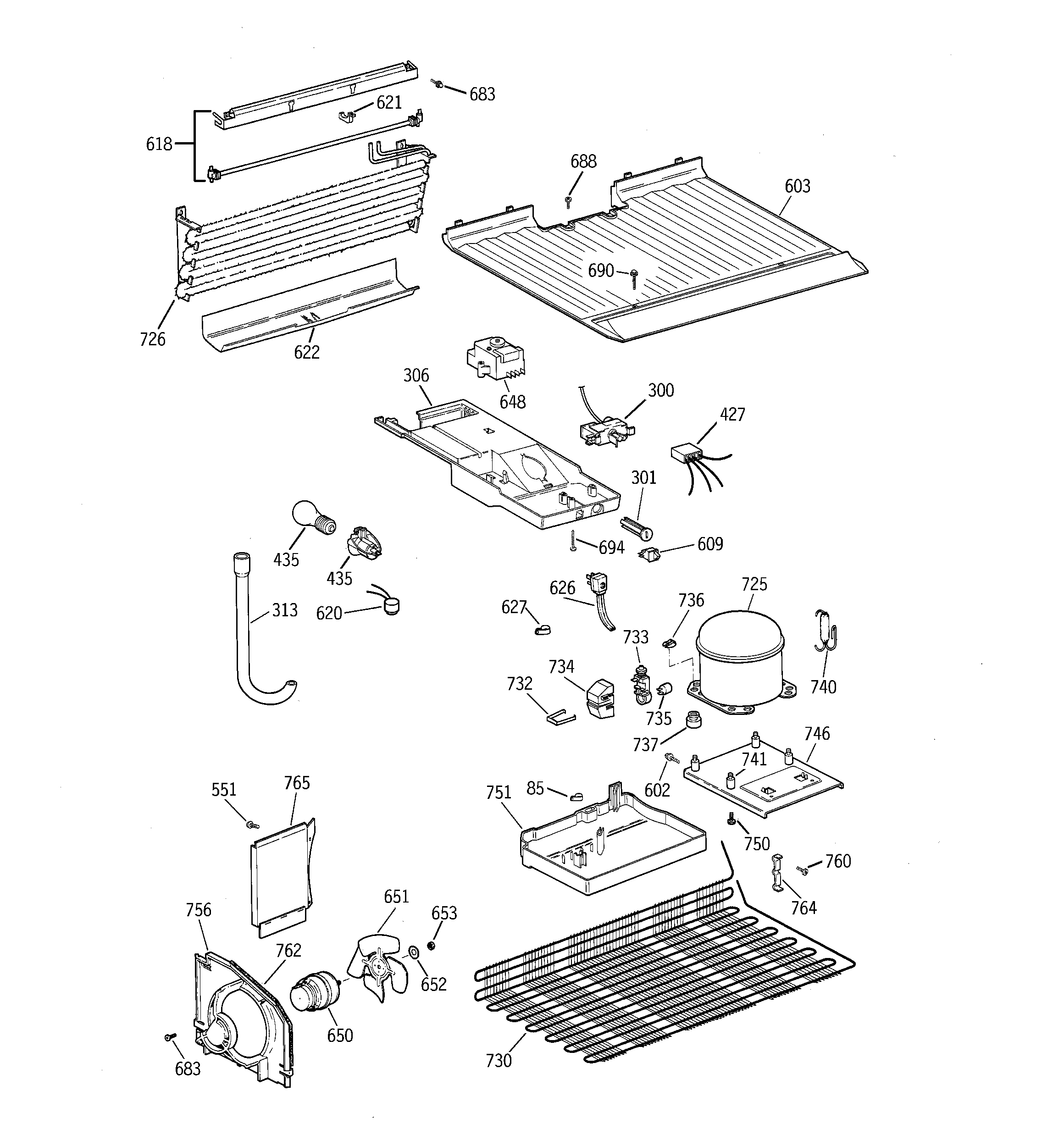

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

Unit parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Fan Motor WR60X0187
#650

Unit parts diagram

Fan motor

Part #WR60X0187

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X0187. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Refrigerator Dairy Door WR22X0503
#106

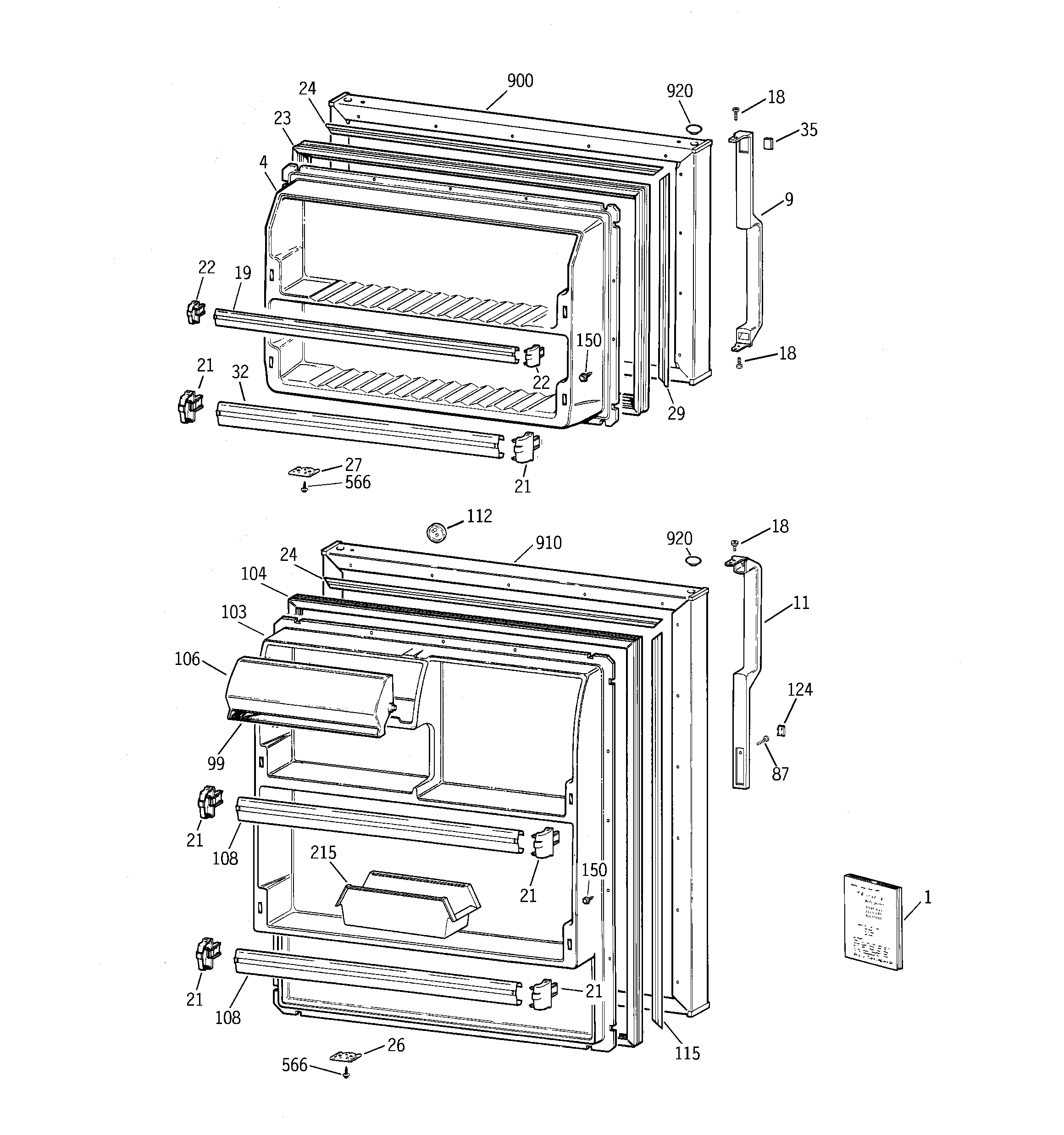

Doors diagram

Refrigerator dairy door

Part #WR22X0503

Replaced by #WR22X10068

?
Manufacturer substitution
This part replaces WR22X0503. Substitute parts can look different from the original.
This item is not returnable
$13.84 |
13% OFF Phone Price : $15.84
In Stock
Ring/fan Bld WR02X3198
#613

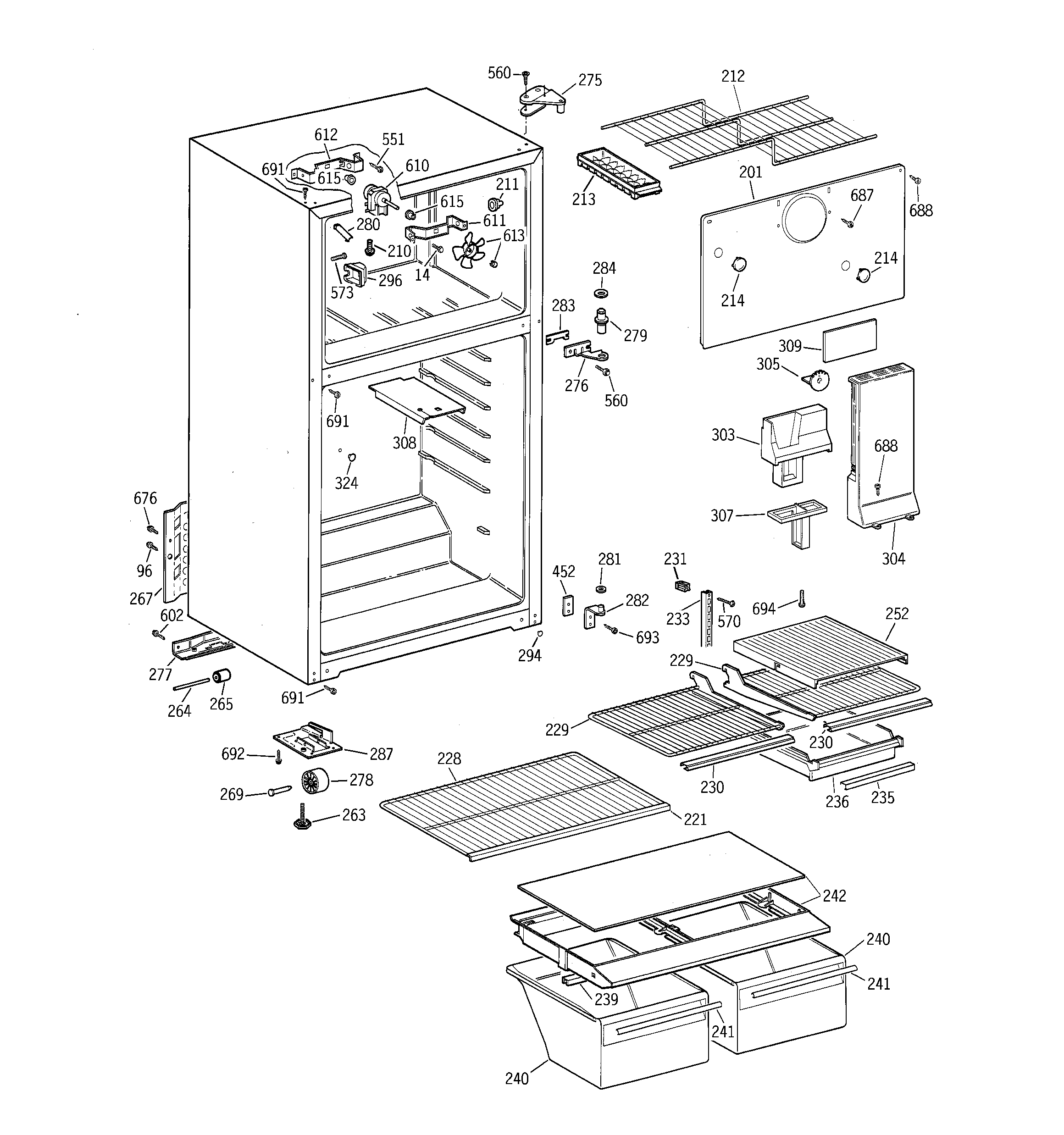

Cabinet diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Blade WR60X0247
#613

Cabinet diagram

Refrigerator fan blade

Part #WR60X0247

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR60X0247. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Vegetable Twin Pan WR32X1449
#240

Cabinet diagram

Vegetable twin pan

Part #WR32X1449

Replaced by #WR32X10340

?
Manufacturer substitution
This part replaces WR32X1449. Substitute parts can look different from the original.
$55.66 |
10% OFF Phone Price : $61.66
In Stock
Refrigerator Door Shelf WR17X3985
#108

Doors diagram

Refrigerator door shelf

Part #WR17X3985

Replaced by #WR17X3880

?
Manufacturer substitution
This part replaces WR17X3985. Substitute parts can look different from the original.
$29.73 |
17% OFF Phone Price : $35.73
In Stock
Refrigerator Heater Bracket WR51X10019
#618

Unit parts diagram

Refrigerator heater bracket

Part #WR51X10019

Replaced by #WR51X444

?
Manufacturer substitution
This part replaces WR51X10019. Substitute parts can look different from the original.
$45.81 |
12% OFF Phone Price : $51.81
In Stock
Refrigerator Screw WR01X1728
#566

Doors diagram

Refrigerator screw

Part #WR01X1728

Replaced by #WR01X10590

?
Manufacturer substitution
This part replaces WR01X1728. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
