Model # SCS02 Official RotoZip rotary tool

Here are the diagrams and repair parts for Official RotoZip SCS02 rotary tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Knob SC708
#12

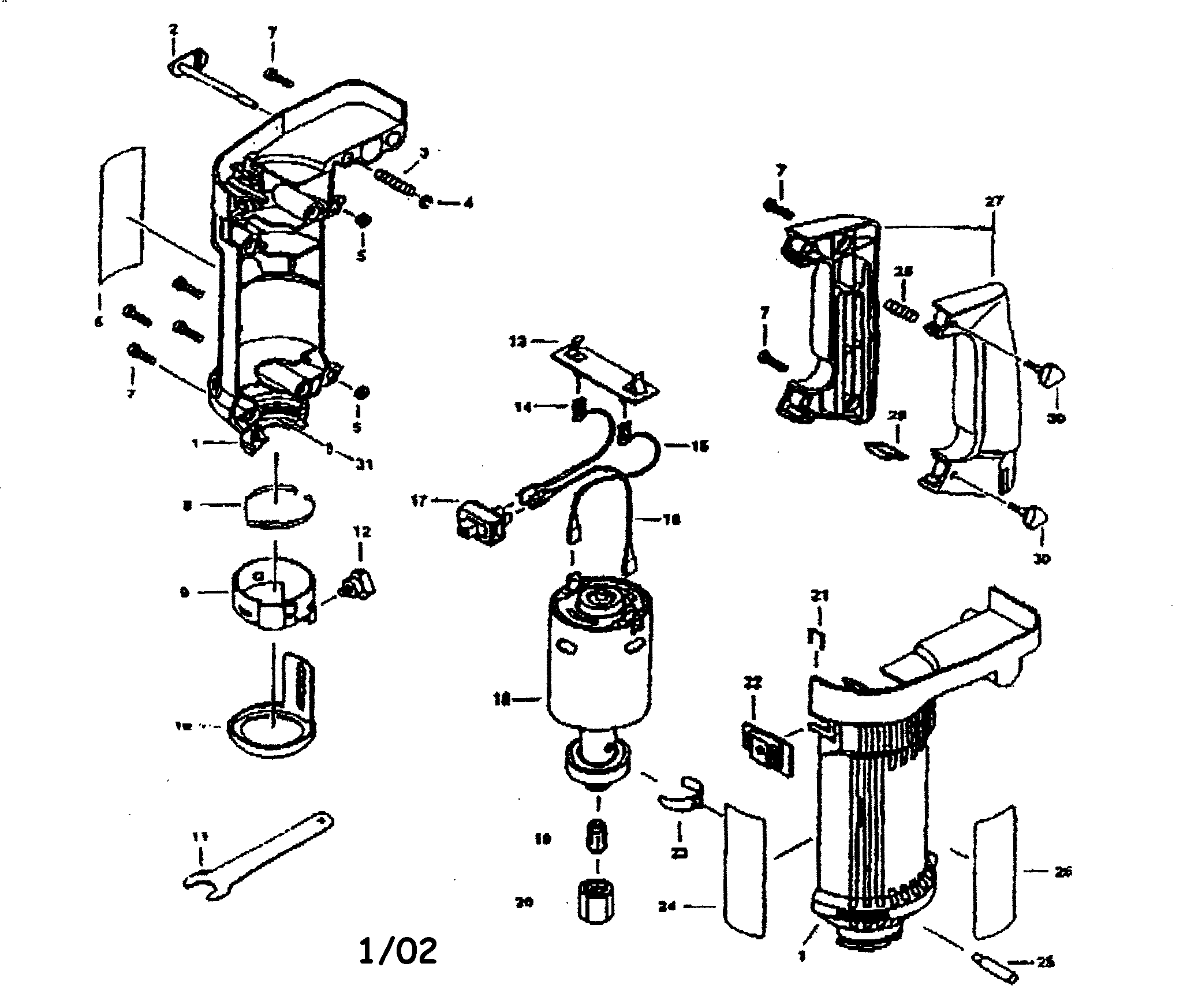

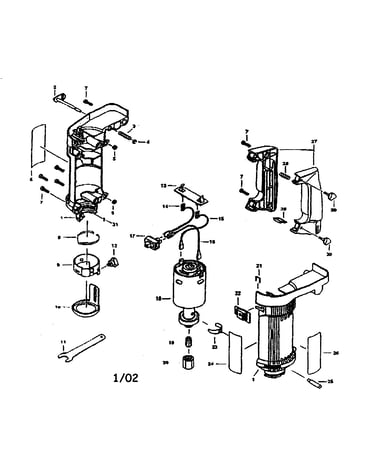

Housing diagram

Knob

Part #SC708

The manufacturer no longer makes this part, and there's no substitute part

Rubber Pin SC733
#31

Housing diagram

Rubber pin

Part #SC733

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut SC701
#20

Housing diagram

Collet nut

Part #SC701

The manufacturer no longer makes this part, and there's no substitute part

Switch 100122
#17

Housing diagram

Switch

Part #100122

The manufacturer no longer makes this part, and there's no substitute part

Screw RTM710
#7

Housing diagram

Screw

Part #RTM710

The manufacturer no longer makes this part, and there's no substitute part

Nut SC740
#5

Housing diagram

Nut

Part #SC740

The manufacturer no longer makes this part, and there's no substitute part

Handle SC738
#27

Housing diagram

Handle

Part #SC738

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly 100117
#2

Housing diagram

Door assembly

Part #100117

The manufacturer no longer makes this part, and there's no substitute part

Shaft Lock Pin 100121
#25

Housing diagram

Shaft lock pin

Part #100121

The manufacturer no longer makes this part, and there's no substitute part

Wire-switch To Battery 100124
#14

Housing diagram

Wire-switch to battery

Part #100124

The manufacturer no longer makes this part, and there's no substitute part
