Model # W26FA2 Official Magic Chef washer/dryer

Here are the diagrams and repair parts for Official Magic Chef W26FA2 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

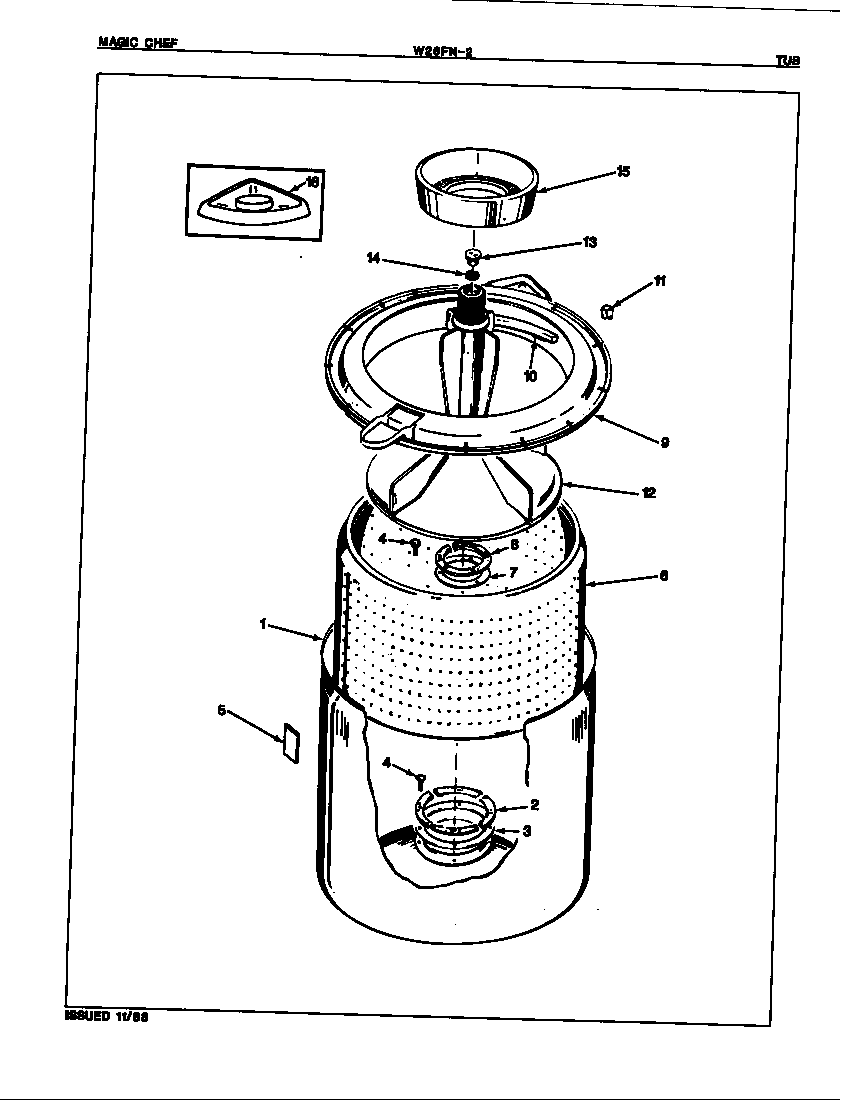

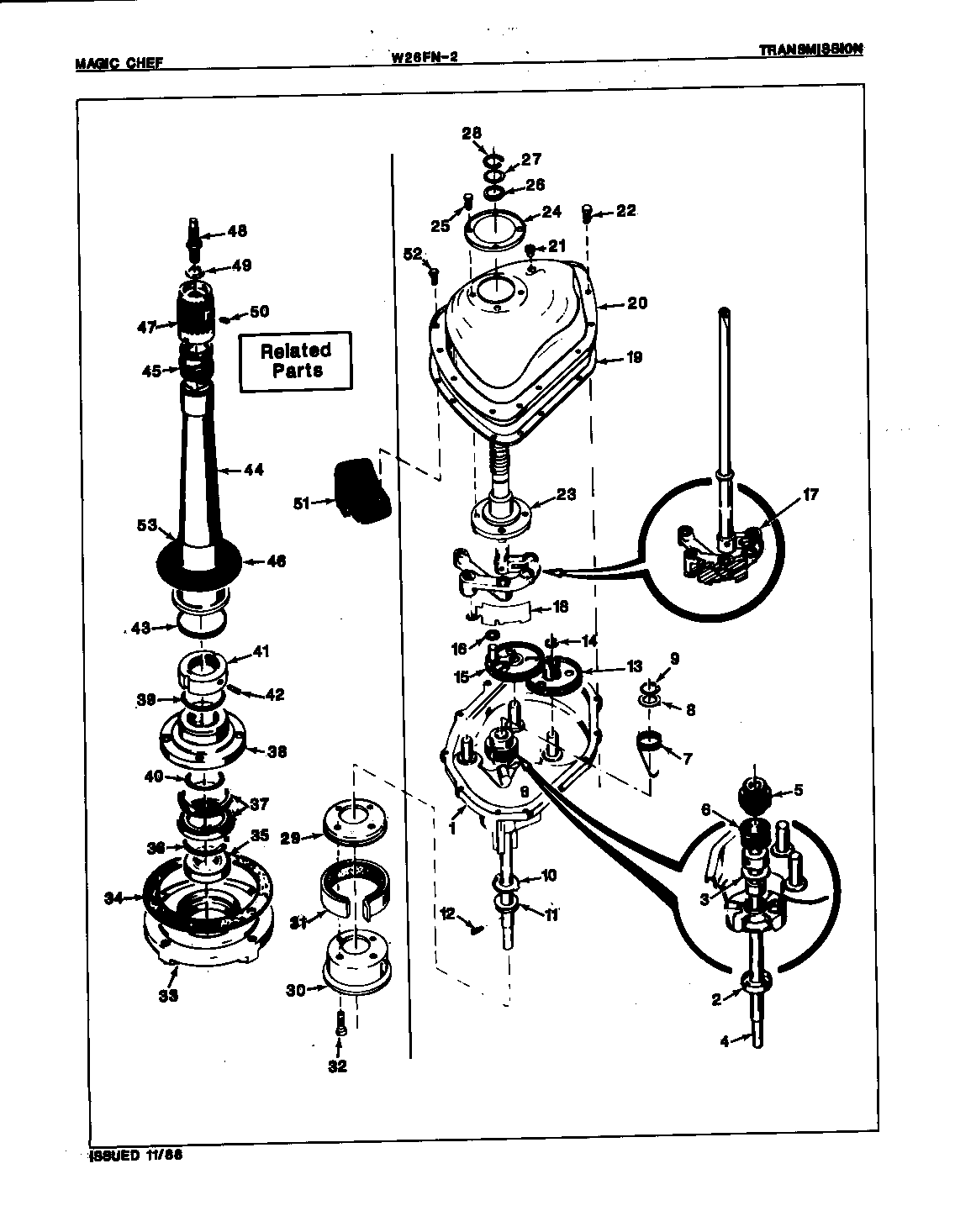

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 210 parts  |
Hose Clamp 25-7867
#29

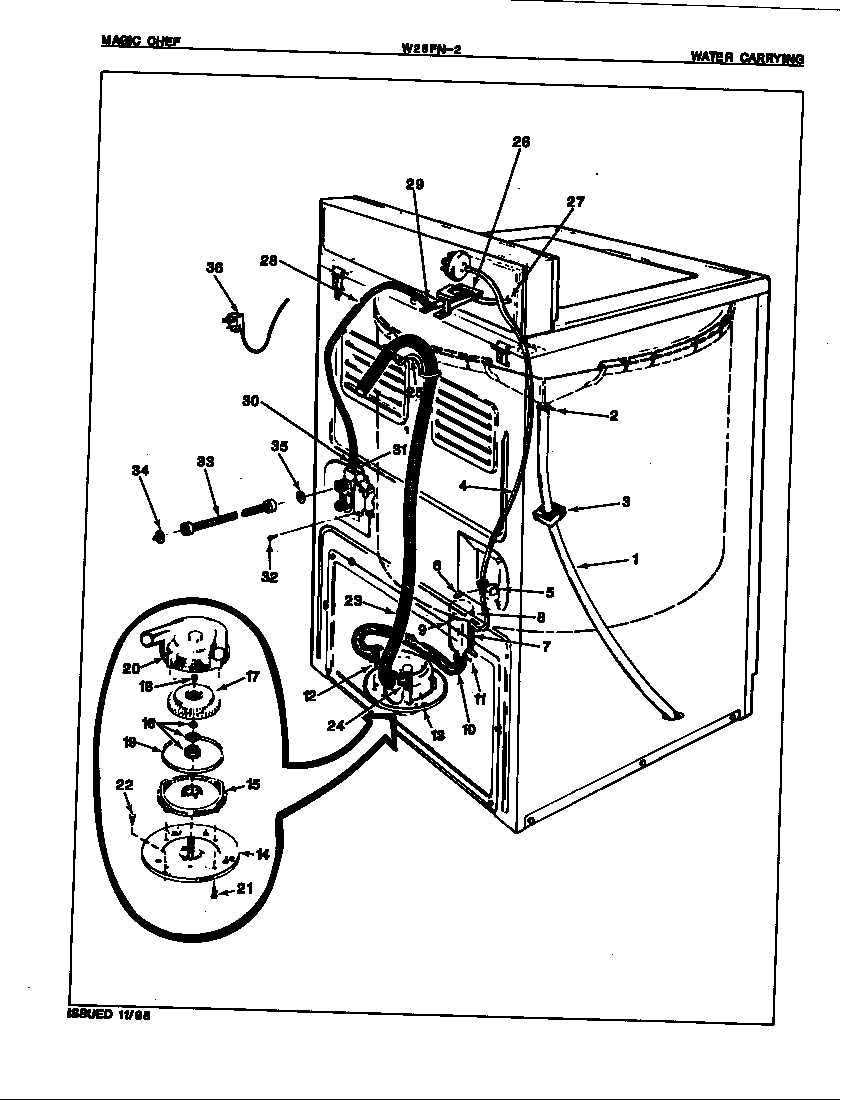

Water carrying (rev. a) diagram

Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp, Pressure Switch Hose 25-7796
#4A

Water carrying (rev. a) diagram

Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 25-7752
#40A

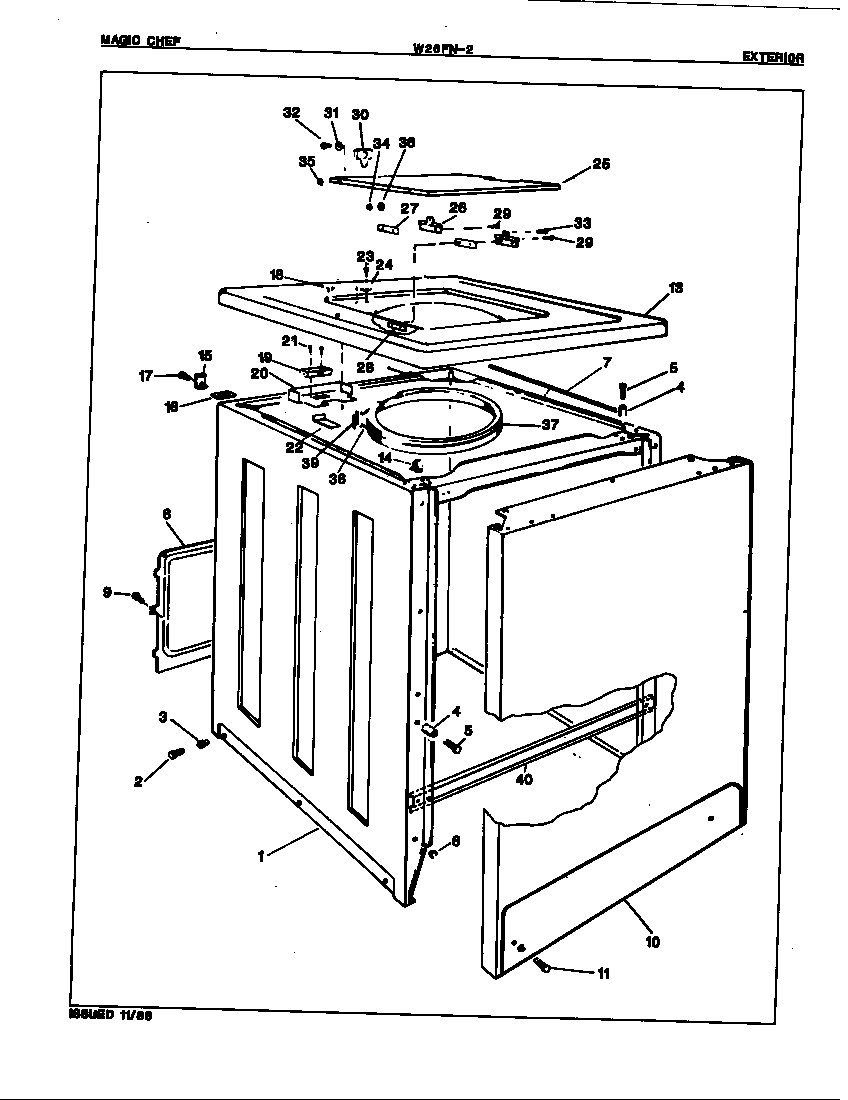

Exterior (rev. a) diagram

Screw

Part #25-7752

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 25-7752. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Switch 33-9063
#22

Exterior (rev. a) diagram

Door switch

Part #33-9063

Replaced by #12001187

?
Manufacturer substitution
This part replaces 33-9063. Substitute parts can look different from the original.
$67.22 |
8% OFF Phone Price : $73.22
In Stock
Door Switch 33-9064
#19

Exterior (rev. a) diagram

Door switch

Part #33-9064

Replaced by #12001187

?
Manufacturer substitution
This part replaces 33-9064. Substitute parts can look different from the original.
$67.22 |
8% OFF Phone Price : $73.22
In Stock
Bracket 33-8289
#20

Exterior (rev. a) diagram

Bracket

Part #33-8289

Replaced by #12001187

?
Manufacturer substitution
This part replaces 33-8289. Substitute parts can look different from the original.
$67.22 |
8% OFF Phone Price : $73.22
In Stock
Isolator Motor 33-9941
#24

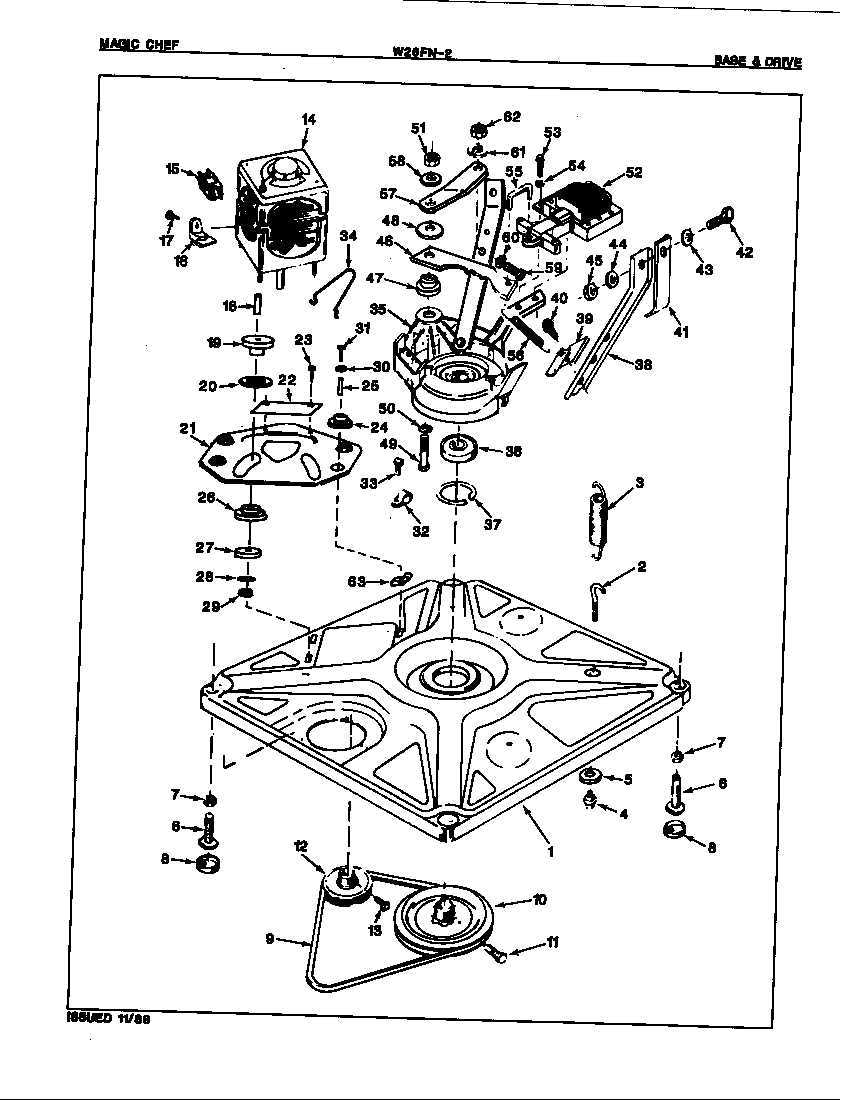

Base & drive (rev. a) diagram

Isolator motor

Part #33-9941

Replaced by #WP35-3646

?
Manufacturer substitution
This part replaces 33-9941. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Washer Motor Isolator 33-9967
#27

Base & drive (rev. a) diagram

Washer motor isolator

Part #33-9967

Replaced by #WP33-9967

?
Manufacturer substitution
This part replaces 33-9967. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Washer Motor Isolator 33-9946
#19

Base & drive (rev. a) diagram

Washer motor isolator

Part #33-9946

Replaced by #WP33-9946

?
Manufacturer substitution
This part replaces 33-9946. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Switch Screw 25-3092
Switch screw

Part #25-3092

This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
