Model # 36349194992
Electric Line Trimmer

Model # 315783530 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 315783530 line trimmer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315783530 Line Trimmers

  • Eyelet 180373
    #19

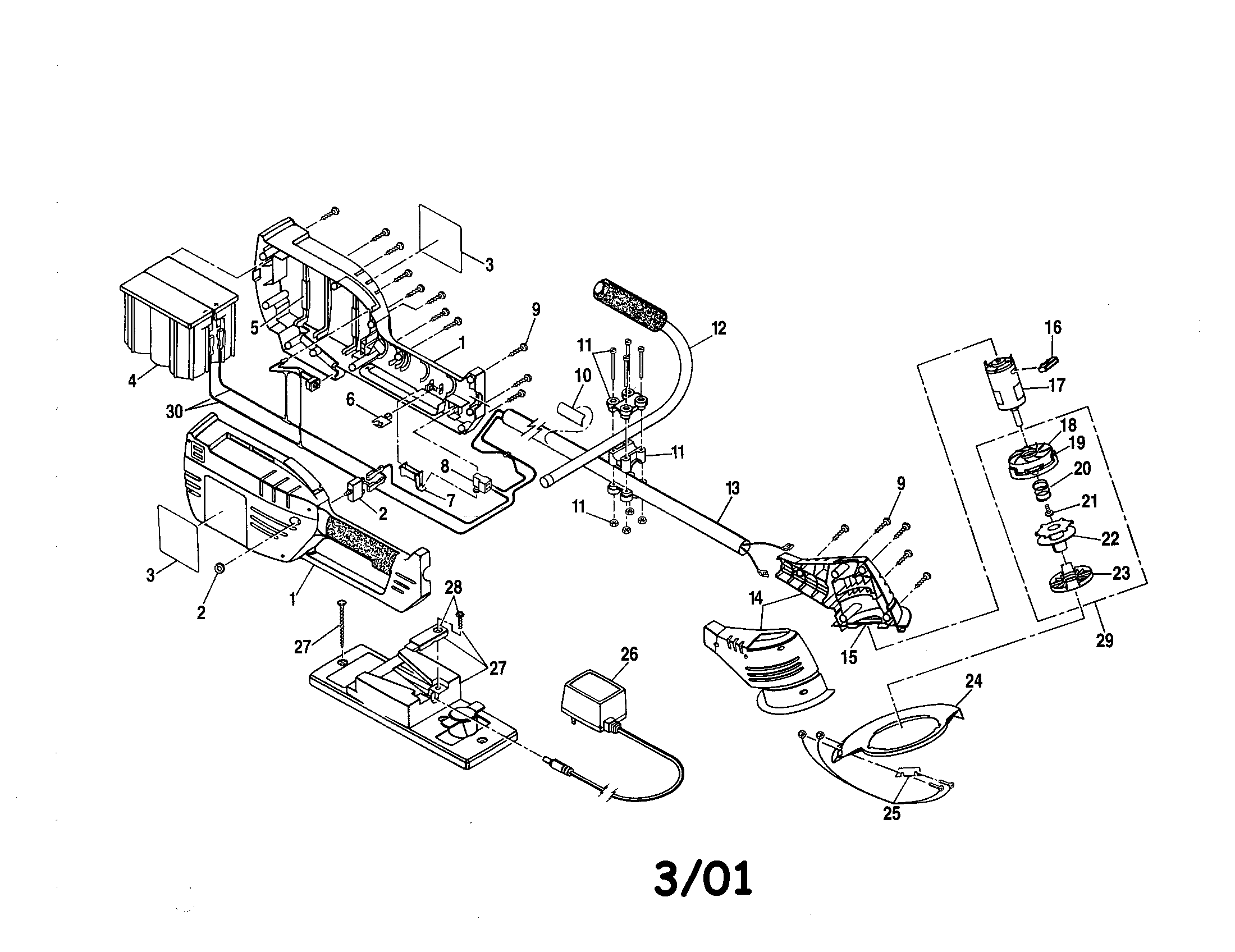

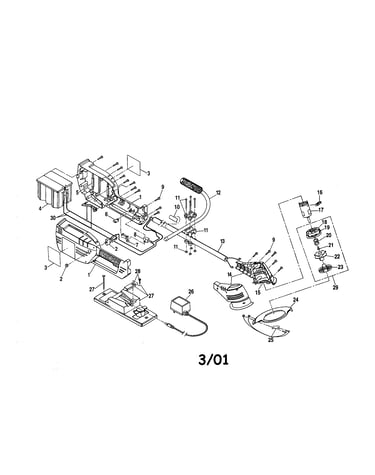

    12 volt cordless weedwacker diagram

    Eyelet

    Part #180373

    The manufacturer no longer makes this part, and there's no substitute part

  • Charger 180894
    #26

    12 volt cordless weedwacker diagram

    Charger

    Part #180894

    The manufacturer no longer makes this part, and there's no substitute part

  • Reel Cover 180376
    #23

    12 volt cordless weedwacker diagram

    Reel cover

    Part #180376

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor 180371
    #17

    12 volt cordless weedwacker diagram

    Motor

    Part #180371

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring 180374
    #20

    12 volt cordless weedwacker diagram

    Spring

    Part #180374

    The manufacturer no longer makes this part, and there's no substitute part

  • Inner Reel With 0.065 Inch Line (20 Ft) 160292
    #22

    12 volt cordless weedwacker diagram

    Inner reel with 0.065 inch line (20 ft)

    Part #160292

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch 180364
    #6

    12 volt cordless weedwacker diagram

    Switch

    Part #180364

    The manufacturer no longer makes this part, and there's no substitute part

  • Statn Assemb 180895
    #27

    12 volt cordless weedwacker diagram

    Statn assemb

    Part #180895

    The manufacturer no longer makes this part, and there's no substitute part

  • Battery 180361
    #4

    12 volt cordless weedwacker diagram

    Battery

    Part #180361

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 180375
    #21

    12 volt cordless weedwacker diagram

    Screw

    Part #180375

    The manufacturer no longer makes this part, and there's no substitute part
