Model # 702206110 Official Sears single control lavatory faucet

Here are the diagrams and repair parts for Official Sears 702206110 single control lavatory faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 34 parts |

Aerator V3101

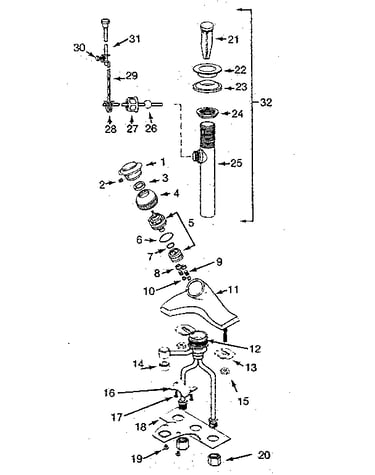

Unit parts diagram

Aerator

Part #V3101

The manufacturer no longer makes this part, and there's no substitute part

Seat Spring V7695

Unit parts diagram

Seat spring

Part #V7695

The manufacturer no longer makes this part, and there's no substitute part

Inlet Seal V7700

Unit parts diagram

Inlet seal

Part #V7700

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit V2193

#NI

All parts diagram

Repair kit

Part #V2193

The manufacturer no longer makes this part, and there's no substitute part

Nut V3283

Unit parts diagram

Nut

Part #V3283

The manufacturer no longer makes this part, and there's no substitute part

Flange V3281

Unit parts diagram

Flange

Part #V3281

The manufacturer no longer makes this part, and there's no substitute part

O-ring V1159

Unit parts diagram

O-ring

Part #V1159

The manufacturer no longer makes this part, and there's no substitute part

Stopper V3280

Unit parts diagram

Stopper

Part #V3280

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Ring V7760

Unit parts diagram

Adjustment ring

Part #V7760

The manufacturer no longer makes this part, and there's no substitute part

Washer V3307

Unit parts diagram

Washer

Part #V3307

The manufacturer no longer makes this part, and there's no substitute part
